25-ton TAG25XL, Tag-Along Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
TAG25XL
Feature Photo Description
The ROGERS® TAG25XL 25-ton tag-along trailer is built strong to provide years of reliable service. It features a spacious platform deck that is 8'-6" wide by 22'-0" long, an 8° incline beavertail and 72" long "E-Z Flip" ramps for safe and easy loading and an 80" long drawbar for better weight distribution and superior handling.
Internal Code
TAG25-28/102/3XSP
Code
413-002
Name
TAG25XL
Model Series
Tag-Along Trailers
Trailer Type
Tag-Along
Trailer Use
Rear Loading: Tag-Along
Tons
25
Capacity
25.0-ton (22.7-tonnes)
Deck Style
Platform
Deck Length
22'-0" (6.7-meter)
Deck Height LD
34" (0.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
50,000-pounds (22,680 kilograms)
Load Con Length
14'-0" (4.3-meter)
Axles
3 axles
Suspension
67,200 lb. capacity tri-axle heavy-duty multi-leaf 6-spring
Axle Type
22,500 lbs. capacity with oil-bathed bearings
Tires
215/75R17.5(H) low-profile tubeless radial
Wheels
17.5 x 6.75 8-hole steel disc
Brakes
12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Flat platform deck
  • Full 1-3/4" air-dried oak decking
  • Drawbar with 4-position adjustable pintle eye
  • Heavy-duty two-speed landing gear
  • Drawbar toolbox with steel lid, behind landing gear
  • Total (12) standard lashing D's; (6) per side
  • Tread plate wheel covers
  • Oak-covered 8º sloped beavertail
  • Oak-covered "E–Z Flip" rear ramps, dual spring-assisted and laterally adjusted
  • Steel disc wheels
  • LED lights: US DOT-approved 12-volt with rubber-mounted sealed wiring and 7-wire socket
  • Remote air tank drain
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Double landing gear package
  • Spare tire carrier
  • Additional lashing D's
  • Ladder style, self-cleaning rear sloped beavertail
  • Ladder style "E–Z Flip" rear ramps
  • Hydraulic rear ramps
  • Center 3rd ramp
  • Ramp wedge extensions
  • Aluminum disc wheels
  • Mechanical backup warning alarm
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets

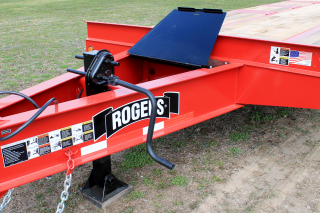

A large toolbox with lockable steel lid located in the drawbar provides ample storage for chains, binders, tools, etc. The heavy-duty two-speed landing leg has a lift capacity of 50,000 lbs. and a static capacity of 70,000 lbs.
The pintle eye is adjustable to six positions using common tools. The 80 inch long drawbar provides enhanced weight distribution and superior handling.

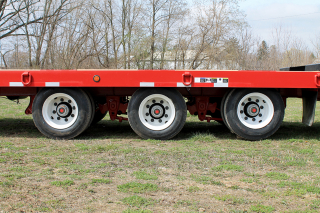

Heavy-duty spring suspension provides a smooth and stable ride. ROGERS tag-along trailers are equipped with premium 4S/2M Antilock brake systems.

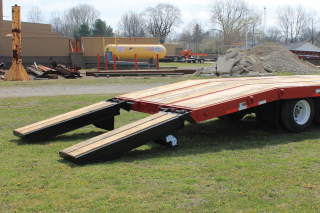

The beavertail angle of 8 degrees provides safe and easy loading of machinery. ROGERS E-Z Flip ramps have springs installed to assist lifting the ramps off the trailer deck as well as off the ground.
The E-Z Flip ramps are laterally adjustable for greater versatility.

Request a Quote for 25-ton TAG25XL, Tag-Along Trailer, Model Code 413-002
