Trailer Models

35-ton TVT35, TVT Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
TVT35
Feature Photo Description
TVT35 is a 35-ton fixed gooseneck which is economical and dependable, easy to load and safe to operate.
It’s the choice of companies that need a low deck, but with greater ground clearance than a "double drop" lowboy.
Internal Code
TVT35L86/48/20/102/2XSP
Code
437-003
Name
TVT35
Model Series
Fixed Gooseneck Trailers
Trailer Type
TVT
Trailer Use
Rear Loading: Fixed Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
Platform
Deck Length
20'-0" (6.1-meter)
Deck Height LD
35" (0.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
14'-0" (4.3-meter)
Axles
2 axles
Suspension
50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Axle Type
22,500 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Low-profile fixed gooseneck
  • Pin type landing legs
  • Storage area over the king pin
  • Full 2" air-dried oak decking
  • Total (12) bent lashing D’s
  • Trunnions between wheels
  • Oak-covered 14º sloped beavertail
  • Center rear frame smooth 1/4" cover plate
  • Dual spring-assisted "E–Z Flip" oak-covered rear loading ramps, laterally adjustable
  • LED lights: US DOT-approved rubber-mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Motor grader ramps
  • Gooseneck fenders
  • Spare tire carrier
  • Gooseneck toolbox with steel lid
  • Two-speed landing gear package
  • Additional bent lashing D’s
  • Total (16) swinging side brackets
  • Ladder style "E–Z Flip" rear ramps
  • Hydraulic rear ramps with power pack
  • Aluminum disc wheels
  • Mechanical backup warning alarm
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets

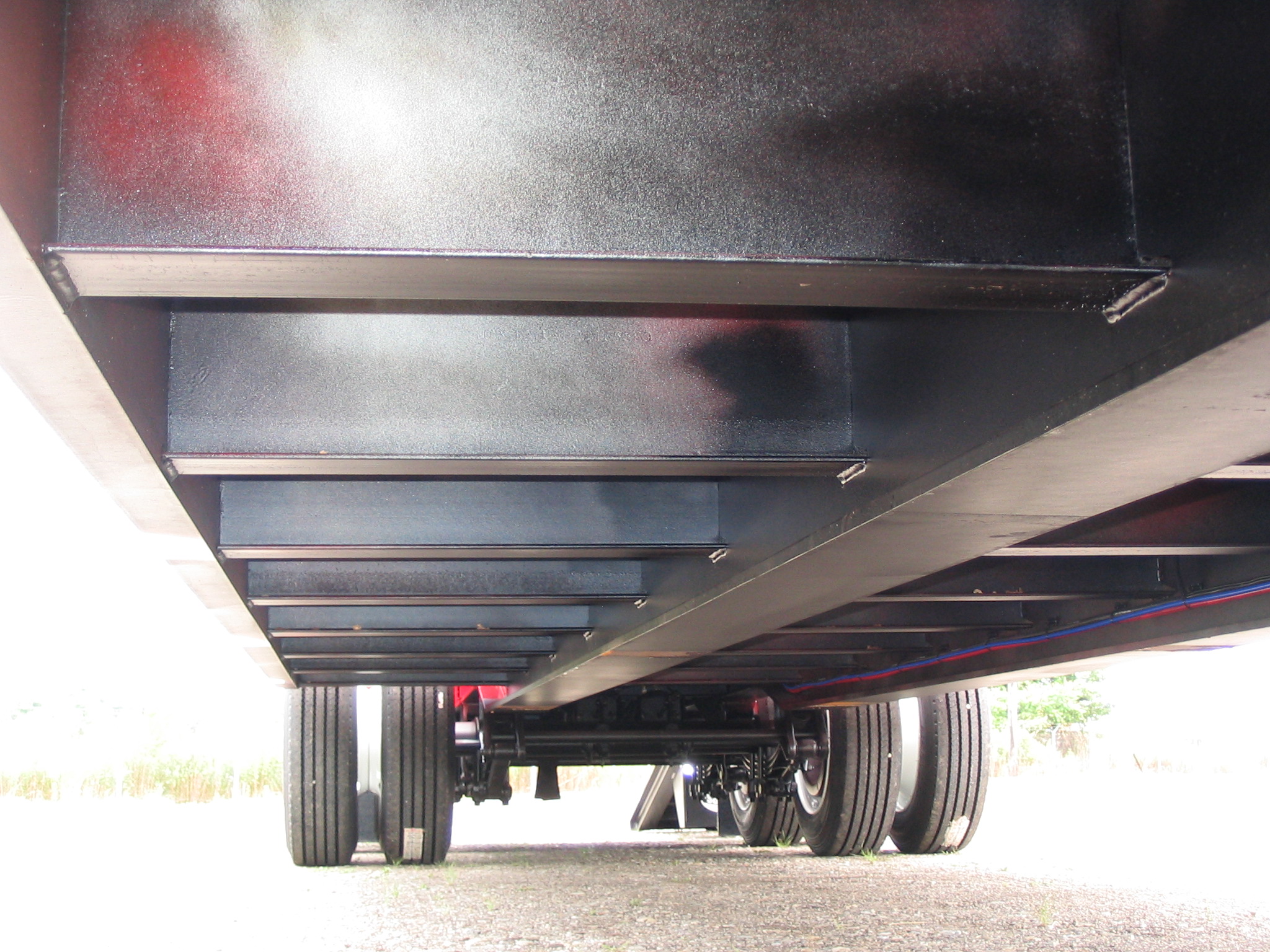

The strong frame is made of ten-inch deep high-strength cross members pierced through the main beams.

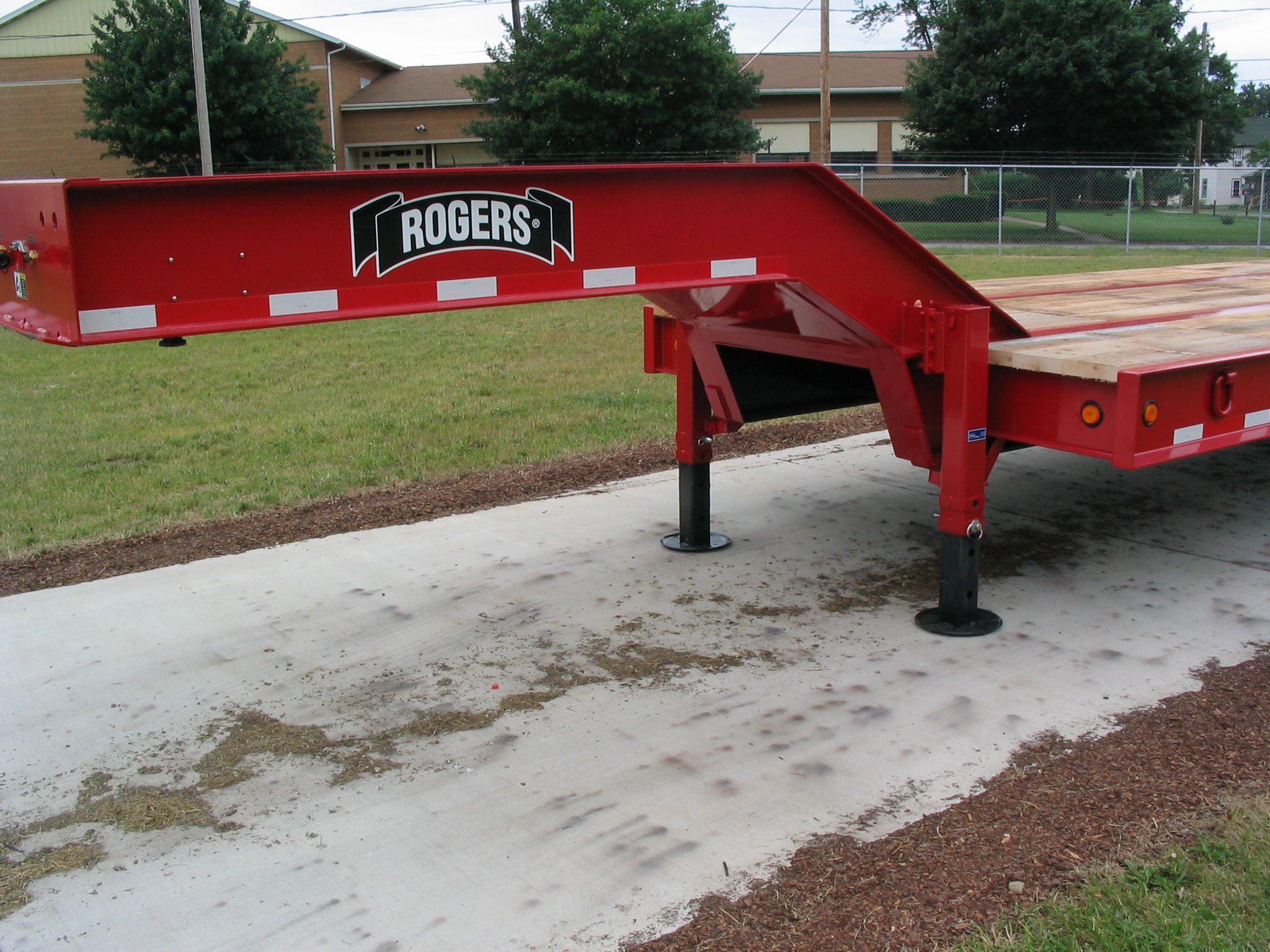

The pin type parking legs are easy to operate and have a static capacity of 40,000 lbs.

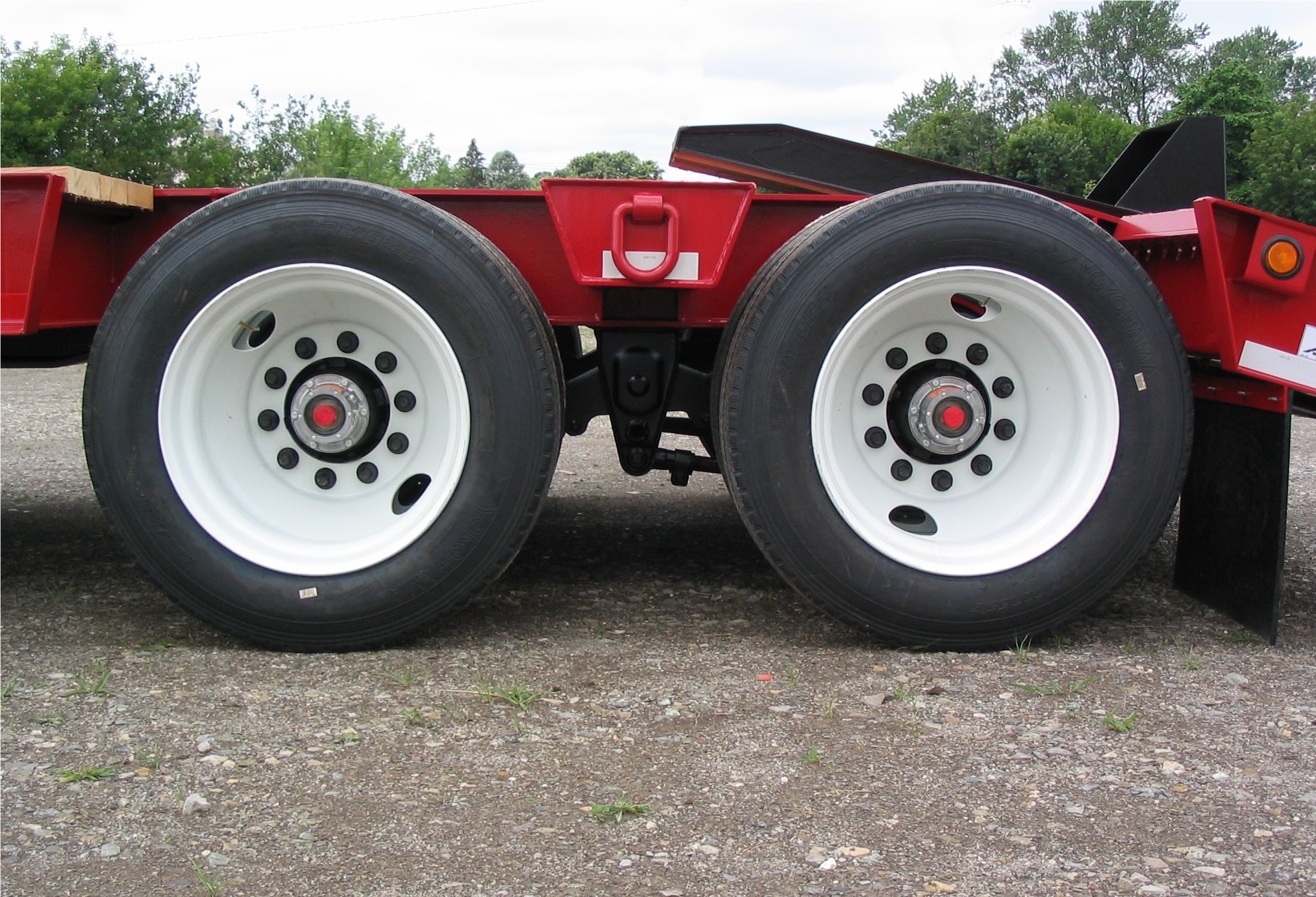

The multi-leaf four-spring suspension provides a smooth, stable ride, and ABS spring brakes give the best stopping control.

NOTE: ABS does NOT slow down a trailer faster; rather, ABS keeps the trailer straight when it stops, avoiding jack-knives.
The 14° beavertail has dual spring-assisted "E–Z Flip" 6'-0" ramps that are quick to laterally adjust for different widths.

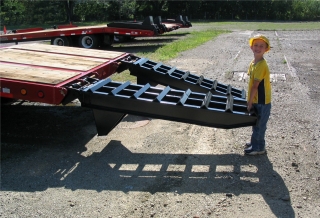

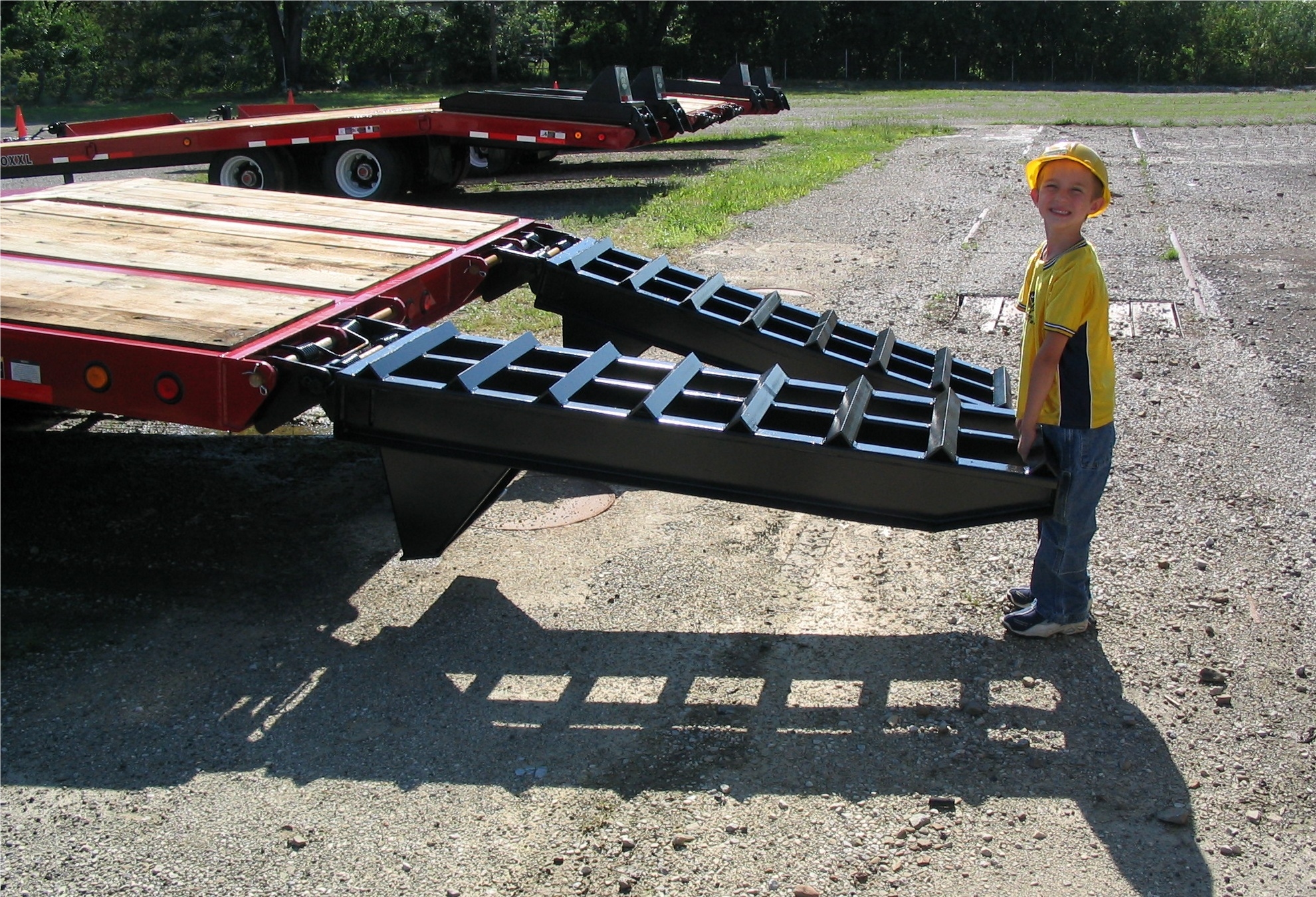

Pictured Option: Ladder style ramps

Request a Quote for 35-ton TVT35, TVT Trailer, Model Code 437-003
