60-ton SP60DS-3XSPR4, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP60DS-3XSPR4
Feature Photo Description

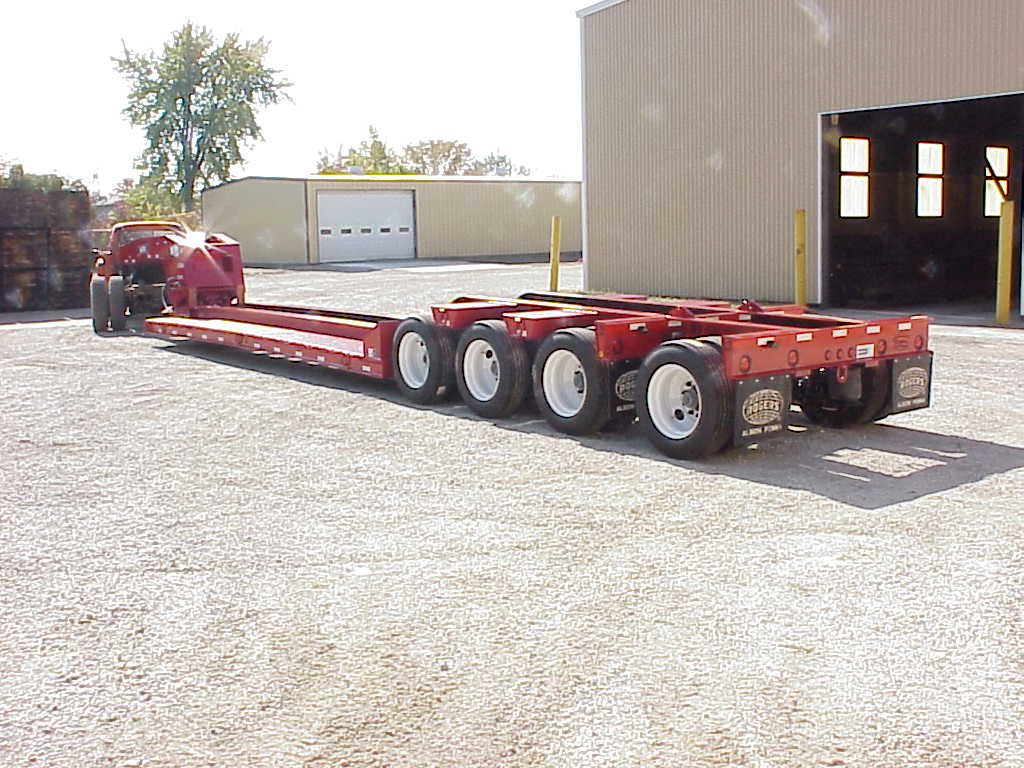

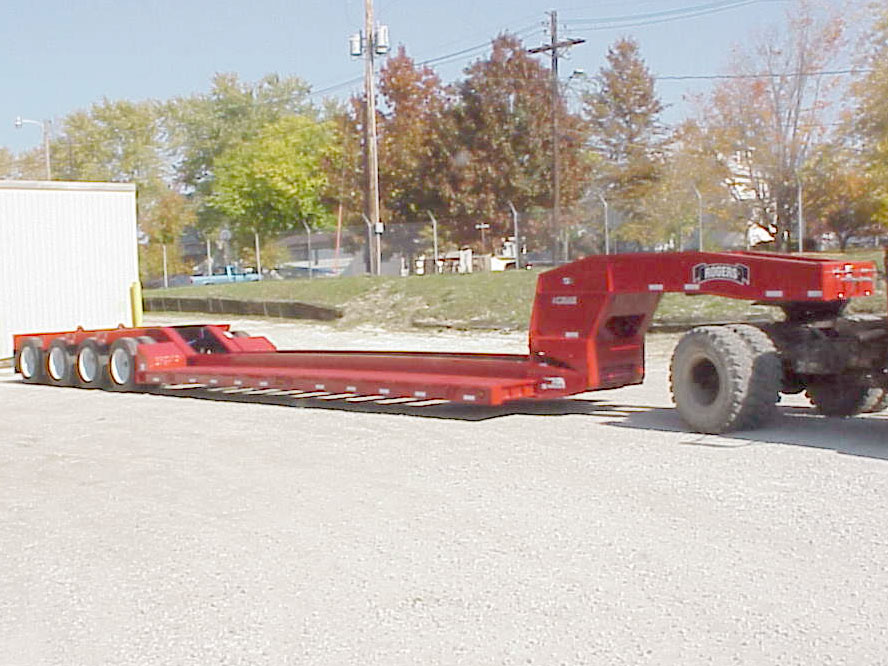

This specialized 60-ton trailer has a detachable gooseneck and features a drop side deck for equipment to ride at a lower overall height.
This is a 3+1 axle configuration: the 4th axle can be removed or flipped onto the rear frame.
Internal Code
SP60DS98/52/25/102/3XSPR4
Code
666-000
Name
SP60DS-3XSPR4
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
Drop Side
Deck Length
25'-0" (7.6-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3+1 axles
Suspension
75,000 lb. capacity tri-axle heavy-duty spring walking beam
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

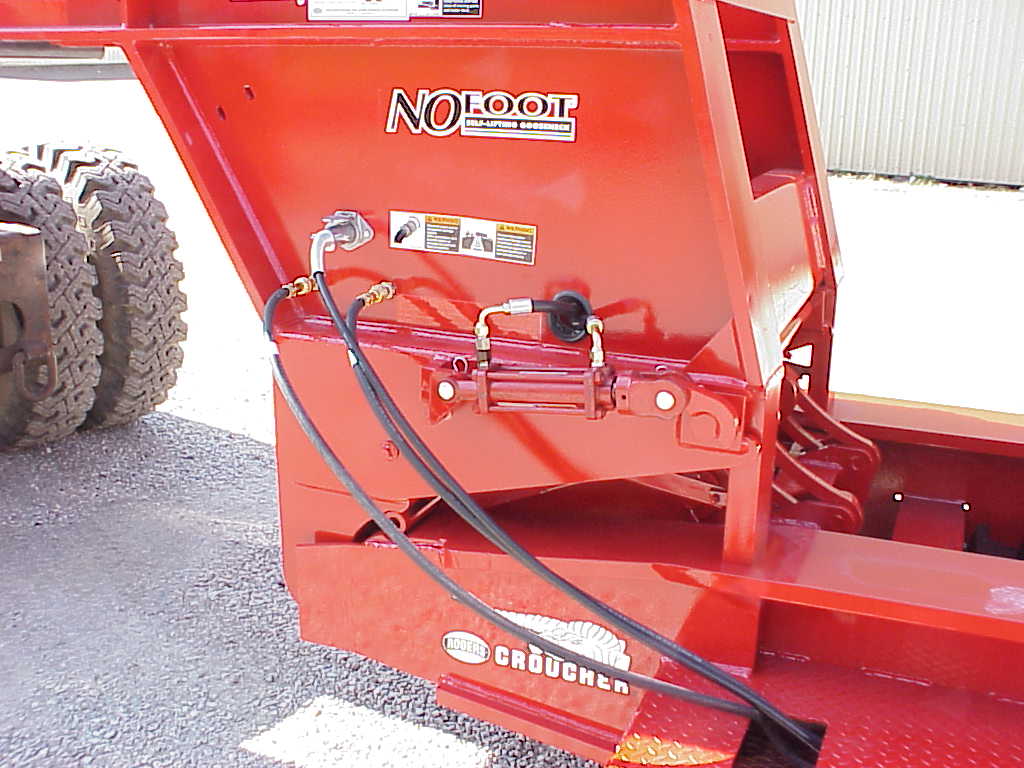

This "No Foot"® non-ground engaging gooseneck is equippped with hydraulic-operated trap doors.

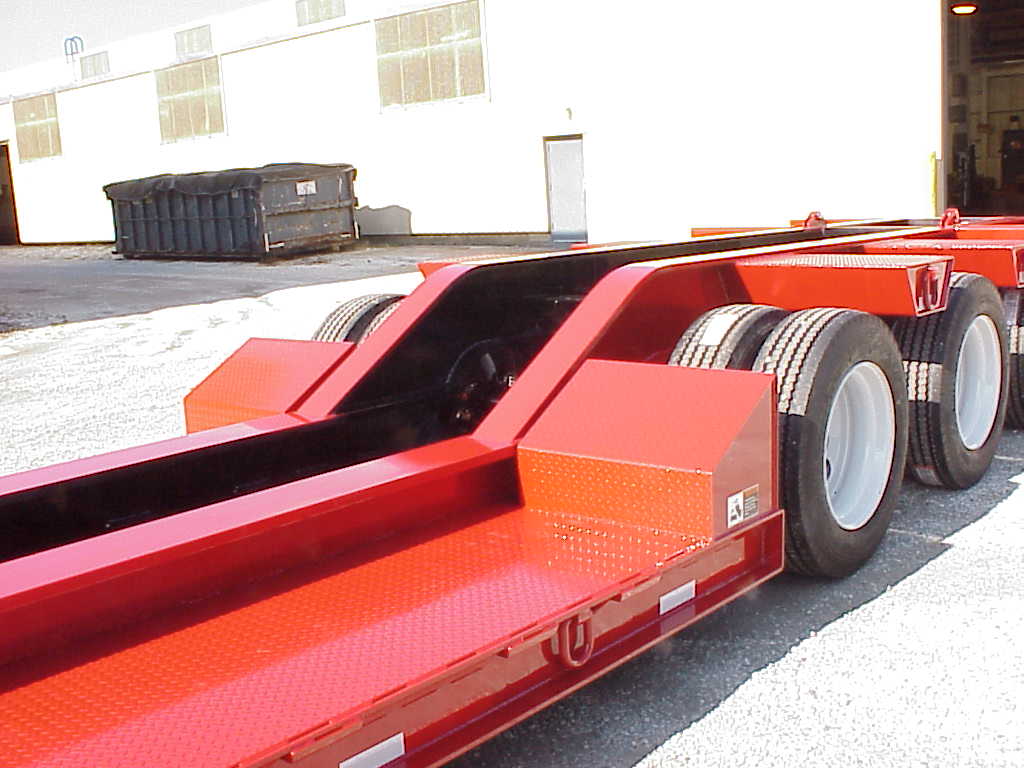

Modified bridge ramps allow a machine to load over the rear frame.

Bearings for removable side brackets are installed to accomodate special sized brackets.
The rear frame has 75,000 lb. capacity spring/walking beam suspension with a removable 4th axle controlled by an air valve.

Request a Quote for 60-ton SP60DS-3XSPR4, Detachable Gooseneck Trailer, Model Code 666-000
