35-ton CY35, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo

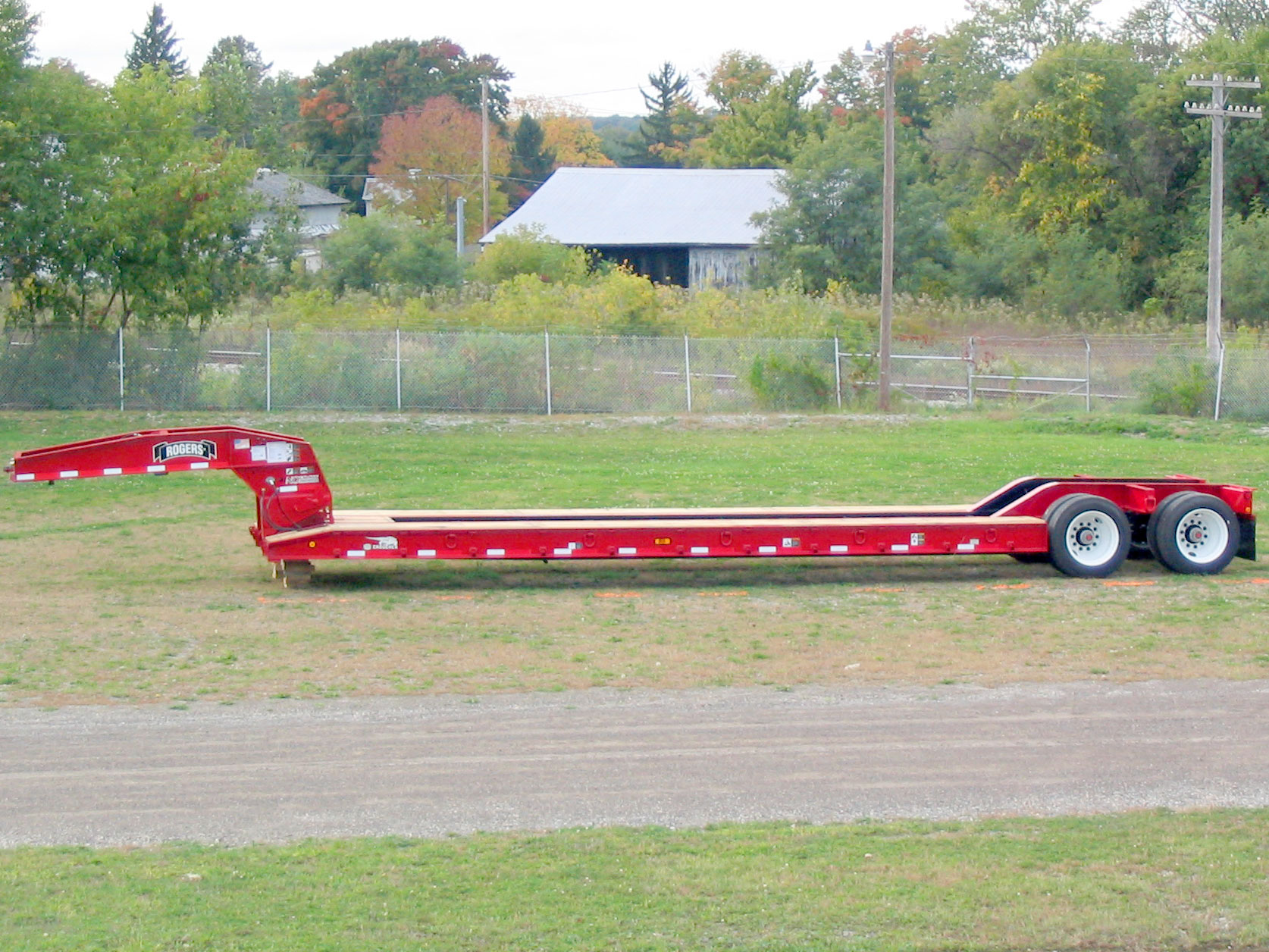

CY35
Feature Photo Description
CY35 is the Century Series 35-ton capacity trailer with the "No Foot"® Direct-Push style detachable gooseneck.
This durable lowbed's capacity is based on the concentrated load in 2/3rd of the deck.
Internal Code
CY35PL98/50/24/102/2XAR
Code
560-001
Name
CY35
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
22" (0.6-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
16'-0" (4.9-meter)
Axles
2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Patented "No Foot"® direct-push style gooseneck
  • Trap door extension blocks for adjusting 5th wheel height
  • Hydraulic gooseneck jack with paddle shoe
  • Hydraulics power source: tractor PTO
  • Main beam / side channel deck design
  • Exclusive Croucher low, taperd front with concealed beam hooks
  • Side channel reinforcing of first 6'-0" of deck
  • 1 3/4" air-dried oak decking / No center boards
  • Total (22) bracket bearings for removable side brackets
  • Total (10) bent lashing D's
  • Arch-type rear frame with wood decking to the tires
  • Outriggers between wheels
  • "Boom trough" in rear frame
  • Flag holders
  • US DOT-approved rubber-mounted LED lights with sealed wiring and 7-wire socket
  • Epoxy primer
  • ROGERS Red or Black industrial enamel finish
Optional Equipment Bullets
Detail Photo Detail Bullets

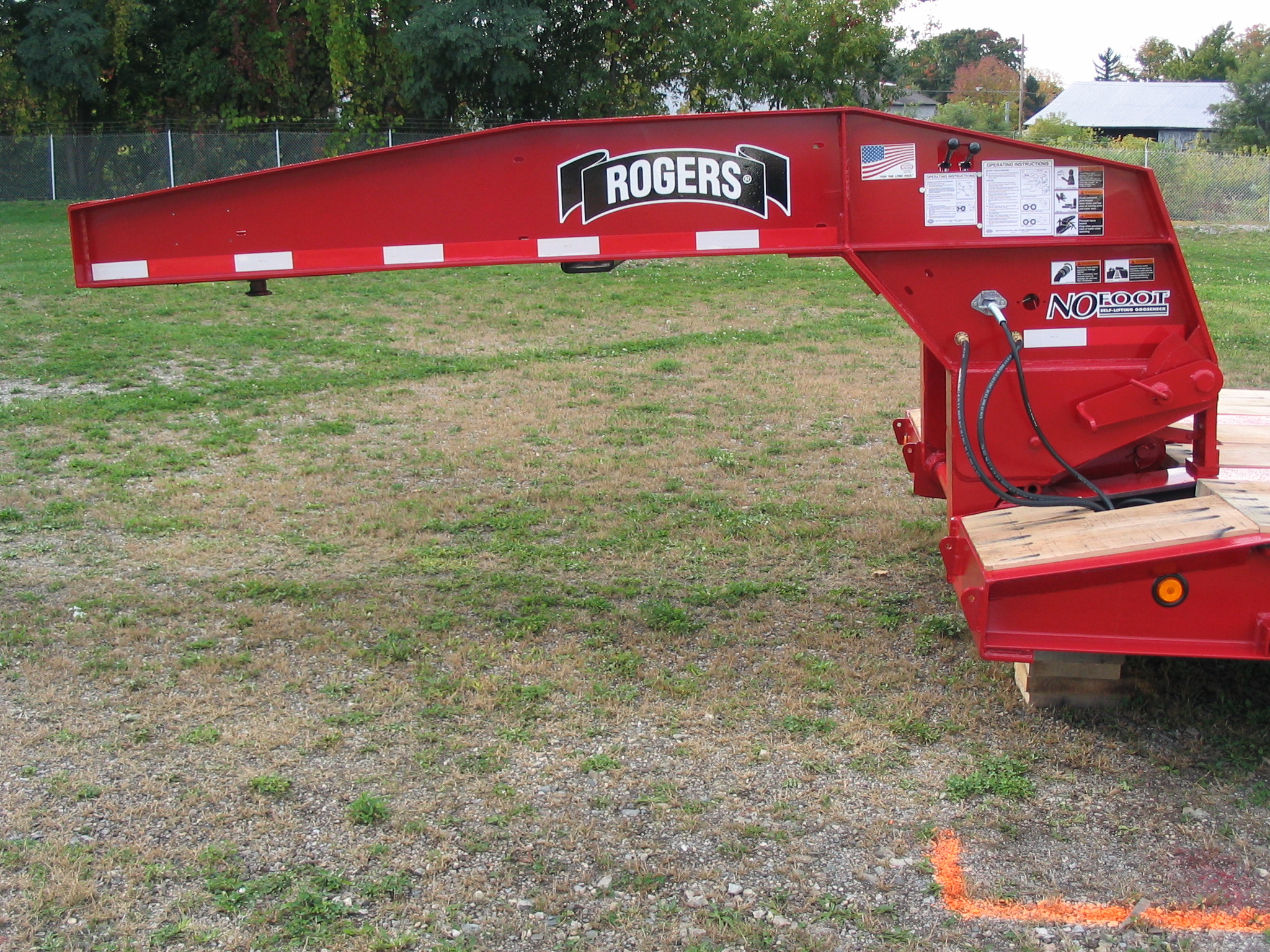

"No Foot"® detachable gooseneck uses lower operating pressures and can lift the rated load anywhere on the deck.

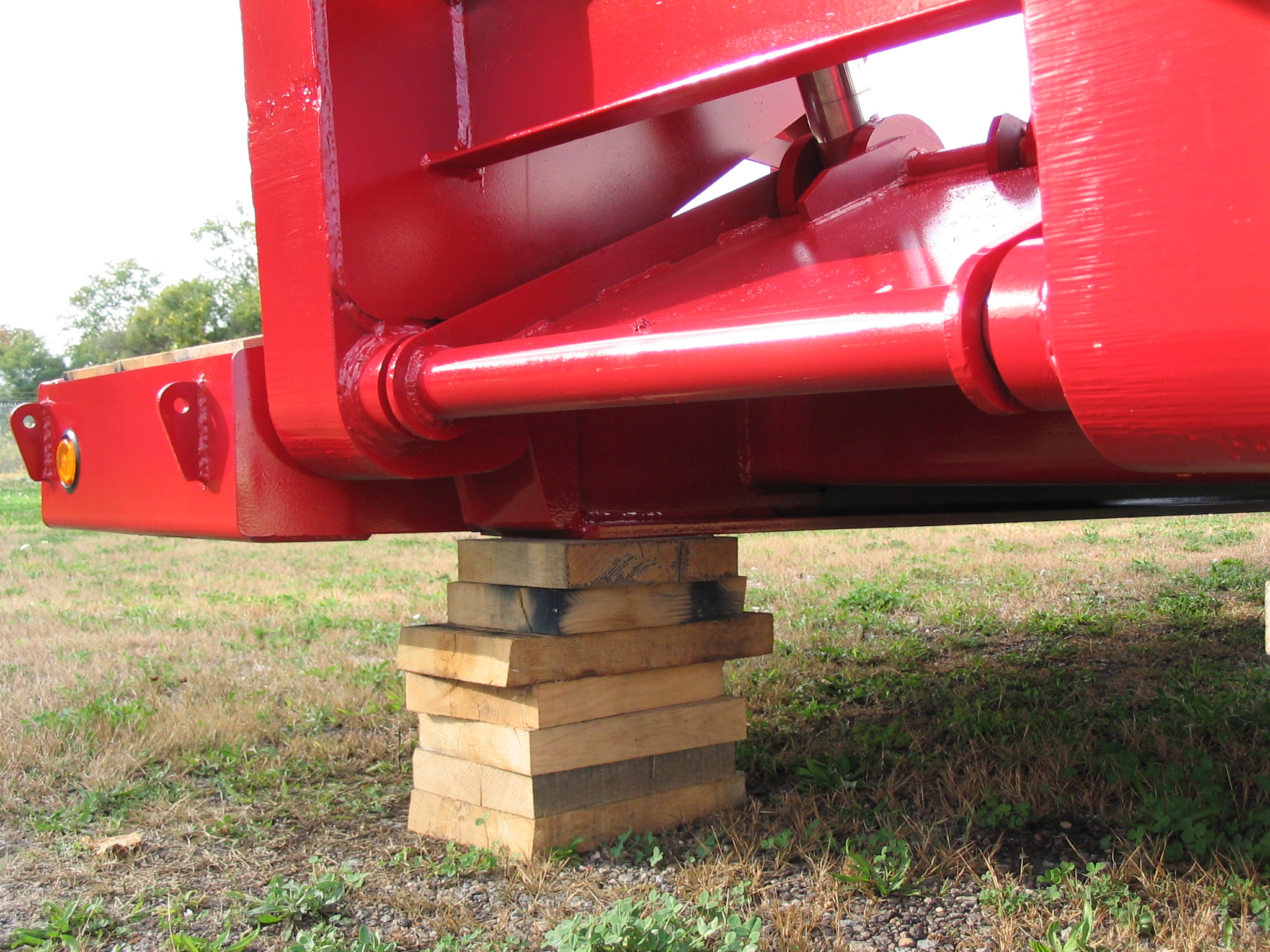

The CY35 is built with 10-inch cross beams.

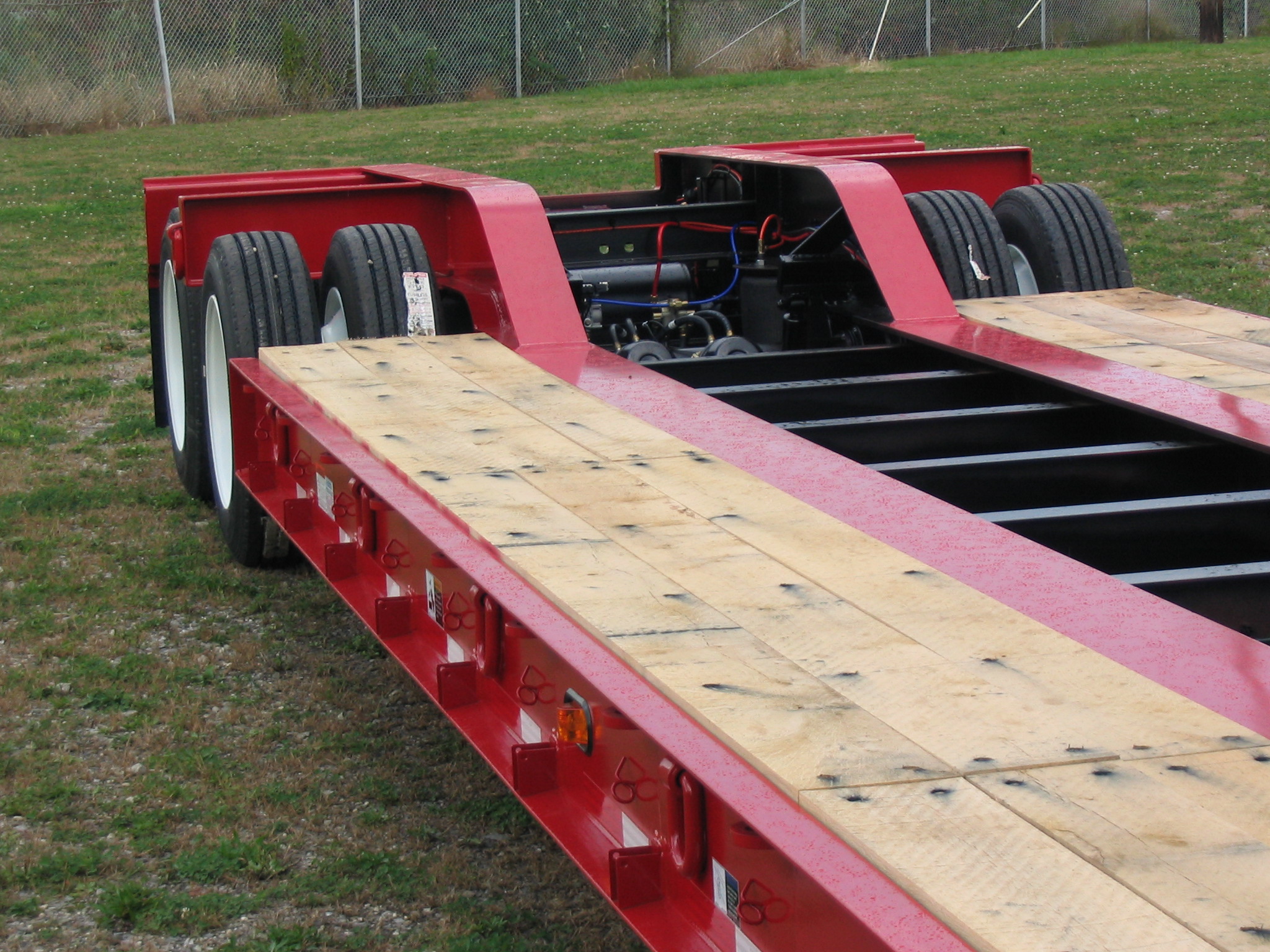

The "boom trough" is the opening in the rear frame to assist hauling an excavator to reduce the overhead clearance height.

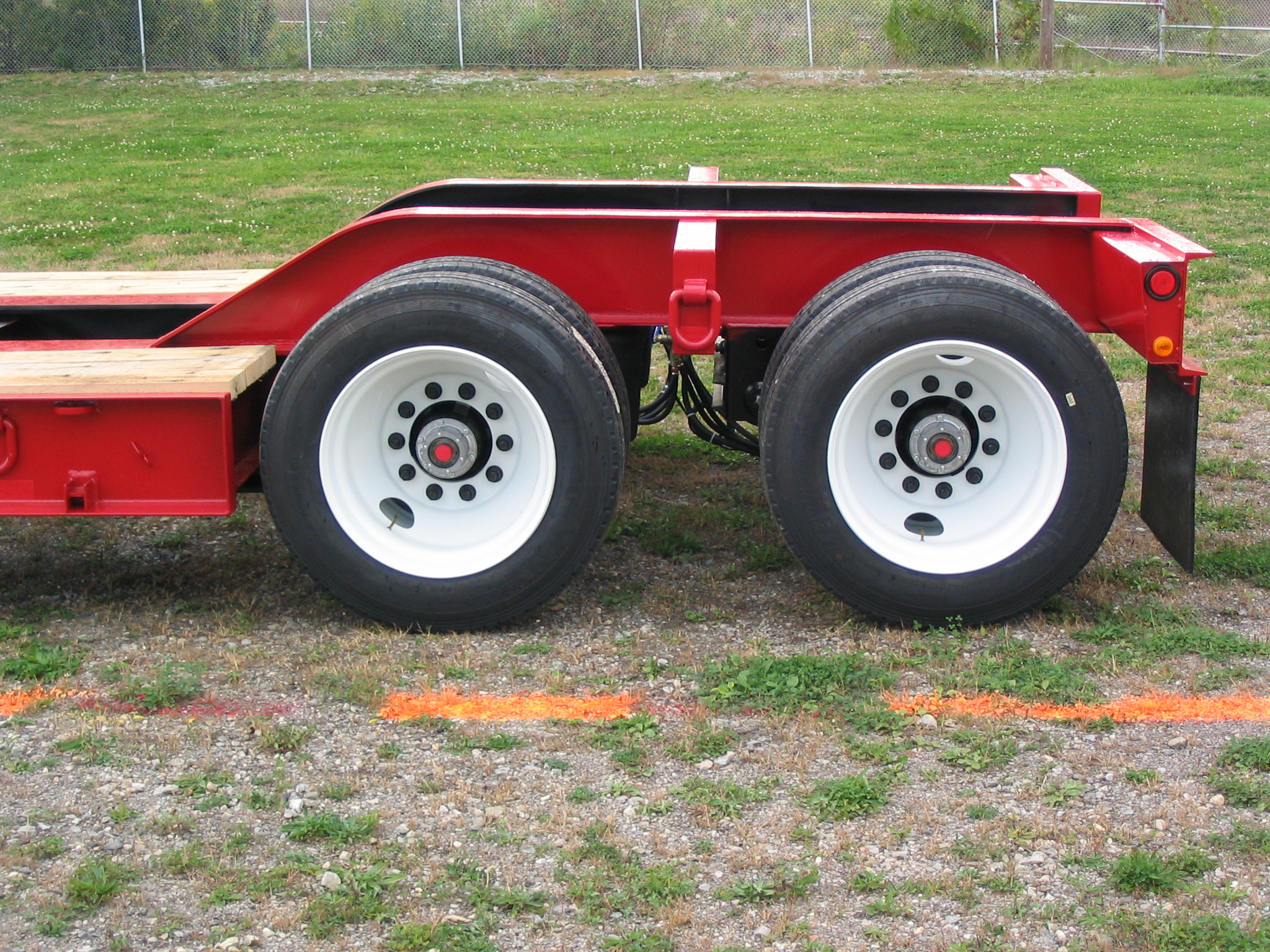

This view of the rear frame shows the oak decking to the tires, and the narrow outriggers bewteen the steel disc wheels.

Request a Quote for 35-ton CY35, Detachable Gooseneck Trailer, Model Code 560-001
