Rogers Brothers Trailers1-800-441-9880

Trailer Models

35-ton CR35RS, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
CR35RS
Feature Photo Description
ROGERS CR35RS is 35-ton capacity lowboy trailer on air ride suspension with a beavertail, so it can be loaded from either the back or the front for maximum versatility.
Pictured Option: Swinging side brackets, manual rear ladder-style ramps.
Internal Code
CR35PL86/50/22/102/2XARRS
Code
553-003
Name
CR35RS
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front & Rear Loading
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
Platform
Deck Length
22'-0" (6.7-meter)
Deck Height LD
23" (0.6-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
11'-0" (3.4-meter)
Axles
2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Patented "No Foot"® Direct-Push style gooseneck

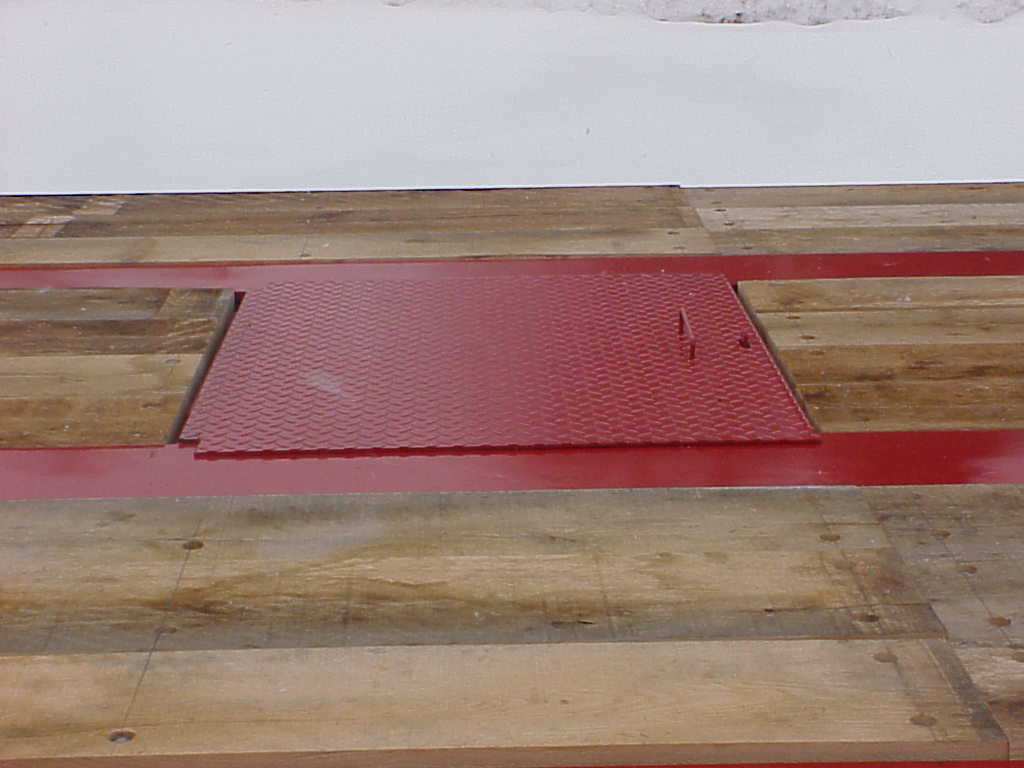

  • Trap door extension blocks for adjusting 5th wheel height
  • Hydraulic gooseneck jack with paddle and shoe
  • Hydraulic power source: Tractor PTO
  • Exclusive "Croucher"® low, tapered front with concealed beam hooks
  • Side channel flange reinforcing of first 6'-0" of deck
  • Full 2" air-dried oak decking; no center boards
  • Total (20) side bracket bearings only
  • Total (10) bent lashing D's
  • Arch-type rear frame with sloped bridge ramps
  • Trunnions between wheels
  • Flag holders
  • Oak-covered beavertail with 14º slope, smooth plate between wheels
  • LED light package: rubber-mounted lights with sealed wiring and 7-wire socket
  • Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Gooseneck fenders
  • Front folding ramps
  • Laterally adjustable front folding ramps
  • 13 HP gas engine power unit
  • Gooseneck toolbox, steel lid
  • Spare tire carrier
  • Deck toolbox, steel or wooden lid
  • Side channel flange reinforcing, full length of deck
  • Center boards, installed or loose with spring hold-downs
  • Reinforced 1/4" smooth plate wheel covers with grouser bars
  • Manual folding rear ramps, wood-covered or ladder style
  • Hydraulic rear ramps with power pack
  • Additional lashing D's
  • Removable swinging side brackets
  • Aluminum disc wheels
  • Larger 275/70R radial tires
  • Air exhaust valve for all axles
  • US DOT safety light system with "deep cycle" battery
  • Backup warning alarm
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets

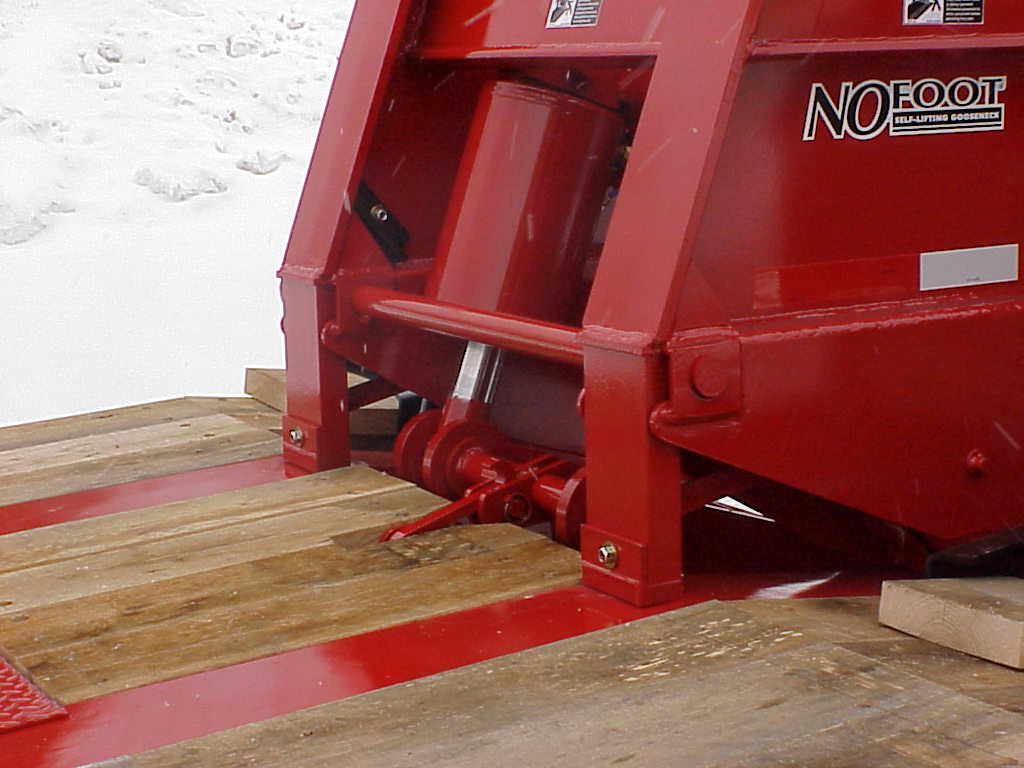

Patented "No Foot" Direct-Push style gooseneck uses low pressure hydraulic power.

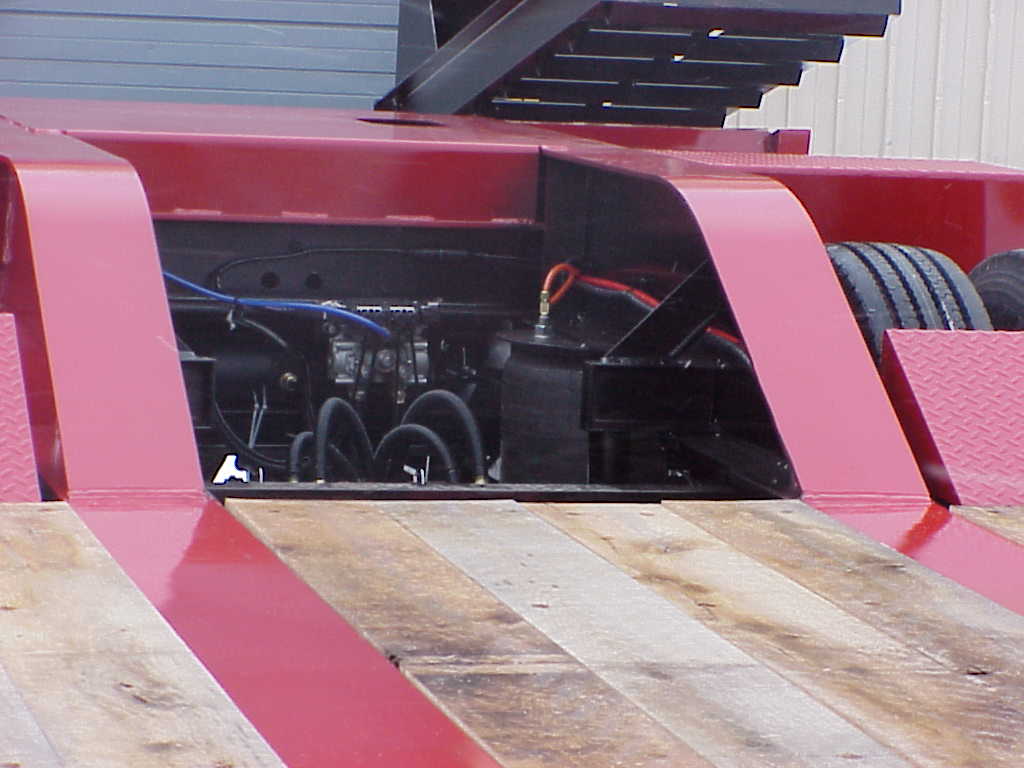

The standard arch-type rear frame with sloped bridge ramps allows machines clear access to load on rear frame.
Pictured Option: Deck toolbox with steel lockable lid, for storing chains and binders.
Machine loads can park on the wide trunnions between the wheels.

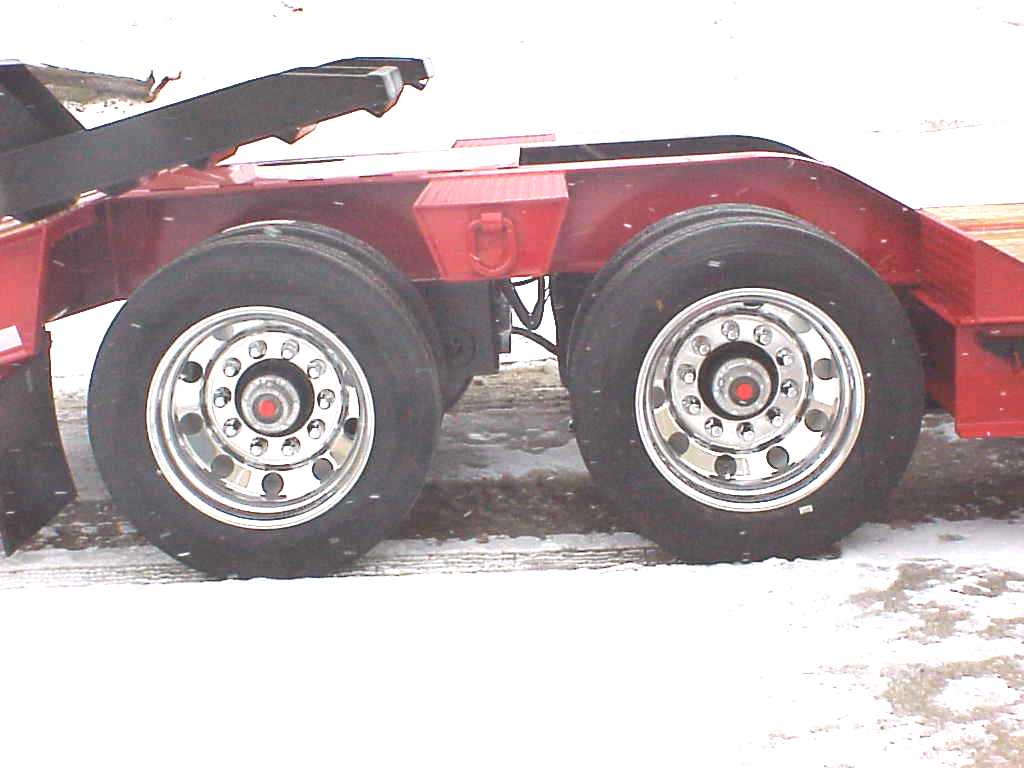

Pictured Option: Aluminum wheels, rear ramps

Request a Quote for 35-ton CR35RS, Detachable Gooseneck Trailer, Model Code 553-003
