35-ton CR35GR, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.

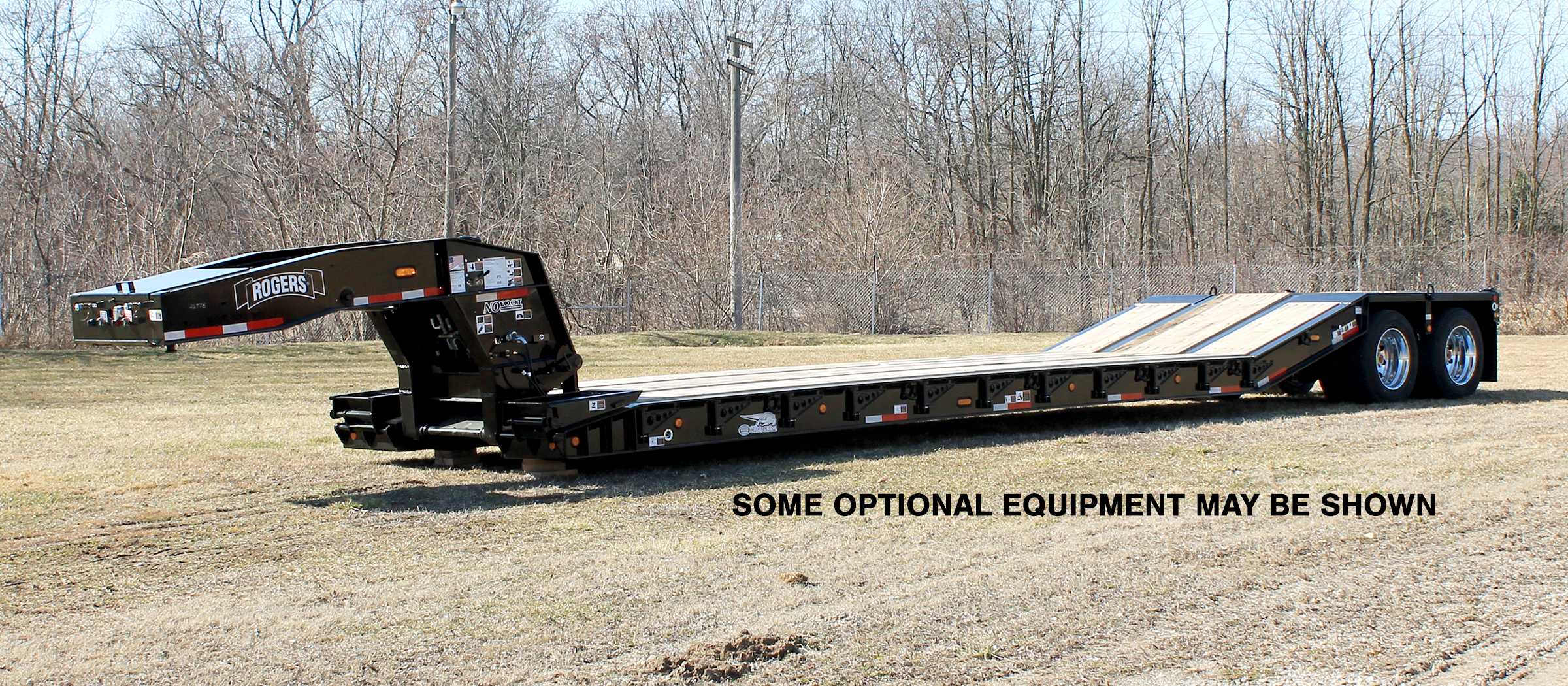

Feature Photo
CR35GR
Feature Photo Description
The closest to a carry-all lowboy, the ROGERS CR35GR is built for pavers and rollers, but can haul excavators, bulldozers and other machines as well.
The exclusive "Croucher" low front provides safe and stable loading; and the patented "No Foot" Direct-Push detachable gooseneck easily lifts the trailer.
Internal Code
CR35GR86/50/24/102/2XARRL
Code
555-006
Name
CR35GR
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
"Gentler Riser"
Deck Length
24'-0" (7.3-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Patented "No Foot" Direct-Push style gooseneck
  • Exclusive "Croucher" low, tapered front with concealed beam hooks
  • Front folding ramps
  • Trap door extension blocks for adjusting 5th wheel height
  • Hydraulic gooseneck jack with paddle and shoe
  • Hydraulic power source: Tractor PTO
  • Ultima deck design with 16" main beams and 12" side beams
  • Side beam flange reinforcing os first 6'-0" of deck
  • Full 2" air-dried oak decking; Center boards installed
  • Total (22) removable swinging side brackets
  • Total (12) bent lashing D's
  • 16º "Gentle Riser" includes:
    • oak-covered riser
    • Reinforced 1/4" tread plate wheel covers
    • Outriggers between wheels

  • Level rear extension with rear impact guard
  • US DOT-approved rubber-mounted LED lights with sealed wiring and 7-wire socket
  • Rogers Red or Black industrial enamel finish coat: (hover to see samples)
  • Flag Holders
Optional Equipment Bullets
  • Gooseneck fenders
  • 13 HP gas engine power unit, with or without relocating controls for gas engine
  • Gooseneck toolbox with lockable steel lid
  • Spare tire carrier
  • Deck toolbox with steel or oak lid
  • Laterally adjustable front folding ramps
  • Bi-fold front folding ramps
  • Additional bent or standard lashing D's
  • Aluminum disc wheels
  • Larger 275/70R radial tires
  • Air exhaust valve for all axles
  • US DOT-approved safety light system with "Deep Cycle" battery
  • Vertical rear bumper guide
  • Backup warning alarm, mechanical or electronic
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets

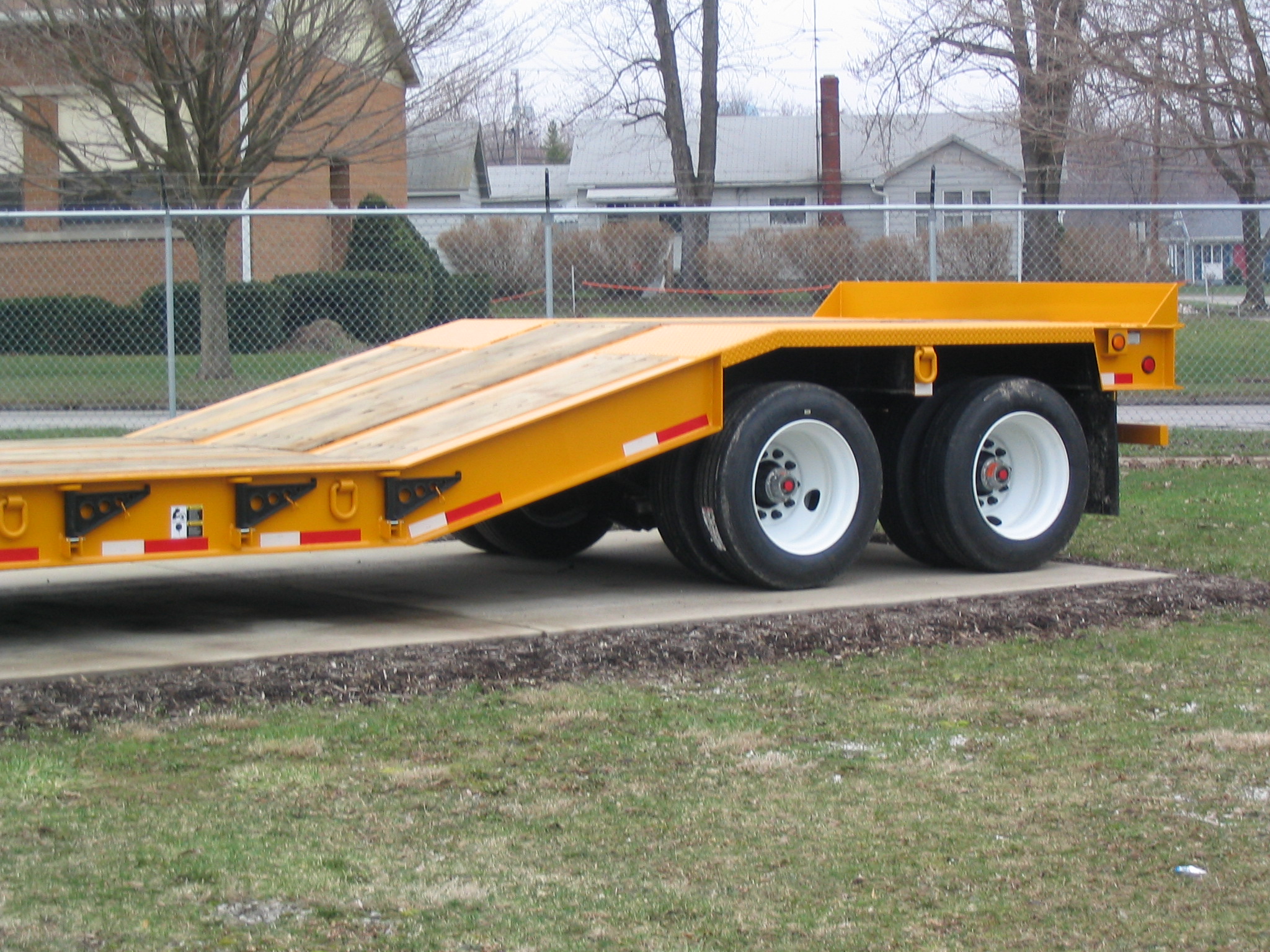

The much imitated "Gentle Riser" has a 16º slope covered with oak boards, and wheel covers made of reinforced 1/4" tread plate.

A level rear extension (24" long) gives more load space without increasing the wheel base.

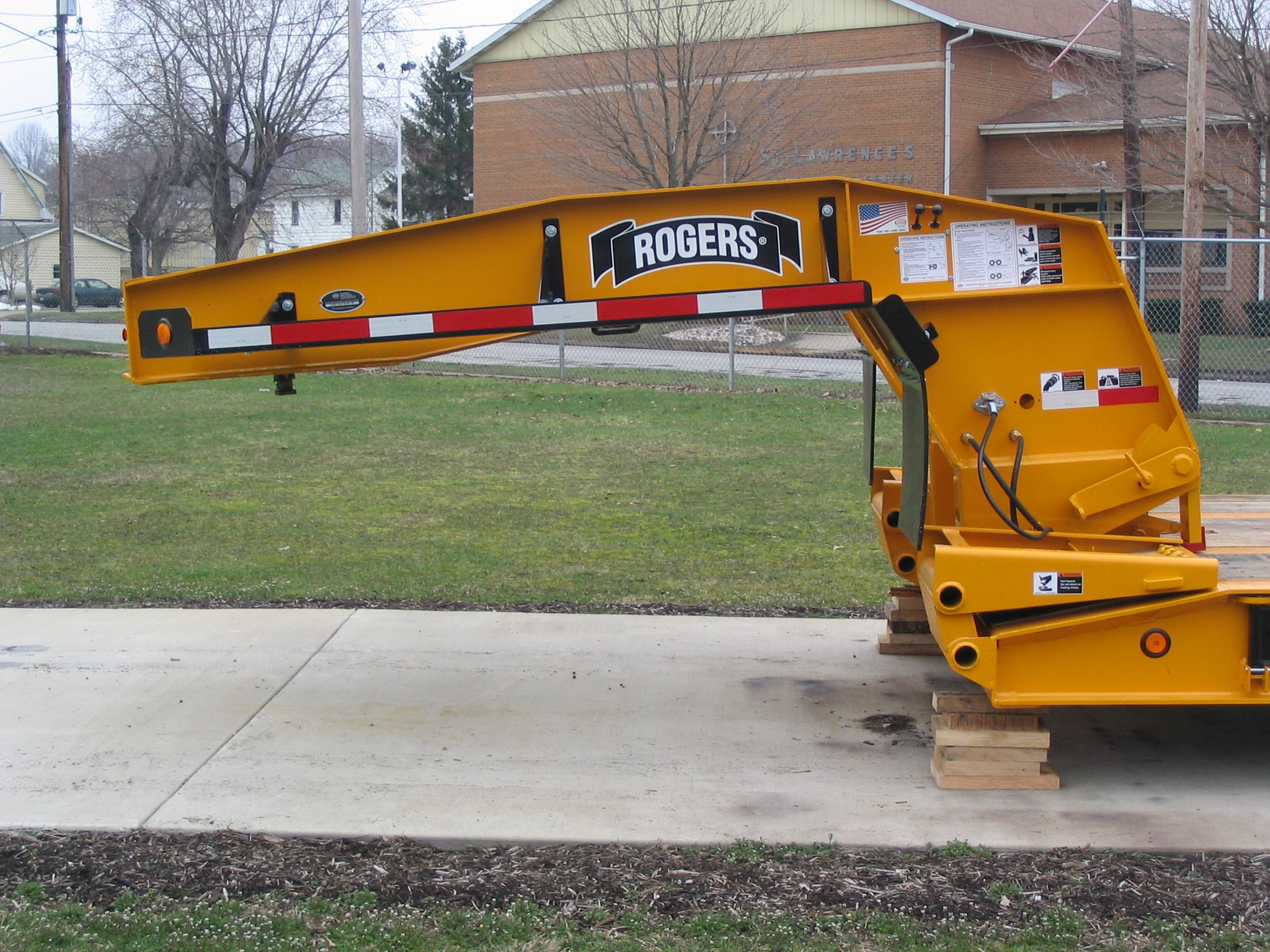

The patented "No Foot" Direct-Push style gooseneck lifts heavy loads without high pressures.

Pictured Options: Gooseneck fenders provide splash protection; and bi-fold front folding ramps become a gradual loading slope for pavers.

Request a Quote for 35-ton CR35GR, Detachable Gooseneck Trailer, Model Code 555-006
