50-ton CY50, Detachable Gooseneck Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description
CY50 is the ROGERS® Century 50-ton capacity detachable gooseneck lowbed trailer.
It features the exclusive "Croucher"® tapered front end with concealed beam hooks for unobstructed loading.
It features the exclusive "Croucher"® tapered front end with concealed beam hooks for unobstructed loading.
Internal Code
CY50PL98/51/24/102/3XAR
Code
519-002
Name
CY50
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
50
Capacity
50.0-ton (45.4-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
22" (0.6-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
100,000-pounds (45,359 kilograms)
Load Con Length
16'-0" (4.9-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
- Patented "No Foot"® Direct-Push style gooseneck
- Trap door extension blocks for adjusting 5th wheel height
- Hydraulic gooseneck jack with paddle and shoe
- Hydraulic power source: Tractor PTO
- Four beam cambered deck design
- Exclusive "Croucher"® low, tapered front with concealed beam hooks
- Side beam flange reinforcing of first 6'-0" of deck
- 1 3/4" air-dried oak decking; No center boards
- Total (12) bent lashing D's
- Total (24) side brackets
- Arch-type rear frame with oak decking to tires
- Outriggers between wheels
- "Boom Trough"
- LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket
- Remote air tank drain
- Epoxy primer; Rogers Red or Black industrial enamel finish coat:
(hover to see samples) - Trap door extension blocks for adjusting 5th wheel height
Optional Equipment Bullets
- Gooseneck fenders
- 13 HP gas engine power unit
- Remote for gas engine
- Gooseneck toolbox with steel lid
- Spare tire carrier
- Deck toolbox with steel or wooden lid
- Front folding ramps
- Laterally adjustable front folding ramps
- Side beam flange reinforcing, full length of deck
- Additional bent or standard lashing D's
- Center boards, installed or loose with spring hold-downs
- Reinforced 1/4" smooth plate wheel covers with grouser bars
- Aluminum disc wheels
- Larger 275/70R radial tires
- Air exhaust valve for all axles
- Axle air lift
- US DOT-approved safety light system with "Deep Cycle" battery
- Flag holders
- Backup warning alarm, mechanical or electronic
- Other Rogers finish colors:
(hover to see samples) - 13 HP gas engine power unit
Optional Equipment Link
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

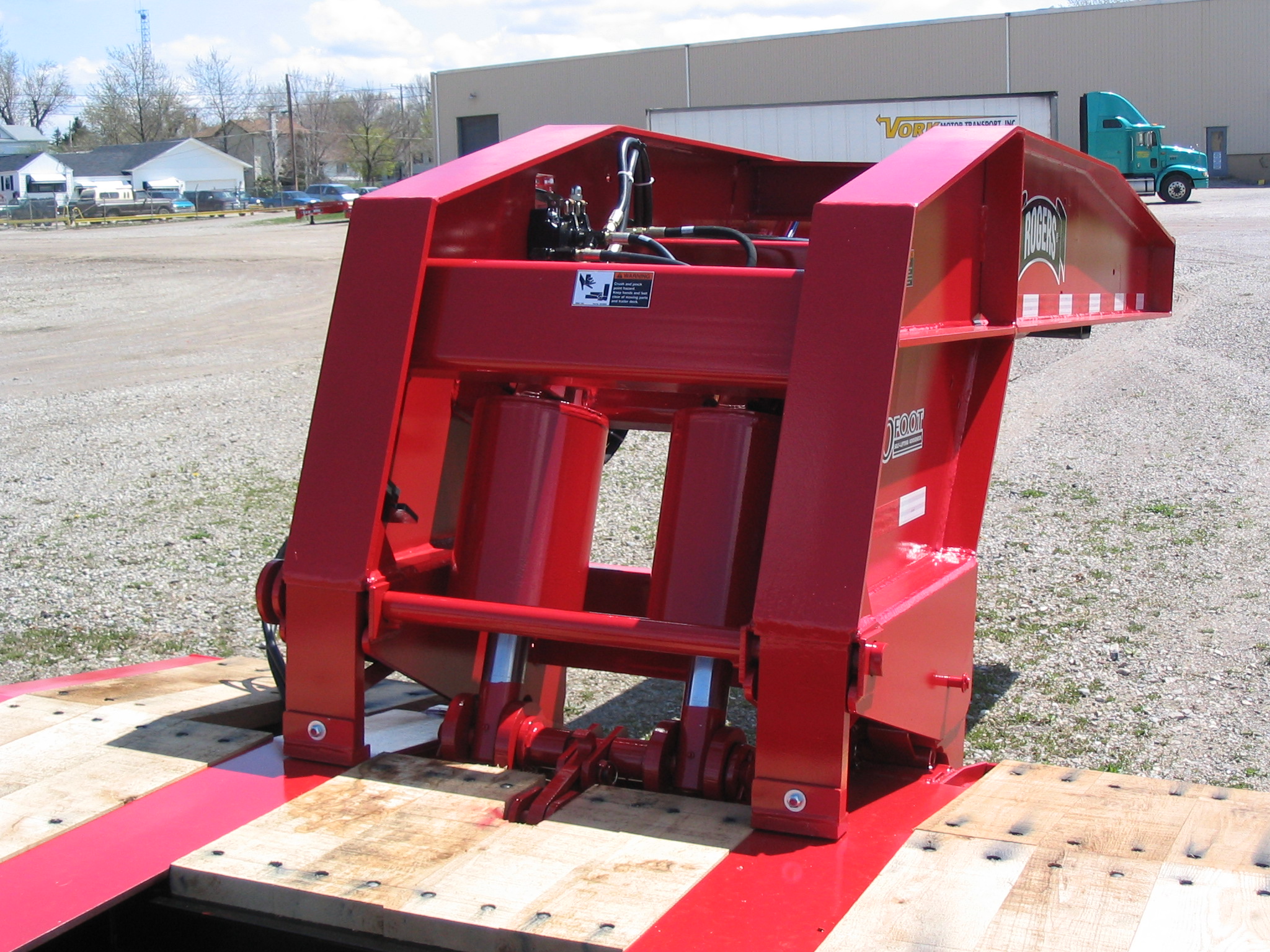

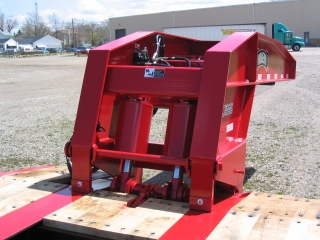

Powerful low-pressure hydraulic cylinders in the gooseneck can lift the load on any terrain. |
|
|
|
|

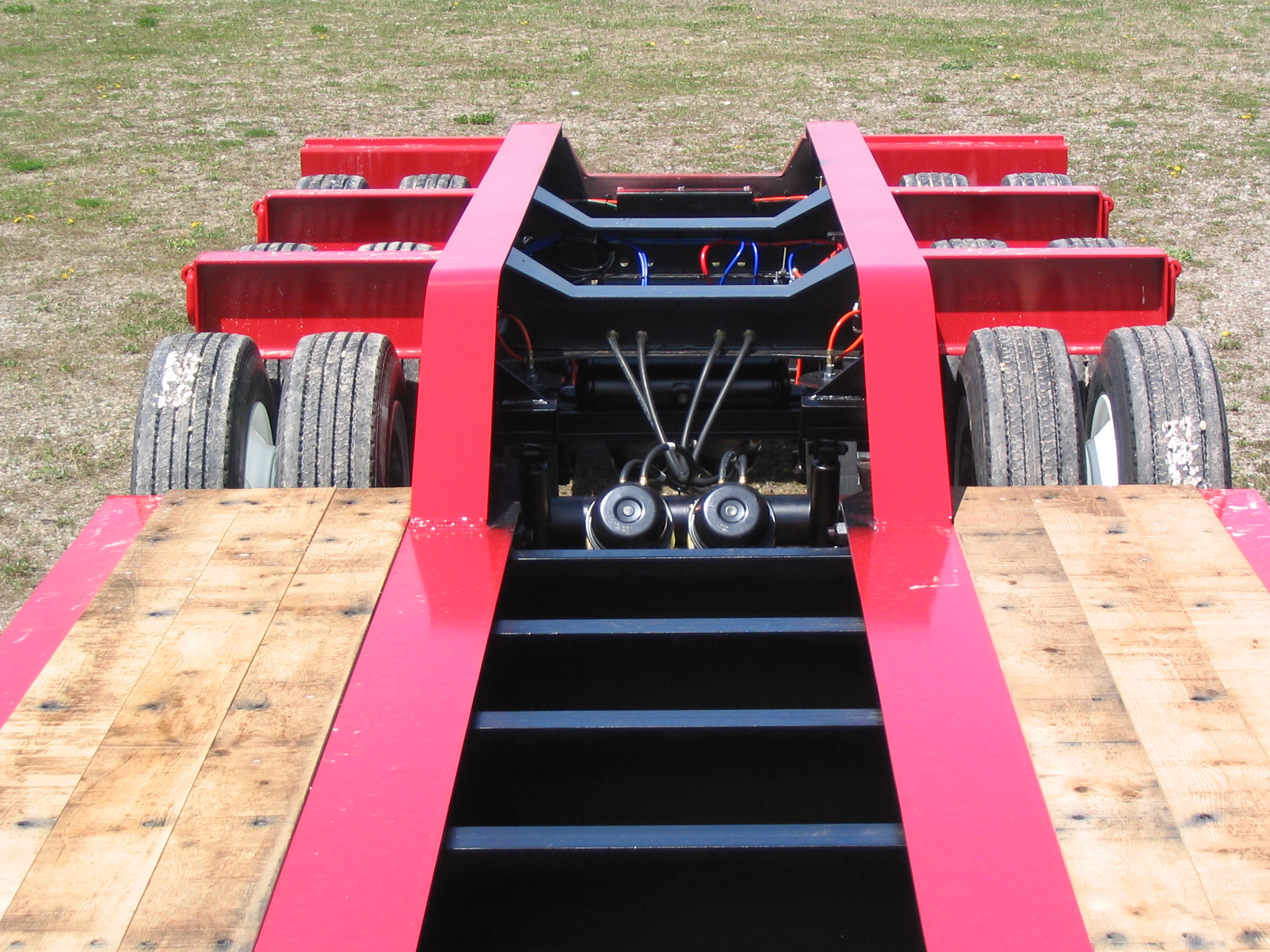

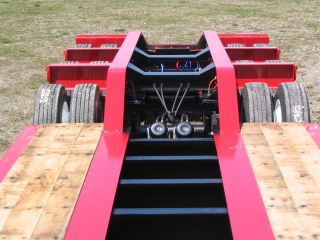

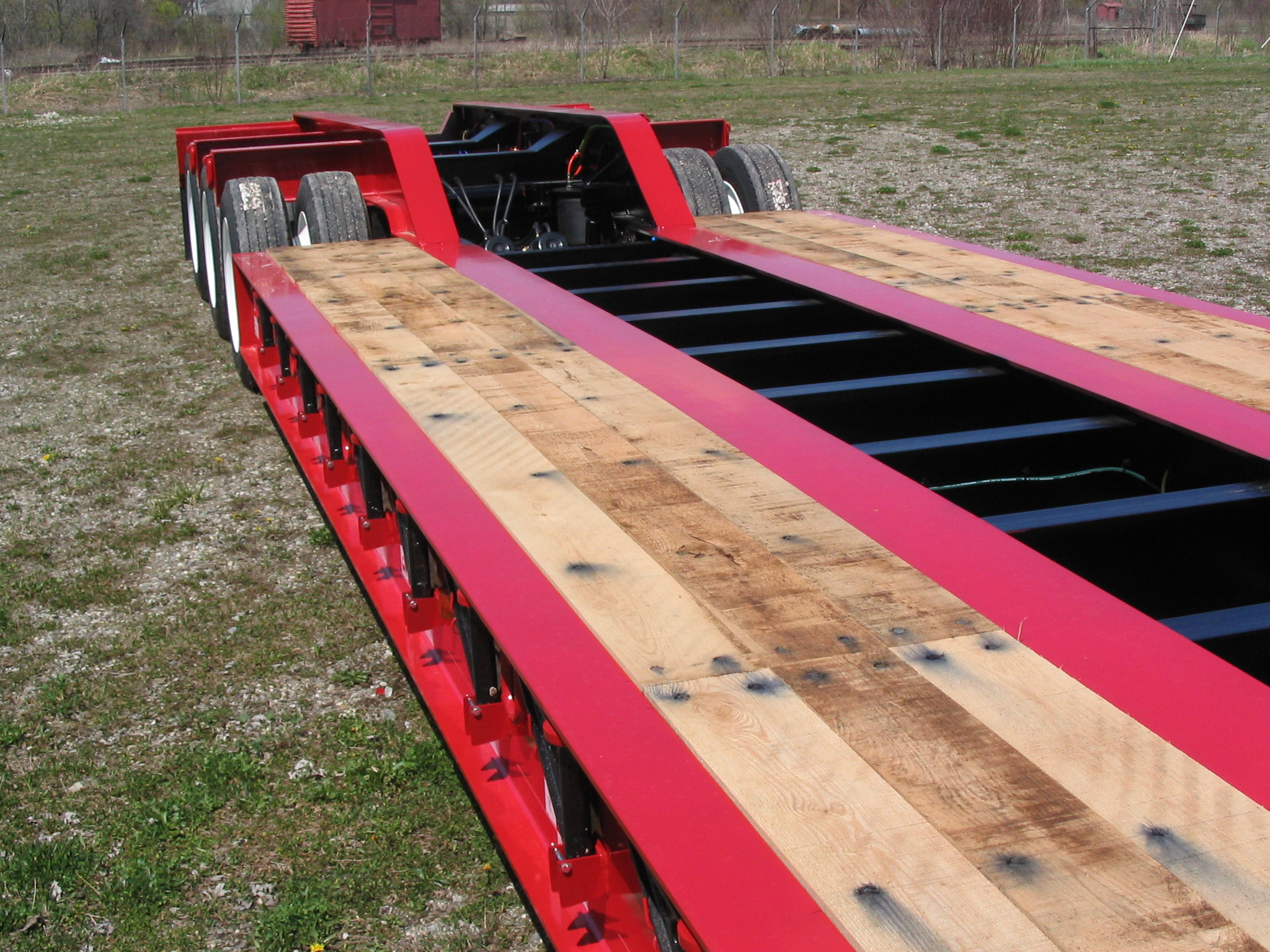

Excavators ride lower with its stick resting in the "boom trough." Oak decking to the wheels adds another foot to the length of carry space. |
|
|
|
|
A unitized frame with heavy-duty full width cross members on 24" centers and 16" deep main beams will carry the load with less overall trailer weight. |
|
|
|
|

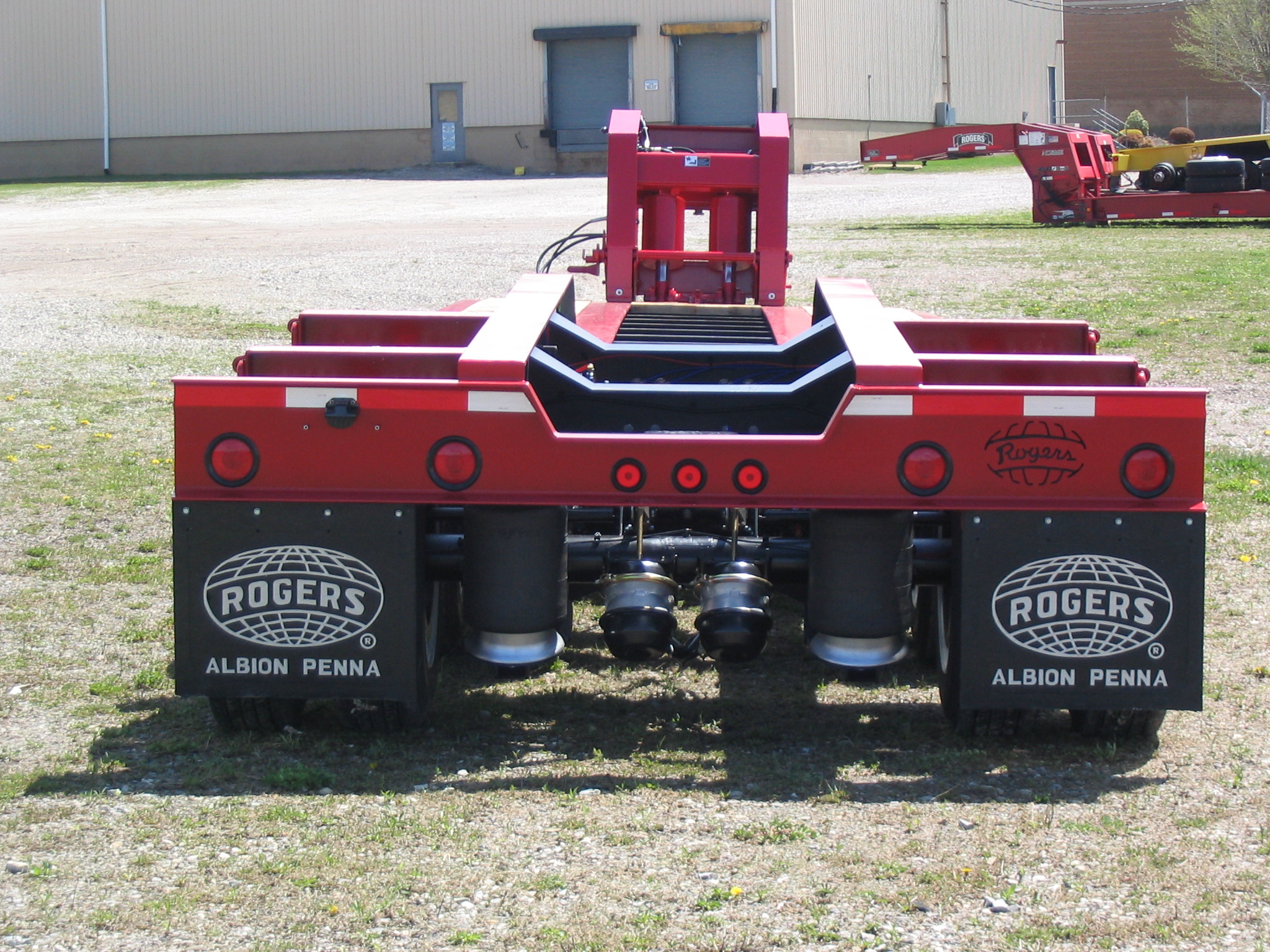

The rear channel is notched to the same height as the cross members to be part of the "boom trough." |
