50-ton CY50, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
CY50
Feature Photo Description

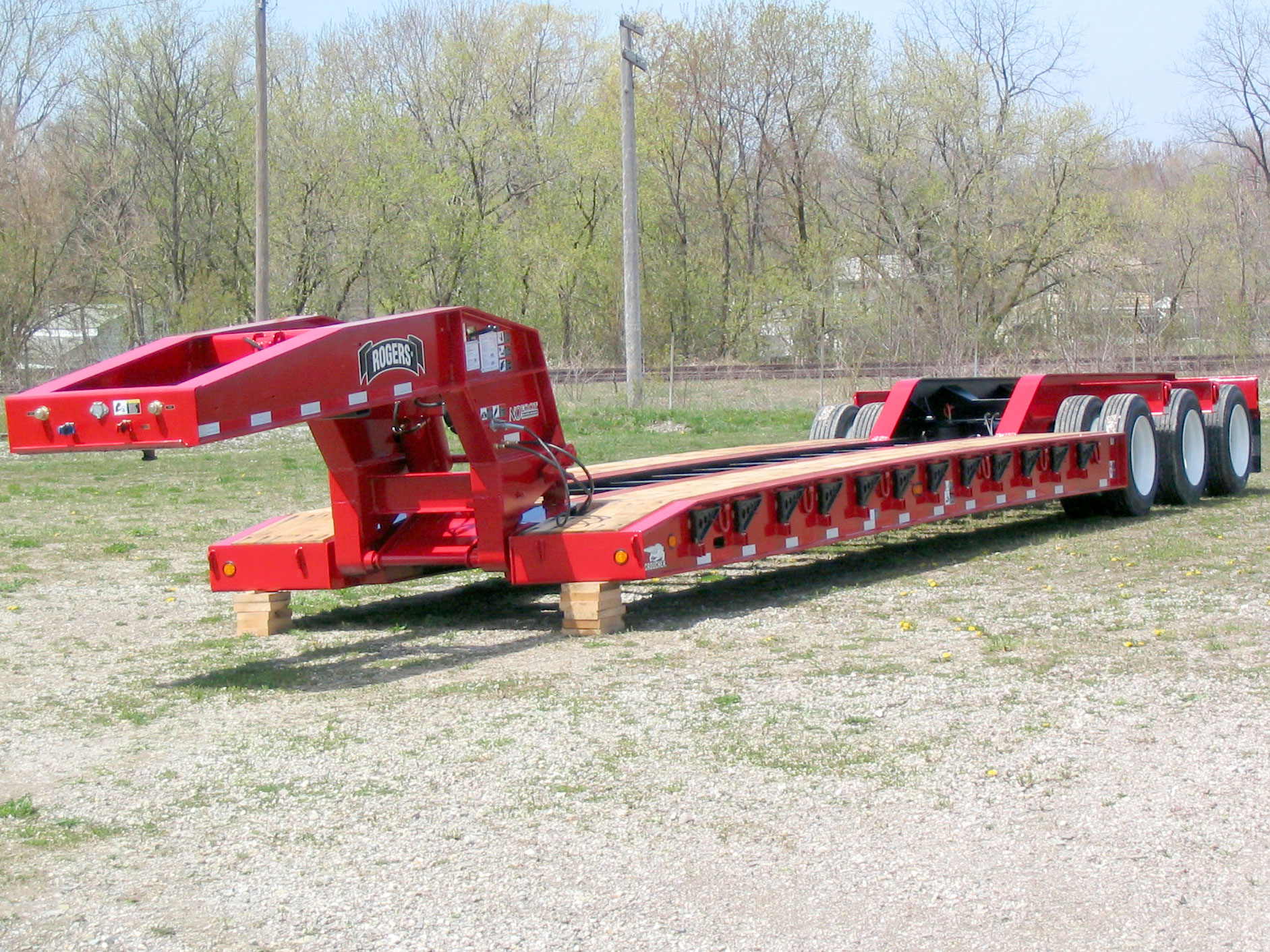

CY50 is the ROGERS® Century 50-ton capacity detachable gooseneck lowbed trailer.
It features the exclusive "Croucher"® tapered front end with concealed beam hooks for unobstructed loading.
Internal Code
CY50PL98/51/24/102/3XAR
Code
519-002
Name
CY50
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
50
Capacity
50.0-ton (45.4-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
22" (0.6-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
100,000-pounds (45,359 kilograms)
Load Con Length
16'-0" (4.9-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Patented "No Foot"® Direct-Push style gooseneck
  • Trap door extension blocks for adjusting 5th wheel height
  • Hydraulic gooseneck jack with paddle and shoe
  • Hydraulic power source: Tractor PTO
  • Four beam cambered deck design
  • Exclusive "Croucher"® low, tapered front with concealed beam hooks
  • Side beam flange reinforcing of first 6'-0" of deck
  • 1 3/4" air-dried oak decking; No center boards
  • Total (12) bent lashing D's
  • Total (24) side brackets
  • Arch-type rear frame with oak decking to tires
  • Outriggers between wheels
  • "Boom Trough"
  • LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Gooseneck fenders
  • 13 HP gas engine power unit
  • Remote for gas engine
  • Gooseneck toolbox with steel lid
  • Spare tire carrier
  • Deck toolbox with steel or wooden lid
  • Front folding ramps
  • Laterally adjustable front folding ramps
  • Side beam flange reinforcing, full length of deck
  • Additional bent or standard lashing D's
  • Center boards, installed or loose with spring hold-downs
  • Reinforced 1/4" smooth plate wheel covers with grouser bars
  • Aluminum disc wheels
  • Larger 275/70R radial tires
  • Air exhaust valve for all axles
  • Axle air lift
  • US DOT-approved safety light system with "Deep Cycle" battery
  • Flag holders
  • Backup warning alarm, mechanical or electronic
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets
Powerful low-pressure hydraulic cylinders in the gooseneck can lift the load on any terrain.
Excavators ride lower with its stick resting in the "boom trough."

Oak decking to the wheels adds another foot to the length of carry space.
A unitized frame with heavy-duty full width cross members on 24" centers and 16" deep main beams will carry the load with less overall trailer weight.
The rear channel is notched to the same height as the cross members to be part of the "boom trough."

Request a Quote for 50-ton CY50, Detachable Gooseneck Trailer, Model Code 519-002
