50-ton CR50, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
CR50
Feature Photo Description
ROGERS® Ultima CR50 is the top of the line lowbed with an unmatched load concentration.
Its low deck height with the "bucket pocket" and "boom trough" give better overhead clearance when hauling an excavator.
Pictured Options: Center boards installed and front folding ramps.
Internal Code
CR50PL98/51/24/102/3XAR
Code
578-015
Name
CR50
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
50
Capacity
50.0-ton (45.4-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
100,000-pounds (45,359 kilograms)
Load Con Length
12'-0" (3.7-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • "No Foot"® Tower style gooseneck
  • Trap door extension blocks for adjusting 5th wheel height
  • Hydraulic gooseneck jack with shoe
  • Hydraulic power source: Tractor PTO
  • Four-beam cambered frame design with 14" main beams
  • Exclusive "Croucher"® low, tapered front deck with concealed beam hooks
  • Side beam flange reinforcing of first 6'-0" of deck
  • 1 3/4" air-dried oak decking; No center boards
  • Total (24) removable swinging side brackets
  • Total (16) bent lashing D's
  • "Bucket Pocket"
  • Arch-type rear frame with sloped bridge ramps
  • "Boom Trough"
  • Trunnions between wheels
  • LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Flag holders
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Gooseneck fenders
  • 13 HP gas engine power unit with the controls relocated to side of gooseneck
  • Hydraulic trap doors
  • Gooseneck toolbox with lockable steel lid
  • Spare tire carrier
  • Deck toolbox with oak wood lid -OR- lockable steel lid
  • Front folding ramps -OR- Laterally adjustable front folding ramps
  • Side beam flange reinforcing of full length of deck
  • Center boards installed -OR- loose with spring hold-downs
  • Reinforced 1/4" smooth plate wheel covers with traction bars
  • Additional bent or flat lashing D's
  • Aluminum disc wheels
  • Larger 275/70R radial tires
  • Air exhaust valve for all axles
  • Axle air lift
  • Removable 4th axle
  • US DOT-approved safety light system with "deep cycle" battery
  • Backup warning alarm, mechanical or electronic
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets

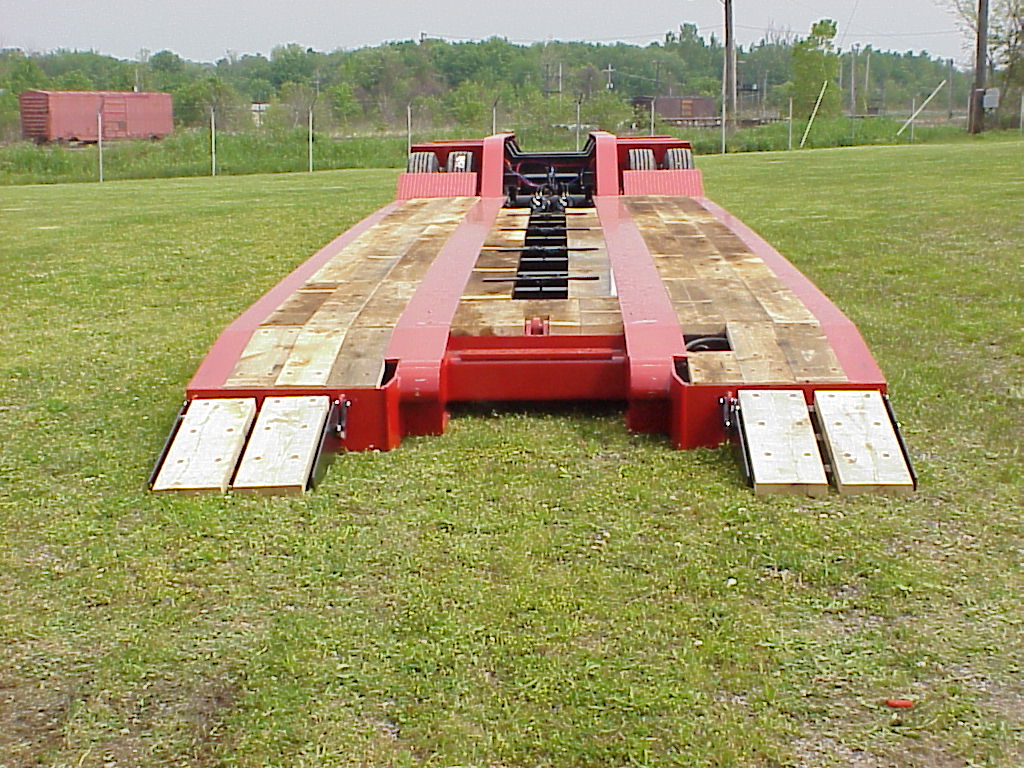

ROGERS exclusive "Croucher"® front deck design has beams tapered top and bottom for an extra low loading angle; and concealed beam hooks ease worry about loading damages.

Pictured Option: Loose center boards with spring hold-downs; and front folding r

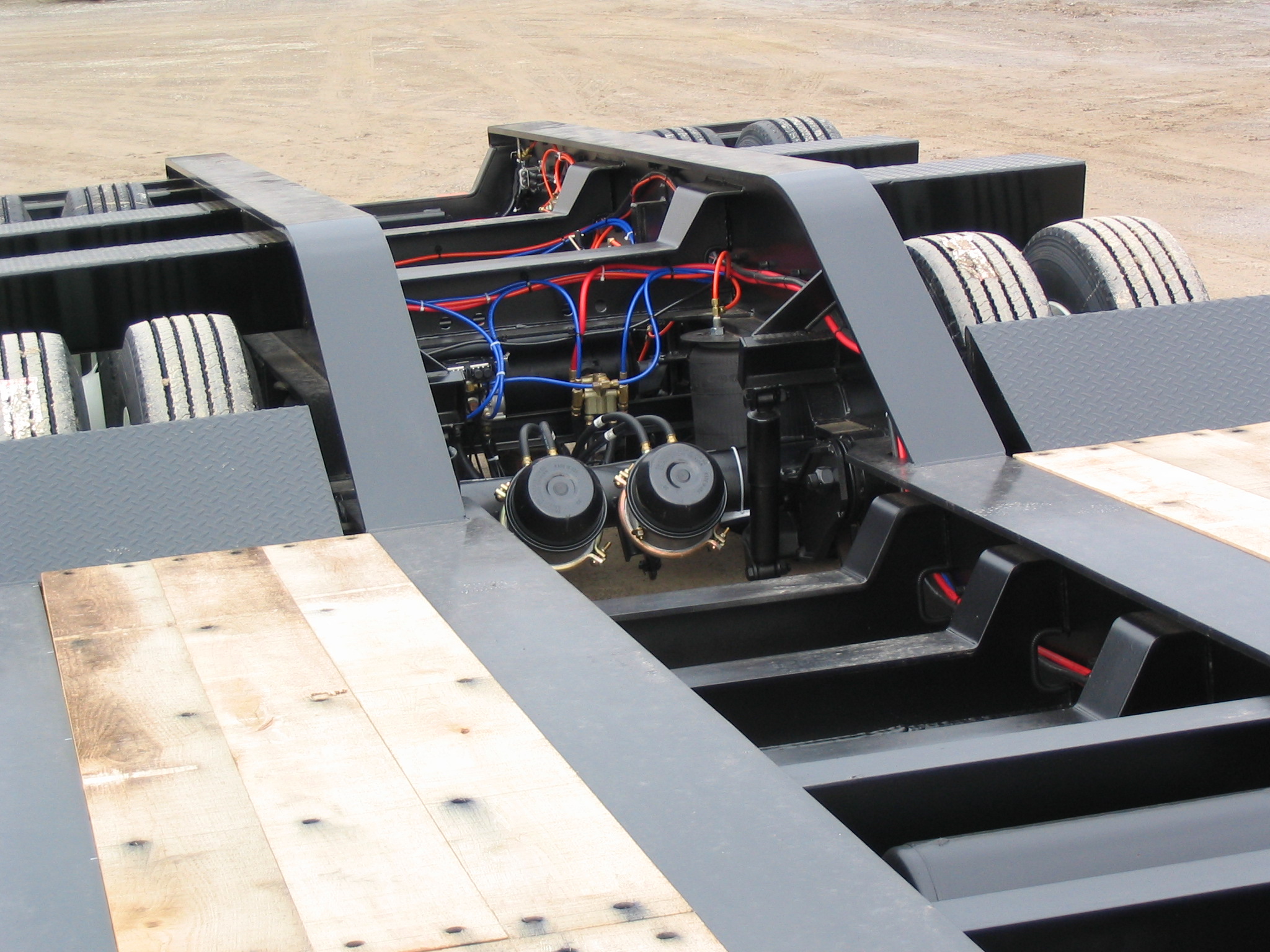

When hauling an excavator, the "bucket pocket" and the "boom trough" create an open design that helps lower the clearance height.

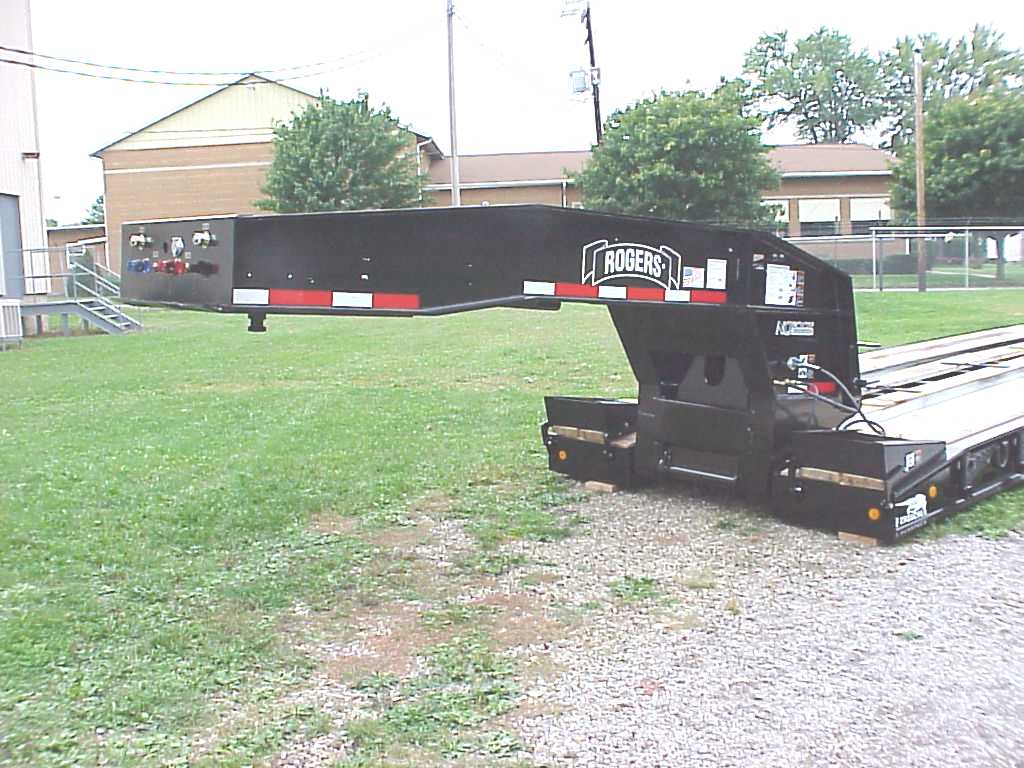

The "No Foot"® Tower style gooseneck has heavy-duty lifting capacity to easily handle a loaded trailer.

The gooseneck's built-in "hat box" fits over the fifth wheel to give turning clearance for tractor fenders.

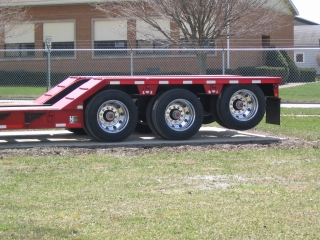

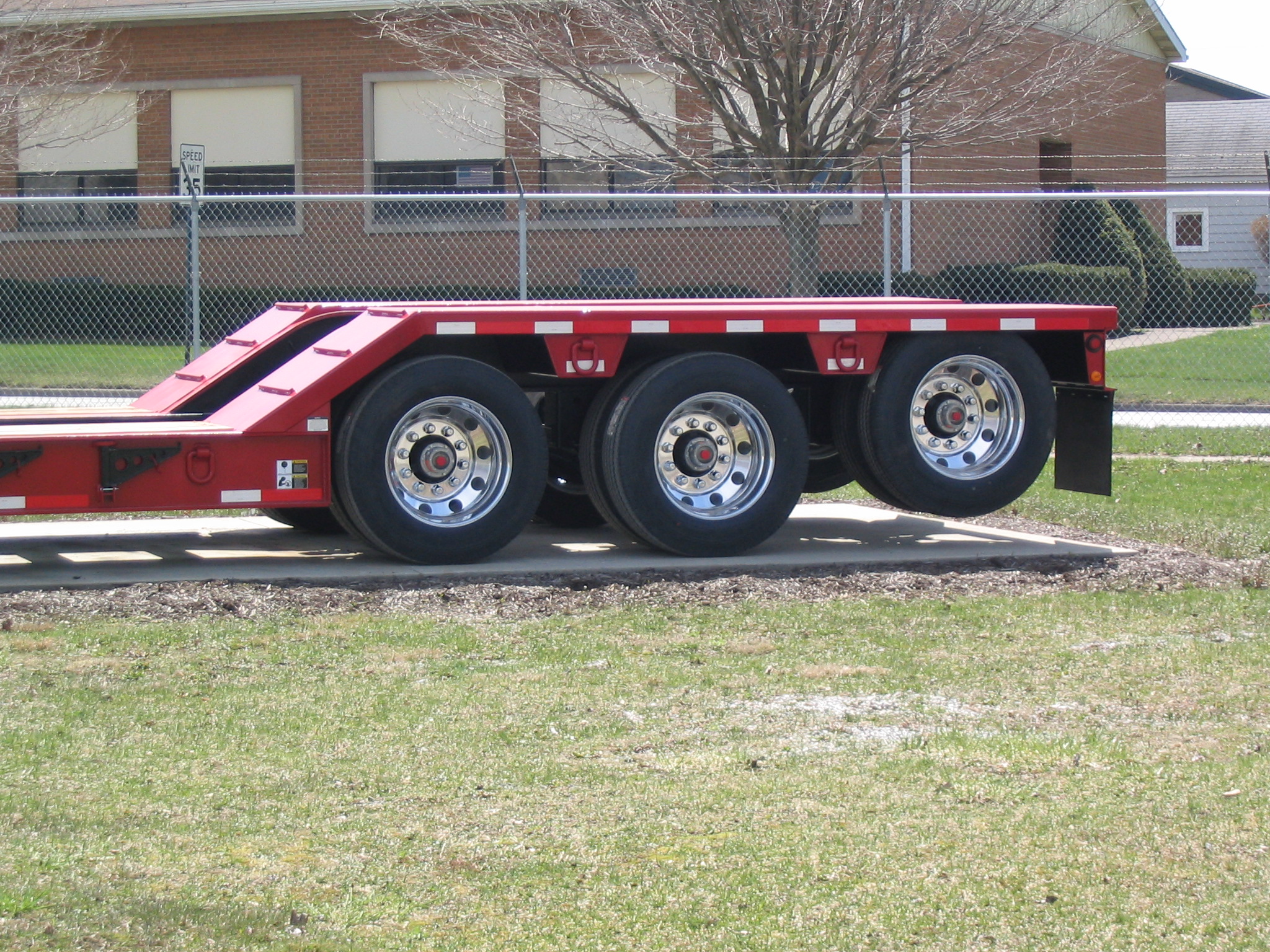

CR50's tri-axle rear frame.

Pictured Options: Air lift on the 3rd axle, wheel covers, and aluminum wheels.

Request a Quote for 50-ton CR50, Detachable Gooseneck Trailer, Model Code 578-015
