50-ton CR50GR, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
CR50GR
Feature Photo Description

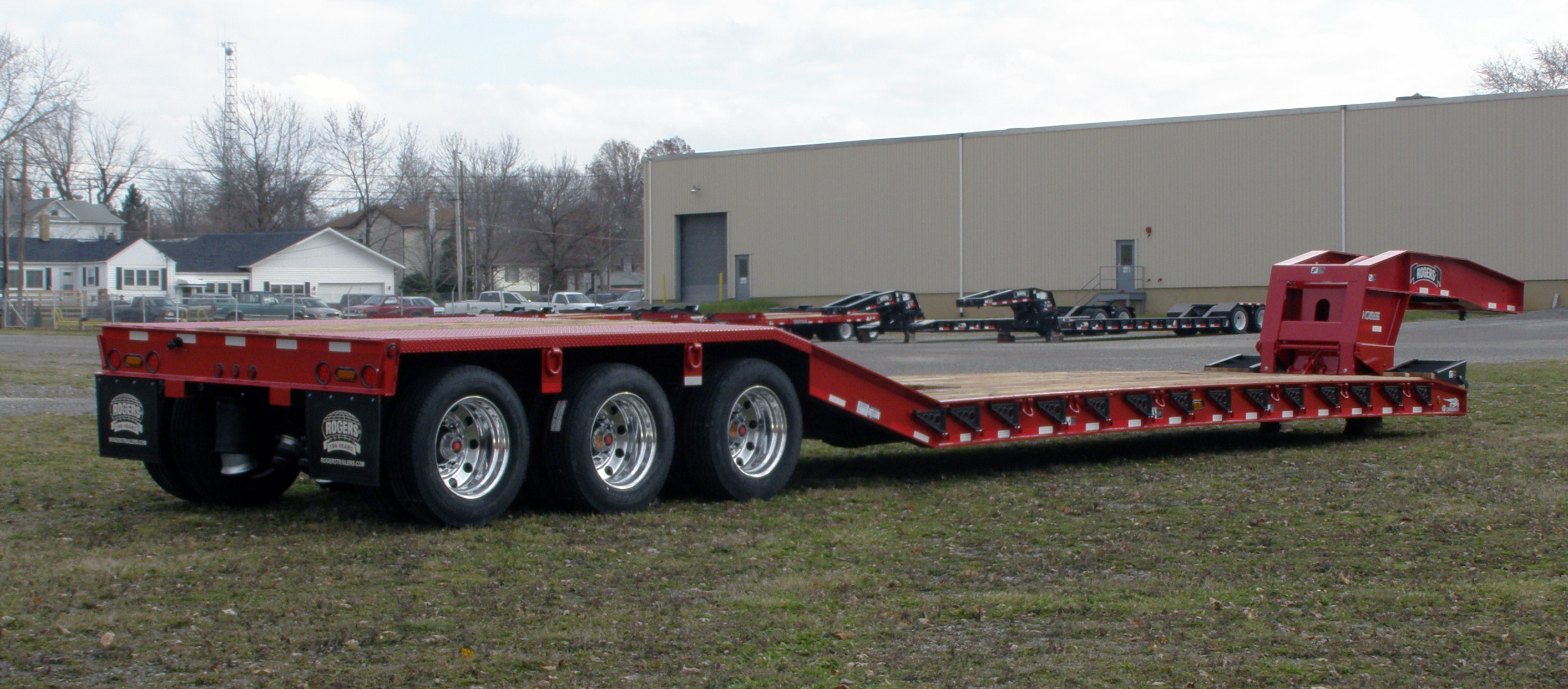

The ROGERS CR50GR is a 50-ton capacity lowboy featuring the often imitated "Gentle Riser" deck style designed to easily load multiple machines.
It has the exclusive "Croucher"® low, tapered front end; the "No Foot"® Tower style detachable gooseneck; and air ride suspension.
Internal Code
CR50GR98/51/25/102/3XAR
Code
580-015
Name
CR50GR
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
50
Capacity
50.0-ton (45.4-tonnes)
Deck Style
"Gentler Riser"
Deck Length
25'-0" (7.6-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
100,000-pounds (45,359 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • "No Foot"® Tower style gooseneck
  • Trap door extension blocks for adjusting 5th wheel height
  • Hydraulic gooseneck jack with paddle and shoe
  • Hydraulic power source: Tractor PTO
  • Ultima four-beam cambered design with 14" main beams
  • Exclusive "Croucher"® low, tapered front with concealed beam hooks
  • Front folding ramps
  • Side beam flange reinforcing of first 6'-0" of deck
  • 1 3/4" air-dried oak decking; Center boards installed
  • Total (24) removable swinging side brackets
  • Total (16) bent lashing D's
  • "Bucket pocket"
  • 16® "Gentle Riser" includes:
    • Wood-covered riser
    • Reinforced 1/4" tread plate wheel covers
    • Outriggers between wheels

  • LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket
  • Cable-pull remote air tank drain
  • Safety flag holders
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Gooseneck fenders
  • 13 HP gas engine power unit
  • Relocate controls for gas engine
  • Hydraulic trap doors
  • Spare tire carrier
  • Gooseneck toolbox with steel lid
  • Laterally adjustable front folding ramps
  • Bi-fold front folding ramps
  • Side beam flange reinforcing, full length of deck
  • Deck toolbox with steel or wooden lid
  • Additional bent lashing D's
  • Aluminum disc wheels
  • Larger 275/70R22.5 radial tires
  • Air exhaust valve for all axles
  • Axle air lift
  • Bumper stop
  • US DOT-approved safety light system with "deep cycle" battery
  • Removable 4th axle
  • Backup warning alarm, mechanical or electronic
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets
The "Gentle Riser" has a long level deck and a 16° slope to a level deck over the rear frame

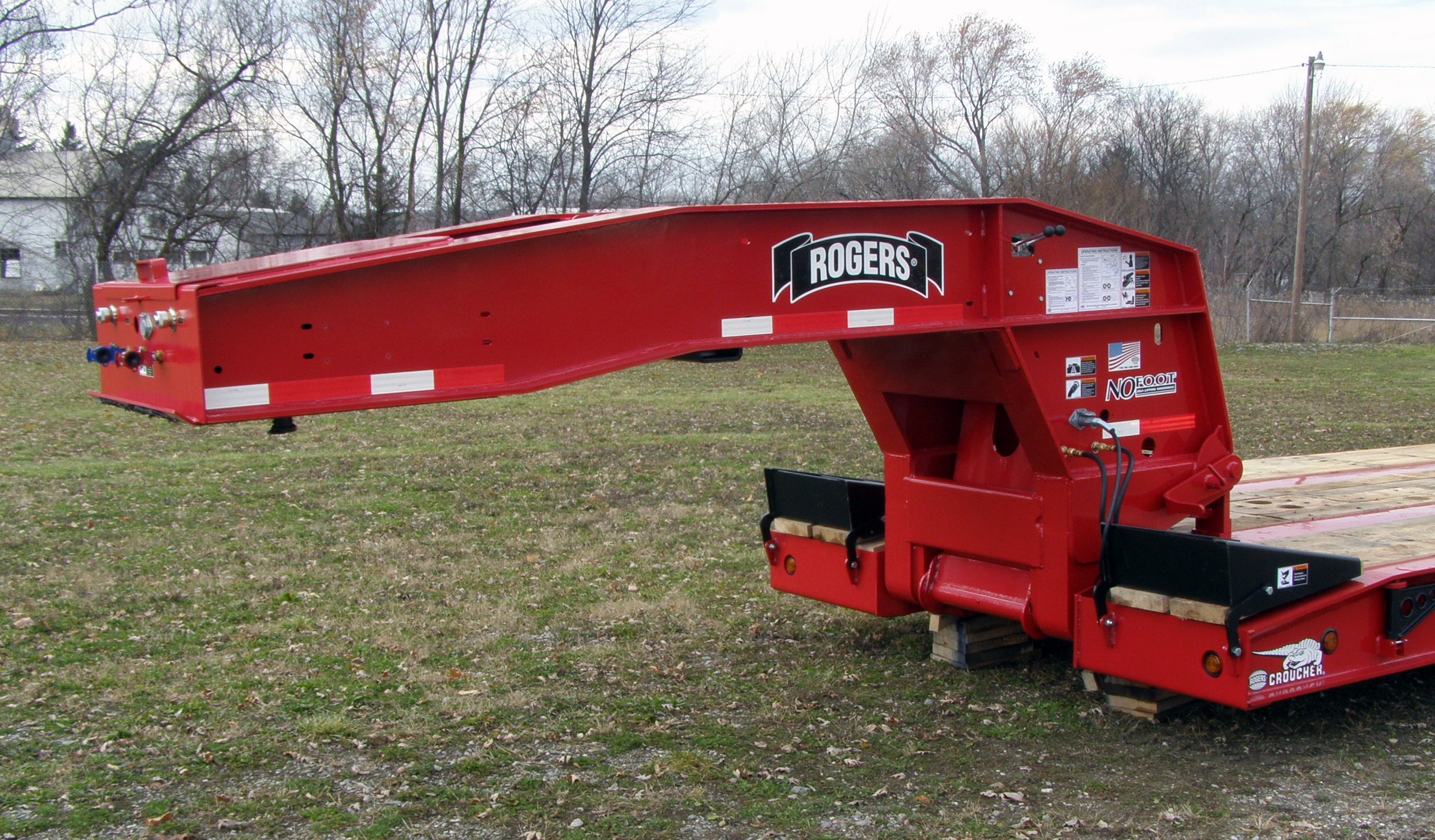

The powerful "No Foot"® Tower style gooseneck has greater lifting capacity than other gooseneck styles.

The underside has the a built-in "hat box" which gives better clearance over the tractor's frame and fenders when detaching the gooseneck from the trailer.

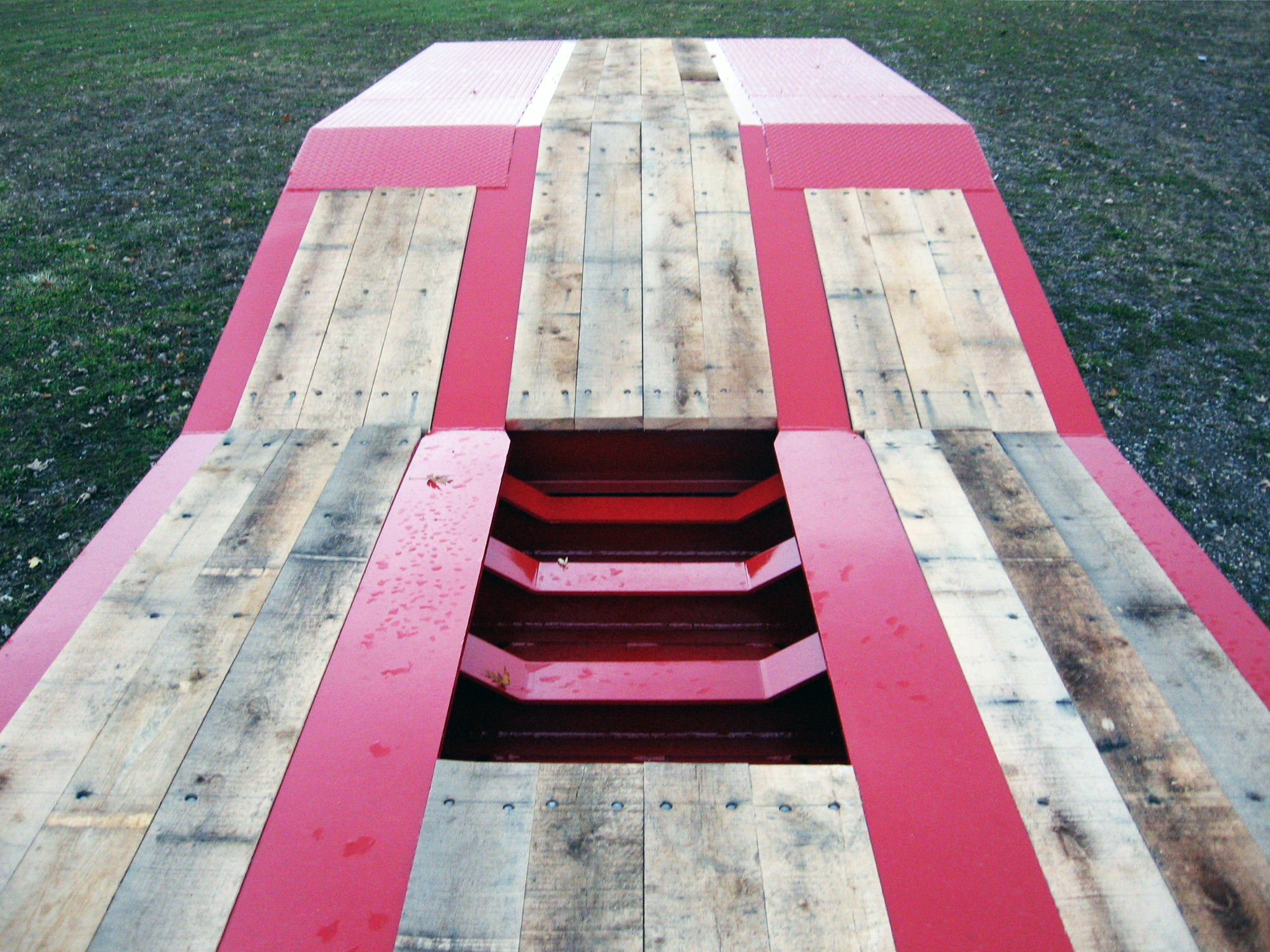

The rear frame of the "Gentle Riser" can carry an extra machine due to its standard 1/4" wheel covers and oak center boards.

The "bucket pocket" provides a space to tuck in the bucket or boom stick of an excavator and gain better overhead clearance.

Request a Quote for 50-ton CR50GR, Detachable Gooseneck Trailer, Model Code 580-015
