Trailer Models

60-ton SP60PL-3XDRARBAR4R5, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP60PL-3XDRARBAR4R5
Feature Photo Description

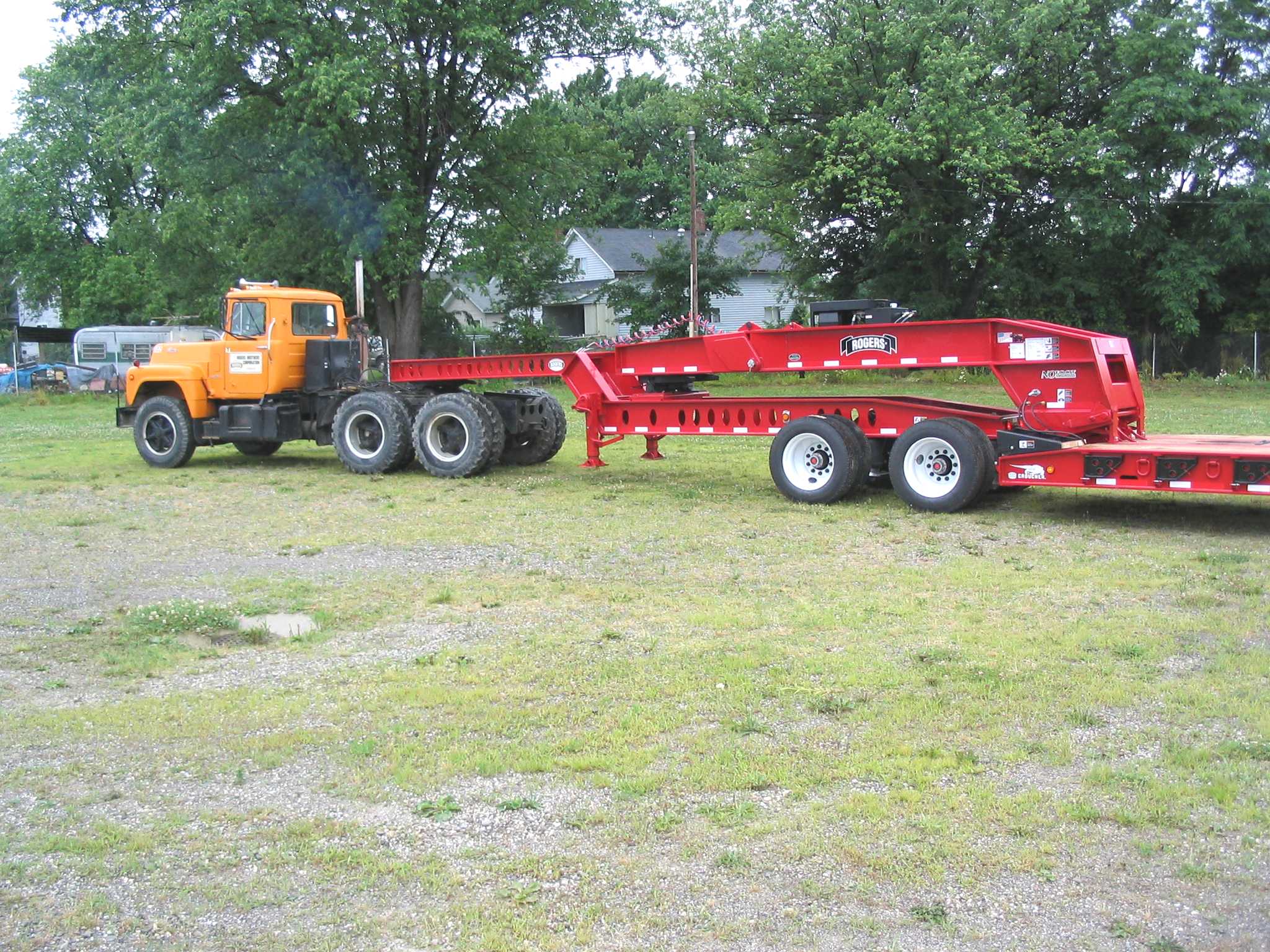

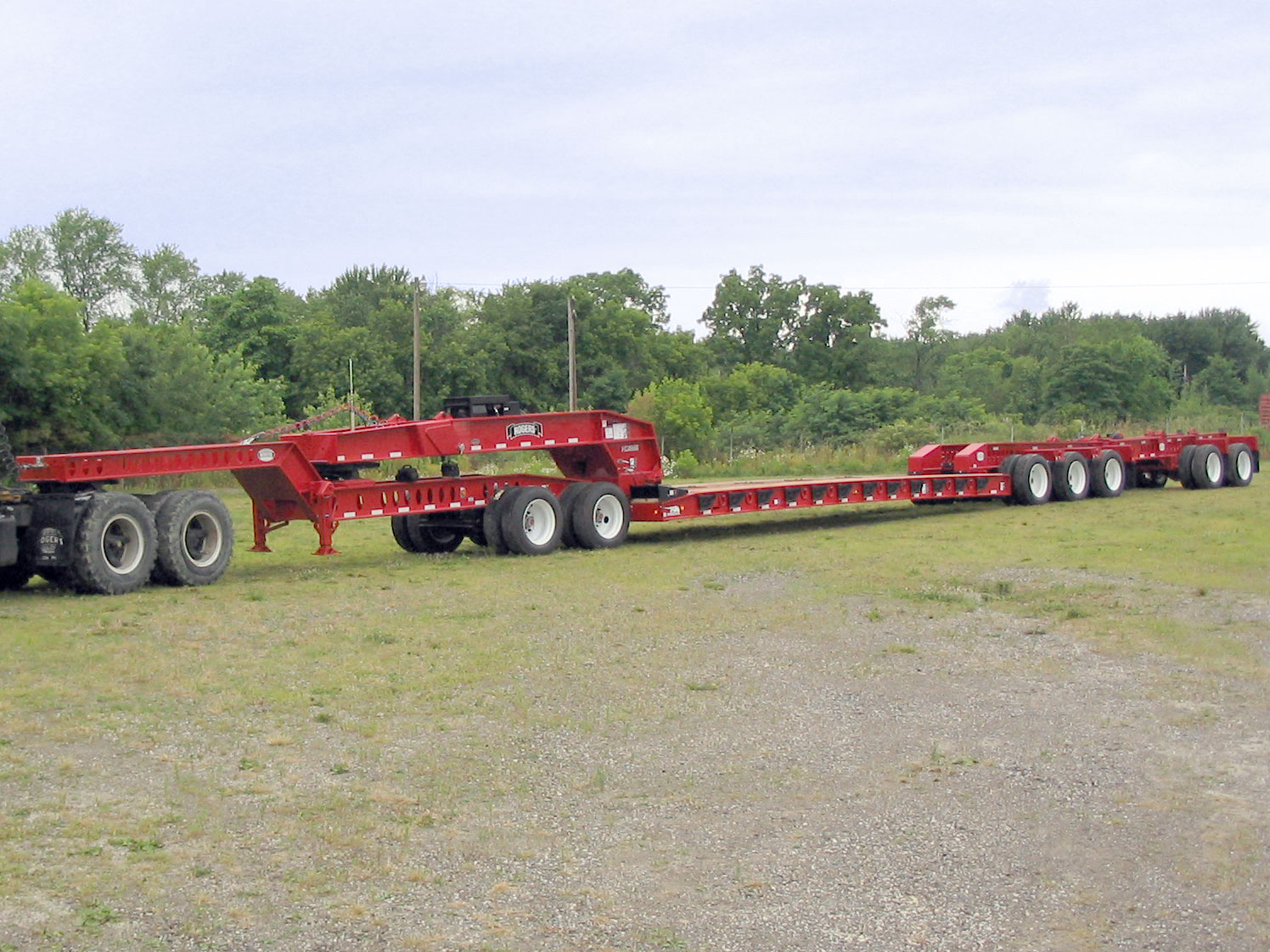

This ROGERS 3+2 "Super Trailer" is road legal to use in most of the lower 48 states.
The 26'-0" cambered deck is rated to carry 60-tons in 13'-0" of deck with it completely "set up."
Internal Code
SP60PL110/54/26/102/3XDRARBAR4R5
Code
667-005
Name
SP60PL-3XDRARBAR4R5
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Modular
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
Platform
Deck Length
26'-0" (7.9-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3+2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

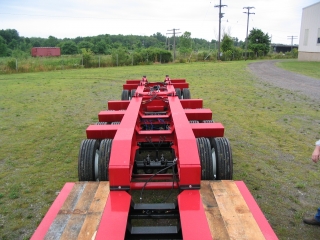

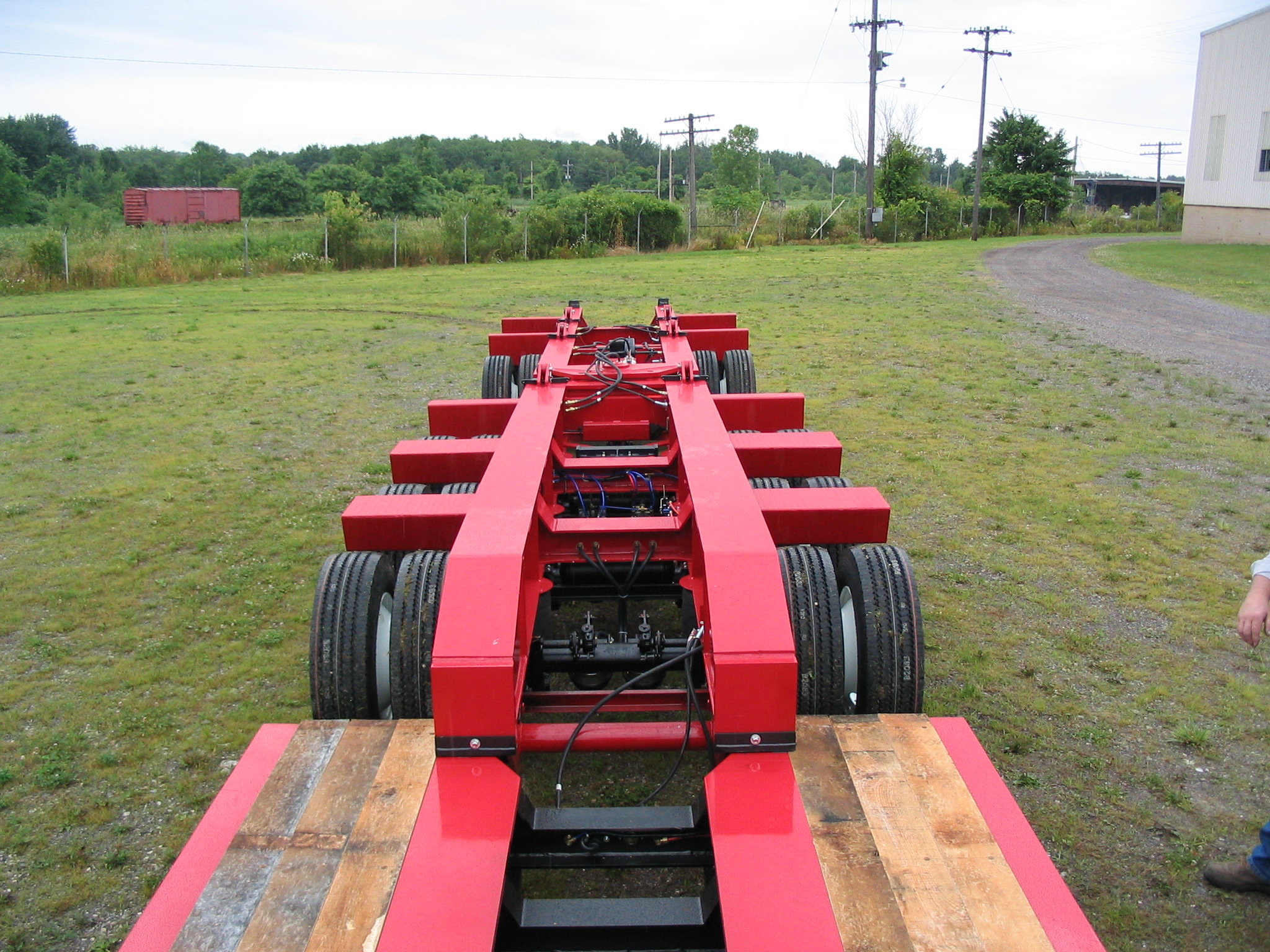

It features a tandem-axle Jeep Dolly and the patented "No Foot"® gooseneck with an extension.

A 16 HP gas engine, with controls remoted to the side, powers the gooseneck hydraulics.

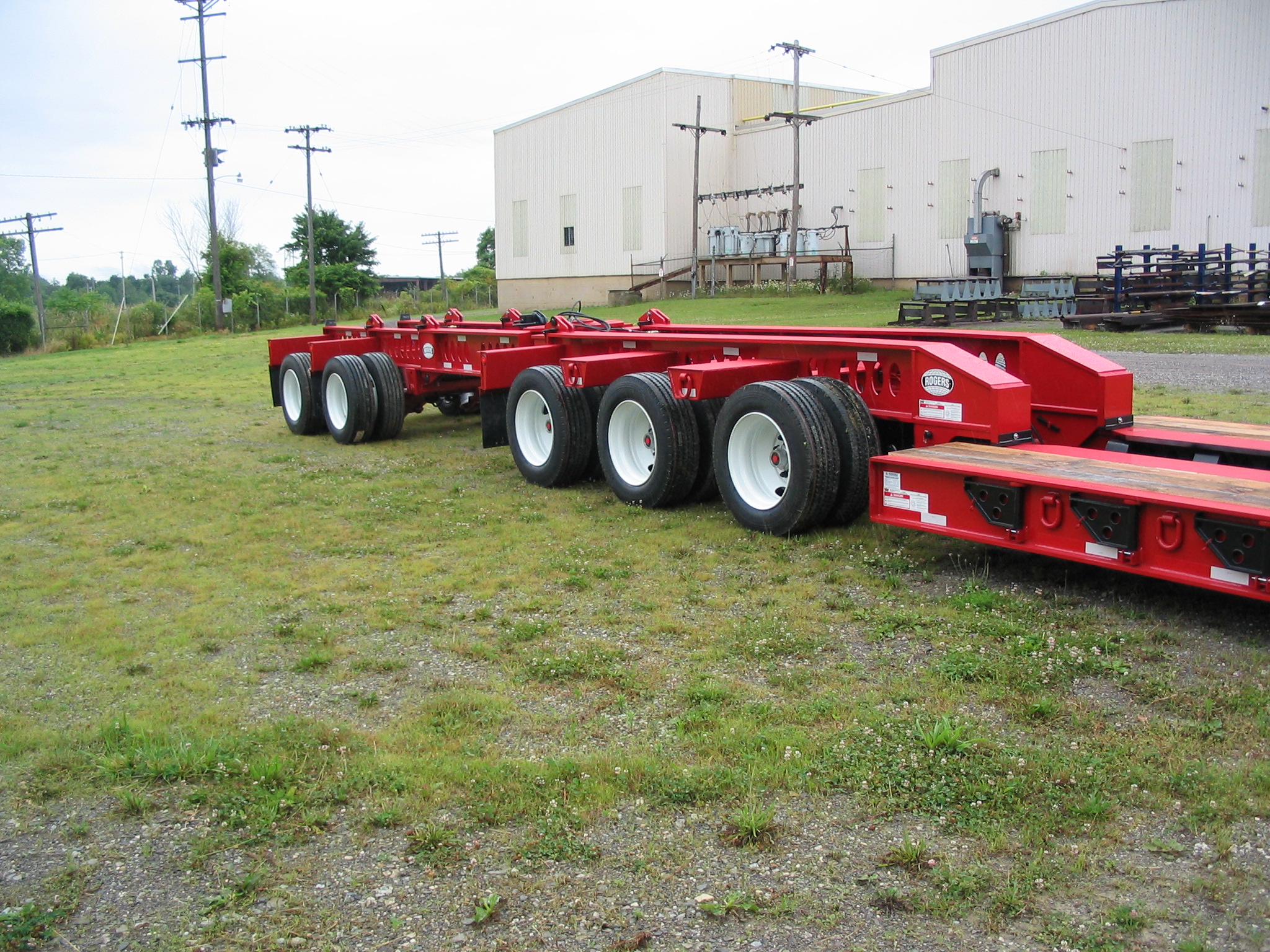

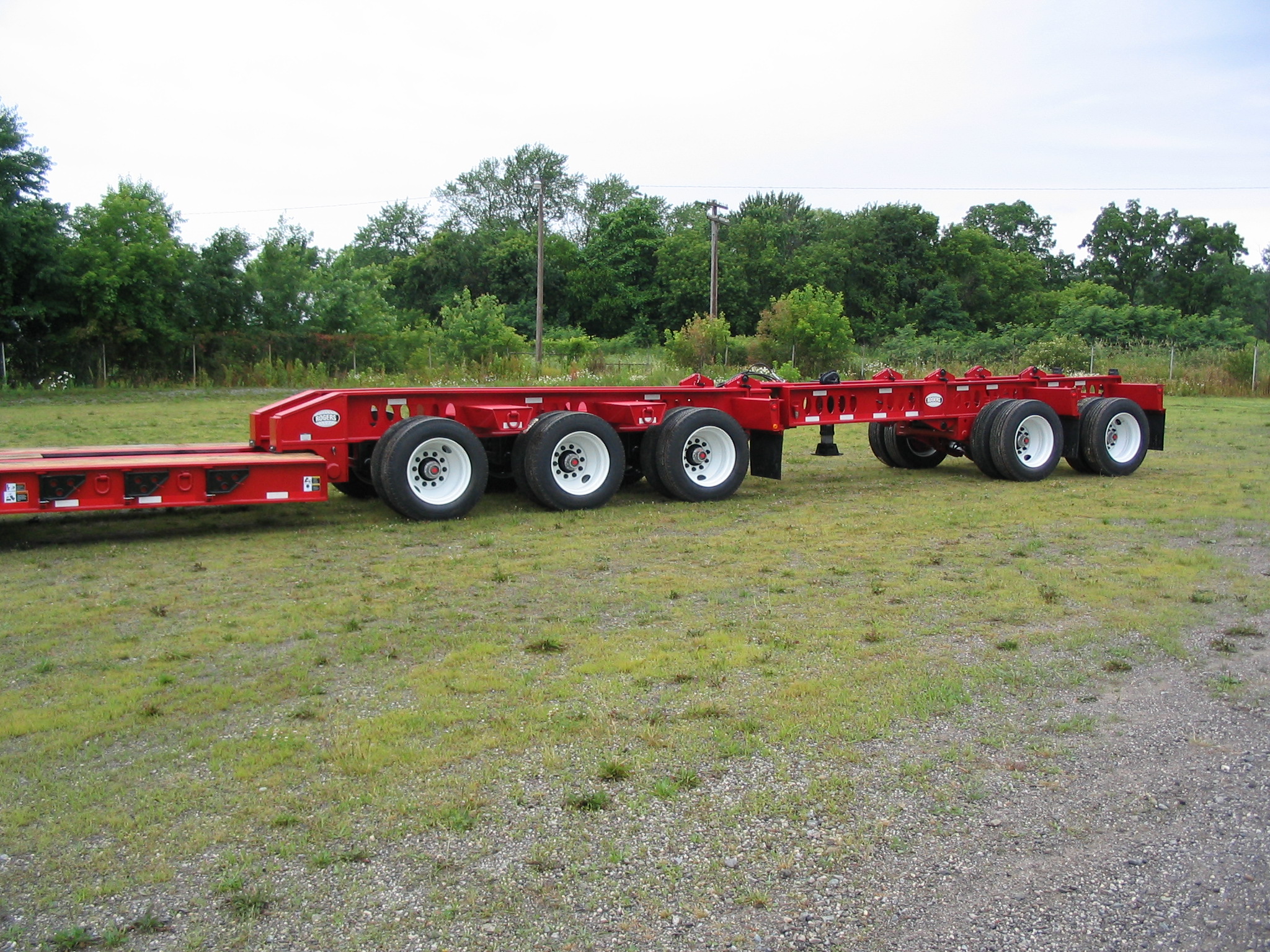

It has a booster axle assembly to create a 14'-1" spread from the center of the last trailer axle to the first trailing axle.
The rear frame is detachable so that additional deck can be inserted.

Additional weight distribution can be achieved by using camber blocks at the joint of the detachable deck.
The axles are spaced at 54 1/2" apart.

Request a Quote for 60-ton SP60PL-3XDRARBAR4R5, Detachable Gooseneck Trailer, Model Code 667-005
