60-ton SP60DS, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP60DS
Feature Photo Description

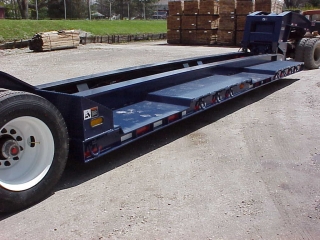

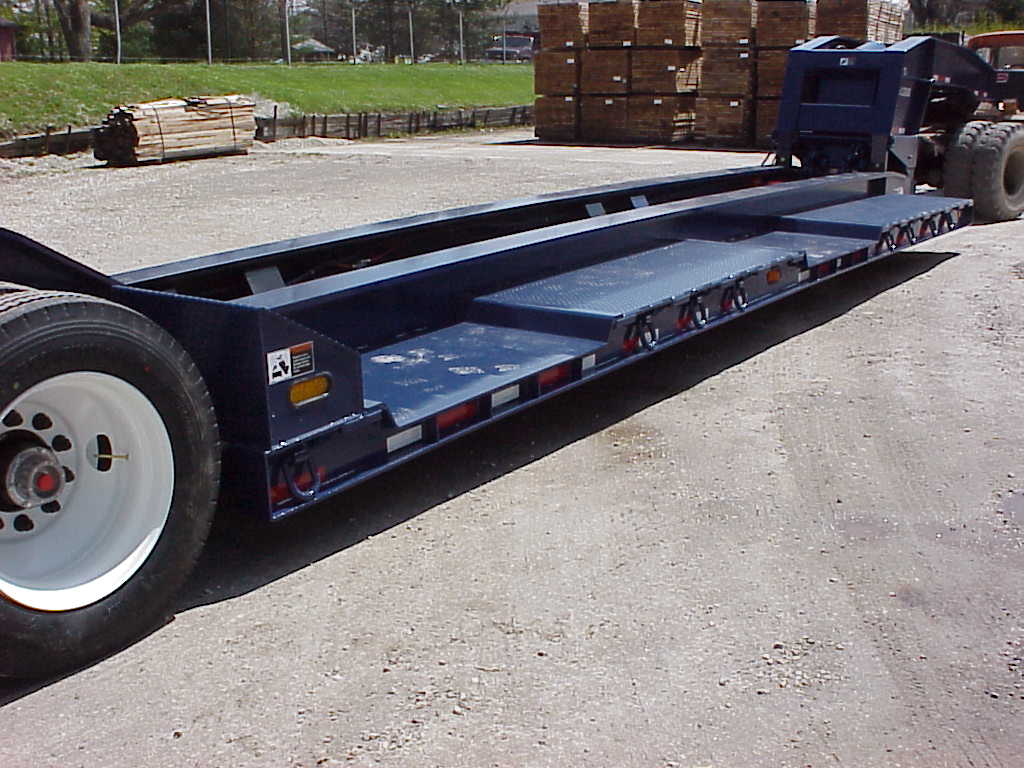

The SP60DS lowbed has a 60-ton capacity drop side deck built to move tall, heavy machines.
It features the patented "No Foot"® self-lifting gooseneck, award winning wheel wells and air ride suspension.
Internal Code
SP60DS104/54/24/102/3XAR
Code
666-002
Name
SP60DS
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
Drop Side
Deck Length
26'-0" (7.9-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

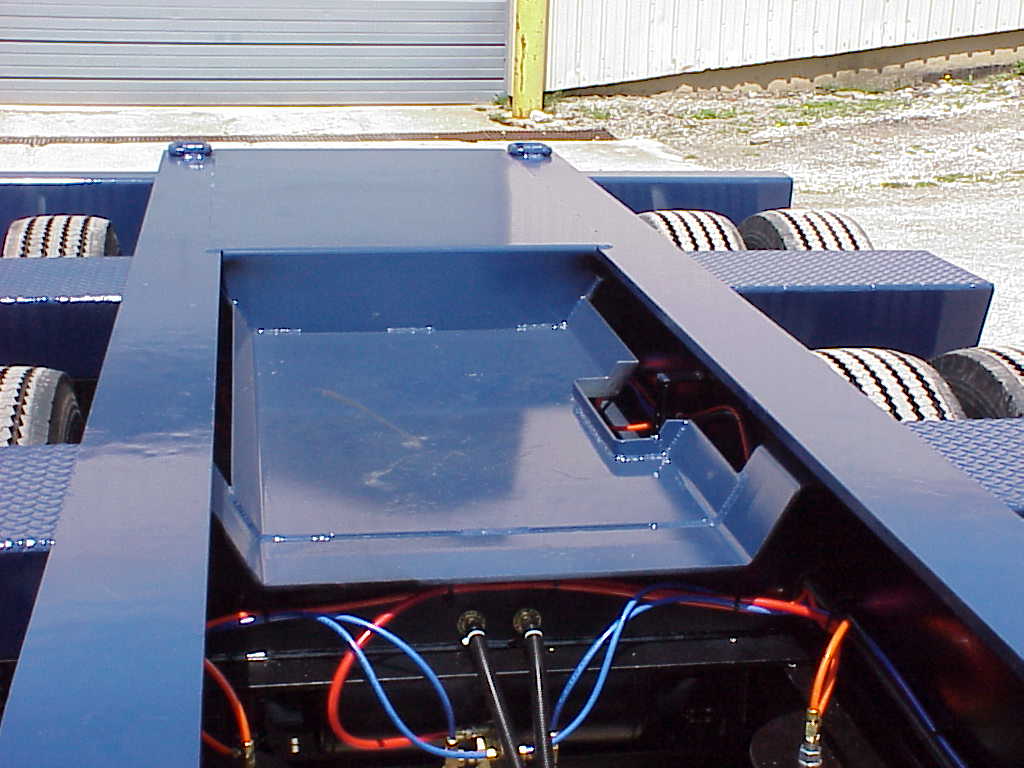

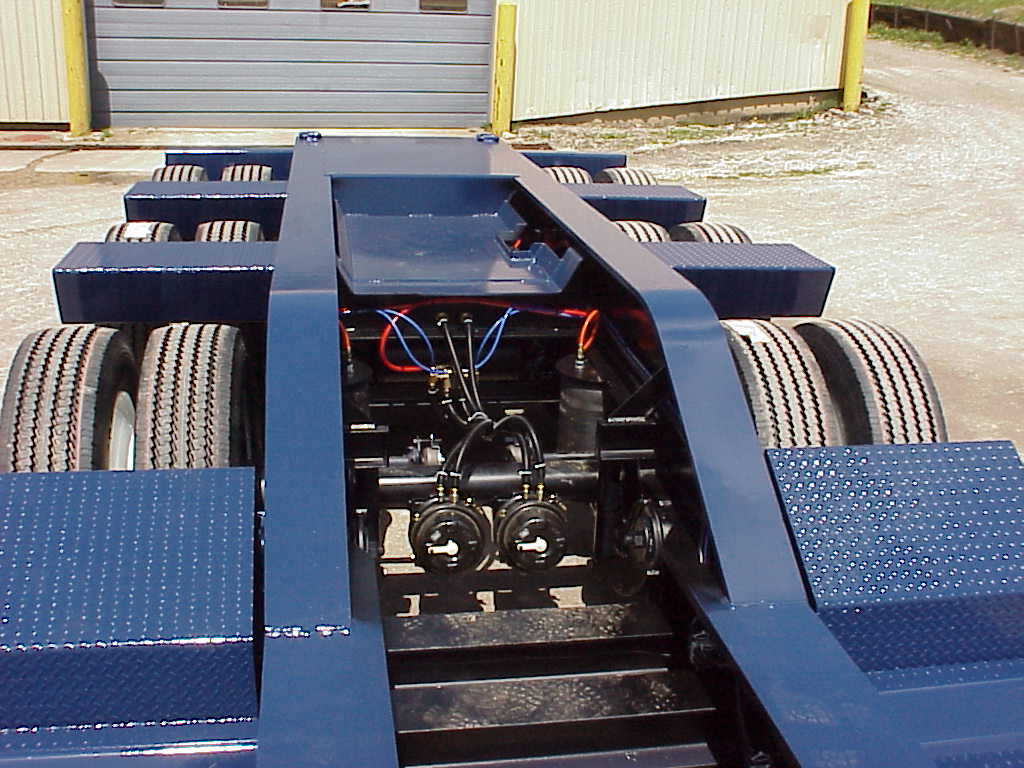

An excavator's boom and stick can be lowered into the "boom trough" to provide more overhead clearance.
The wheel wells provide an additional 4" of overhead clearance for rubber-tired machine loads.
Designed to the customer's specification, these recessed and flush cover plates reduce road spray.

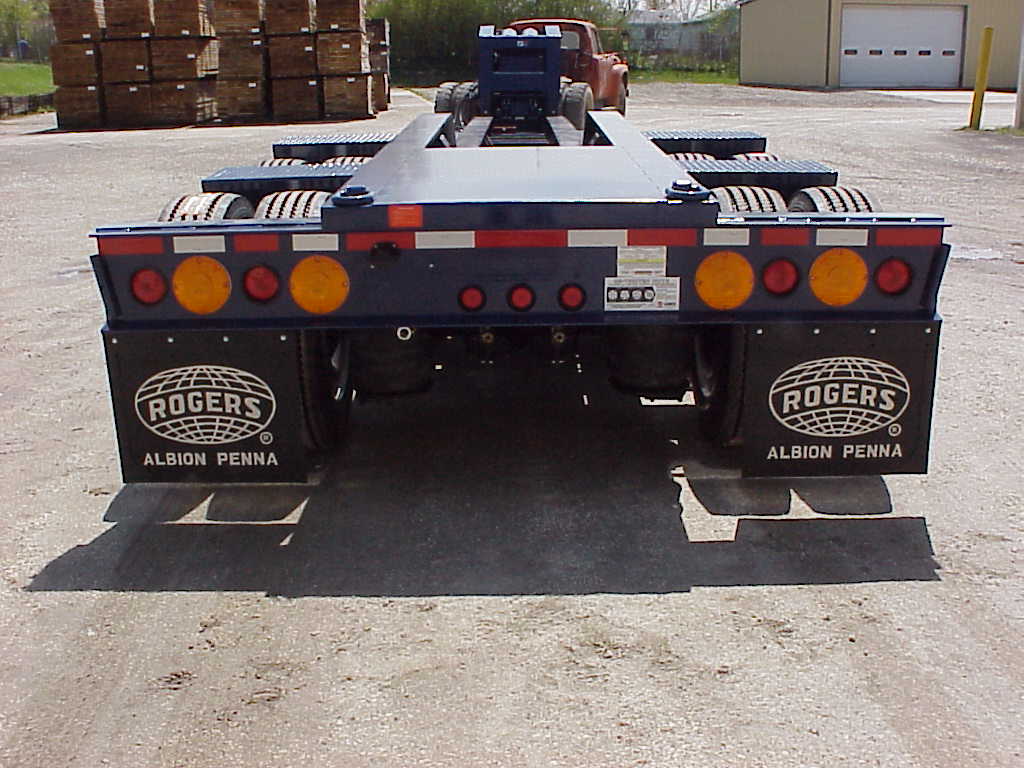

Large 7" dual amber strobe lights are for better visibility when traveling loaded, or unloading near traffic.
