55-ton SP55DS, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP55DS
Feature Photo Description

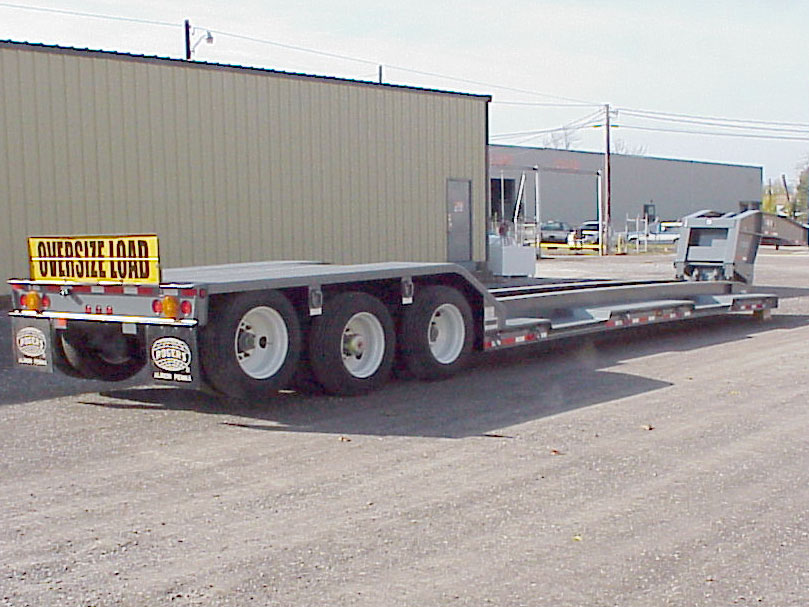

This is a 55-ton capacity ROGERS lowbed with a cambered drop side deck designed to carry its load in half the deck length.
The powerful "No Foot"® Tower style gooseneck lifts using low hydraulic pressure.
It has the award-winning ROGERS wheel wells for increased overhead load clearance.
Internal Code
SP55DS98/51/26/102/3XAR
Code
660-002
Name
SP55DS
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
55
Capacity
55.0-ton (49.9-tonnes)
Deck Style
Drop Side
Deck Length
26'-0" (7.9-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
110,000-pounds (49,895 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

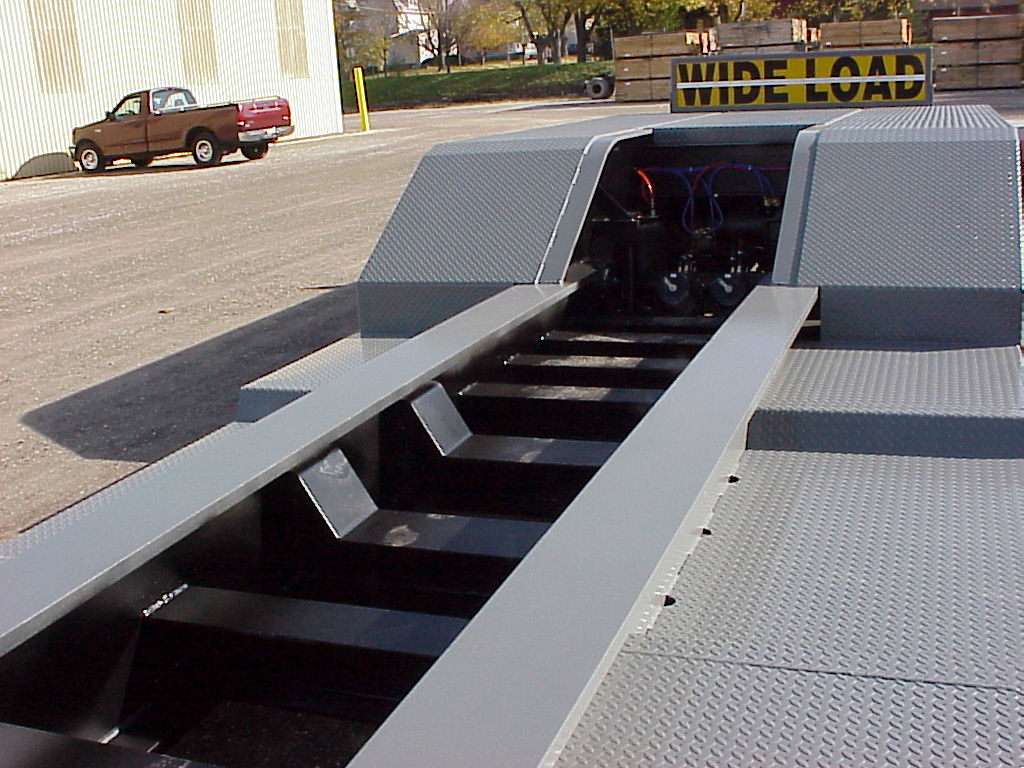

The rear center cross members are notched lower to form the ìbucket pocket.î

Reinforced 1/4" tread plate covers the modified ramps and the rear frame for equipment loads.

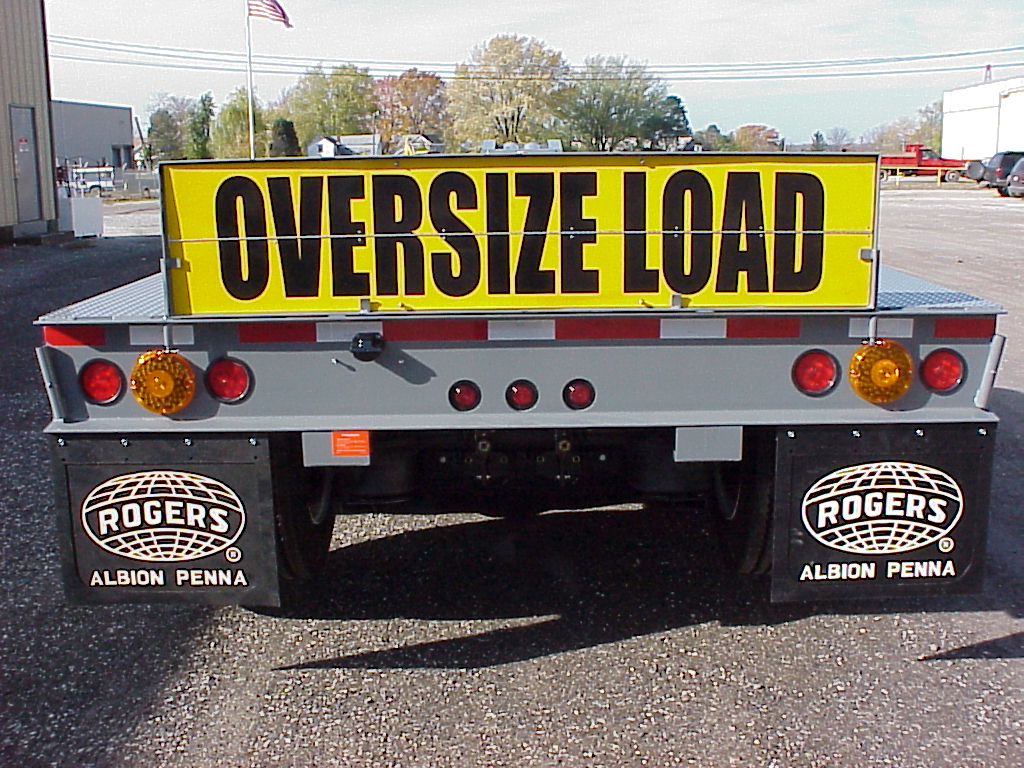

Customer specified rear channel has 7" diameter amber lights that meet New York State DOT requirements.

Flag holders and a reversible OVERSIZE LOAD / WIDE LOAD sign are safety features installed.
