60-ton SP60GR-3XAR, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP60GR-3XAR
Feature Photo Description
This SP60GR-3XAR is a 60-ton capacity "Gentle Riser" equipped with the patented "No Foot"® detachable gooseneck with a heavy-duty lift package and gooseneck fenders.
Internal Code
SP60GR98/54/28/108/3XAR
Code
669-001
Name
SP60GR-3XAR
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
"Gentler Riser"
Deck Length
28'-0" (8.5-meter)
Deck Height LD
23" (0.6-meter)
Deck Width
9'-0" (2.7-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
17'-0" (5.2-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

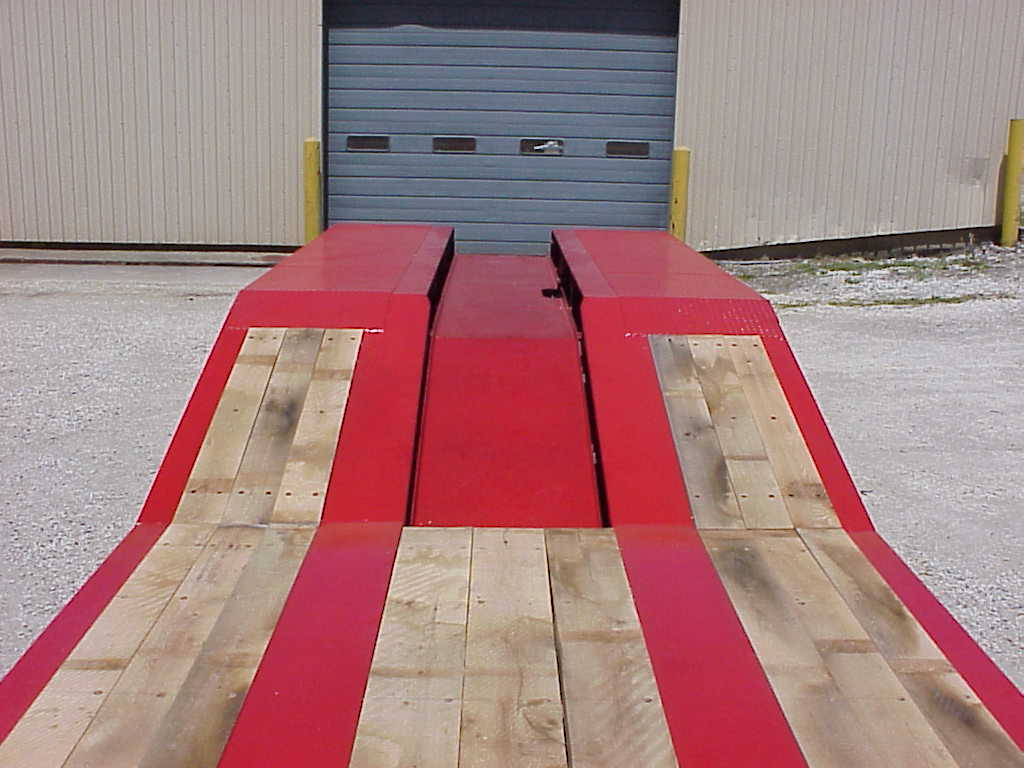

The platform deck has a 16° slope to the rear frame, covered with full 2-inch oak decking.

The center cover plate is depressed the full length of the slope and rear frame, which has 1/4" tread plate wheel covers.
The rear channel is lower to creat a "boom trough" for an excavator.

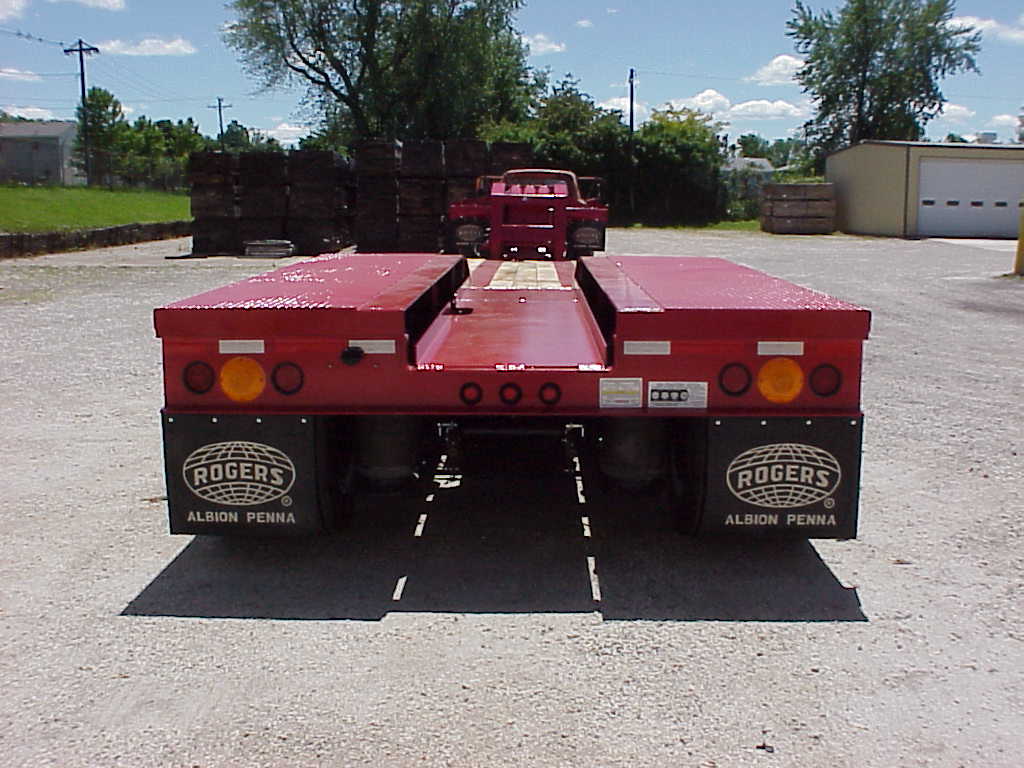

"New York State Wide Load" rear lights include 7-inch amber strobes.
Deck toolbox with a wood cover is storage behind the gooseneck.
Controls for the Safety Lights package are on the driver's side of the deck.

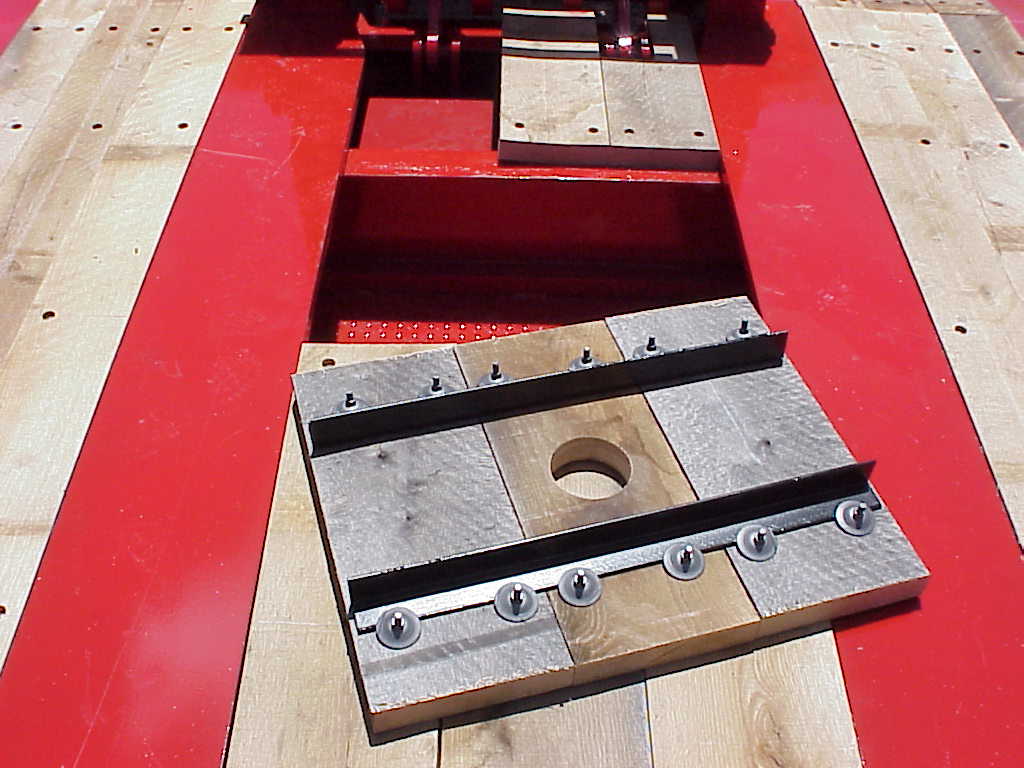

The heavy-duty swinging side brackets are hooked in place until needed.

Request a Quote for 60-ton SP60GR-3XAR, Detachable Gooseneck Trailer, Model Code 669-001
