60-ton SP60GR-3XSP, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP60GR-3XSP
Feature Photo Description

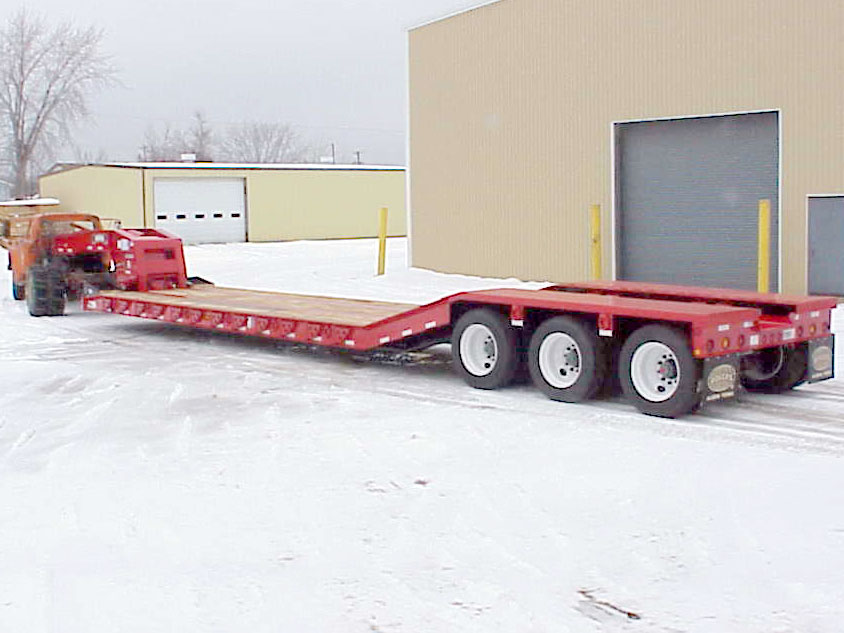

This SP60GR is a 60-ton capacity lowboy that features the often-imitated "Gentle Riser" deck style that can transport multiple machines in one trip.
It has the "Croucher"® low front end, the "No Foot"® Tower detachable gooseneck, and air ride suspension.
Internal Code
SP60GR98/51/25/102/3XSP
Code
669-000
Name
SP60GR-3XSP
Model Series
Blacktop Series Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
"Gentler Riser"
Deck Length
25'-0" (7.6-meter)
Deck Height LD
23" (0.6-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
3 axles
Suspension
75,000 lb. capacity tri-axle heavy-duty spring walking beam
Axle Type
22,500 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

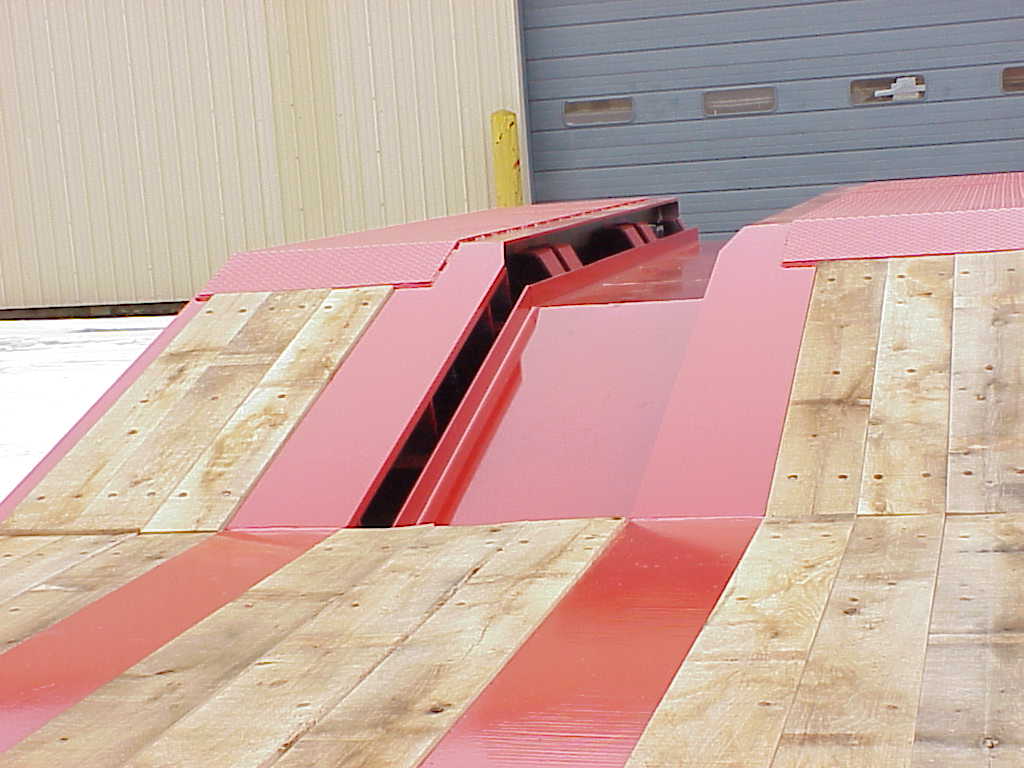

The "Gentle Riser" has a 16° incline slope to a level deck over the tires.

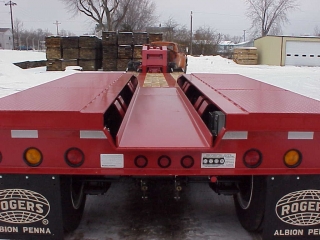

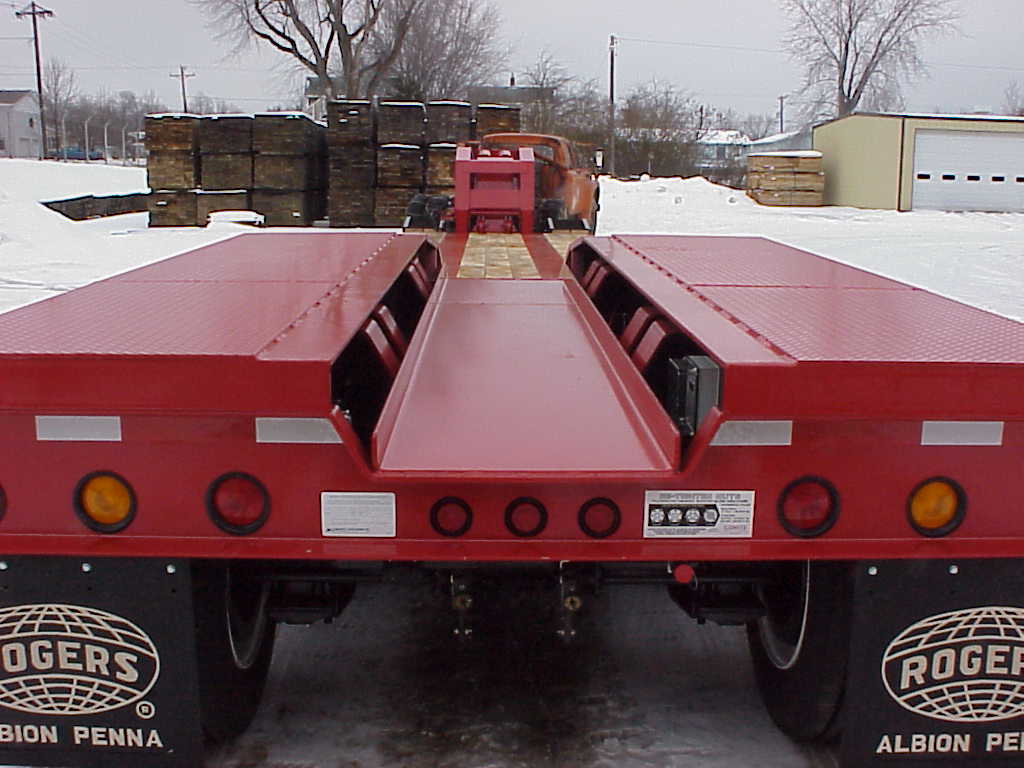

Customer specified depressed center plate protects from road spray and is reinforced so a track-style milling machine can be placed on the rear frame.

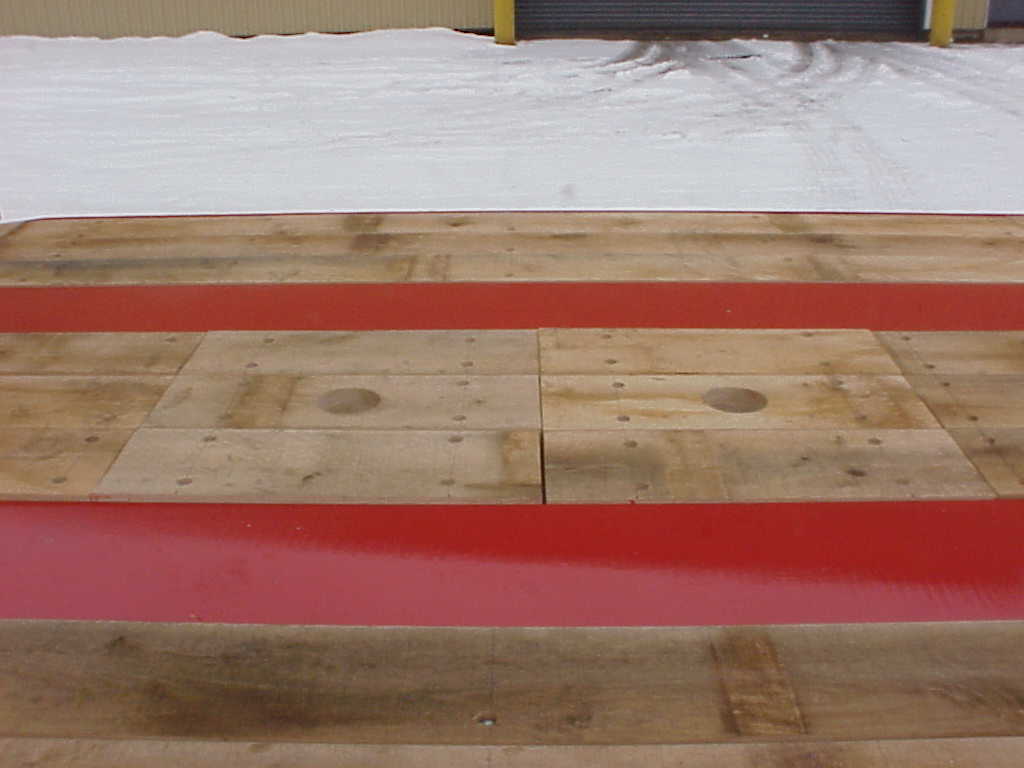

The deck has wood covers over a tool box for storing chains and blocks.
