Trailer Models

35-ton FG35, Fixed Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.

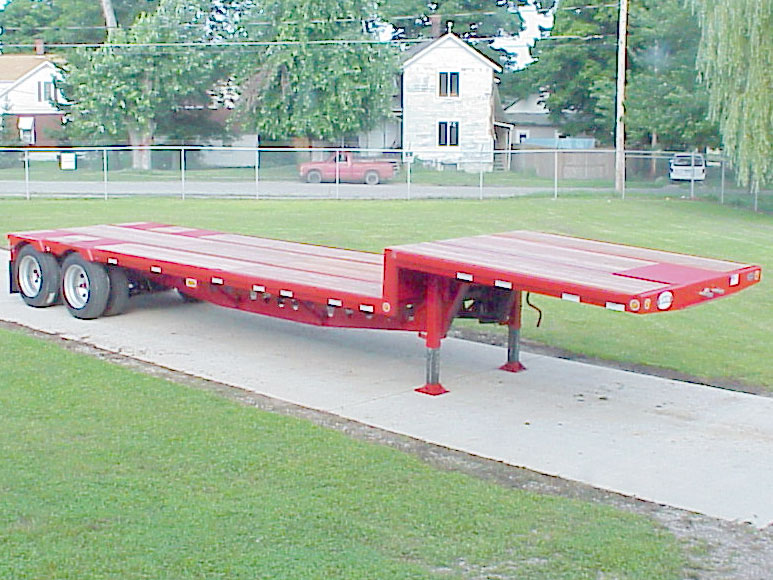

Feature Photo
FG35
Feature Photo Description
This 35-ton capacity ROGERS single drop deck is designed for higher load concentrations and has a shorter overall length than standard trailers to get into tight places.
The full-width flat gooseneck includes a steel-covered toolbox over the king pin, and it has heavy-duty two-speed landing gear.
Internal Code
FG35L82/52/17.4/102/2XSP
Code
636-004
Name
FG35
Model Series
Fixed Gooseneck Trailers
Trailer Type
Fixed Gooseneck
Trailer Use
Crane Loading
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
Single Drop
Deck Length
17'-5" (5.3-meter)
Deck Height LD
480" (12.2-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
12'-0" (3.7-meter)
Axles
2 axles
Suspension
50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets
Fabricated main beams are deeper than normal for greater carrying capacity with less weight.

The cut-out holes reduce weight without compromising strength.
The level deck has 1-1/4" apitong wood and 1/4" tread plate flush wheel covers.

Rub rails on the rear and both sides have stake pockets on 24" centers and pipe spools between them.
This trailer features a two-axle, heavy-duty spring suspension with 255/70R radial tires and is equipped with customer specified flange mount LED lights.
Customer specified steel disc wheels with a burnished finish.

Request a Quote for 35-ton FG35, Fixed Gooseneck Trailer, Model Code 636-004
