Rogers Brothers Trailers1-800-441-9880

Trailer Models

80-ton SP80DS-3XDRSP, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP80DS-3XDRSP
Feature Photo Description
This 80-ton lowboy is a specialized trailer featuring a drop side deck with a detachable rear frame and a powerful ram-foot style detachable gooseneck.
Internal Code
SP80DS98/55/25/120/3XDRSP
Code
057-000
Name
SP80DS-3XDRSP
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Modular
Tons
80
Capacity
80.0-ton (72.6-tonnes)
Deck Style
Drop Side
Deck Length
25'-0" (7.6-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
10'-0" (3.0-meter)
Load Con Weight
160,000-pounds (72,575 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3 axles
Suspension
90,000 lb. capacity tri-axle severe-duty spring walking beam
Axle Type
30,000 lbs. capacity with oil-bathed bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
20" spoke type with 22.5 x 9.00 rims
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

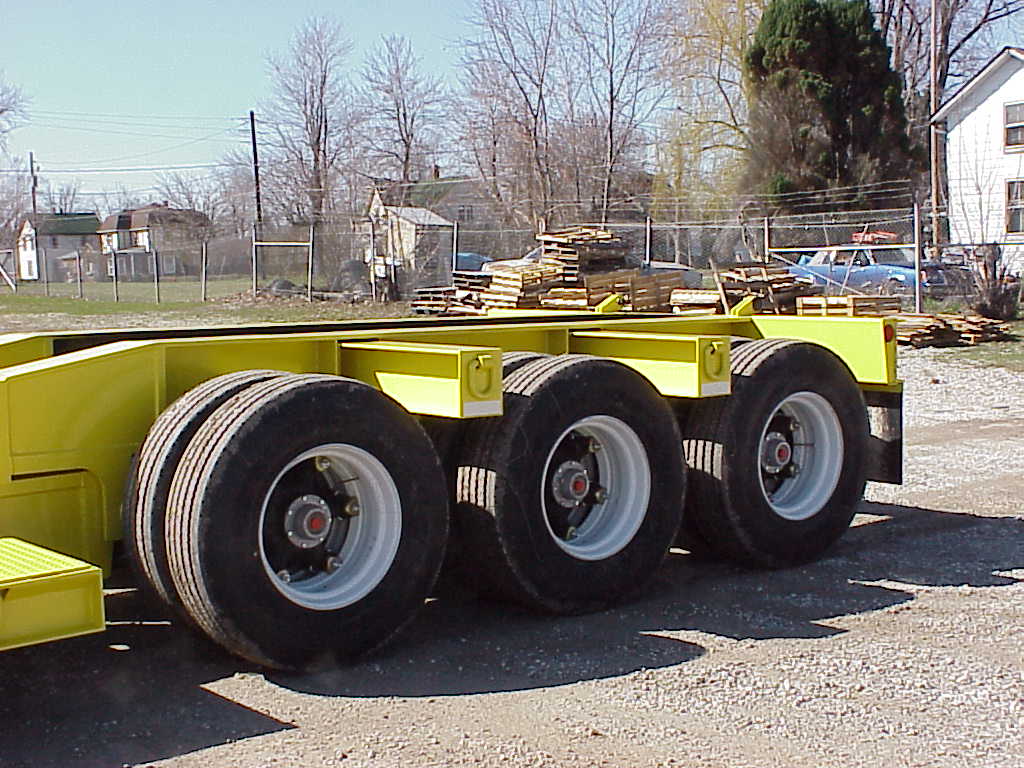

The rear frame is equipped with a severe-duty tri-axle spring/walking beam suspension and spoke type wheels.

The large outriggers have lashing D's on each end for securing tie downs.

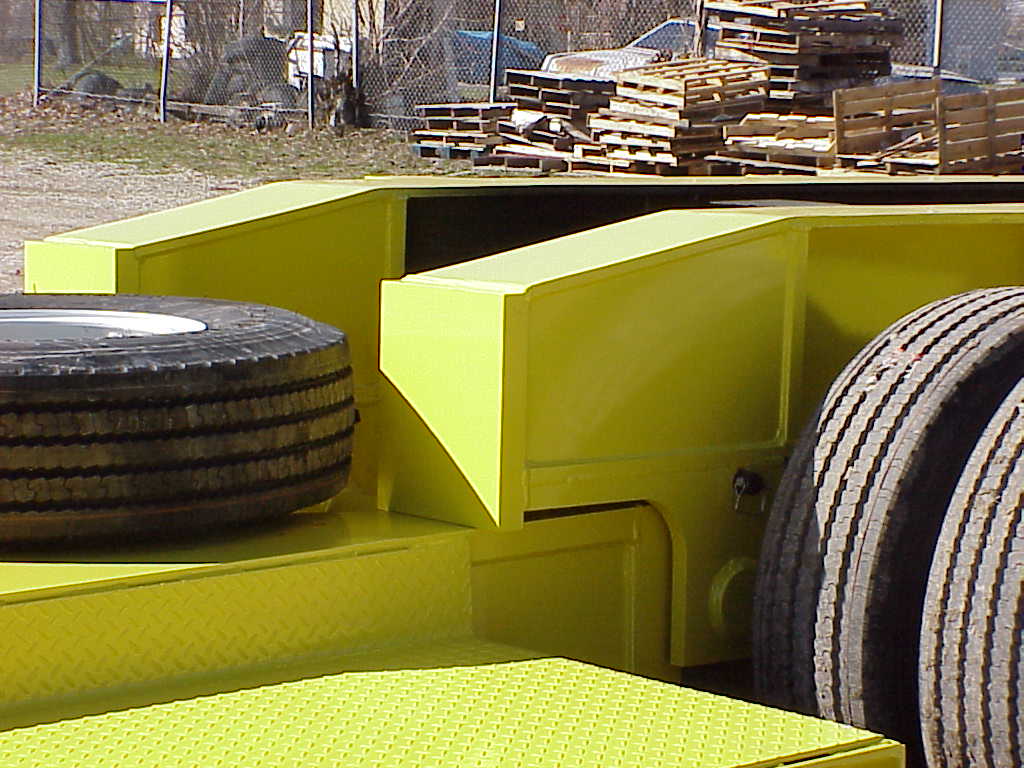

The ROGERS detachable rear frame has beam hooks that rest on large cross shafts.

It uses no bolts and nuts to hold it together.

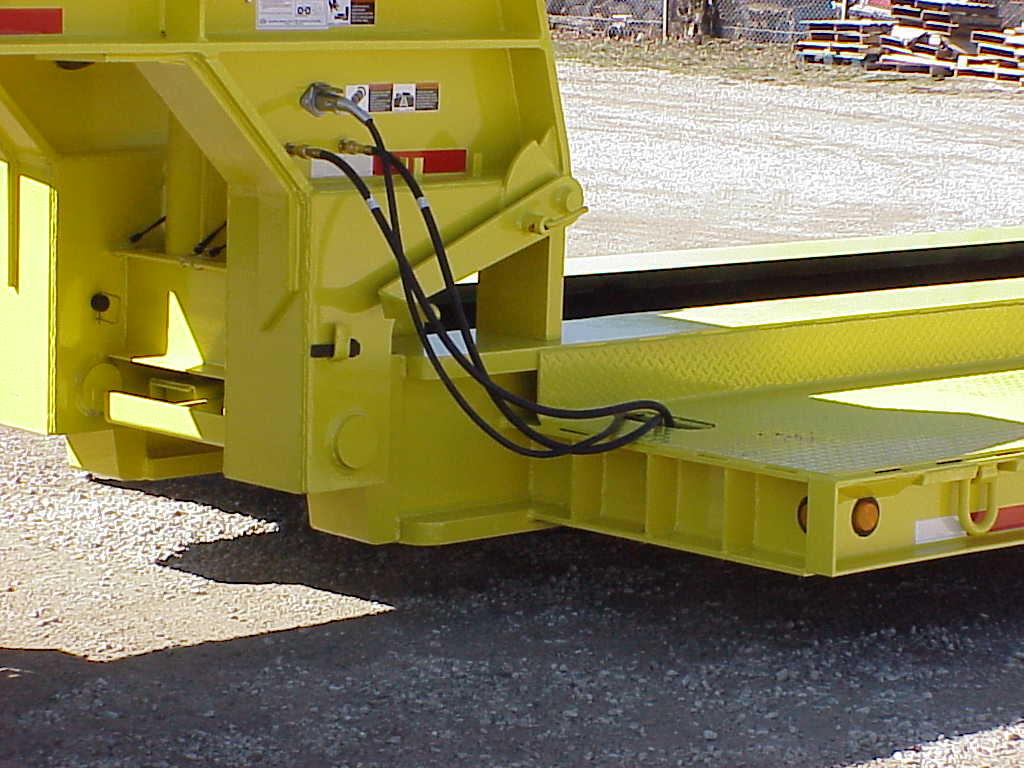

The powerful ram foot gooseneck can lift the load placed anywhere on the deck.

Request a Quote for 80-ton SP80DS-3XDRSP, Detachable Gooseneck Trailer, Model Code 057-000
