100-ton FG100L-4X, Specialized Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.

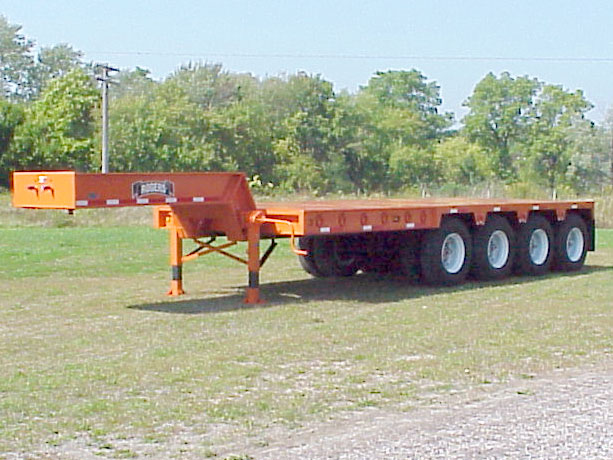

Feature Photo
FG100L-4X
Feature Photo Description
FG100L-4X is a fixed gooseneck trailer built for use in a steel mill.
It can handle a 100-ton load with its super heavy-duty 120,000 capacity 4-axle spring/walking beam suspension.
Internal Code
FG100L86/52/10/112/4XSP
Code
105-001
Name
FG100L-4X
Model Series
Fixed Gooseneck Trailers
Trailer Type
Specialized
Trailer Use
Crane Loading
Tons
100
Capacity
100.0-ton (90.7-tonnes)
Deck Style
Platform
Deck Length
10'-0" (3.0-meter)
Deck Height LD
588" (14.9-meter)
Deck Width
9'-4" (2.8-meter)
Load Con Weight
200,000-pounds (90,718 kilograms)
Load Con Length
10'-0" (3.0-meter)
Axles
4 axles
Suspension
120,000 lb. capacity four axle severe-duty spring walking beam
Axle Type
30,000 lbs. capacity with oil-bathed bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
20" spoke type with 22.5 x 9.00 rims
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets
Heavy-duty, two-speed landing gear is designed to support the empty trailer.
The entire deck is covered with 1/2" steel plate for added durability and is designed to haul the 100-ton load in 10'-0" of its deck.

Request a Quote for 100-ton FG100L-4X, Specialized Trailer, Model Code 105-001
