60-ton SP60DS-R4, Detachable Gooseneck Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description

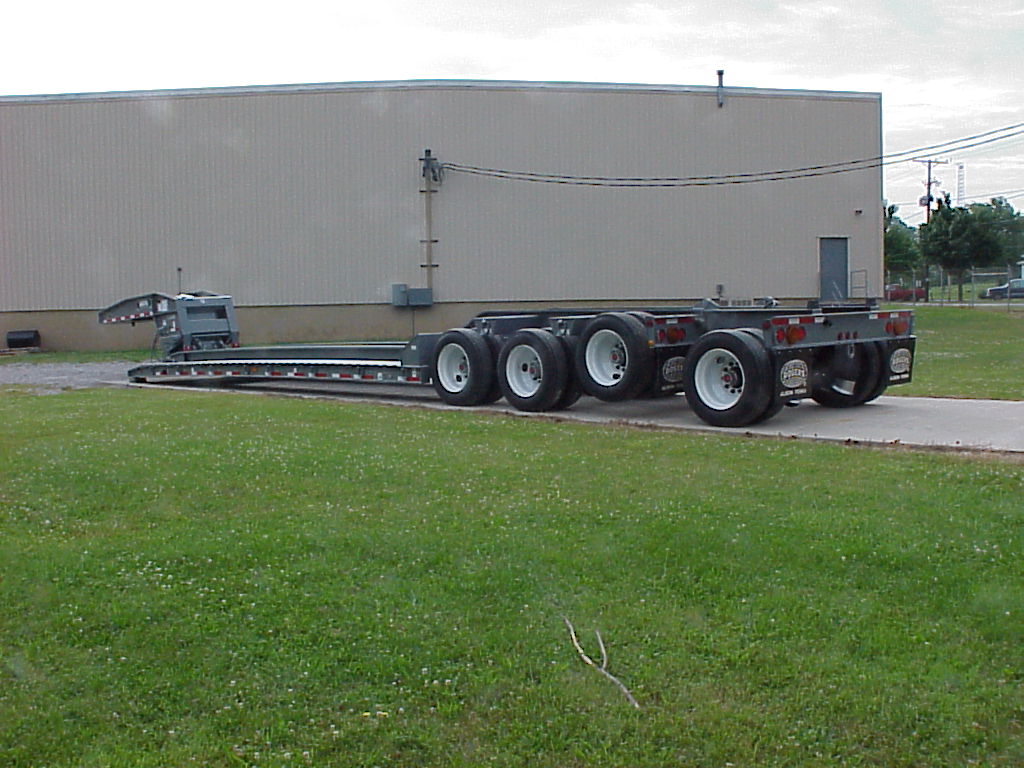

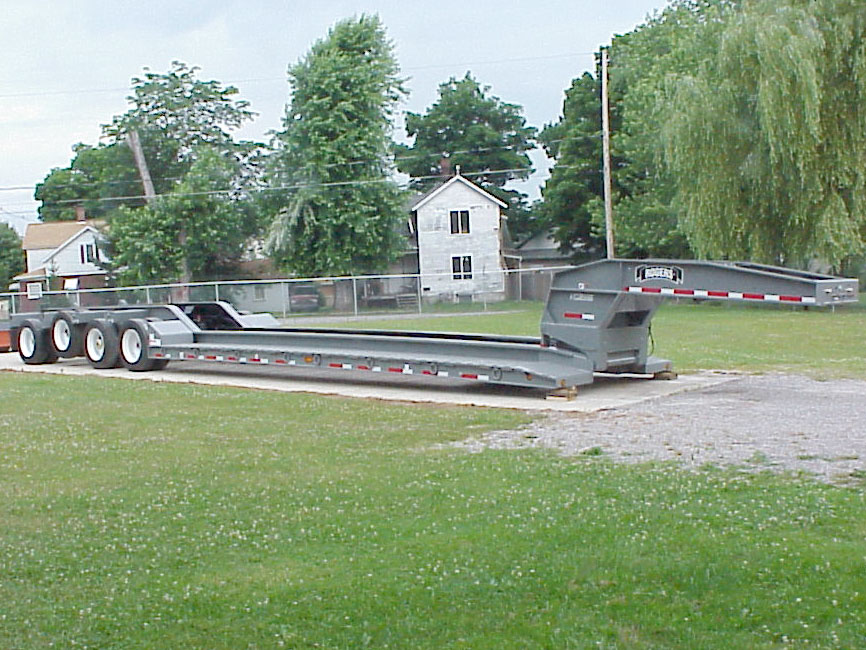

This specialized lowboy has a cambered drop side deck designed to carry 60 tons in 1/2 of its deck length.
The front end's taper and the modified ramp ahead of the tires – both assist loading.
The patented "No Foot"® gooseneck with a heavy lift package can pick up its load located anywhere on the deck.
The front end's taper and the modified ramp ahead of the tires – both assist loading.
The patented "No Foot"® gooseneck with a heavy lift package can pick up its load located anywhere on the deck.
Internal Code
SP60DS98/51/25/108/3XARR4
Code
666-007
Name
SP60DS-R4
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
Drop Side
Deck Length
25'-0" (7.6-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
9'-0" (2.7-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3+1 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Optional Equipment Link
No Standard Optional Equipment Available
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

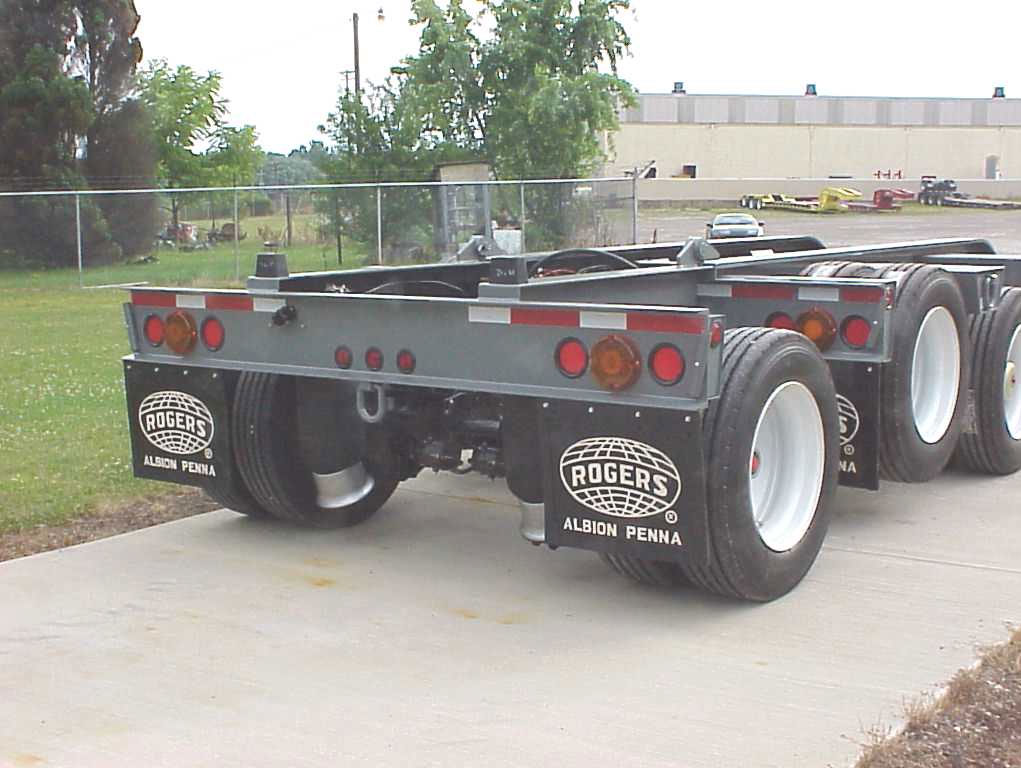

This trailer has air ride suspension, air lift on the 3rd axle and a removable 4th axle - which can be flipped onto the rear. The design of the 3rd and 4th axles gives maximum capacity when needed, and fuel and tire savings when not. |
|
|
|
|

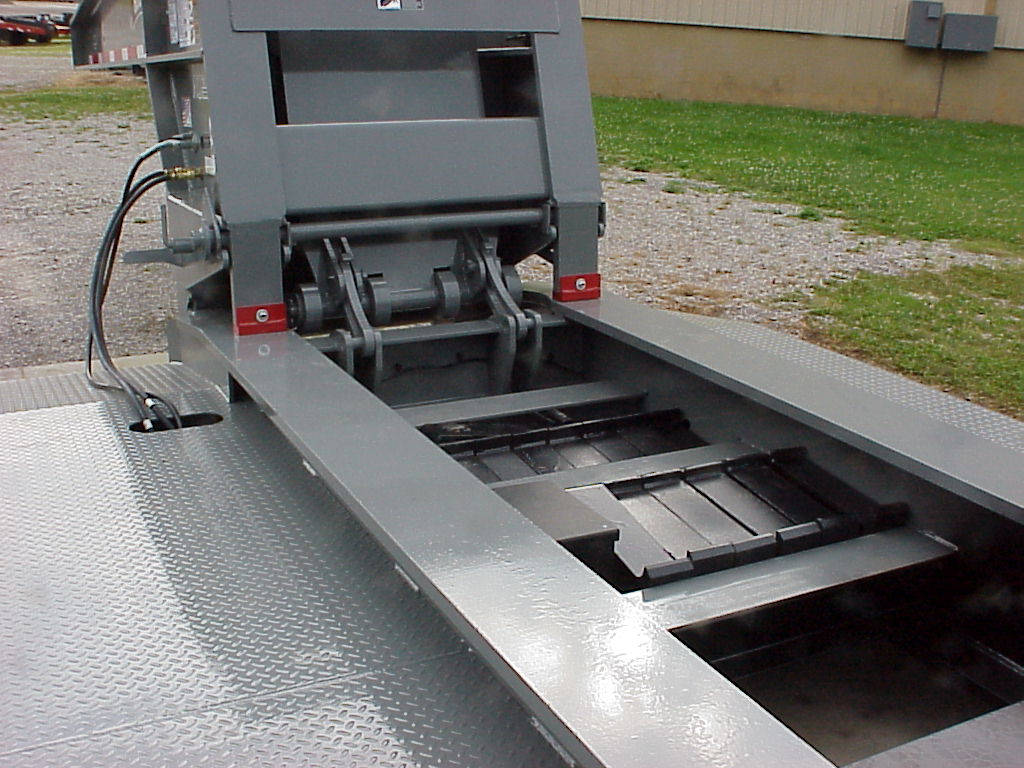

Plenty of storage area in the deck for the removable side brackets. |
|
|
|
|
The LED lights package includes large 7" diameter amber lights for a specific "WIDE LOAD" designation. |
