Trailer Models

80-ton SP80DS, Detachable Rear Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP80DS
Feature Photo Description
The SP80DS is an 80-ton drop side deck trailer with a detachable rear frame.
Internal Code
SP80DS110/59/26/120/3XDRSP
Code
057-001
Name
SP80DS
Model Series
Custom Series
Trailer Type
Detachable Rear
Trailer Use
Modular
Tons
80
Capacity
80.0-ton (72.6-tonnes)
Deck Style
Drop Side
Deck Length
26'-0" (7.9-meter)
Deck Height LD
192" (4.9-meter)
Deck Width
10'-0" (3.0-meter)
Load Con Weight
160,000-pounds (72,575 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3 axles
Suspension

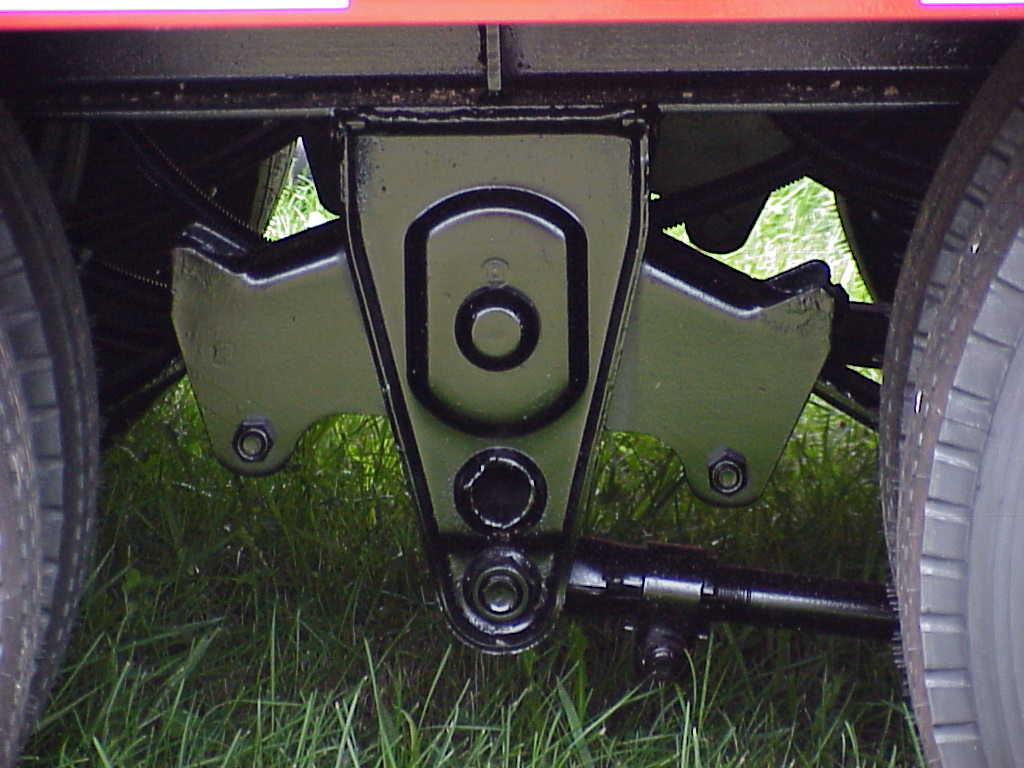

90,000 lb. capacity tri-axle severe-duty spring walking beam
Axle Type
30,000 lbs. capacity with oil-bathed bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
22.5 x 9.00 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets
The detachable gooseneck is the powerful, yet light weight ram foot style.

It can lift the load placed anywhere on the deck.

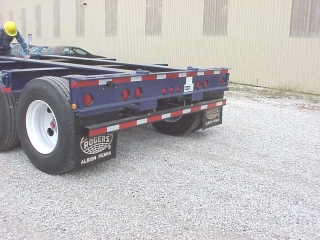

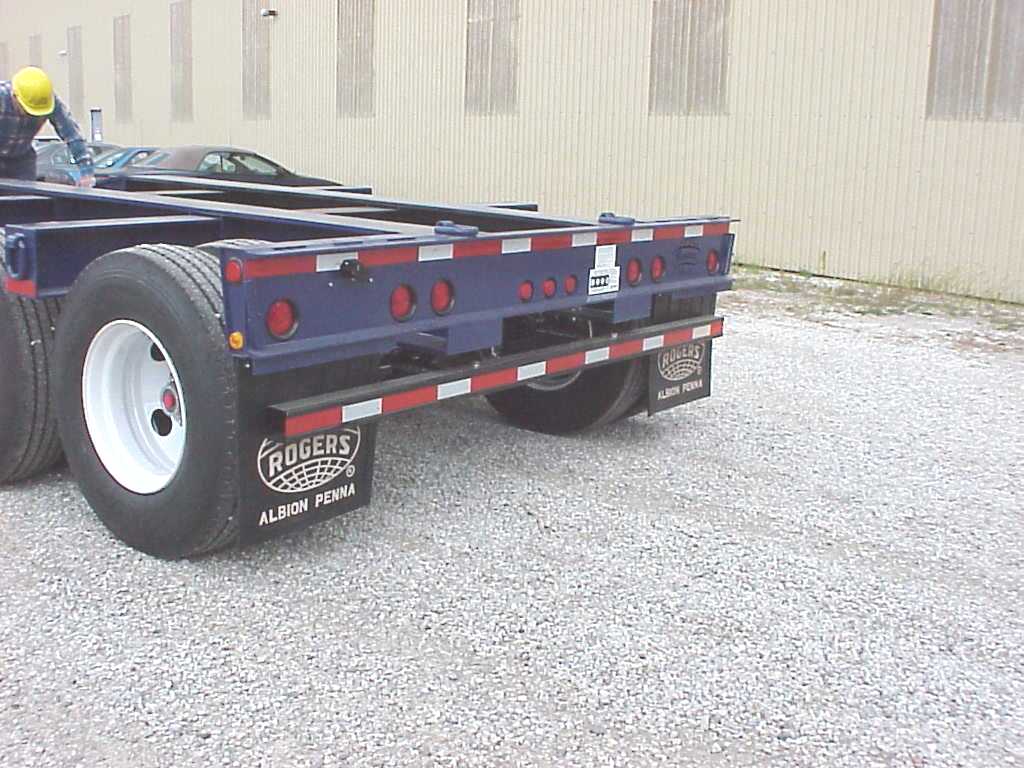

This trailer is 10'-0" wide and includes a US DOT-approved rear impact guard and a 3rd tail light package on the rear channel.

Request a Quote for 80-ton SP80DS, Detachable Rear Trailer, Model Code 057-001
