Trailer Models

55-ton SP55PL, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo

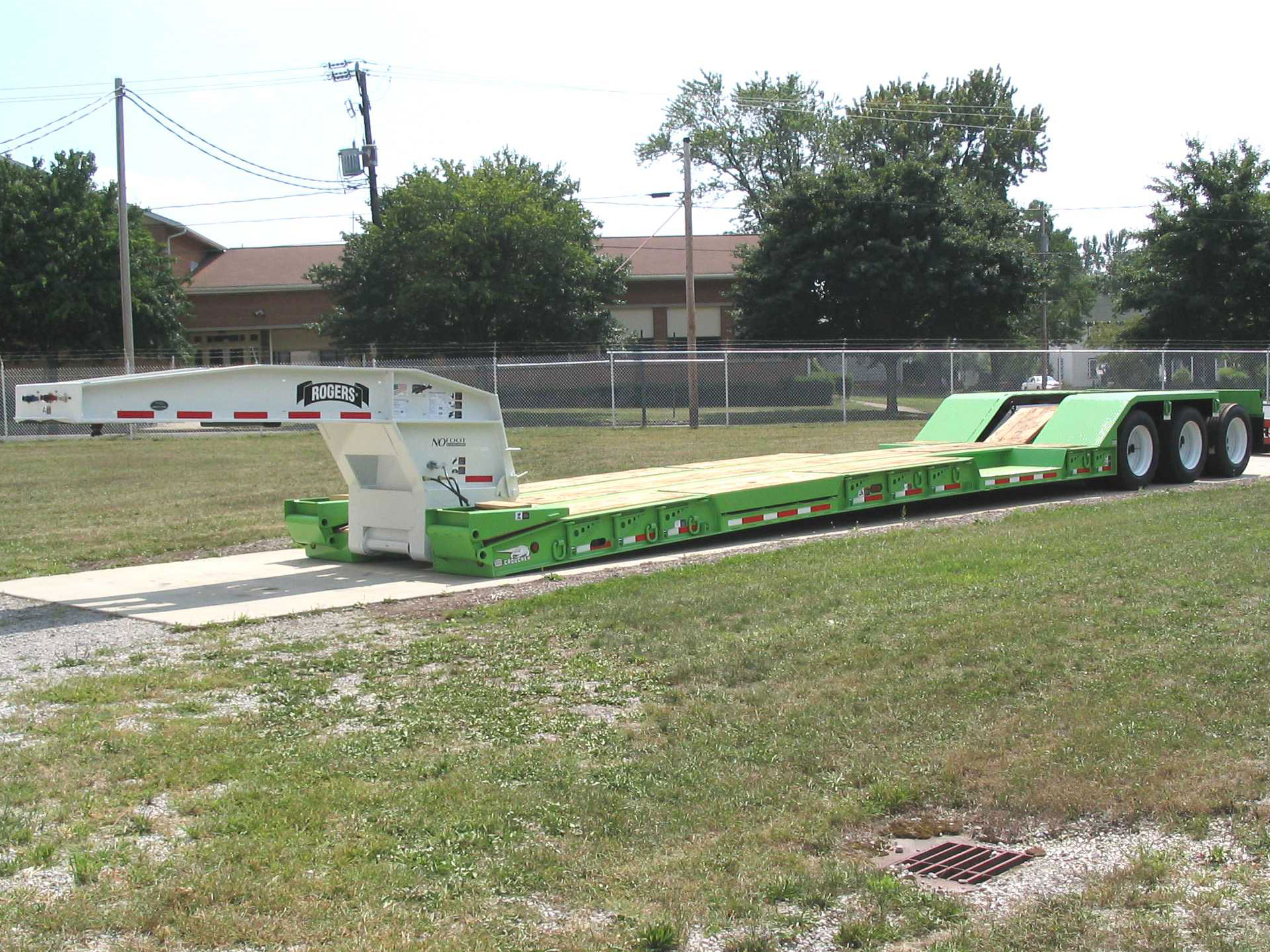

SP55PL
Feature Photo Description
This Specialized ROGERS 55-ton capacity trailer has the exclusive "Croucher"® platform deck featuring the award winning wheel wells.
This is a multi-use lowboy capable of carrying excavators, rubber-tired loaders, or milling machines just by removing the deck inserts.
Internal Code
SP55PL98/53/26/102/3XAR
Code
661-005
Name
SP55PL
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
55
Capacity
55.0-ton (49.9-tonnes)
Deck Style
Platform
Deck Length
26'-0" (7.9-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
110,000-pounds (49,895 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

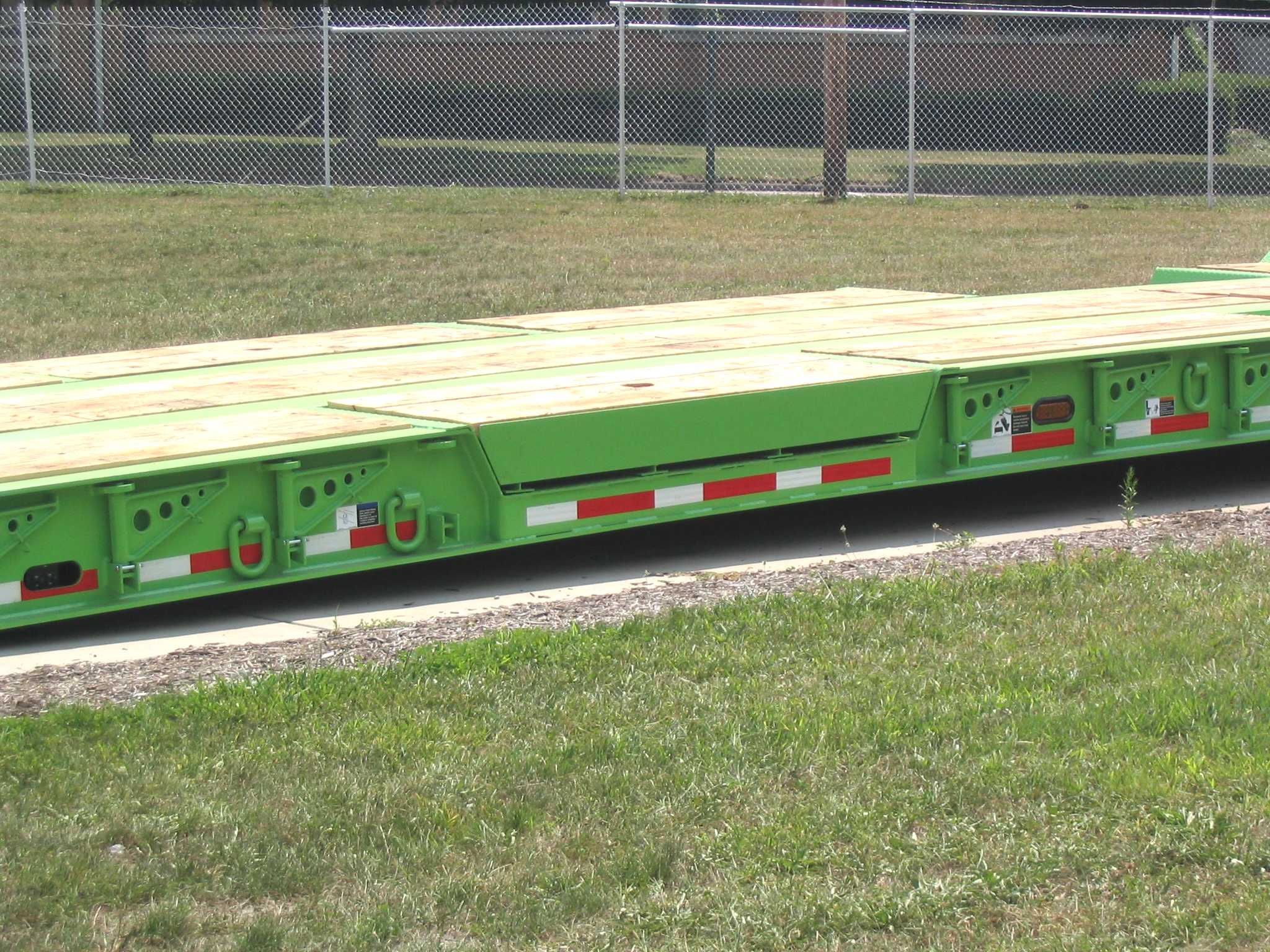

This special design of ROGERS wheel wells in a platform deck allows a rubber-tired machine an extra 10" of overhead clearance while providing the platform deck needed to haul a milling machine or excavator.

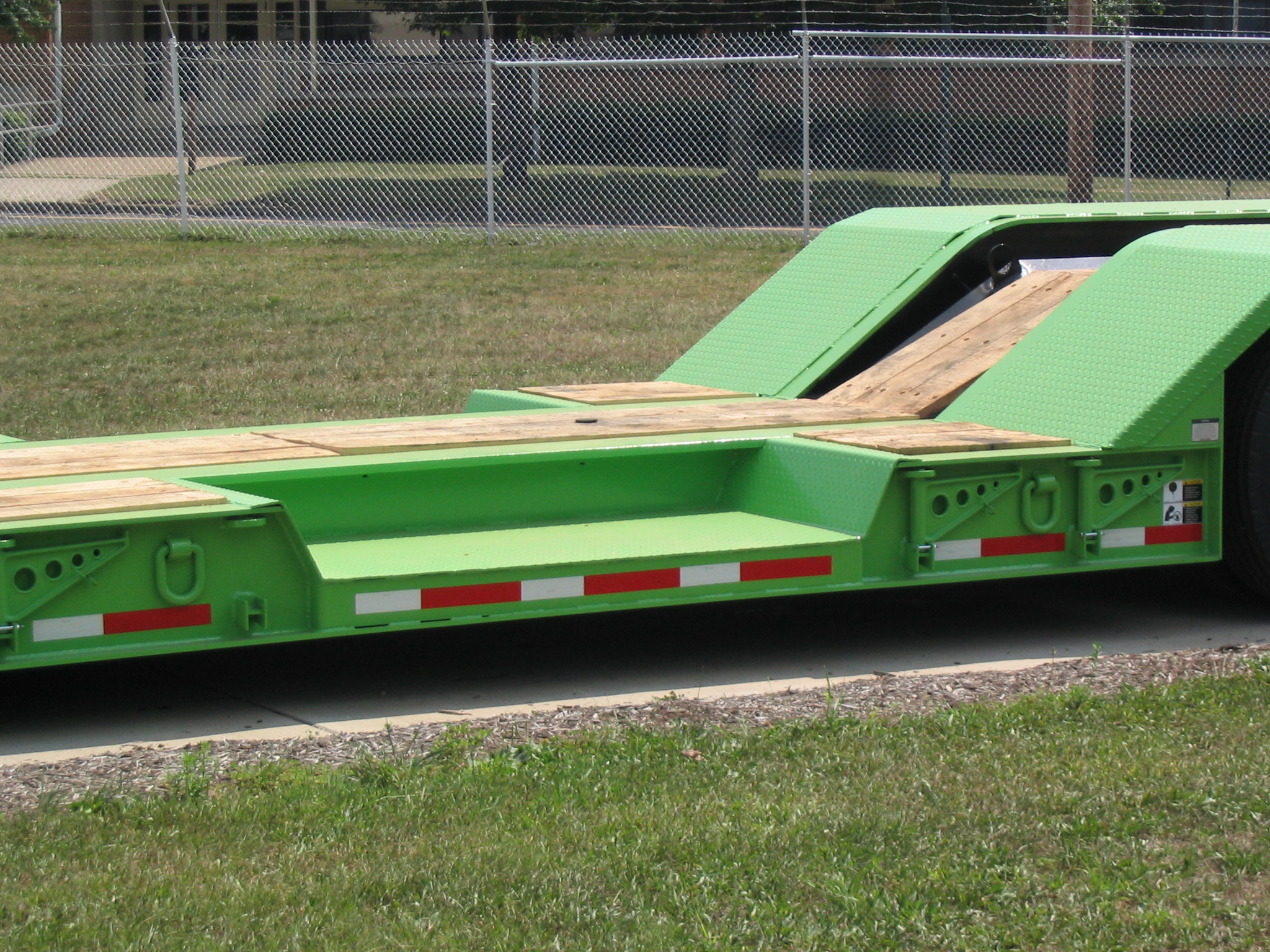

Special "fillers" were made for the two forward wheel wells to facilitate loading an excavator.

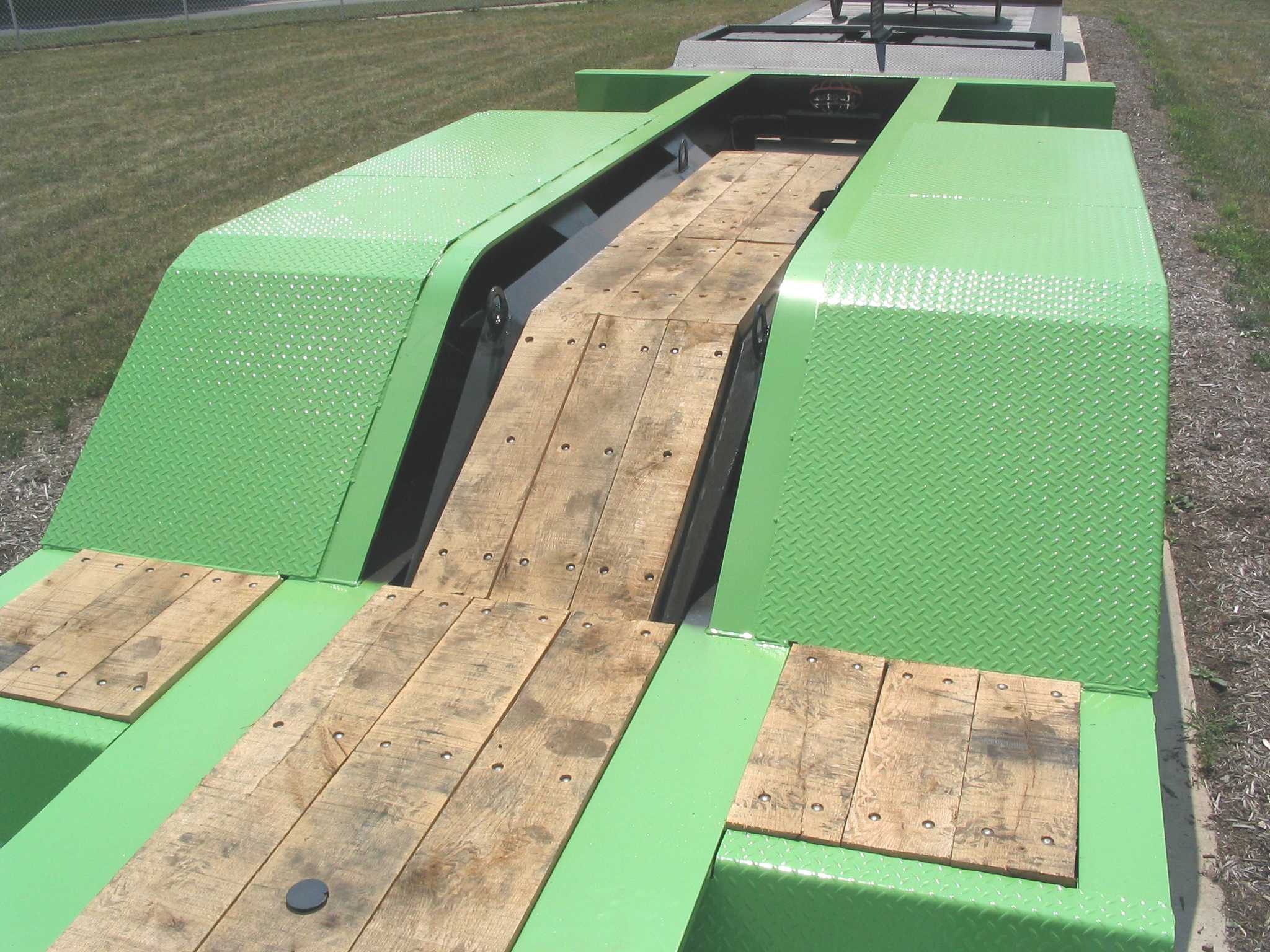

The rear frame is designed with reinforced tread plate wheel covers and removable wood-covered inserts to provide extra traction for track-style milling machines.

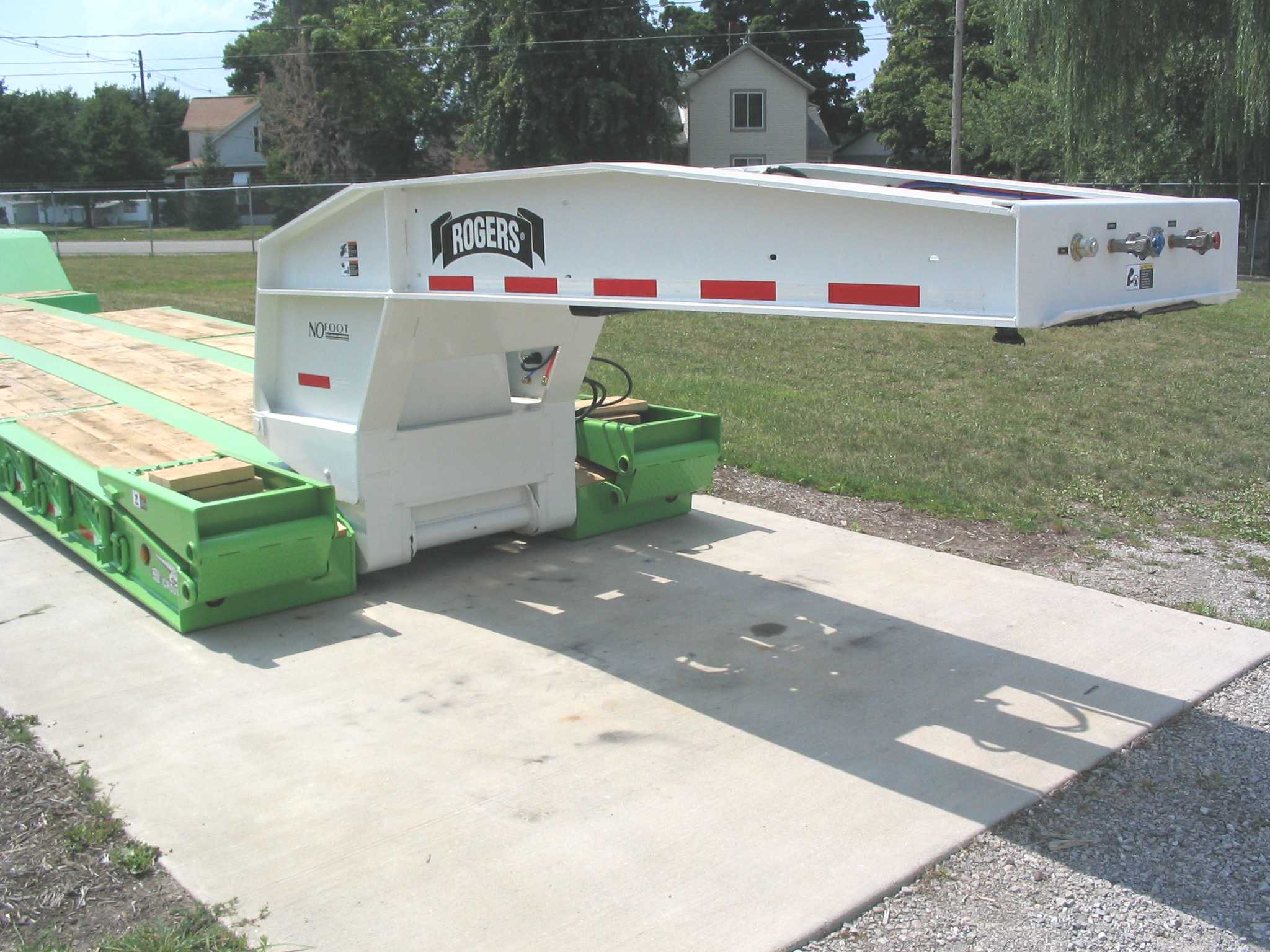

The "No Foot"® gooseneck can be adjusted for the height of the towing tractor.

Bi-fold front loading ramps assist loading large machines easily.

Request a Quote for 55-ton SP55PL, Detachable Gooseneck Trailer, Model Code 661-005
