Trailer Models

60-ton SP60GR-3XSPR4, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP60GR-3XSPR4
Feature Photo Description

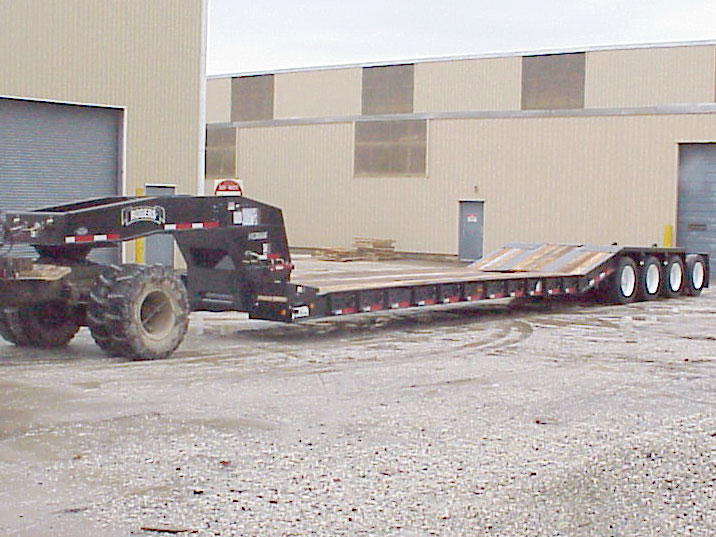

This ROGERS 60-ton capacity trailer features the "Gentle Riser" deck which makes this lowboy ideal for carrying multiple machines.
Internal Code
SP60GR98/56/24/102/3XSP
Code
669-004
Name
SP60GR-3XSPR4
Model Series
Blacktop Series Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
"Gentler Riser"
Deck Length
24'-0" (7.3-meter)
Deck Height LD
23" (0.6-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
3+1 axles
Suspension
75,000 lb. capacity tri-axle heavy-duty spring walking beam
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

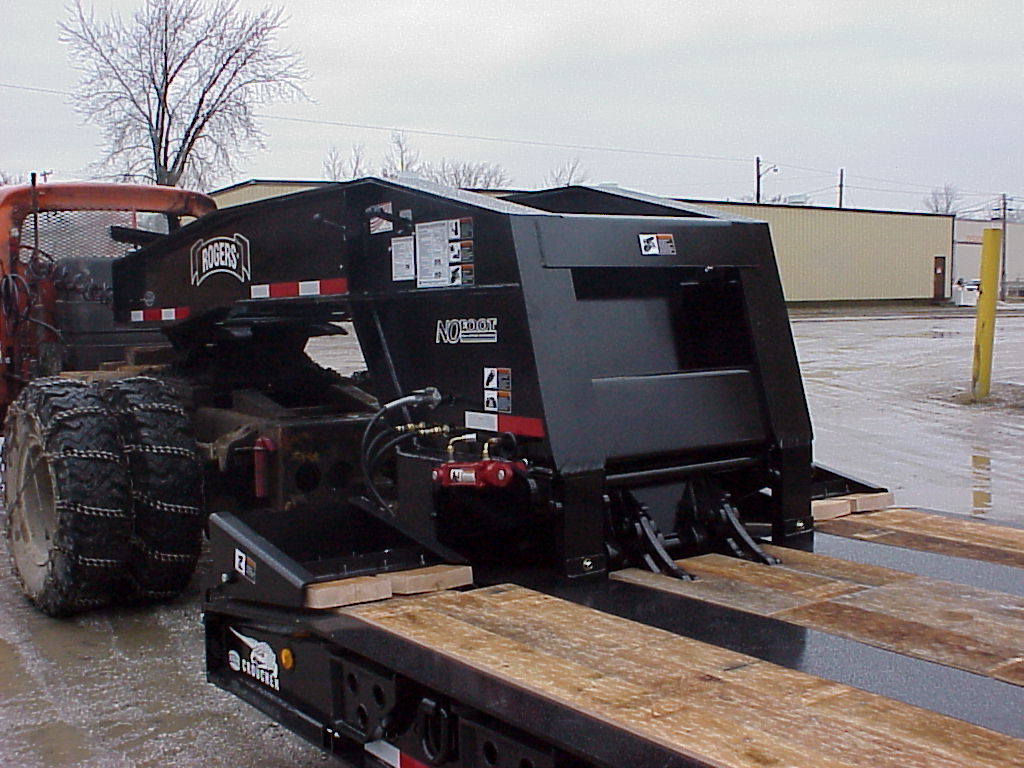

This patented "No Foot"® Tower Style self-lifting gooseneck also has hydraulic trap doors to assist with quick and easy detaching.

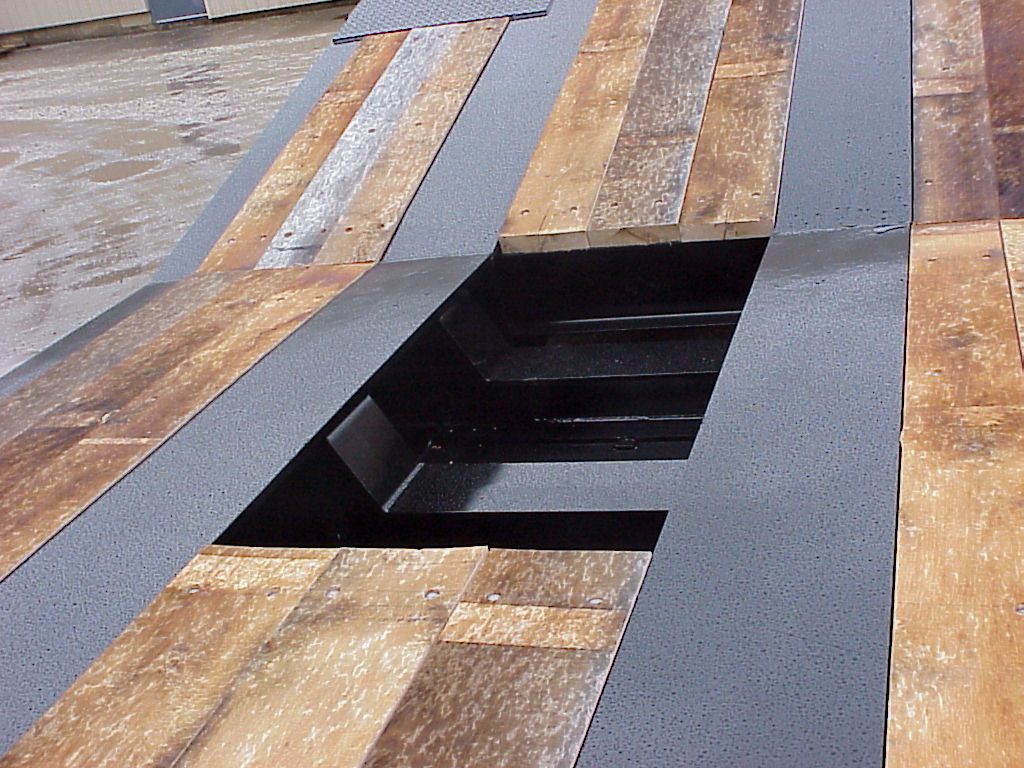

The last three cross members of the deck have been notched to make a "bucket pocket."

It's for an excavator to knuckle under and have more overhead clearance.
The "Gentle Riser" – 16° riser slope – enables a machine to be loaded onto the rear frame.

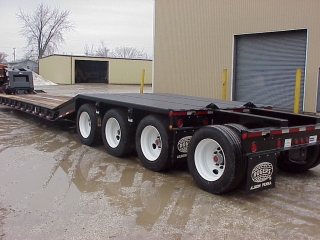

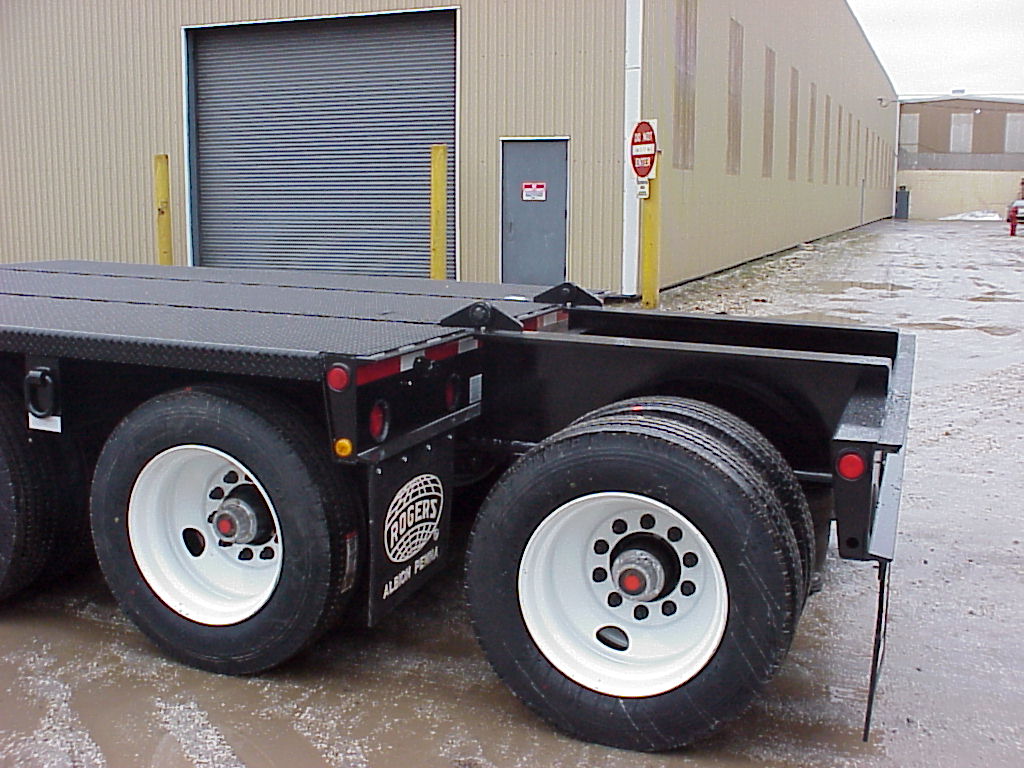

This rear frame has customer-specified flush wheel covers over the tri-axle.
A removable axle like this is used in U.S. states where a 4th axle is required to carry 60 tons.

It has a hand control valve to adjust the air pressure to equalize the overall weight with this axle.

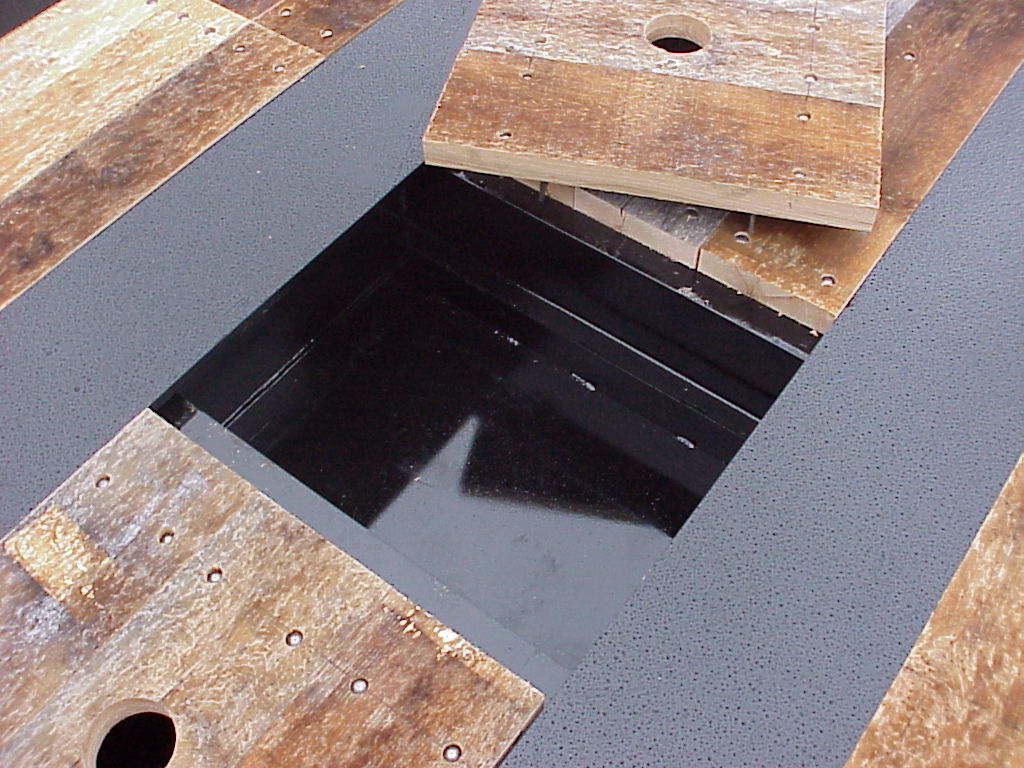

The toolbox in the deck can hold chains, blocks and binders when not needed with trailer loads.
