35-ton SP35SL, Detachable Gooseneck Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description

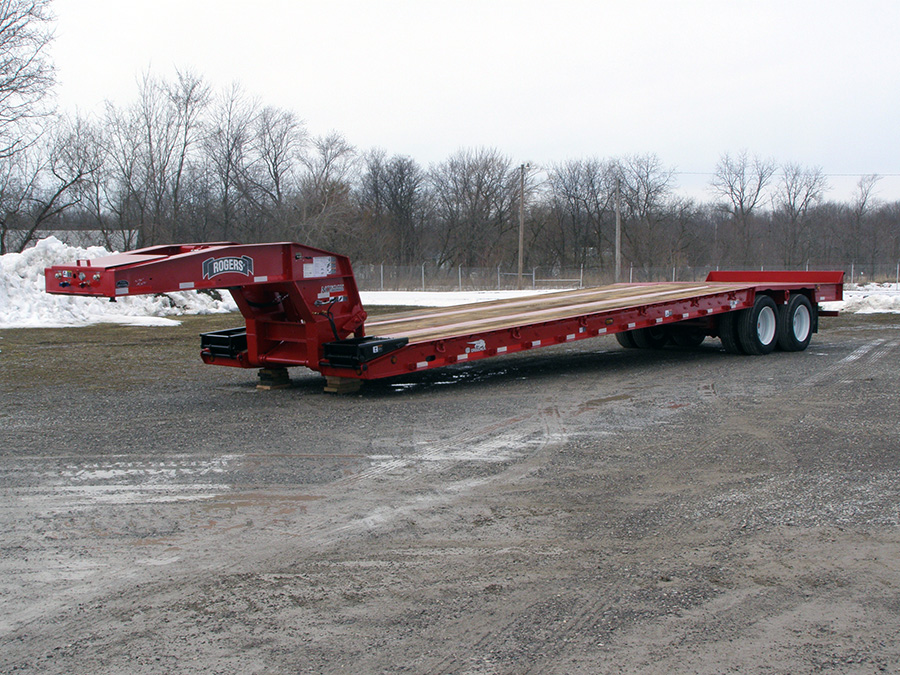

This 35-ton Sloper is noted for the deck with a gradual 5º incline which makes it a great working companion for paving equipment.
The level rear frame is 10'-6" long including a 49" extension and reinforced 1/4" tread plate wheel covers.
The level rear frame is 10'-6" long including a 49" extension and reinforced 1/4" tread plate wheel covers.
Internal Code
SP35SL86/52/38/102/2XARRL
Code
635-004
Name
SP35SL
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
"Sloper"
Deck Length
38'-0" (11.6-meter)
Deck Height LD
0" (0.0-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
19'-0" (5.8-meter)
Axles
2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
- No Foot Direct-Push style detachable gooseneck
- Exclusive Croucher low, tapered fron with concealed beam hooks
- Trap door extension blocks for adjusting 5th wheel height
- Hydraulic power source: Tractor PTO
- Full 2-inch air-dired oak decking
- Lashing D's (5) each side of deck
- Side bracket bearings only
- US DOT-approved rear impact guard
- Cable pull remote for air tank drain
- Anti-lock Braking System
- US DOT-approved LED rubber-mounted lights with sealed wiring and 7-wire socket
- Rogers red or black industrial enamel finish coat
- Exclusive Croucher low, tapered fron with concealed beam hooks
Optional Equipment Bullets
- Gooseneck fenders
- Gas engine power unit with or without relocated controls
- Front folding ramps
- Bi-fold front folding ramps
- Laterally adjustable front folding ramps
- Swinging side brackets
- Gooseneck toolbox with steel lid
- Deck toolbox with steel or wood lid
- Vetical rear bumper guide
- Safety Light System with deep cycle battery
- Aluminum disc wheels
- Larger 275/70R radial tires
- Spare tire holder
- Backup alarm
- Other Rogers finish colors: orange, yellow, green, gray, white
- Gas engine power unit with or without relocated controls
Optional Equipment Link
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

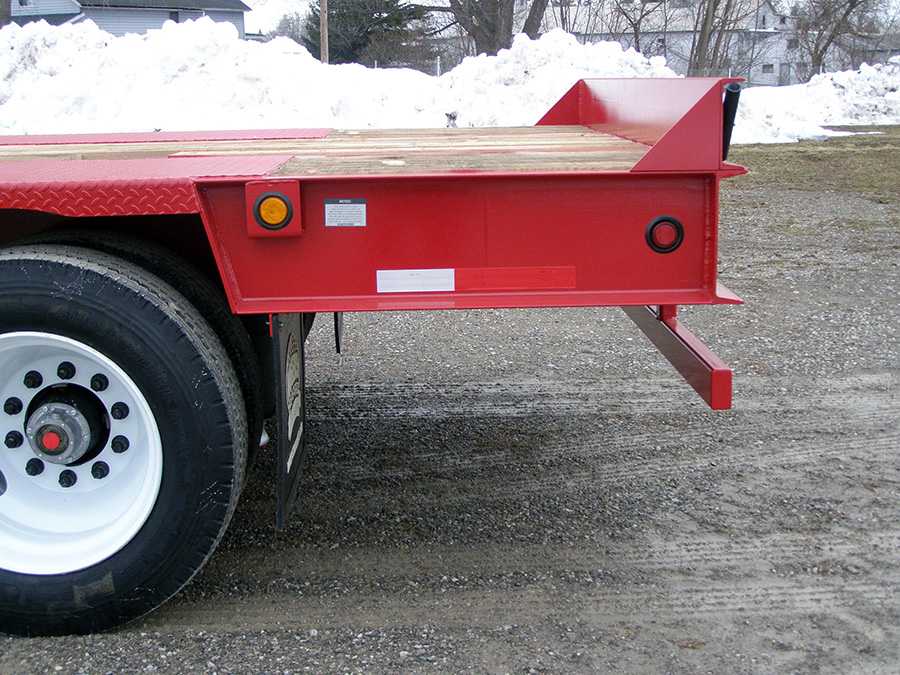

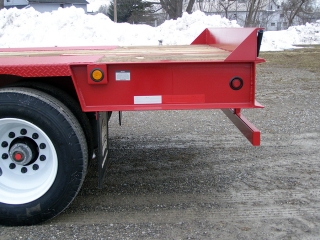

The level rear extension adds 49-inches of loading space to the deck without increasing the wheel base. A vertical bumper guide welded to the rear channel is a visual guide to the back edge of the deck. Air ride suspension has a mechanical height control. |
|
|
|
|

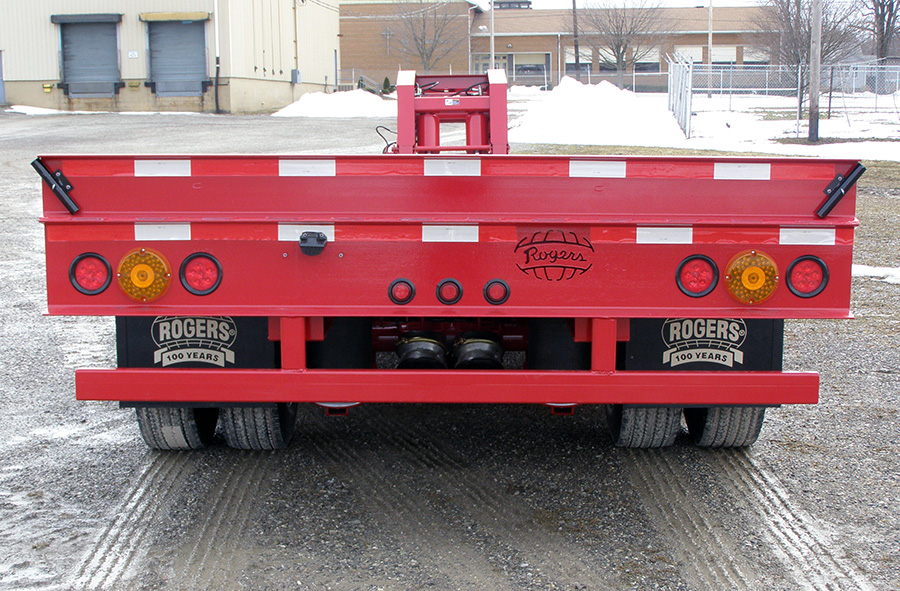

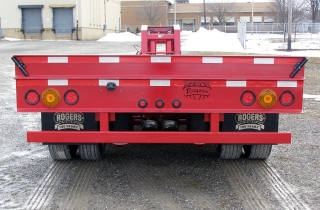

Safety features include reflective striping, flag holders, and a US DOT certified rear impact guard. ROGERS red enamel finish. Optional NYS-DOT 7" amber lights shown. |
Request a Quote for 35-ton SP35SL, Detachable Gooseneck Trailer, Model Code 635-004
