Rogers Brothers Trailers1-800-441-9880

Trailer Models

35-ton FG35D-3XRS, Specialized Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
FG35D-3XRS
Feature Photo Description

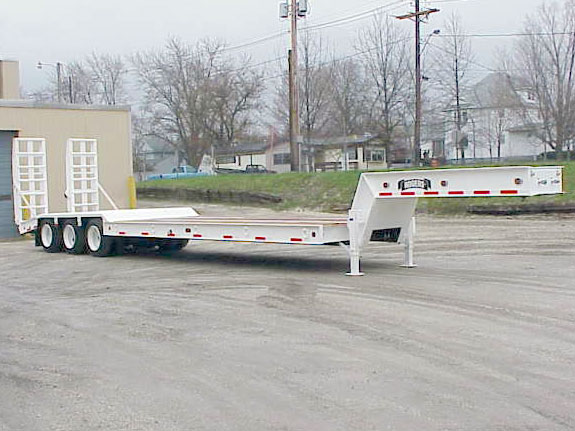

This 35-ton fixed gooseneck trailer has pin type landing gear, 22'-0" deck and hydraulic powered ladder-style ramps.
Customer specified additional clearance lights on the sides of the deck and gooseneck, and ROGERS white color finish.
Internal Code
FG35D98/50/22/102/3XARRS
Code
636-000
Name
FG35D-3XRS
Model Series
Fixed Gooseneck Trailers
Trailer Type
Specialized
Trailer Use
Rear Loading: Fixed Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
Double Drop
Deck Length
22'-0" (6.7-meter)
Deck Height LD
384" (9.8-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
11'-0" (3.4-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

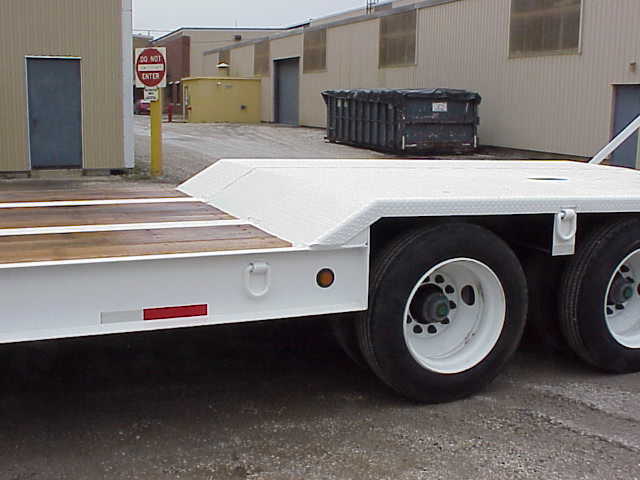

The deck has 2" air-dired oak, and the rear frame has reinforced 3/8" tread plate wheel covers.

Air ride suspension has mechanical height control that can adjust the deck ± 1" to 3".

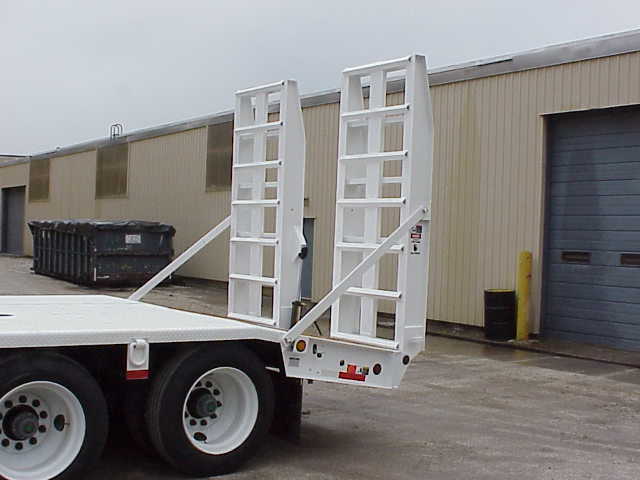

The rear ramps (96" L x 36" W) are attached to the 48" beavertail and provide a 10° loading incline.

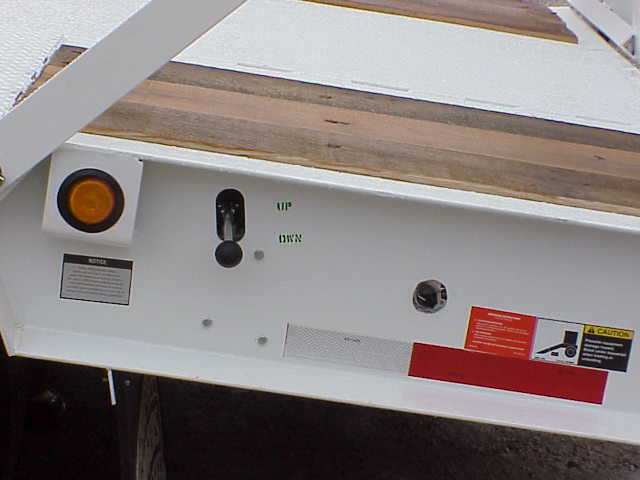

The hydraulic ramps are powered by the tractor's PTO, and the control is in the beavertail (on left).

The control for the air lift on the 3rd axle is also located in the beavertail (on right).

Request a Quote for 35-ton FG35D-3XRS, Specialized Trailer, Model Code 636-000
