Trailer Models

35-ton SP35GR-FWGN, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP35GR-FWGN
Feature Photo Description
This lowbed is a ROGERS 35-ton "Gentle Riser" featuring a full-width (8'-6"W) platform on top of the "No Foot"® detachable gooseneck.
Internal Code
CR35GR86/48/24/102/2XARRL
Code
555-003
Name
SP35GR-FWGN
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
"Gentler Riser"
Deck Length
24'-0" (7.3-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 aluminum outside/steel inside
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

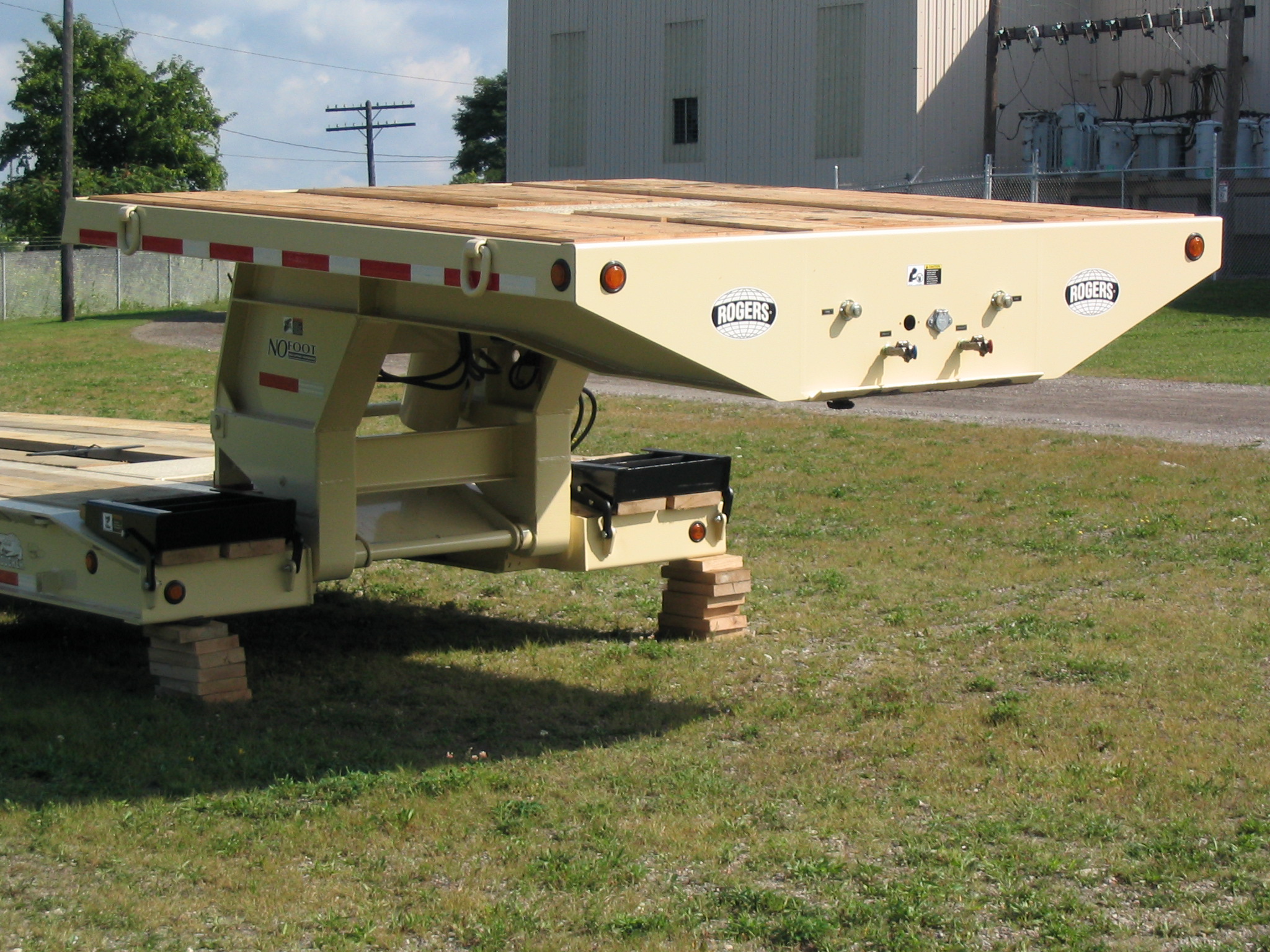

The full-width gooseneck allows space for crates and other items to be carried on top.

The cream finish color was a custom specification.

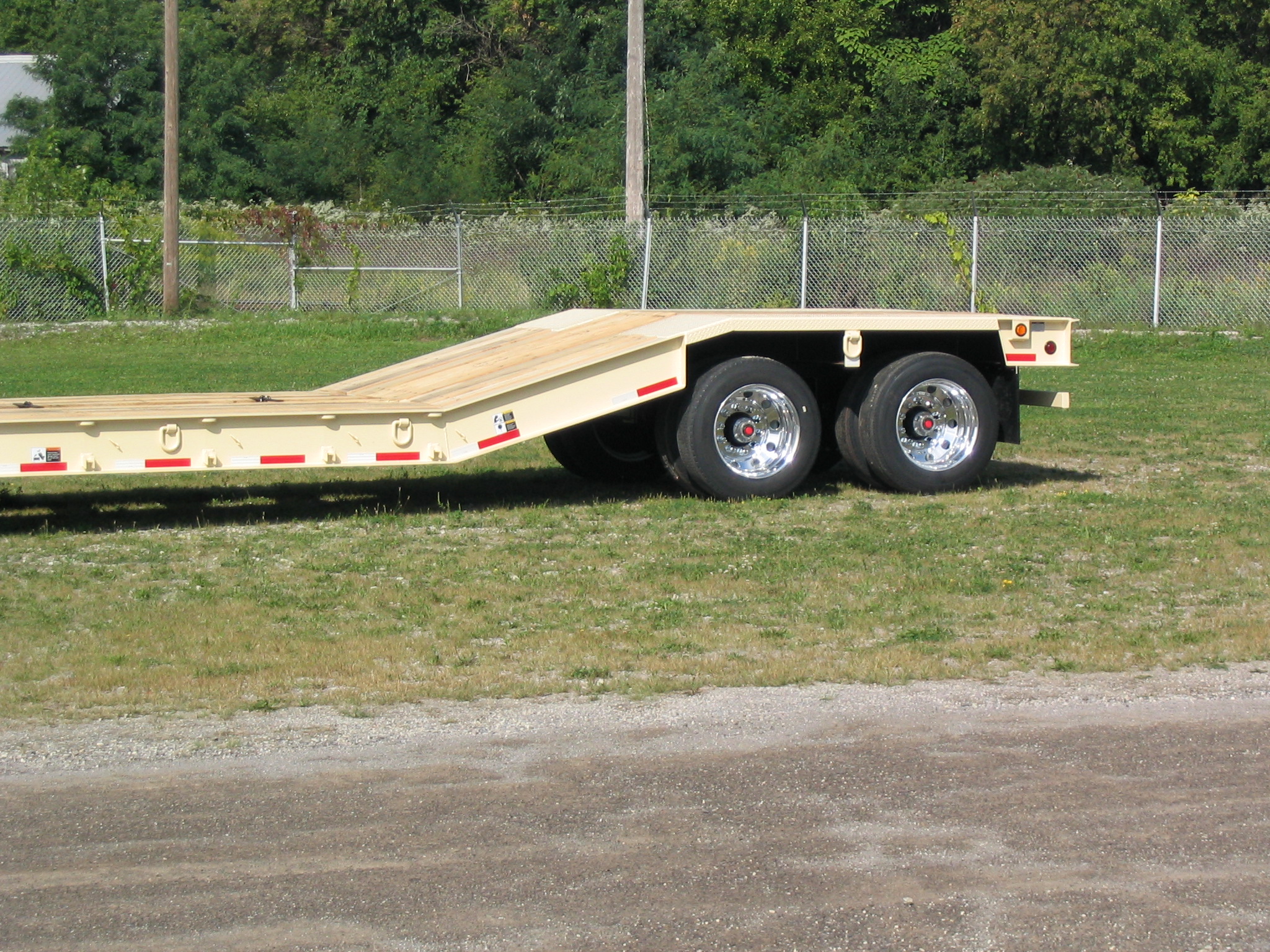

The 16° riser section provides easy access to the rear frame deck.

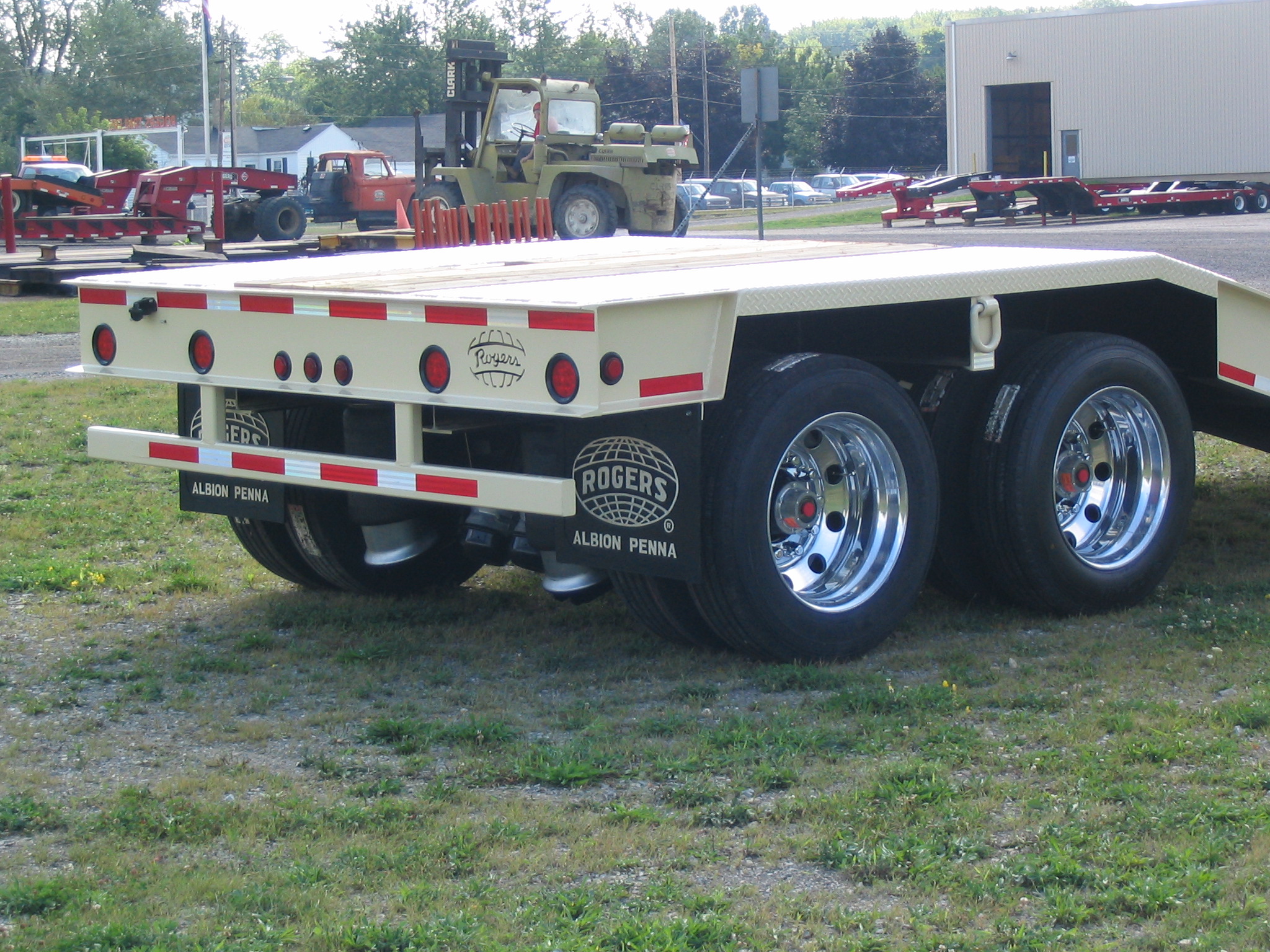

The customer specified aluminum wheels that save weight and "dress up" the trailer.

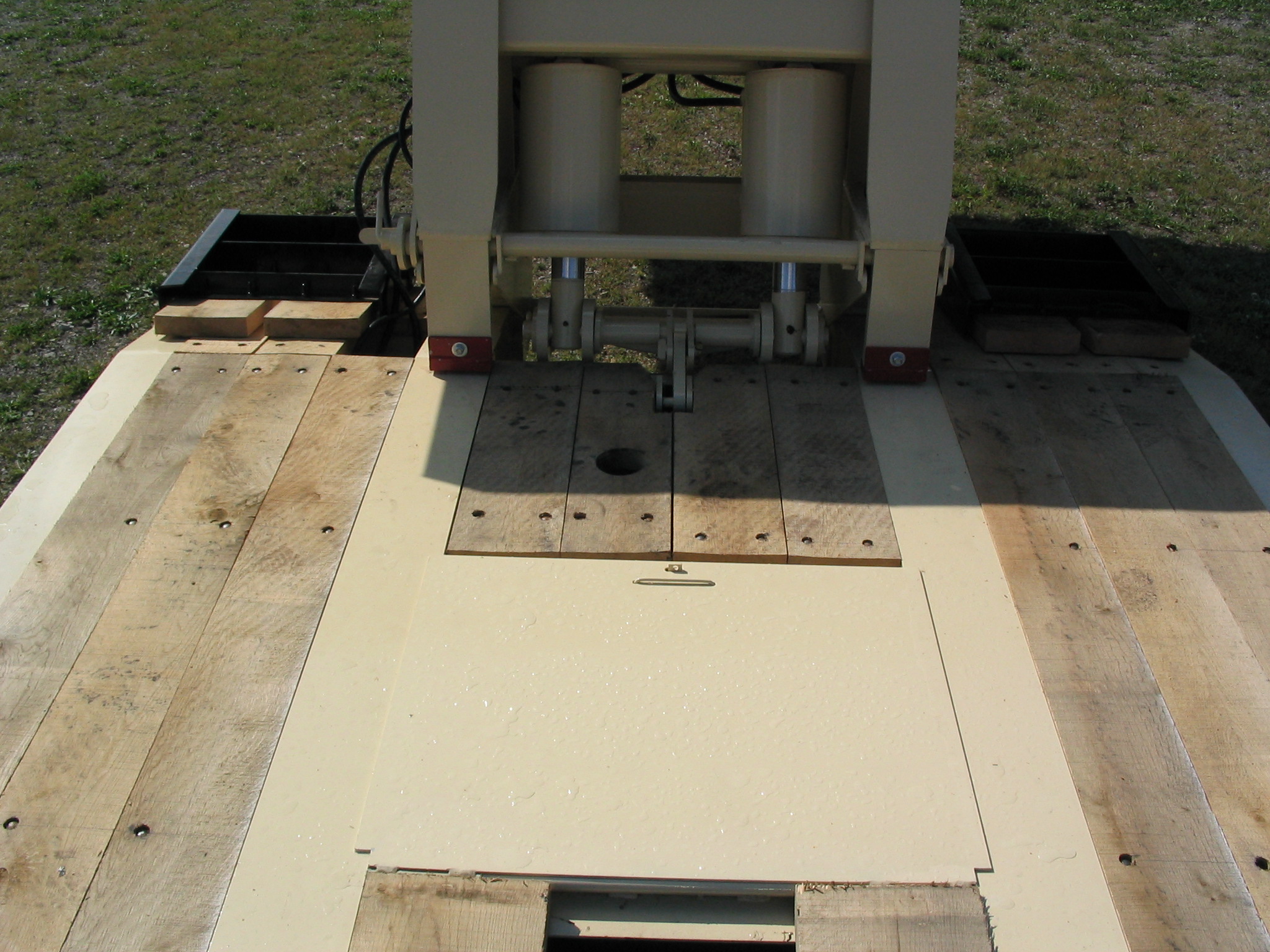

The deck is 2" air-dried oak with an optional steel-covered toolbox.

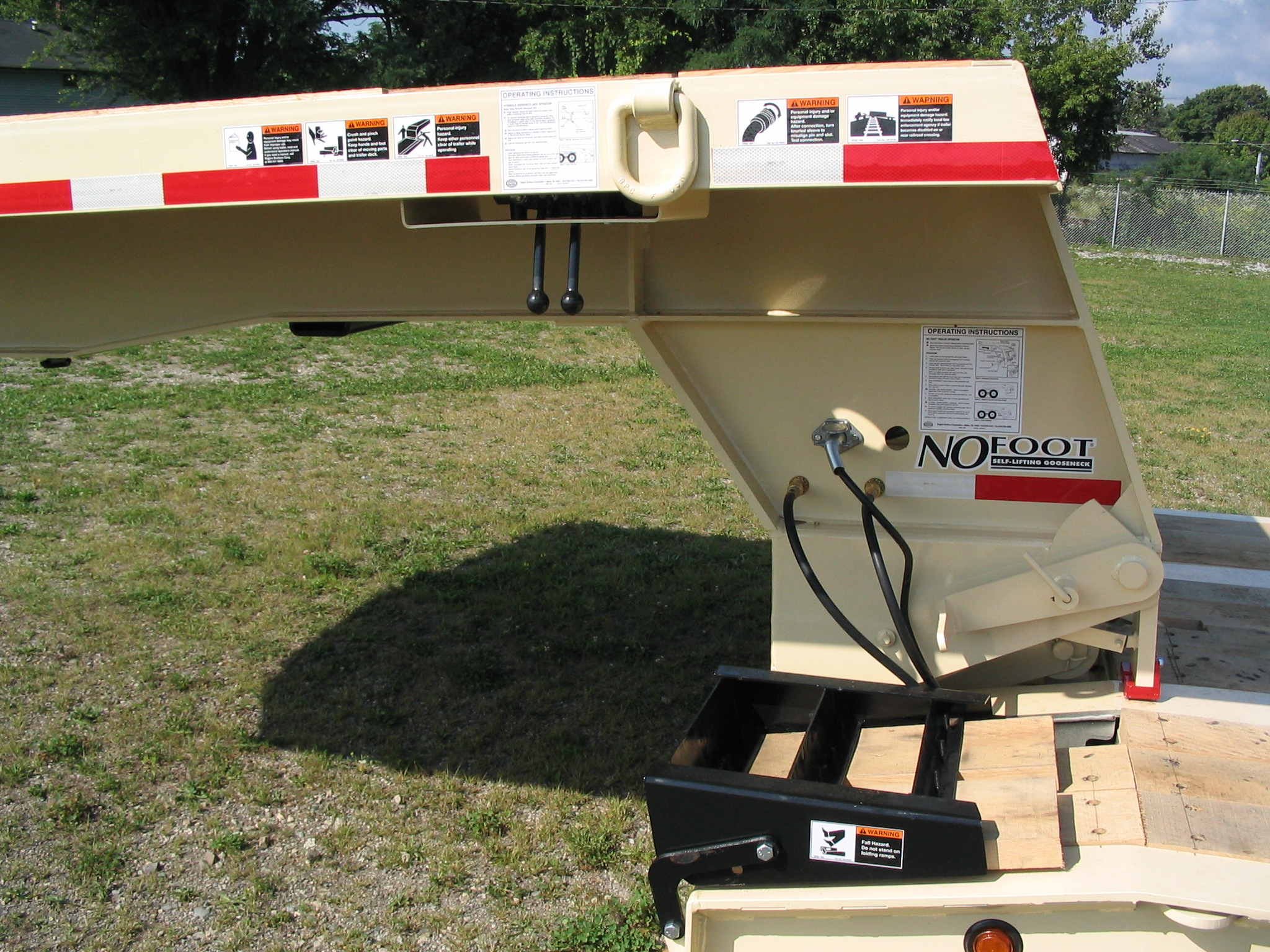

The hydraulic controls are located on the outer edge of the gooseneck platform for easier operation.
The 24" rear extension is the extra space on the rear deck.

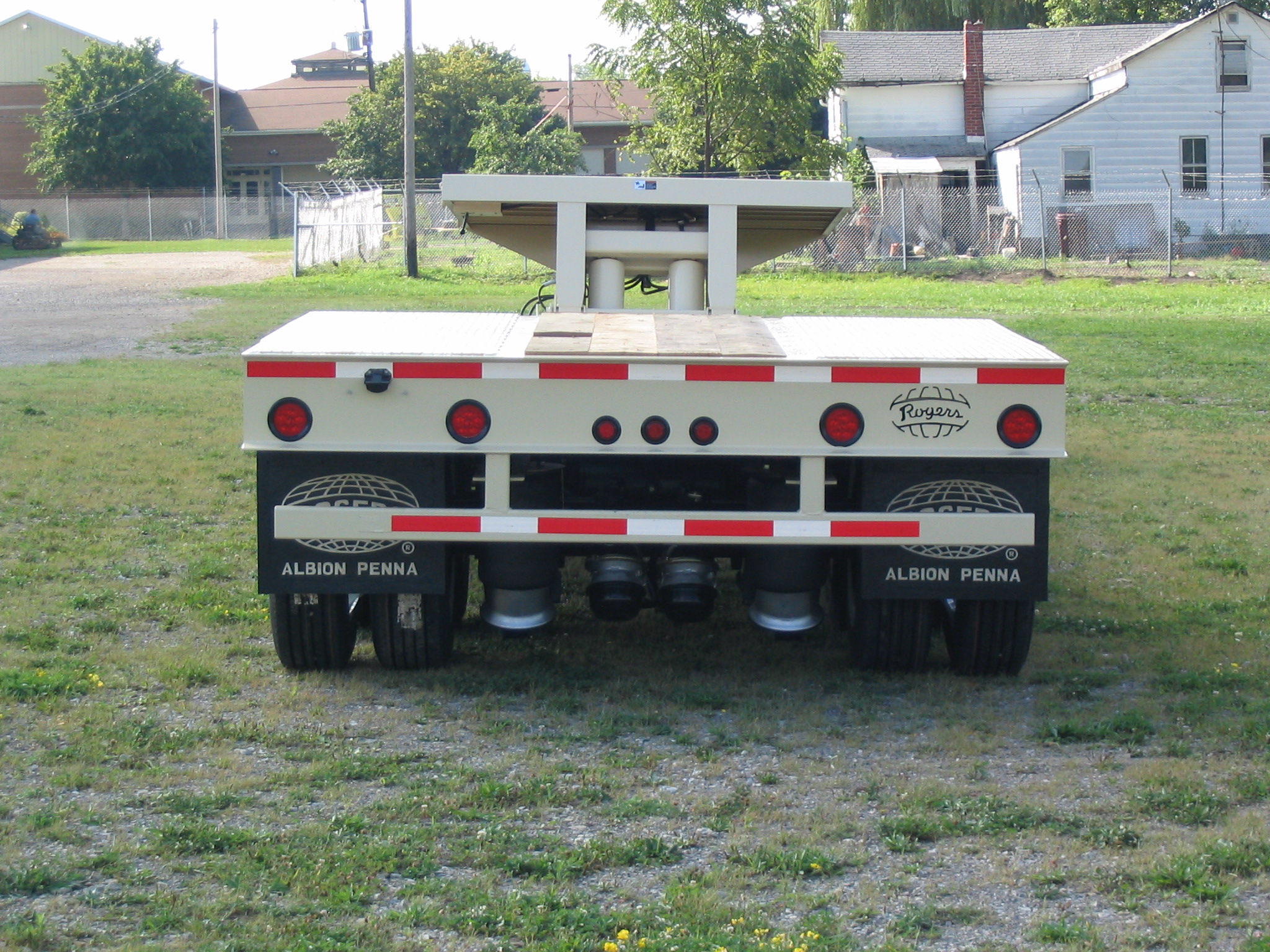

Customer specified LED light package.
The rear impact guard is welded tot he rear channel below the extension.

The square opening on top of the rear deck is for access to the mechanical height control of the air ride suspension.

Request a Quote for 35-ton SP35GR-FWGN, Detachable Gooseneck Trailer, Model Code 555-003
