125-ton FG125-8XCSRS, Specialized Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.

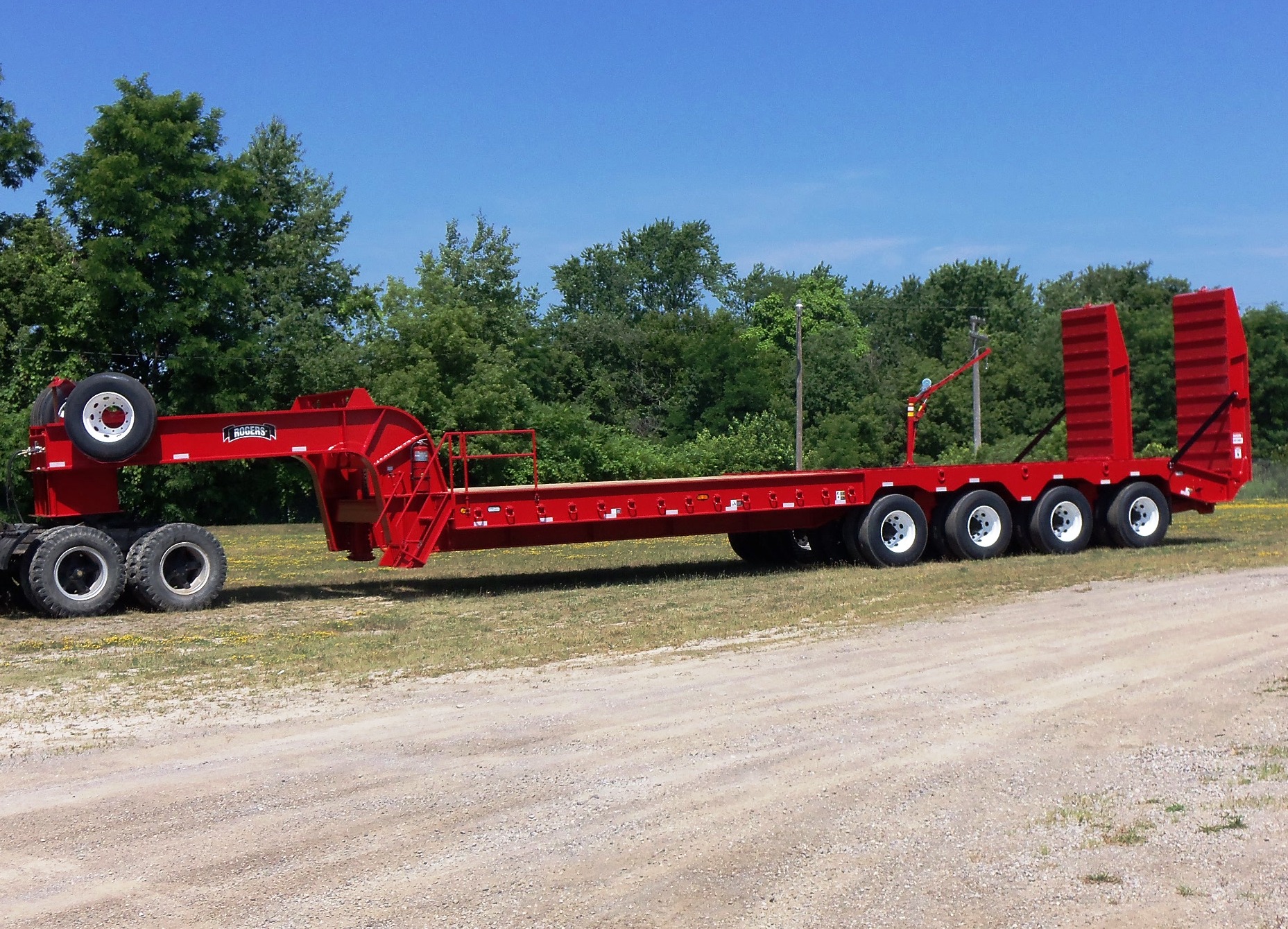

Feature Photo
FG125-8XCSRS
Feature Photo Description
This 125-ton capacity trailer was custom designed to haul various types of mining equipment.
The running gear on this fixed gooseneck trailer has 8 axles and a total of 32 tires.
Internal Code
FG125L135/81/20/156/8XCSRS
Code
124-002
Name
FG125-8XCSRS
Model Series
Fixed Gooseneck Trailers
Trailer Type
Specialized
Trailer Use
Rear Loading: Fixed Gooseneck
Tons
125
Capacity
125.0-ton (113.4-tonnes)
Deck Style
Platform
Deck Length
42'-8" (13.0-meter)
Deck Height LD
60" (1.5-meter)
Deck Width
13'-0" (4.0-meter)
Load Con Weight
220,462-pounds (100,000 kilograms)
Load Con Length
14'-0" (4.3-meter)
Axles
Suspension
2x 80,000 kg capacity 4-axle cantilever (trunnion/walking beam) suspension unit (160,000 kg total capacity)
Axle Type
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
22.5 x 9.00 10-hole steel disc
Brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

Request a Quote for 125-ton FG125-8XCSRS, Specialized Trailer, Model Code 124-002
