100-ton SP100PL-4XDRCS, Detachable Rear Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP100PL-4XDRCS
Feature Photo Description

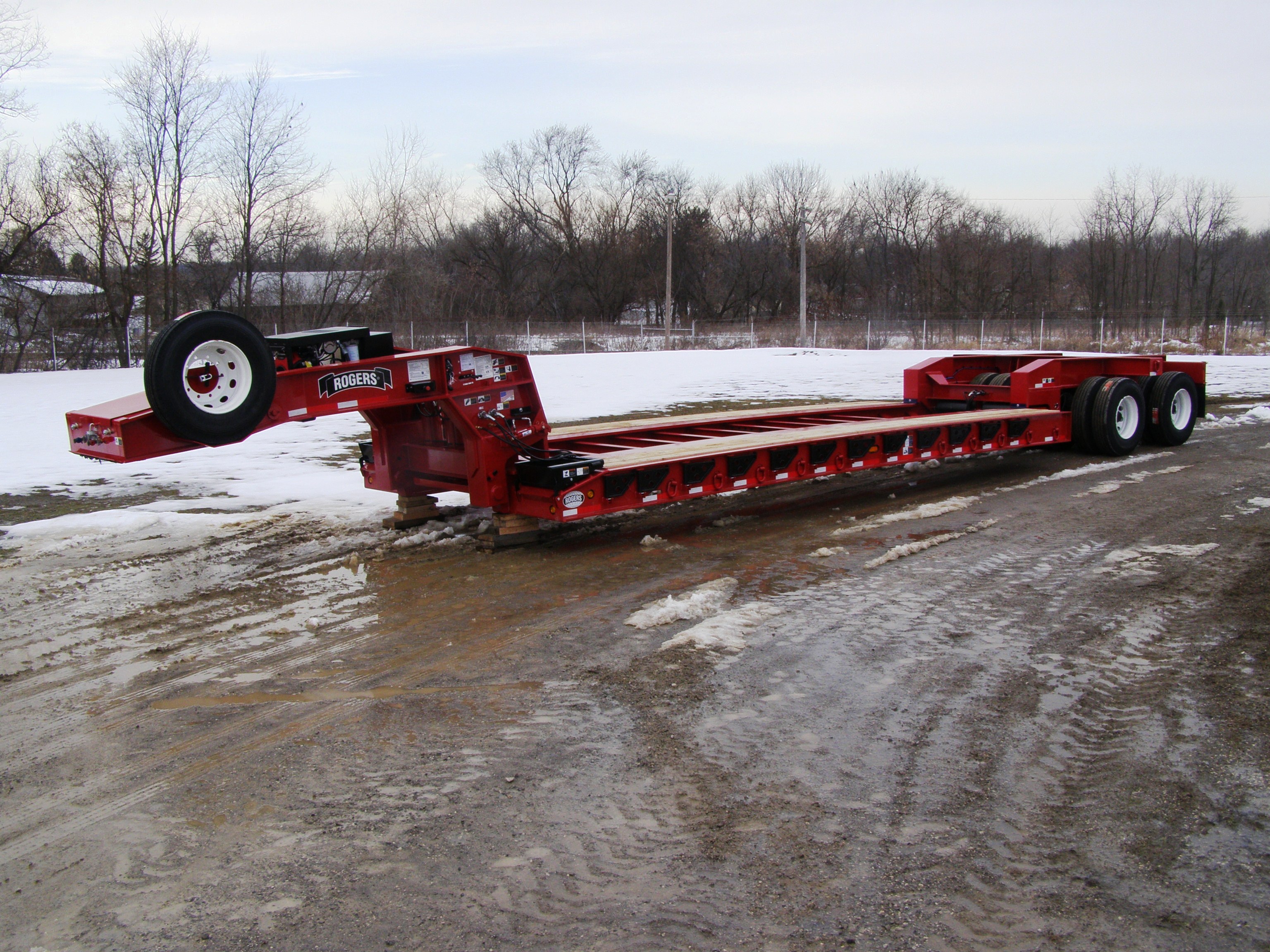

This SP100PL detachable gooseneck trailer has a hauling capacity of 100 tons (91 metric tons) concentrated in 1/2 the deck length. The modular design allows different deck styles to be interchanged with the existing platform deck. This trailer can be custom designed to best suit the customer's needs.
Internal Code
SP100PL110/52/26/134/4XDRCS
Code
116-001
Name
SP100PL-4XDRCS
Model Series
Custom Series
Trailer Type
Detachable Rear
Trailer Use
Modular
Tons
100
Capacity
100.0-ton (90.7-tonnes)
Deck Style
Platform
Deck Length
26'-0" (7.9-meter)
Deck Height LD
24" (0.6-meter)
Deck Width
11'-2" (3.4-meter)
Load Con Weight
200,000-pounds (90,718 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
4 axles
Suspension
80,000 kg capacity 4-axle cantilever (trunnion/walking beam) suspension unit
Axle Type
Tires
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

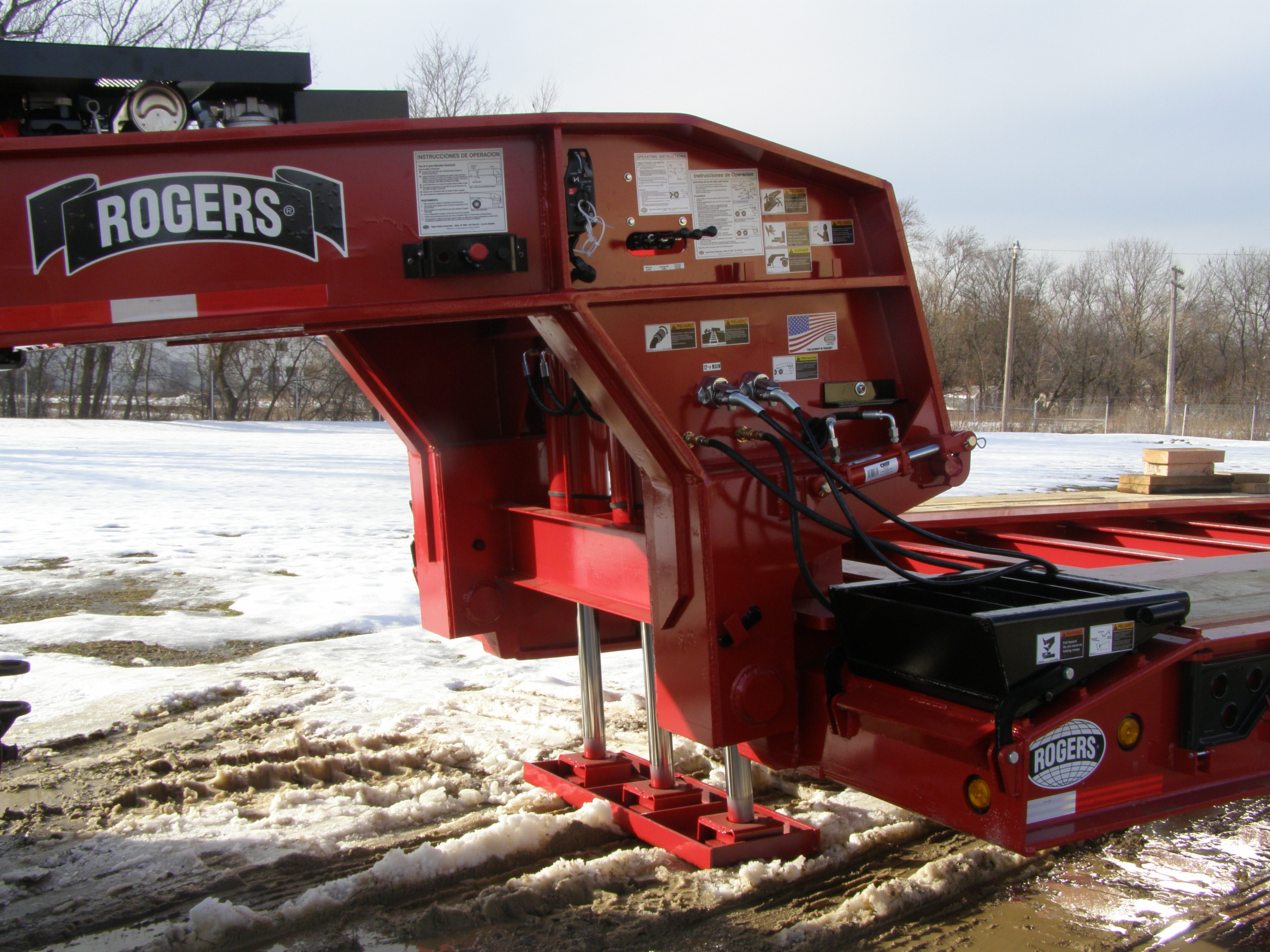

The powerful ram-foot gooseneck uses low hydraulic pressure to safely and reliably lift the load. Hydraulic power is supplied to the gooseneck either by tractor PTO or by the customer specified 23HP Honda gas engine power unit.

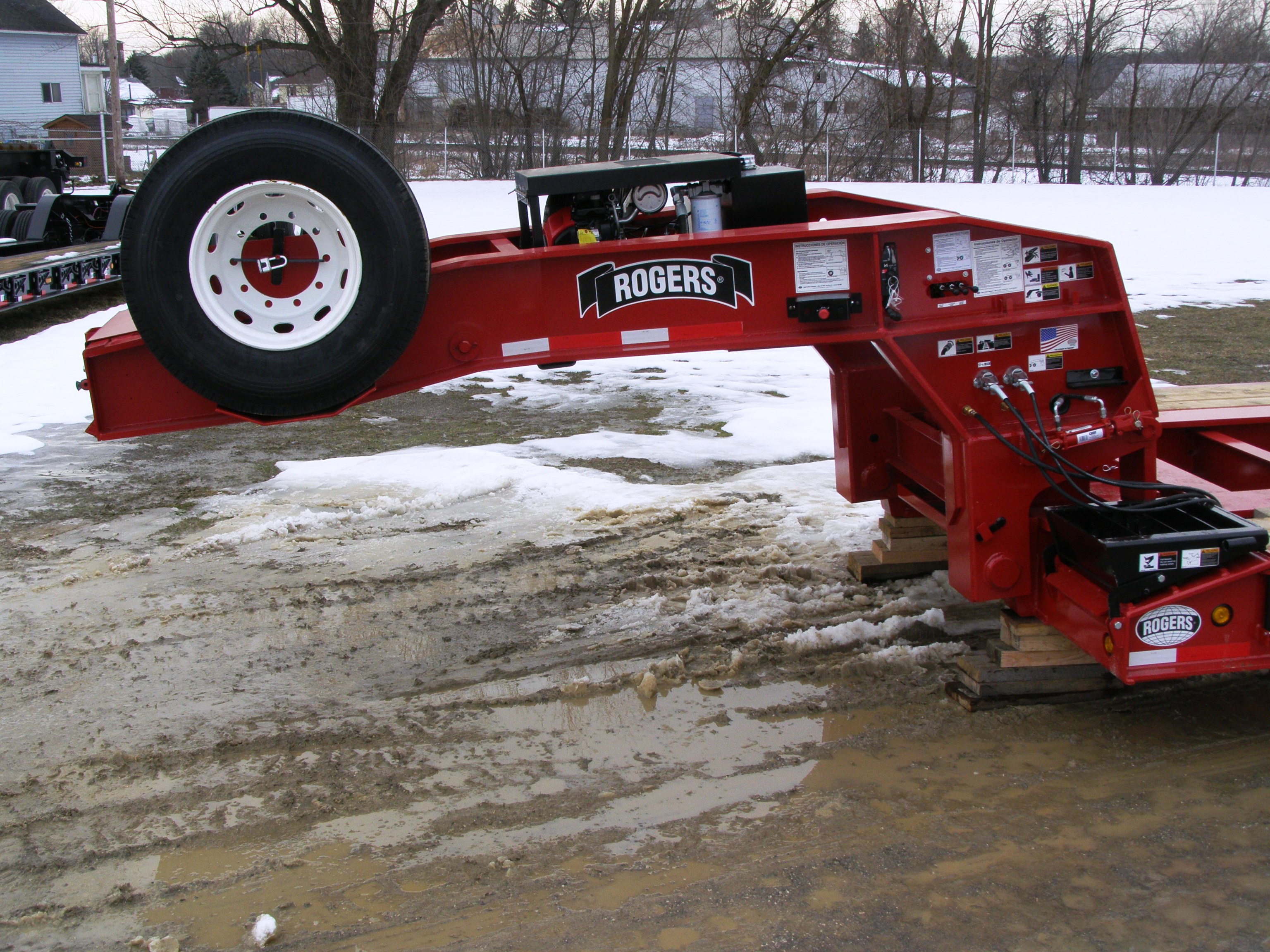

The gooseneck is equipped with several optional features: spare tire & wheel carrier, hydraulic trapdoors, gooseneck support jack, and 2" & 3 1/2" reversible kingpin.

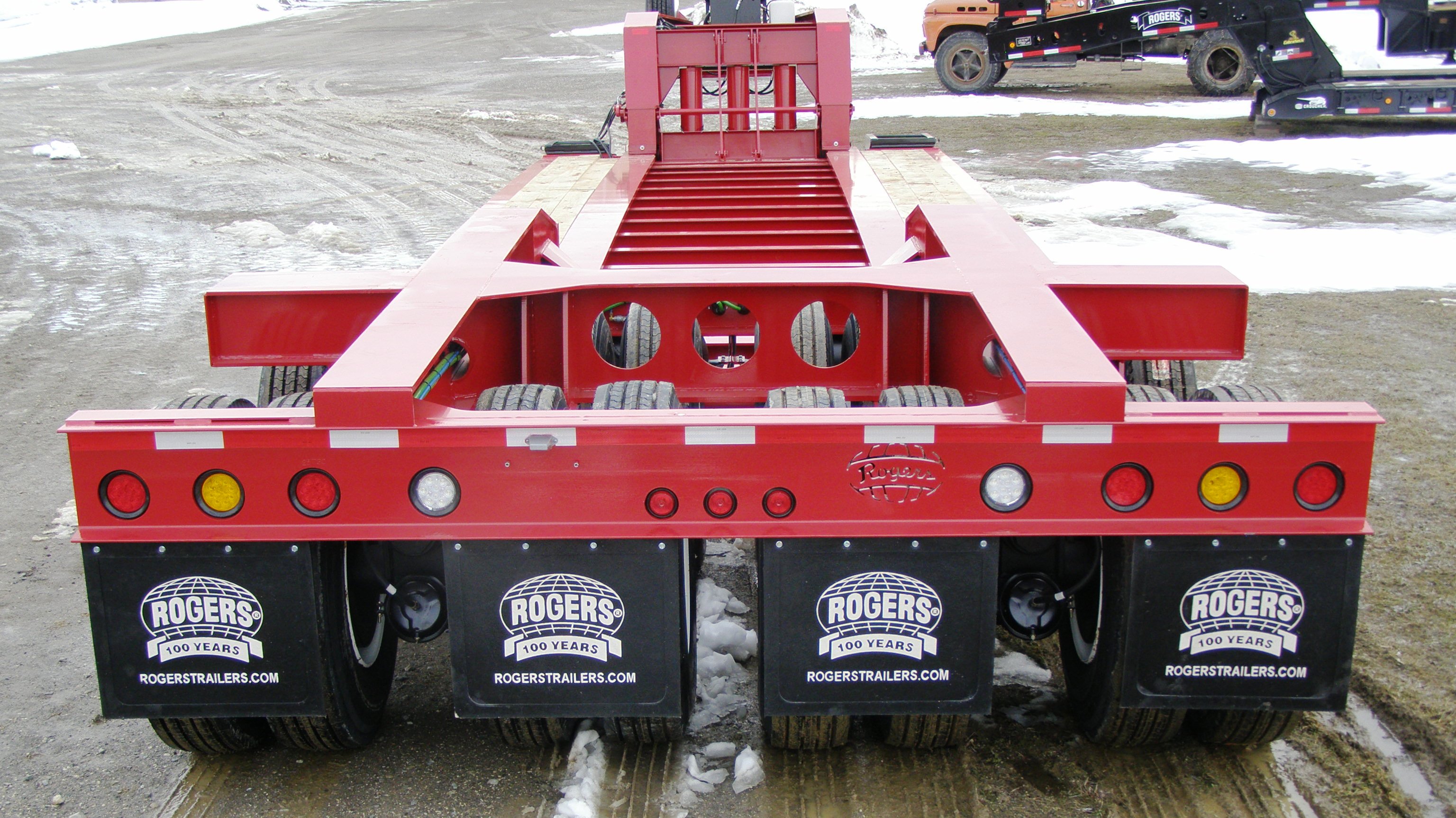

12/24v LED lighting with optional amber turn signals and optional back-up lighting .

Request a Quote for 100-ton SP100PL-4XDRCS, Detachable Rear Trailer, Model Code 116-001
