110-ton SP110IB, Specialized Trailer
Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
Feature Photo Description

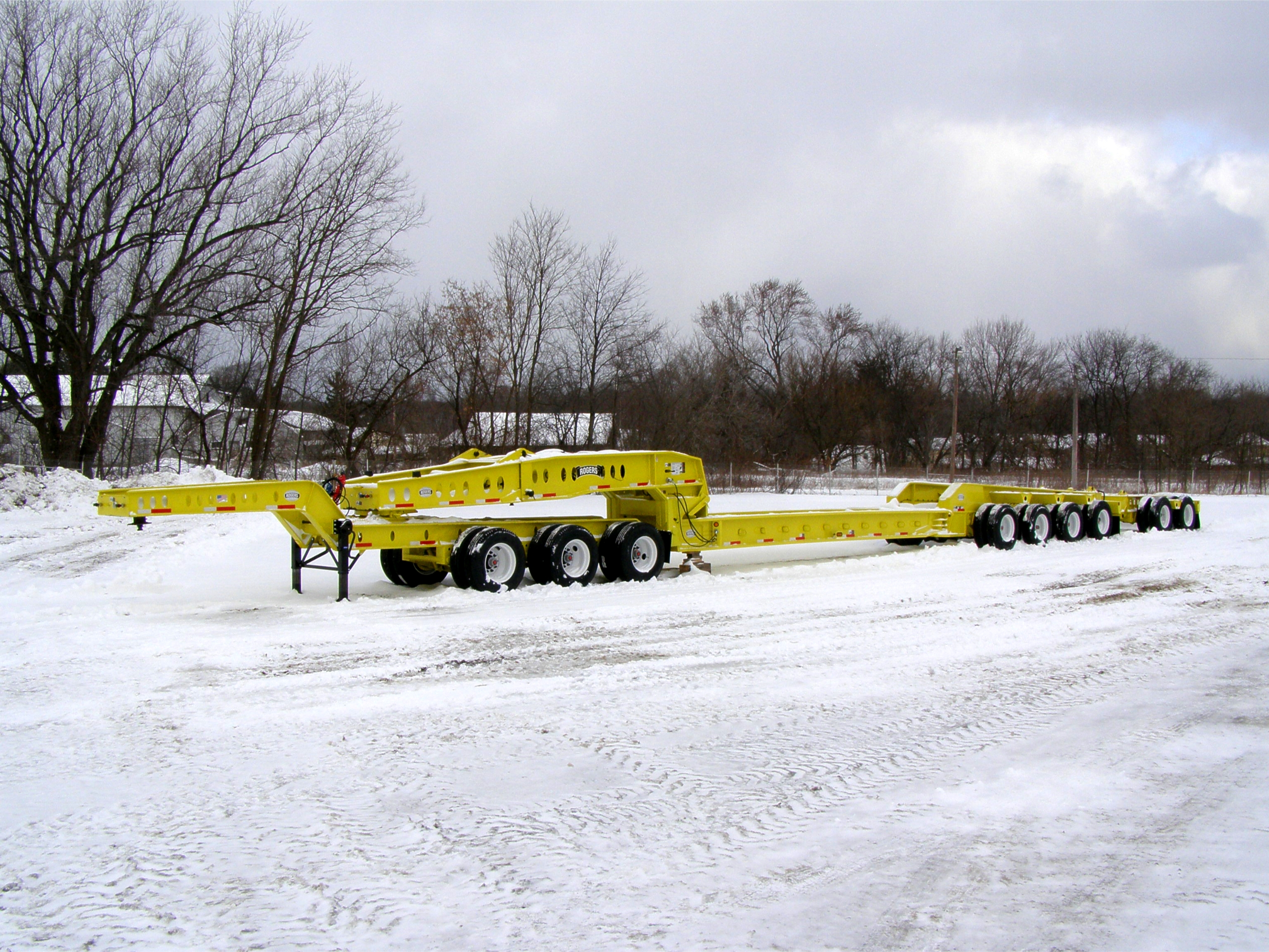

This 110-ton trailer was built to haul various pieces of mining equipment for a company in Latin America. The design includes a 100" gooseneck extension, an I-beam deck with booster assembly and and a removable/flip tandem axle rear bogie.
Internal Code
SP110IB210/51/25/120/6XDRARBAR5/6
Code
220-000
Name
SP110IB
Model Series
Custom Series
Trailer Type
Specialized
Trailer Use
Front Loading: Detachable Gooseneck
Tons
110
Capacity
110.0-ton (99.8-tonnes)
Deck Style
I-Beam
Deck Length
85'-4" (26.0-meter)
Deck Height LD
36" (0.9-meter)
Deck Width
0'-0" (0.0-meter)
Load Con Weight
220,462-pounds (100,000 kilograms)
Load Con Length
20'-0" (6.1-meter)
Axles
4+2 axles
Suspension
30,000 lb capacity air ride suspension on 1st 4-axles with mechanical air height control; 25,000 lb capacity air ride suspension on tandem axle rear bogie
Axle Type
30,000 lb capacity on 4-axle rear frame with oil-bathed bearings, 25,000 lb axles on 2-axle rear bogie with oil-bathed bearings
Tires
11R22.5(H) tubeless radial
Wheels
22.5 x 8.25 10-hole hub piloted steel disc
Brakes
16 1/2" x 7" shoes, spring parking brakes (No ABS)
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Optional Equipment Link
No Standard Optional Equipment Available
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

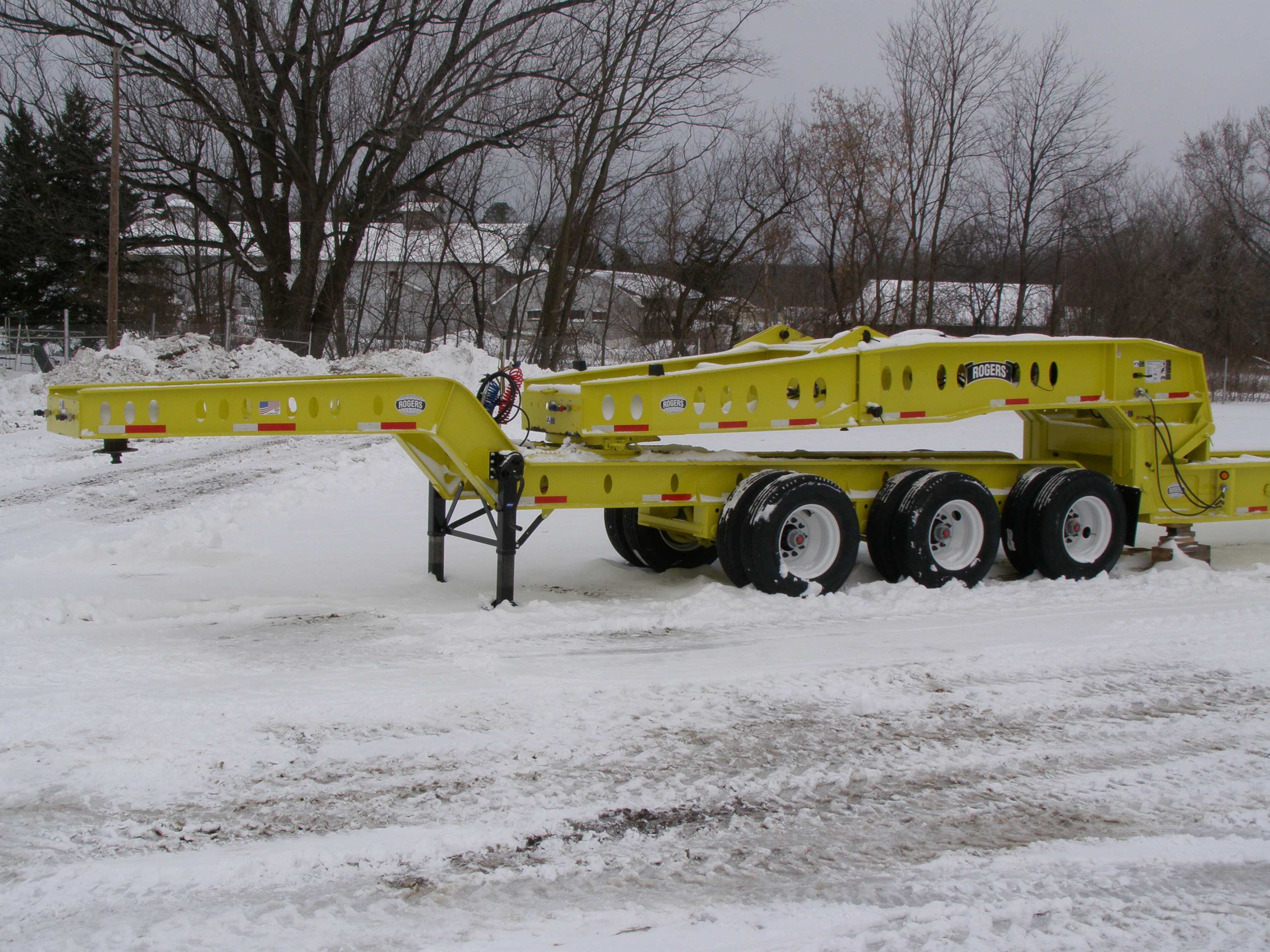

"Ram Foot" ground engaging detachable gooseneck with 110" swing clearance 100" gooseneck extension with 210" swing clearance |
|
|
|
|

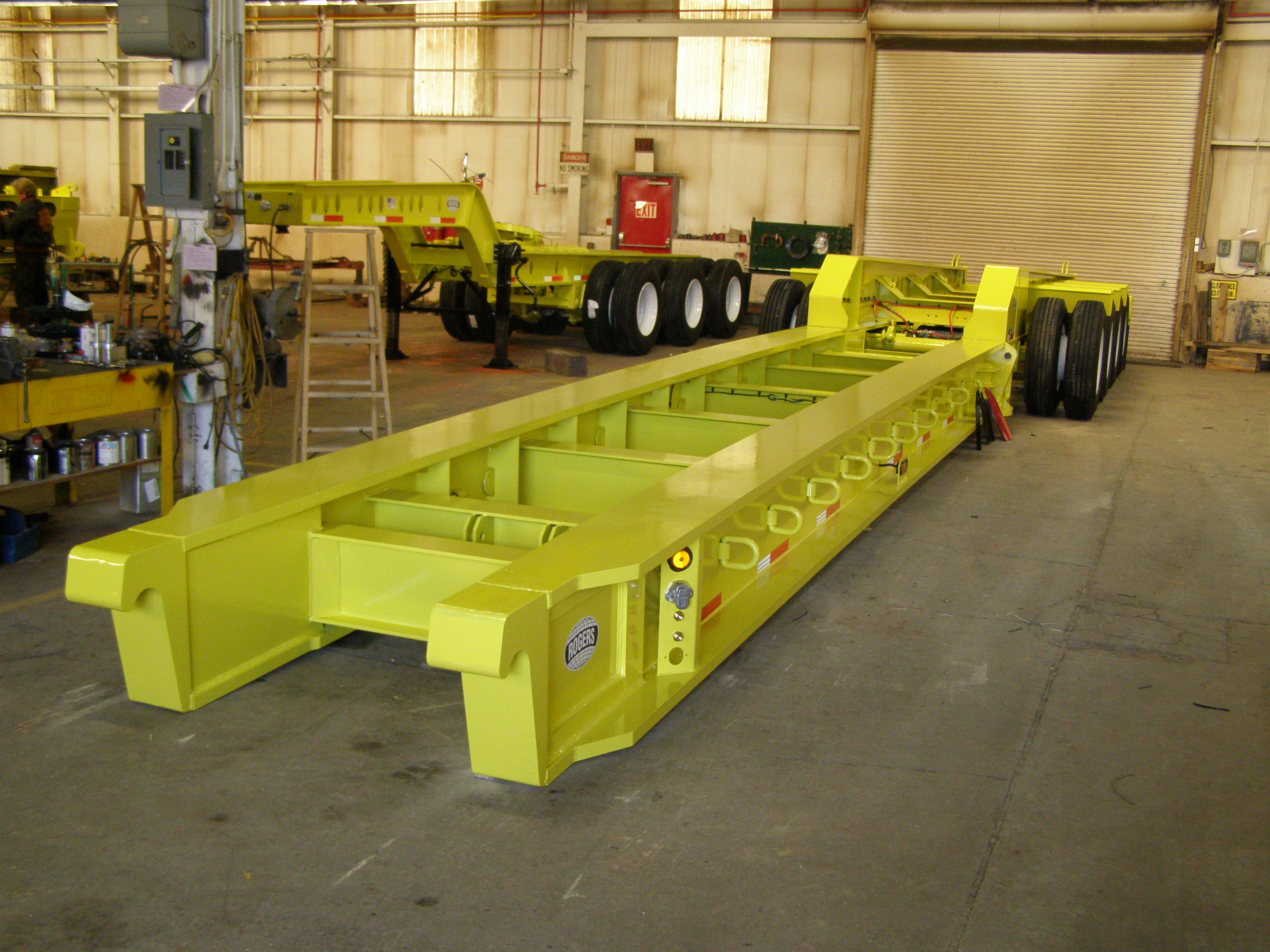

Two-beam cambered deck 25'0" I-beam deck length |
|
|
|
|

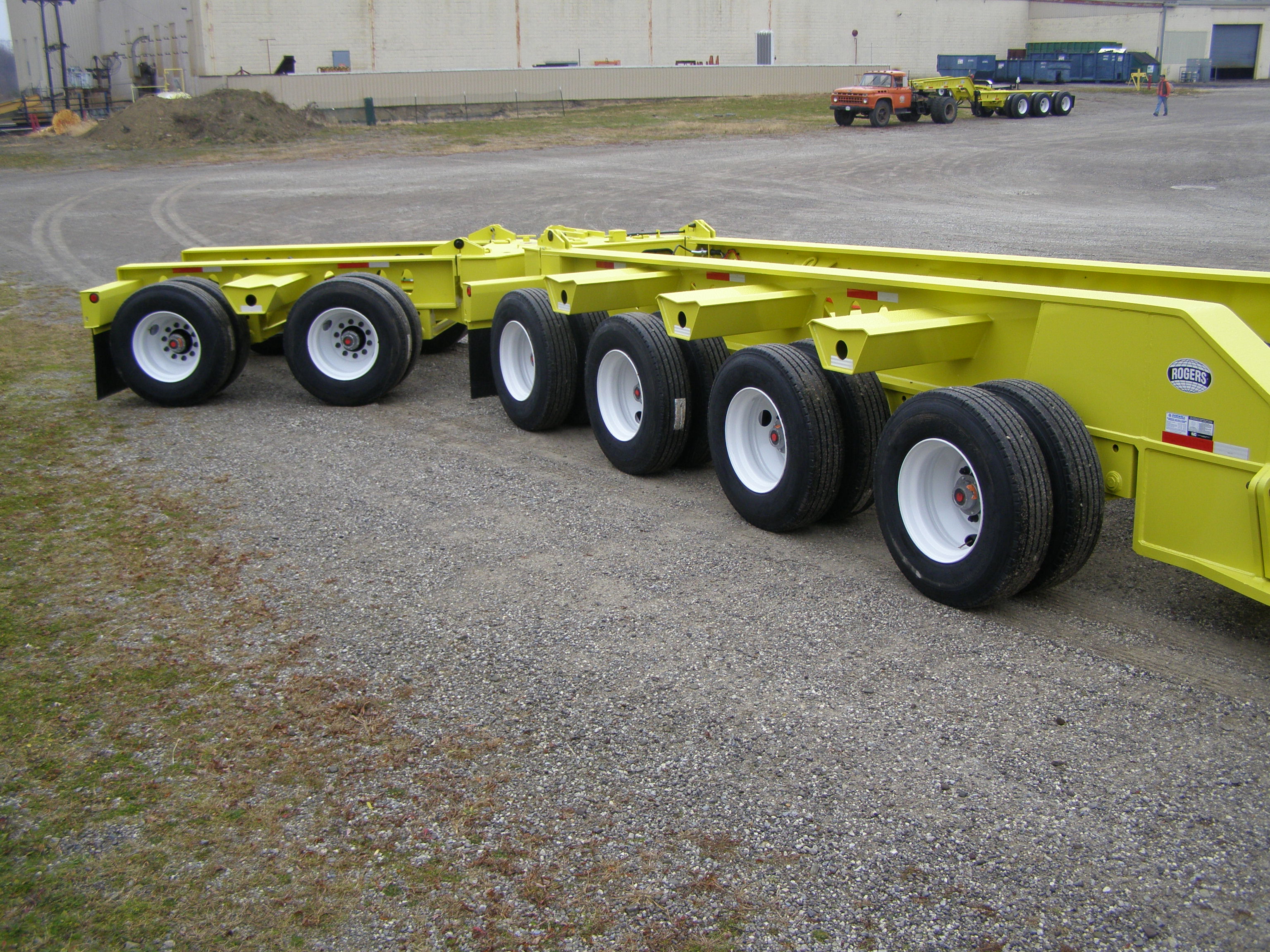

4-axle detachable rear frame with pin and paddle design Air/Light lines extended for booster assembly and rear bogie Removable/flip tandem axle rear bogie |
Request a Quote for 110-ton SP110IB, Specialized Trailer, Model Code 220-000
