121-ton FG121L103-8X, Fixed Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
FG121L103-8X
Feature Photo Description

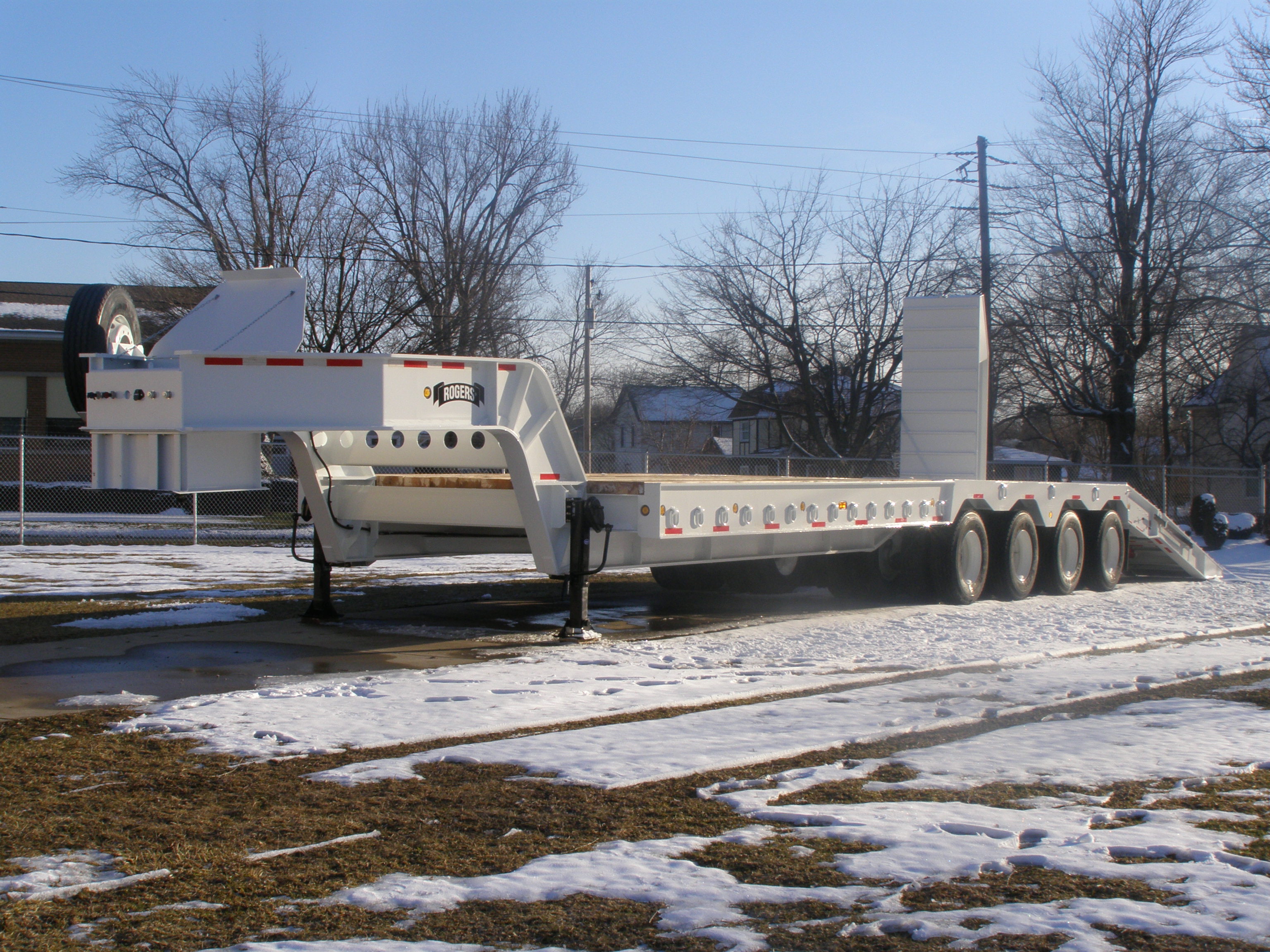

This fixed gooseneck trailer was built for use in a copper mine in South America. The hydraulic-powered rear ramps, covered with 1/2" steel plate and traction bars, combine with hydraulic-powered support legs to offer improved traction for loading over the beavertail. The trailer was manufactured for use in a South American copper mine.
Internal Code
FG121L103/72/20/156/8XWBRS
Code
124-000
Name
FG121L103-8X
Model Series
Custom Series
Trailer Type
Fixed Gooseneck
Trailer Use
Rear Loading: Fixed Gooseneck
Tons
121
Capacity
121.0-ton (109.8-tonnes)
Deck Style
Platform
Deck Length
19'-8" (6.0-meter)
Deck Height LD
0" (0.0-meter)
Deck Width
13'-0" (4.0-meter)
Load Con Weight
242,508-pounds (110,000 kilograms)
Load Con Length
20'-0" (6.1-meter)
Axles
8 axles
Suspension
132,277 lb capacity trunnion style suspensions
Axle Type
33,069 lb capacity axles with grease-filled bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
22.5 x 9.00 10-hole steel disc
Brakes
16 1/2" x 7" shoes (no ABS)
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

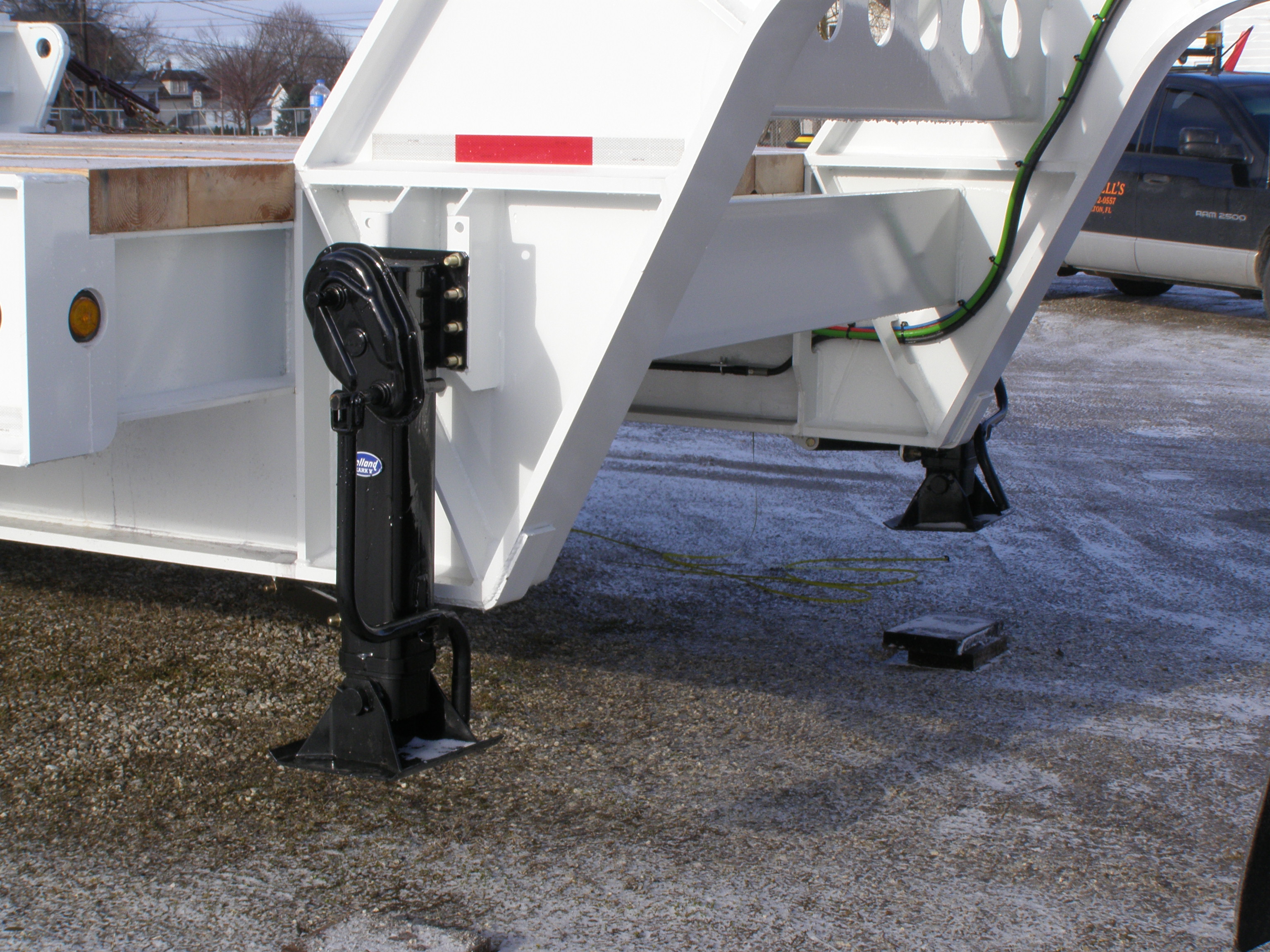

Heavy-duty 2-speed landing gear
62,000 lb lift and 200,000 lb static capacity
Steel covered beavertail with half-inch plate and traction bars
Hydraulic powered support legs for loading over beavertail

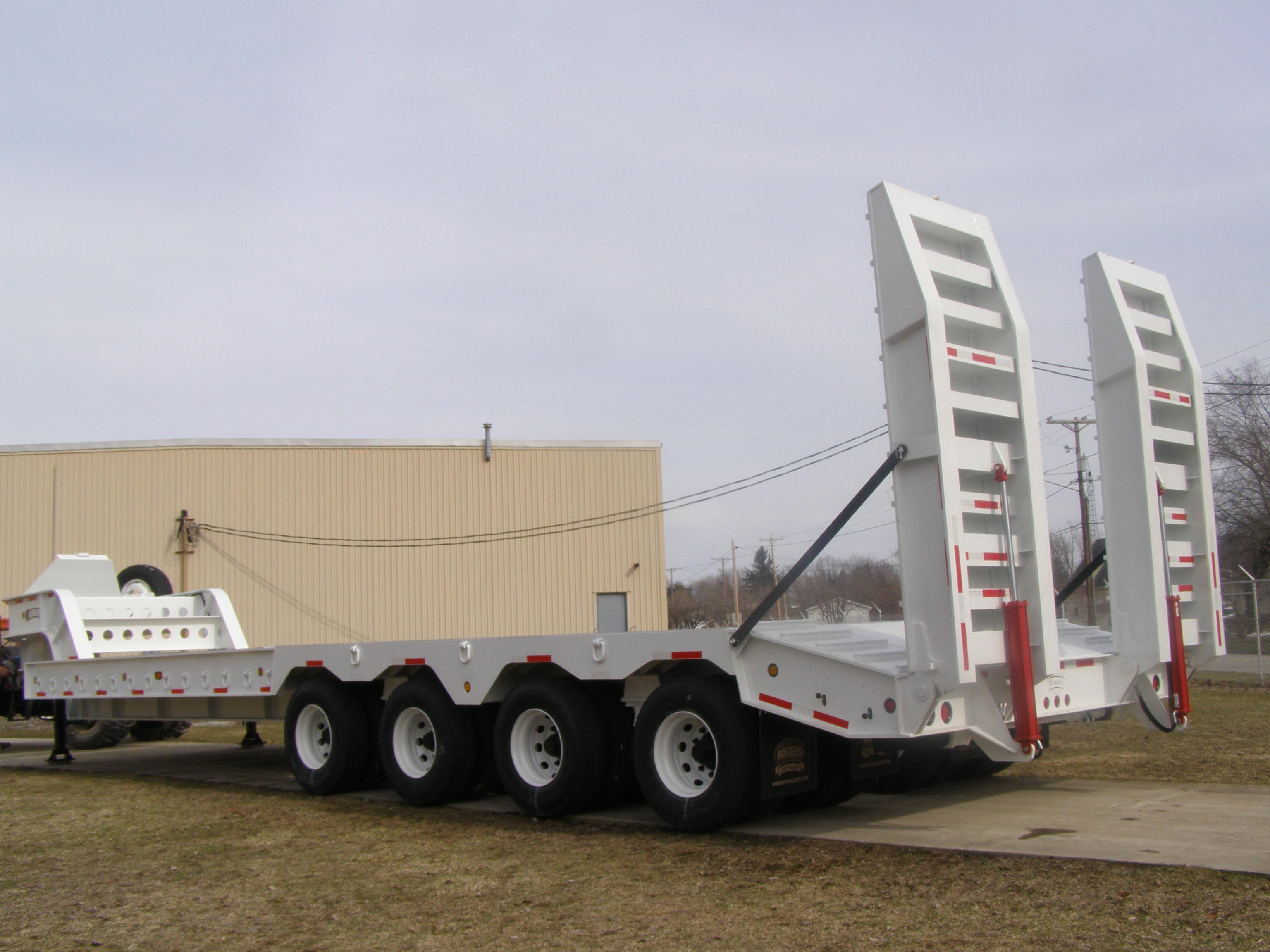

Hydraulic powered rear ramps
Electric back-up alarm

Request a Quote for 121-ton FG121L103-8X, Fixed Gooseneck Trailer, Model Code 124-000
