132-ton SP132PL, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP132PL
Feature Photo Description

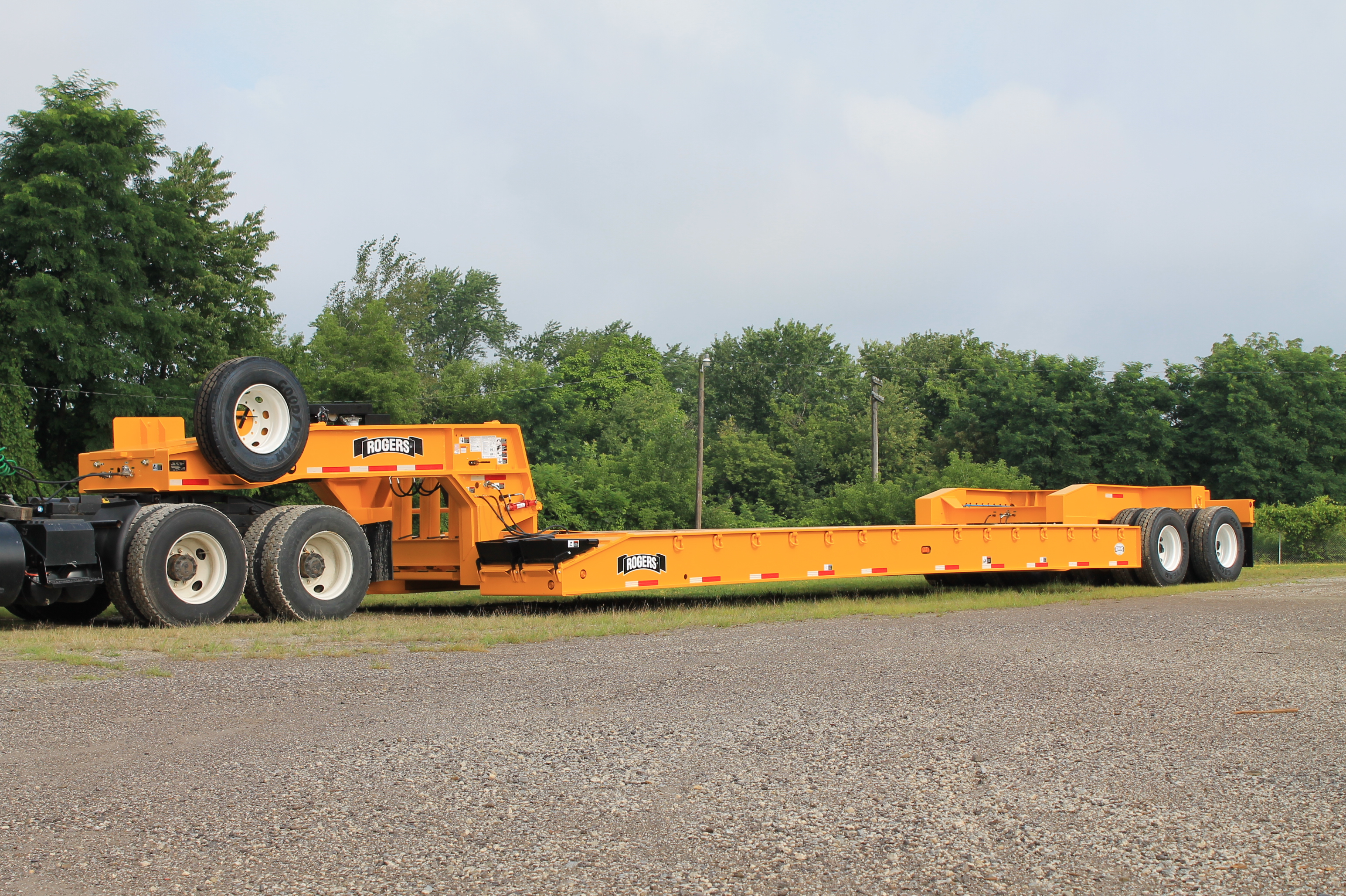

This 132-ton capacity front loading trailer was manufactured for use in a copper mine in South America. The modular design allows different deck styles to be interchanged with the existing platform deck. A total of four front folding ramps (two on each side of the deck) are steel-covered with grouser bars and a handle. The "Bucket Pocket" in the deck and "Boom Trough" between the rear frame beams gives the bucket and stick of an excavator a place to nestle between the wheels and into the deck to improve overhead clearance.
Internal Code
SP132PL110/54/31/176/4XDRCS
Code
132-000
Name
SP132PL
Model Series
Custom Series
Trailer Type
Detachable Gooseneck
Trailer Use
Modular
Tons
132
Capacity
132.0-ton (119.7-tonnes)
Deck Style
Platform
Deck Length
30'-11" (9.4-meter)
Deck Height LD
32" (0.8-meter)
Deck Width
14'-8" (4.5-meter)
Load Con Weight
264,555-pounds (120,000 kilograms)
Load Con Length
26'-0" (7.9-meter)
Axles
4 axles
Suspension
176,370 lb capacity trunnion style suspension
Axle Type
44,092 lb capacity with oil-bathed bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
22.5 x 9.00 10-hole steel disc
Brakes
16 1/2" x 7" shoes (no ABS)
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
Optional Equipment Bullets
Detail Photo Detail Bullets

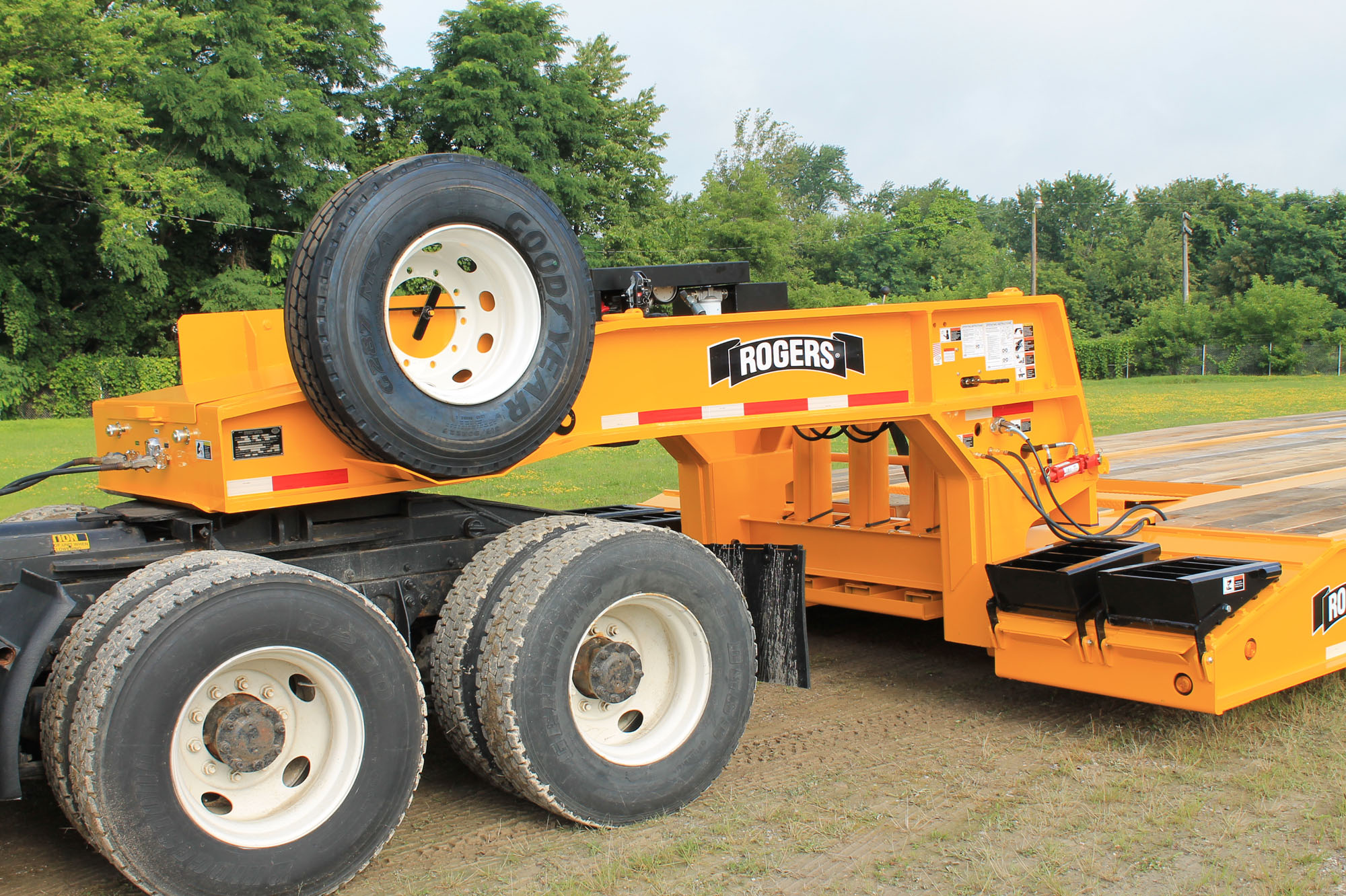

The powerful ram-foot gooseneck uses low hydraulic pressure to safely and reliably lift the load. Hydraulic power is supplied to the gooseneck either by tractor PTO or by the customer specified 23HP Honda gas engine power unit
Four standard lashing D's on top of the gooseneck
Two spare tire carriers on gooseneck
Four front folding ramps
"Bucket Pocket" with last three cross members lowered between main beams
Center boards installed
Detachable rear frame with hook and shaft design

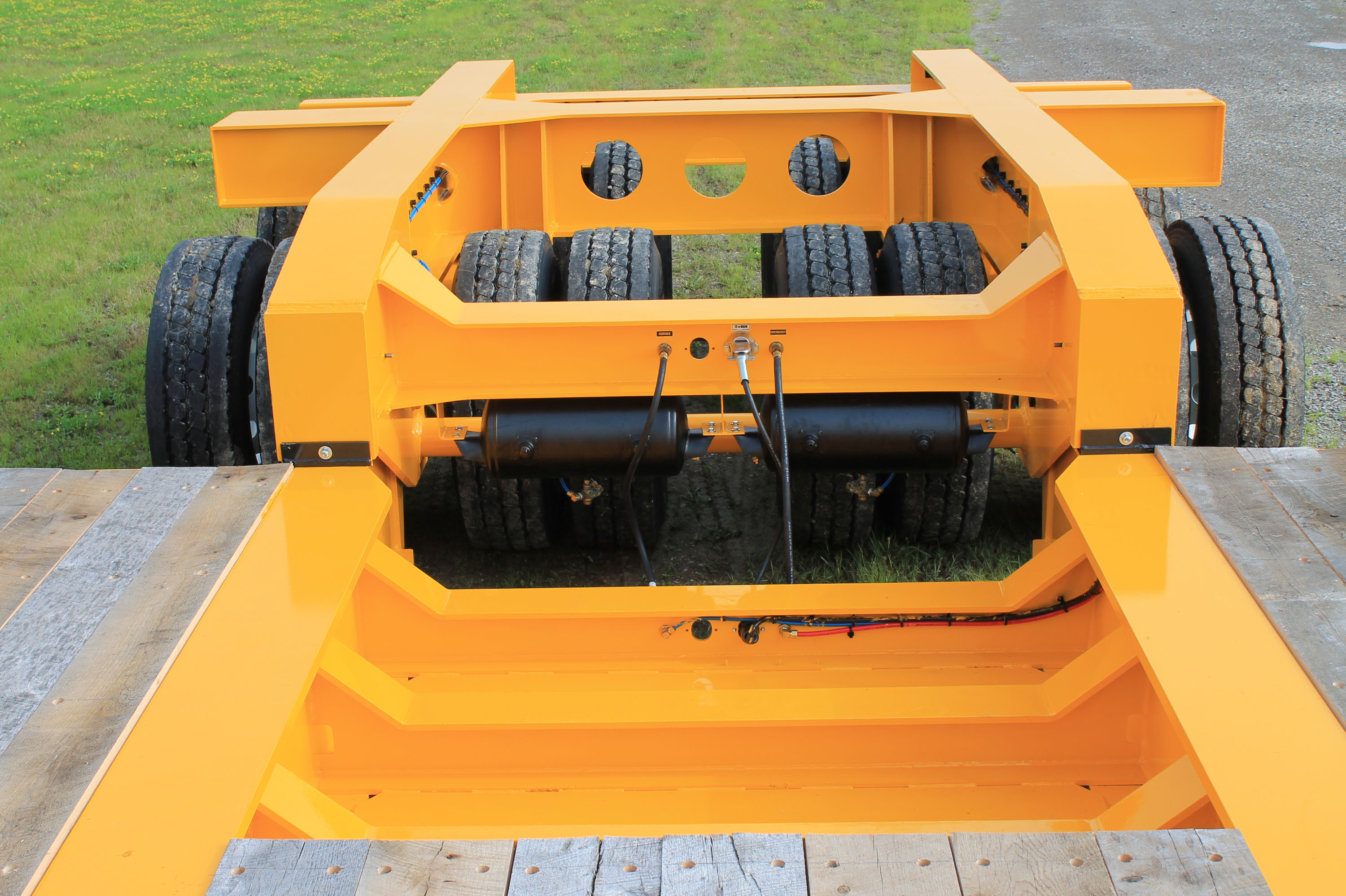

"Boom Trough" with lowered cross members between rear frame beams

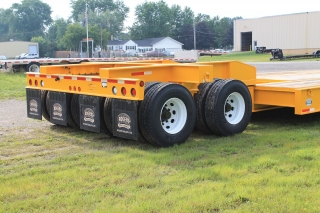

Trunnion beam between wheels with lashing D's on each end
Electric back-up alarm
