Rogers Brothers Trailers1-800-441-9880

Trailer Models

25-ton TAG25XXL-AL, Tag-Along Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
TAG25XXL-AL
Feature Photo Description
The ROGERS TAG25XXL-AL trailer features a longer 24'-0" x 8'-6" platform deck for increased load space and versatility. The front axle of the trailer is mounted to an air suspension that is lift-able and can have its axle-load set by the operator. Exclusive 80" long drawbar provides better load distribution to your truck for a smoother, safer ride. "E-Z Flip" ramps are 22" wide by 72" long and are laterally adjustable for maximum versatility.
Internal Code
TAG25-30/102/3XSPAL
Code
413-012
Name
TAG25XXL-AL
Model Series
Tag-Along Trailers
Trailer Type
Tag-Along
Trailer Use
Rear Loading: Tag-Along
Tons
25
Capacity
25.0-ton (22.7-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
34" (0.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
50,000-pounds (22,680 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
3 axles
Suspension
44,800 lb. capacity tandem axle heavy-duty multi-leaf 4-spring + 22,000 lb. capacity single axle air suspension on front lift axle
Axle Type
22,500 lbs. capacity with oil-bathed bearings
Tires
215/75R17.5(H) low-profile tubeless radial
Wheels
17.5 x 6.75 8-hole steel disc
Brakes
12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Front axle air suspension with axle air lift
  • Heavy-duty spring suspension on rear two axles
  • 215/75R17.5(H) low profile tires on 17.5 x 6.75 hub piloted steel disc wheels
  • Oak-covered "E-Z Flip" ramps, 72" long x 22" wide, laterally adjustable
  • High capacity two-speed landing gear
  • Six-position pintle eye with 66,000 lb. capacity
  • Fourteen (14) standard lashing D's - seven (7) per side
  • Oak-covered 6'-0" long beavertail with 8 degree load angle
  • US DOT 12-volt LED lighting with sealed wiring system and 7-wire socket
Optional Equipment Bullets
  • Double landing gear package
  • Additional lashing D's
  • 235/75R17.5(H) low profile tires
  • Ladder-style "E-Z Flip" ramps, 72" long x 22" wide, laterally adjustable
  • Aluminum disc wheels in lieu of steel
  • Spare tire carrier
  • Mechanical backup warning alarm
  • Many more options available!
Detail Photo Detail Bullets

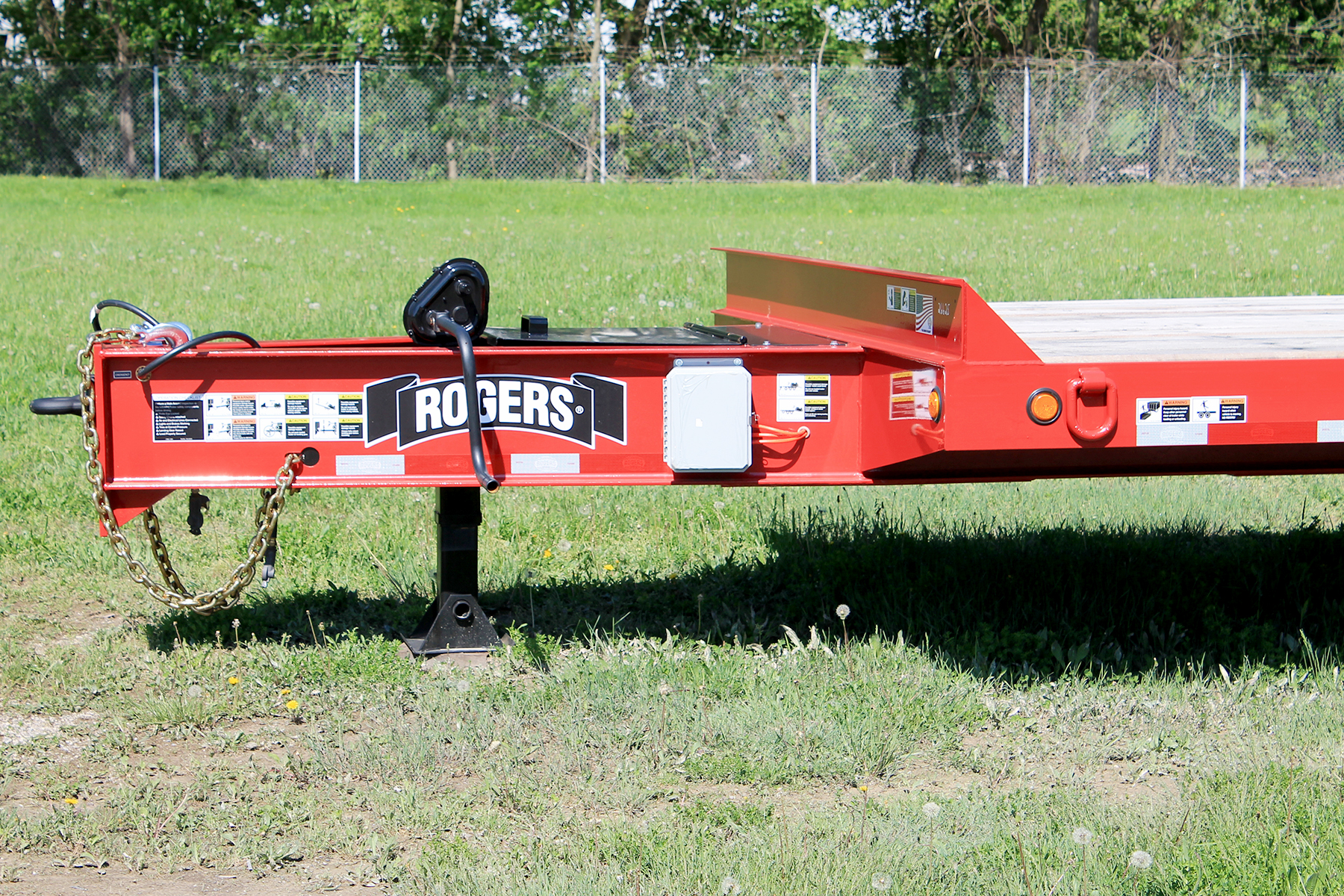

The drawbar front plate is now located lower on the trailer frame for additional clearance and has six mounting positions for the towing eye.
The locking plate for the safety chain mounts can be removed and reinstalled to make it easier to adjust the safety chain lengths to better fit the tow vehicle.
For improved handling and weight distribution, the drawbar is an industry-leading 80 inches long. The heavy-duty two speed landing leg is standard on our Tag-Along trailers.
A lockable tool box with steel lid provides ample storage for tools, binders, etc.
The front axle of the trailer is mounted to an air suspension.
The axle can be lifted off the ground when load conditions allow for easier maneuverability.
A box mounted to the side of the drawbar contains the air controls for the front axle.
A load scale chart allows the operator to set the air pressure on the front axle to carry the desired weight.

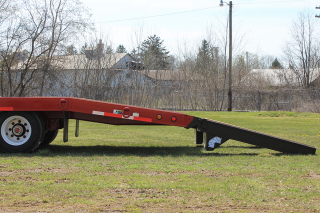

The beavertail is 72 inches long and provides an easy and safe 8 degree loading angle. The E-Z Flip loading ramps are equipped with heavy duty torsion springs to assist in lifting the ramps - both off the trailer and off the ground.
ROGERS E-Z Flip ramps are also laterally adjustable to simplify the loading and unloading of machines of various widths.

Request a Quote for 25-ton TAG25XXL-AL, Tag-Along Trailer, Model Code 413-012
