55-ton CN55PL, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.

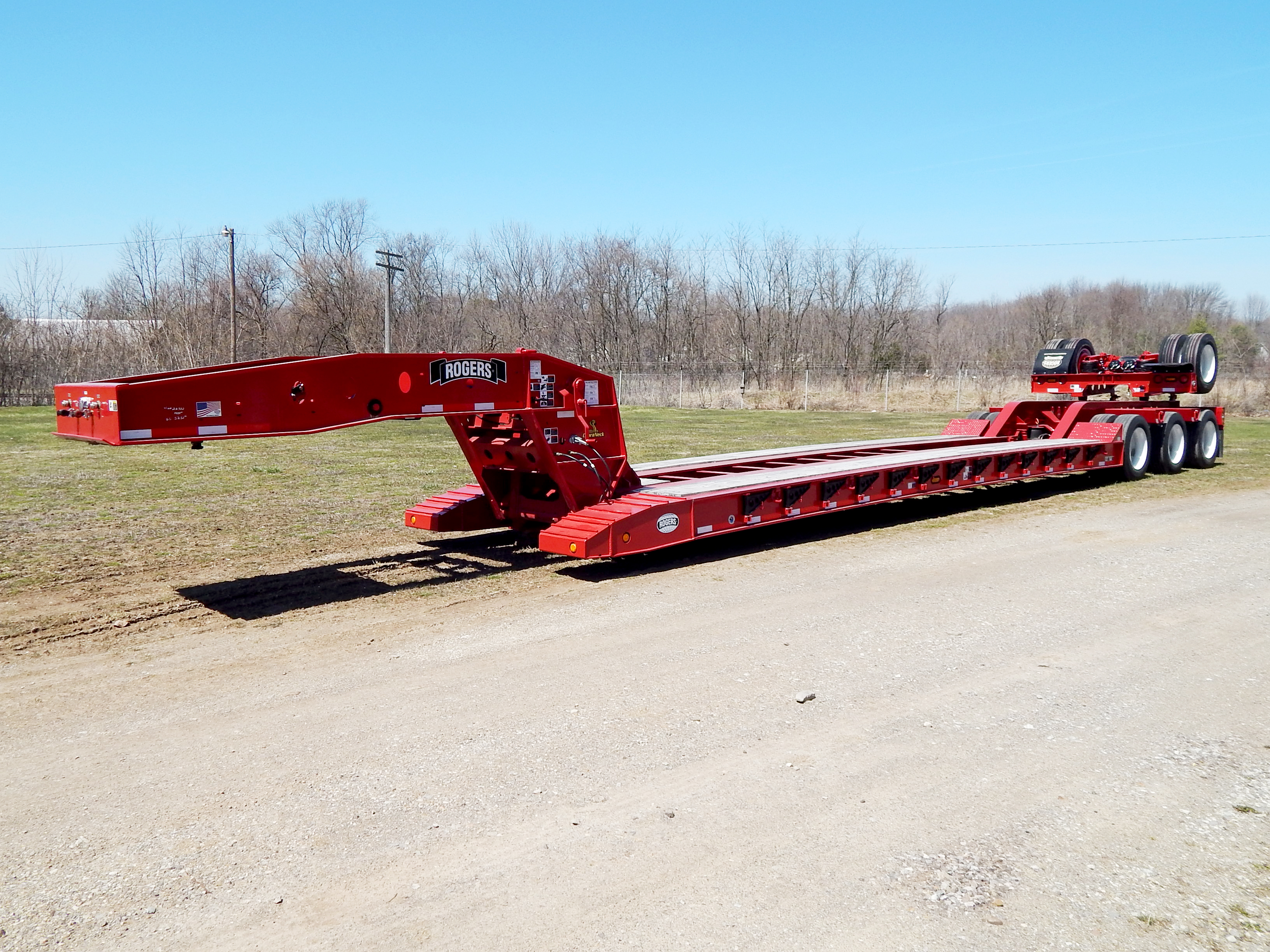

Feature Photo
CN55PL
Feature Photo Description
The ROGERS CobraNeck Series CN55PL is a severe-duty 55-ton capacity lowbed semi-trailer that incorporates several enhanced design features into an already impressive trailer specification. This trailer features our newest gooseneck design, the "CobraNeck", that combines readily adjustable deck heights and ease of operation with the performance and durability for which ROGERS is famous. The trailer is designed with a full capacity load concentration in one half the deck length for many years of worry free operation. The deck features a 20" loaded height and the exclusive "Croucher"® front end for easy loading and unloading of equipment. The full-depth "Bucket Pocket" along with lowered cross members combined with the lowered cross members of the "Boom Trough" in the rear frame give lowest possible loading profile for excavators and similar machinery. This model is also structurally designed to be used with a removable/flip 4th axle when required.
Internal Code
CN55PL110/51/26/102/3XAR
Code
584-006
Name
CN55PL
Model Series
CobraNeck™ Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
55
Capacity
55.0-ton (49.9-tonnes)
Deck Style
Platform
Deck Length
26'-0" (7.9-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
110,000-pounds (49,895 kilograms)
Load Con Length
13'-0" (4.0-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • CobraNeck gooseneck
  • Hydraulic gooseneck jack with shoe
  • Hydraulic power source: Tractor PTO
  • Four-beam cambered design with 20" loaded deck height
  • 14" wide flange main carrying beams made with T1 (A514) flanges
  • Exclusive "Croucher"® low, tapered front with concealed beam hooks
  • 1 3/4" air-dried oak decking: No center boards
  • Total (29) removable swinging side brackets
  • Total (16) bent lashing D's (8 each side of deck)
  • Additional (6) straight lashing D's (inside trailer deck)
  • Full-depth "Bucket Pocket" at rear of deck
  • Arch-type rear frame with sloped bridge ramps
  • Trunnions between wheels
  • "Boom Trough" in rear frame
  • Air lift axle - 3rd axle
  • LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat
Optional Equipment Bullets
  • Removable/flip 4th axle (shown)
  • Gooseneck fenders
  • 13 HP gas engine power unit
  • Air suspension dump valve
  • Front folding ramps - wood or steel covered, laterally adjustable
  • Fixed (welded) front ramp wedges
  • Toolboxes - can be located in gooseneck of deck
  • Bar grating installed between main beams for storage.
  • Center decking boards, installed or loose
  • Apitong decking
  • Removable (bolt-on) load bearing wheel covers
  • Welded, reinforced 1/4" smooth or tread plate wheel covers
  • Wide/Oversize Load sign and mounting bracket
  • Aluminum disc wheels
  • Spare tire & disc wheel
  • Spare tire carrier mounted on gooseneck
  • Auxiliary lighting system with deep cycle battery
  • Stop/turn/tail light package mounted to rear of gooseneck
  • Backup warning alarm, electronic or mechanical
  • Other ROGERS and custom paint colors available
Detail Photo Detail Bullets

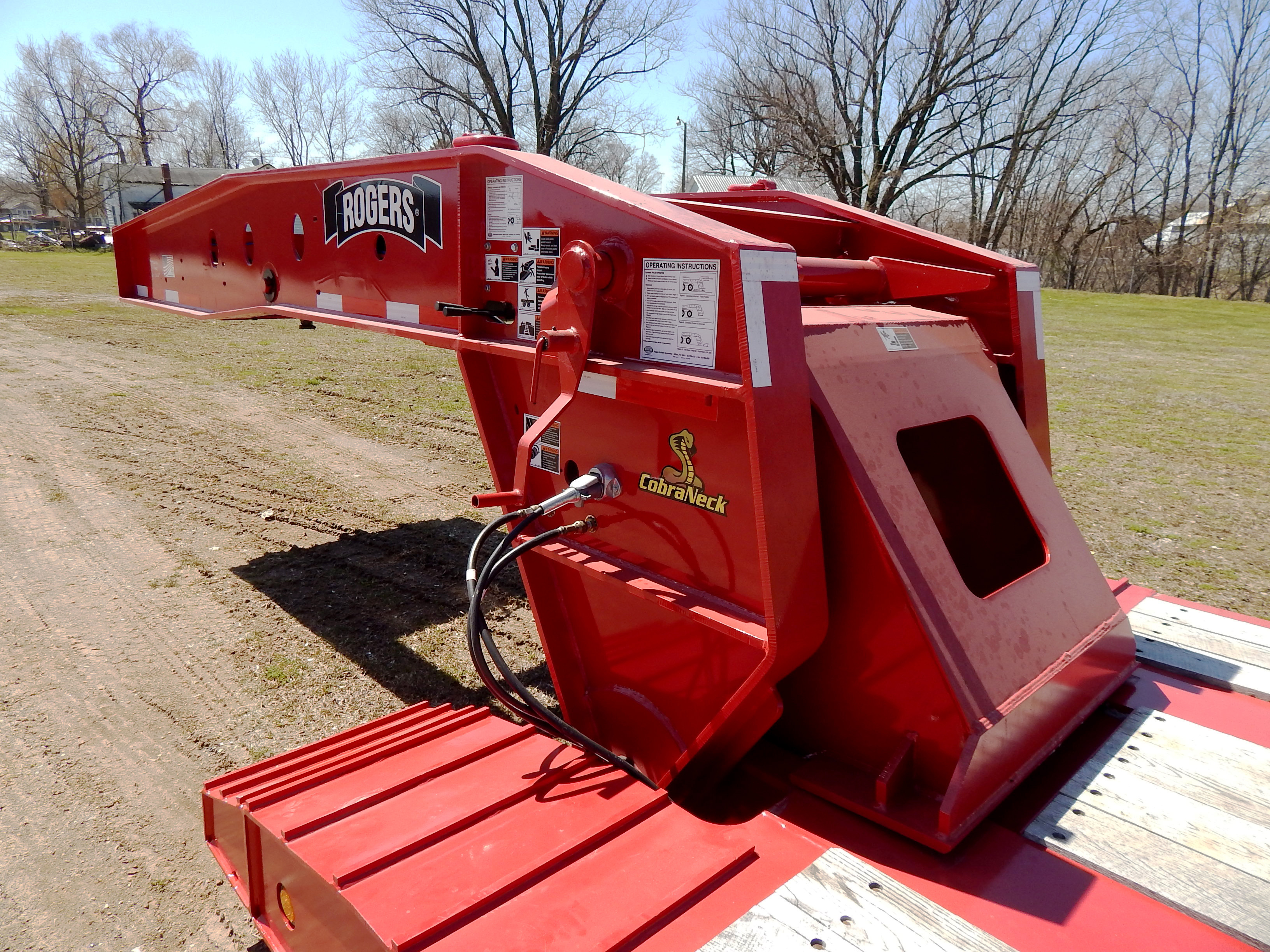

ROGERS CobraNeck gooseneck features easy to adjust deck/5th wheel heights and simple operation.
The maximum depth "Bucket Pocket" gives the lowest loading profile available for loading excavators on the platform deck.

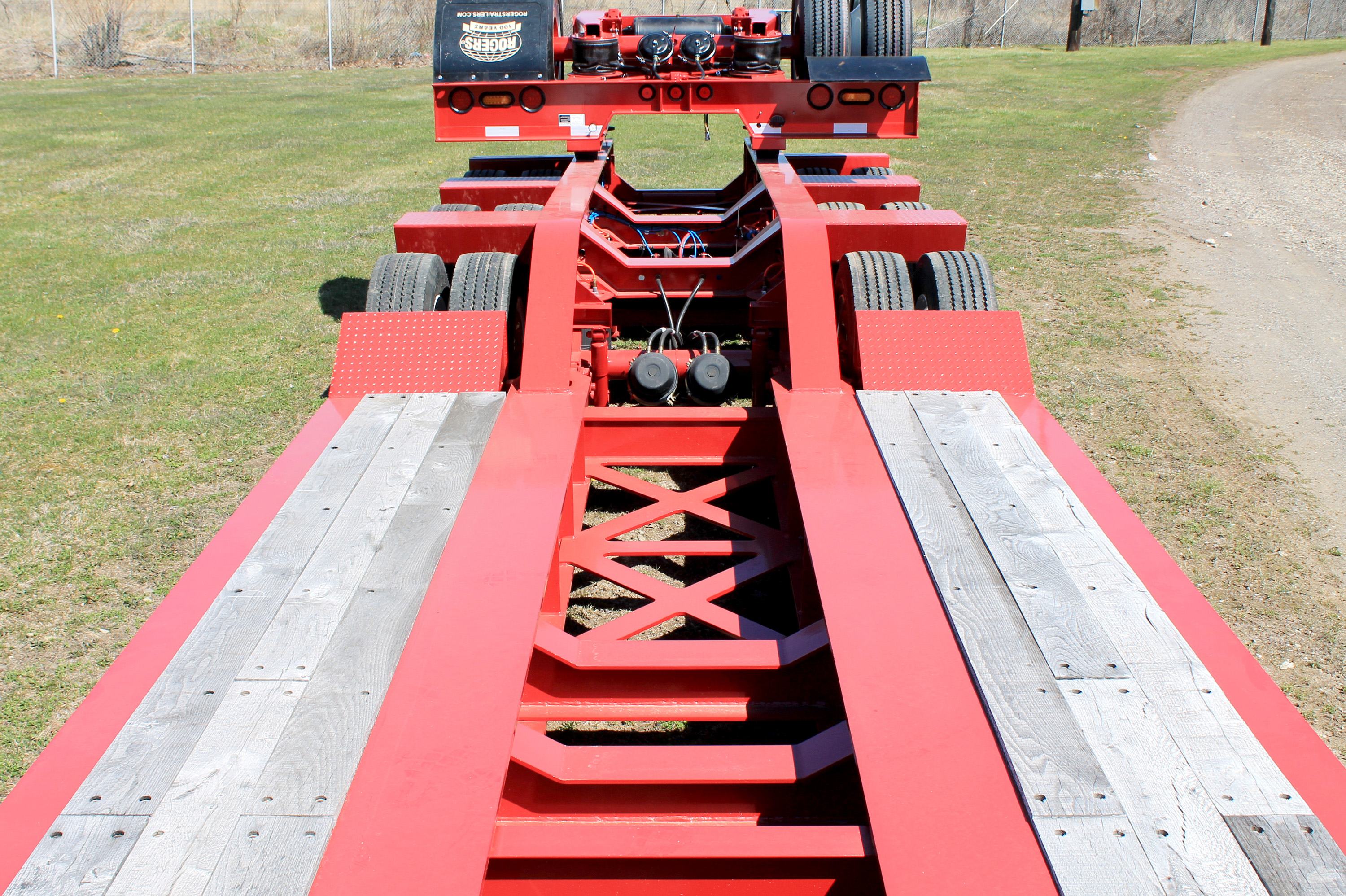

This loading profile is continued to the rear of the trailer with the "Boom Trough" constructed of lowered cross members in the rear frame.

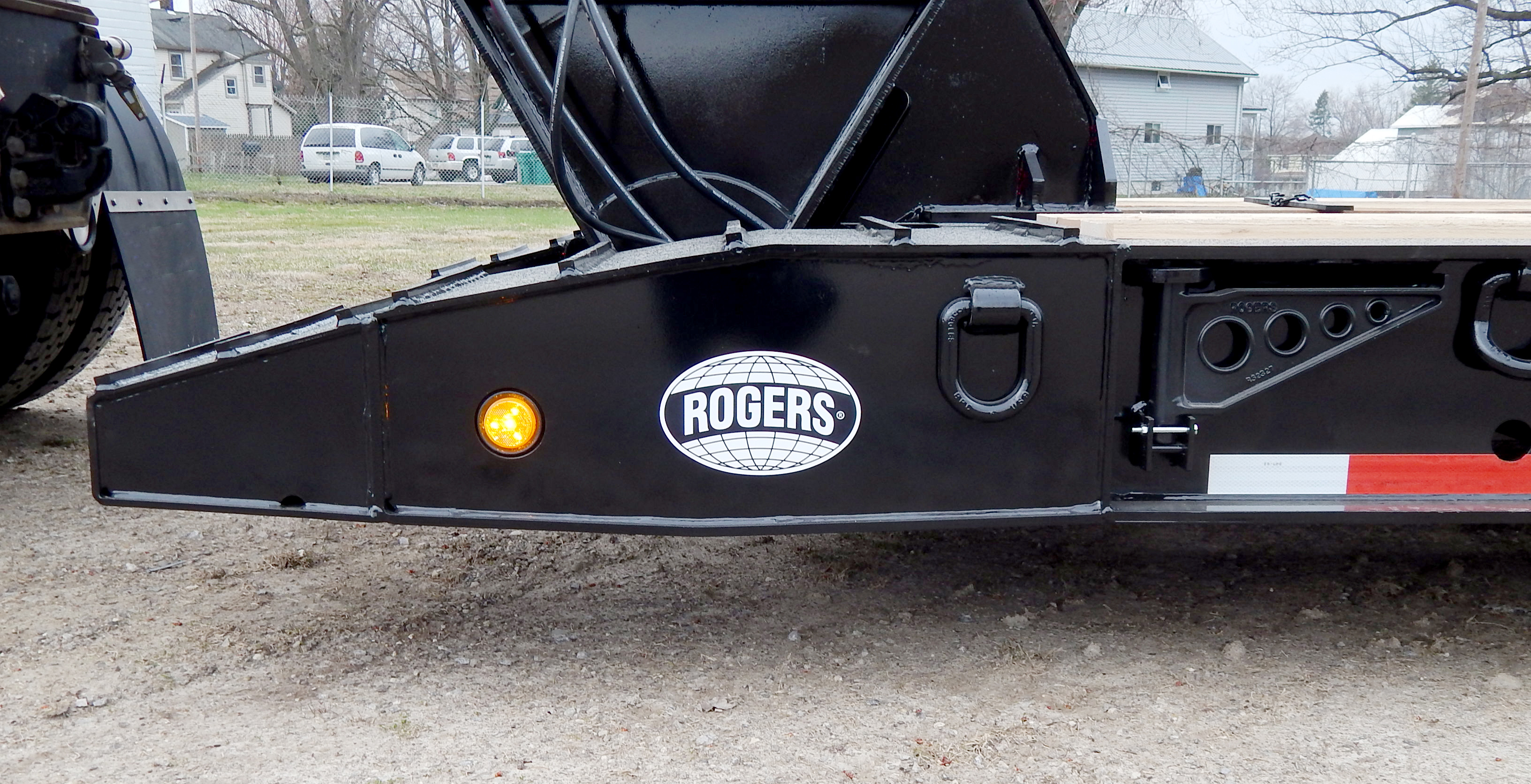

Optional fixed (welded) extensions provide permanent ramps to the "Croucher"® tapered front of the trailer deck.

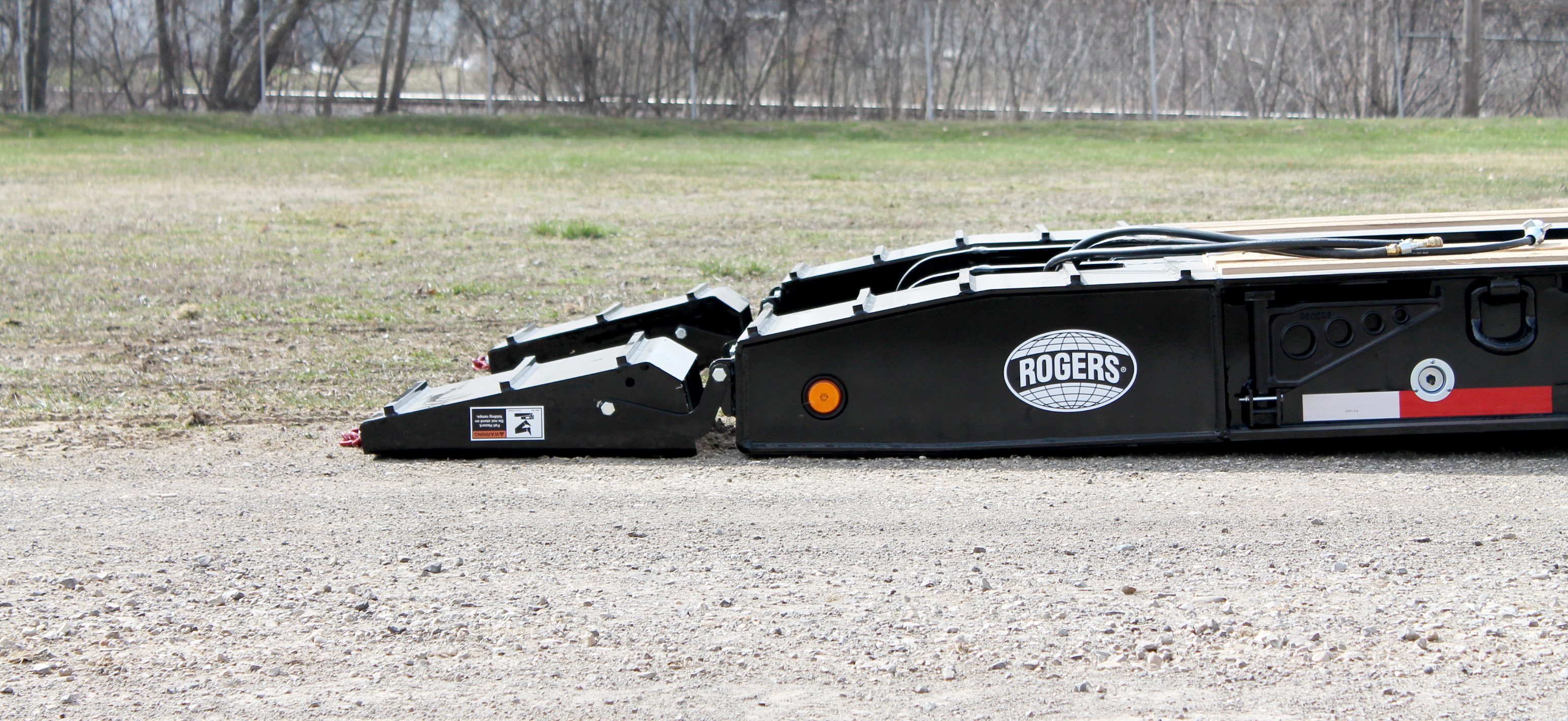

Front folding ramps are available in a variety of styles. Shown are steel covered heavy-duty ramps with welded grousers to provide additional traction.
