55-ton SP55PL, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
SP55PL
Feature Photo Description

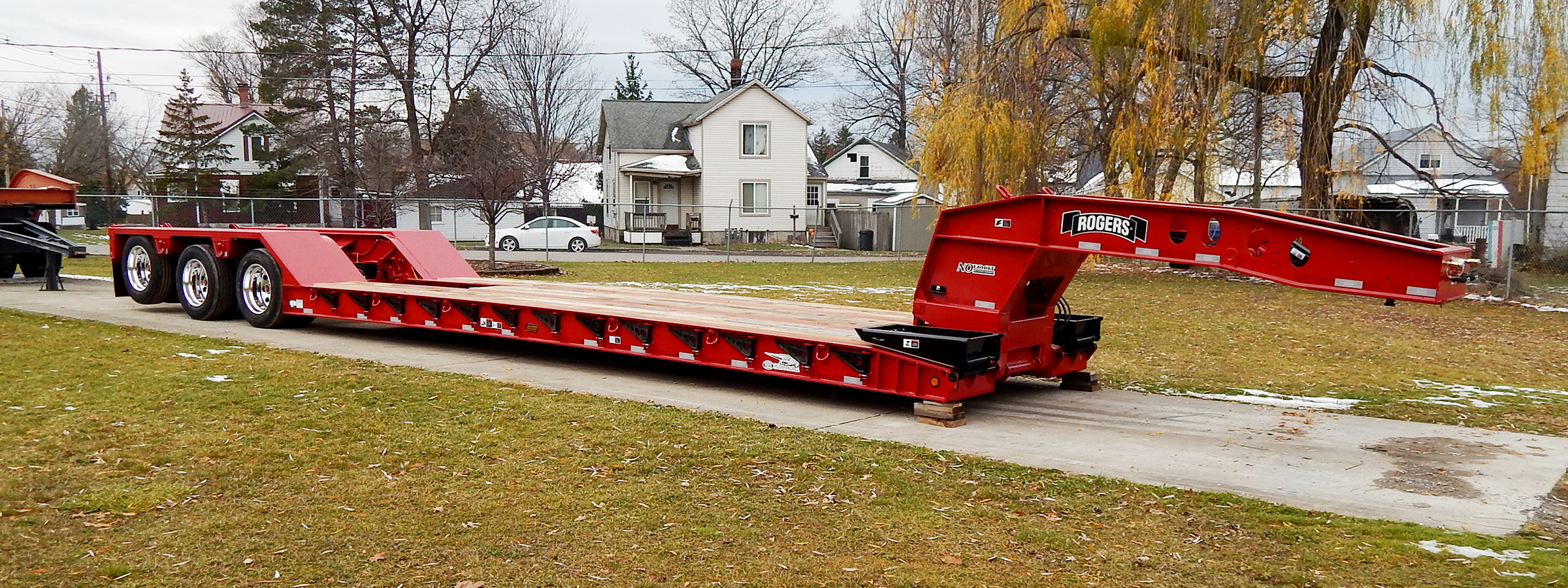

Aggressively designed to reduce weight without sacrificing performance, the ROGERS® Ultima Series model SP55PL is our latest 55-ton detachable gooseneck trailer. It features the "NoFoot"® self-lifting gooseneck, the Croucher® low, tapered front end, and a "Bucket Pocket" in the deck. The wide "Boom Trough" in the trailer's rear frame combines with the 20" loaded deck height for a remarkably low transport height.
Internal Code
SP55PL108/51/25/102/3XAR
Code
659-004
Name
SP55PL
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
55
Capacity
55.0-ton (49.9-tonnes)
Deck Style
Platform
Deck Length
25'-0" (7.6-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
110,000-pounds (49,895 kilograms)
Load Con Length
12'-0" (3.7-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole hub piloted steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • "No Foot"® Tower style gooseneck
  • Trap door extension blocks for adjusting 5th wheel height
  • Dual-arm hydraulic gooseneck support jack with shoe
  • Hydraulic power source: Tractor PTO
  • Four-beam cambered frame design with 14" main beams
  • Exclusive "Croucher"® low, tapered front deck with concealed beam hooks
  • 1 3/4" air-dried oak decking; No center boards
  • Total (26) removable swinging side brackets
  • Total (16) bent lashing D's
  • Total (6) straight lashing D's inside trailer deck
  • "Bucket Pocket" in rear of deck
  • Arch-type rear frame with sloped bridge ramps
  • "Boom Trough" in trailer rear frame
  • Wide, load-bearing trunnions between tires
  • LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Flag holders
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Gooseneck fenders
  • Removable/flip 4th axle
  • Air suspension dump valve
  • Front folding ramps or wedges with grouser bars
  • 13 HP gas engine power unit
  • Toolboxes - can be installed in gooseneck or deck
  • Bar grating installed between main beams in deck for storage
  • Center decking boards - installed or loose
  • Apitong decking in lieu of oak
  • Removable (bolt-on) load bearing wheel covers
  • Welded, reinforced 1/4" smooth or tread plate wheel covers
  • Wide/Oversize Load sign and mounting bracket
  • Aluminum disc wheels
  • Auxiliary light system with deep cycle battery
  • LED amber strobe lights in rear channel with recessed switch
  • Stop/turn/tail light package mounted to rear of gooseneck
  • Backup warning alarm, electronic or mechanical
  • Other ROGERS paint colors available
Detail Photo Detail Bullets

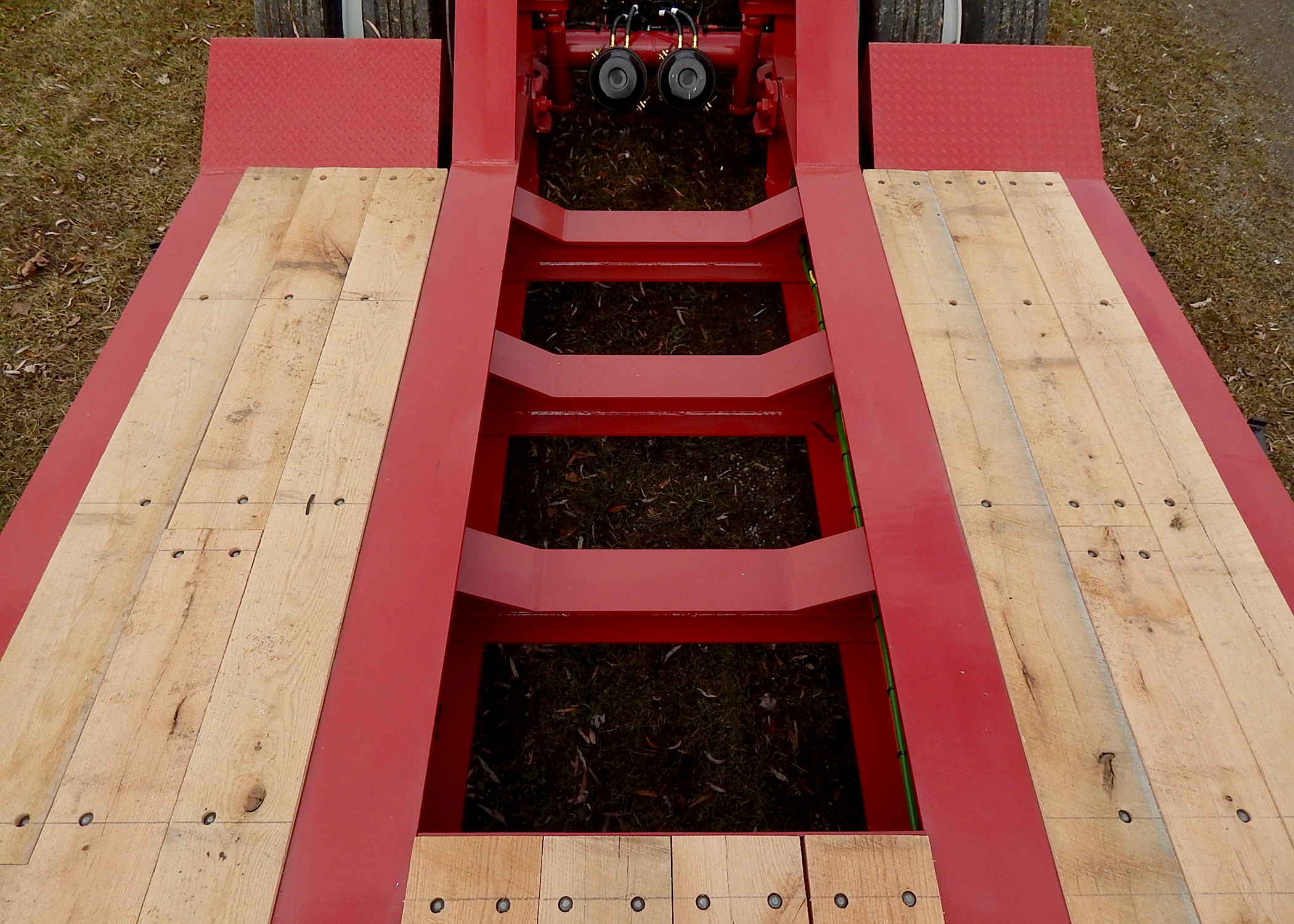

The "Bucket Pocket" in the rear of the platform deck is constructed with lowered cross beams which allow equipment to be loaded to minimum travel height.

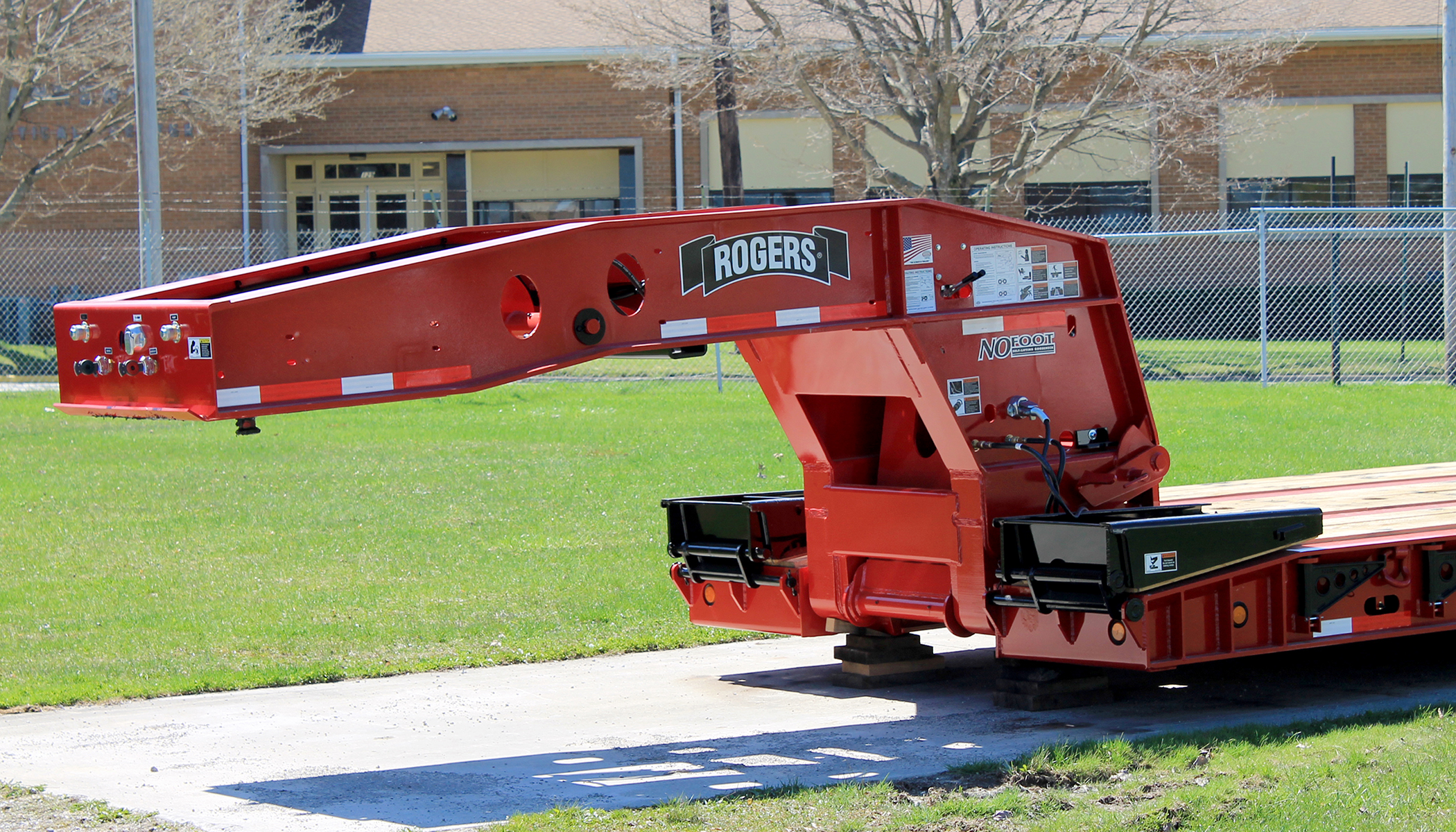

The powerful "No Foot"® Tower style gooseneck uses low hydraulic pressures to detach and can lift a full trailer without shifting the load. The gooseneck also features trapdoor extension blocks that can provide up to 4" of adjustment to the 5th wheel height.

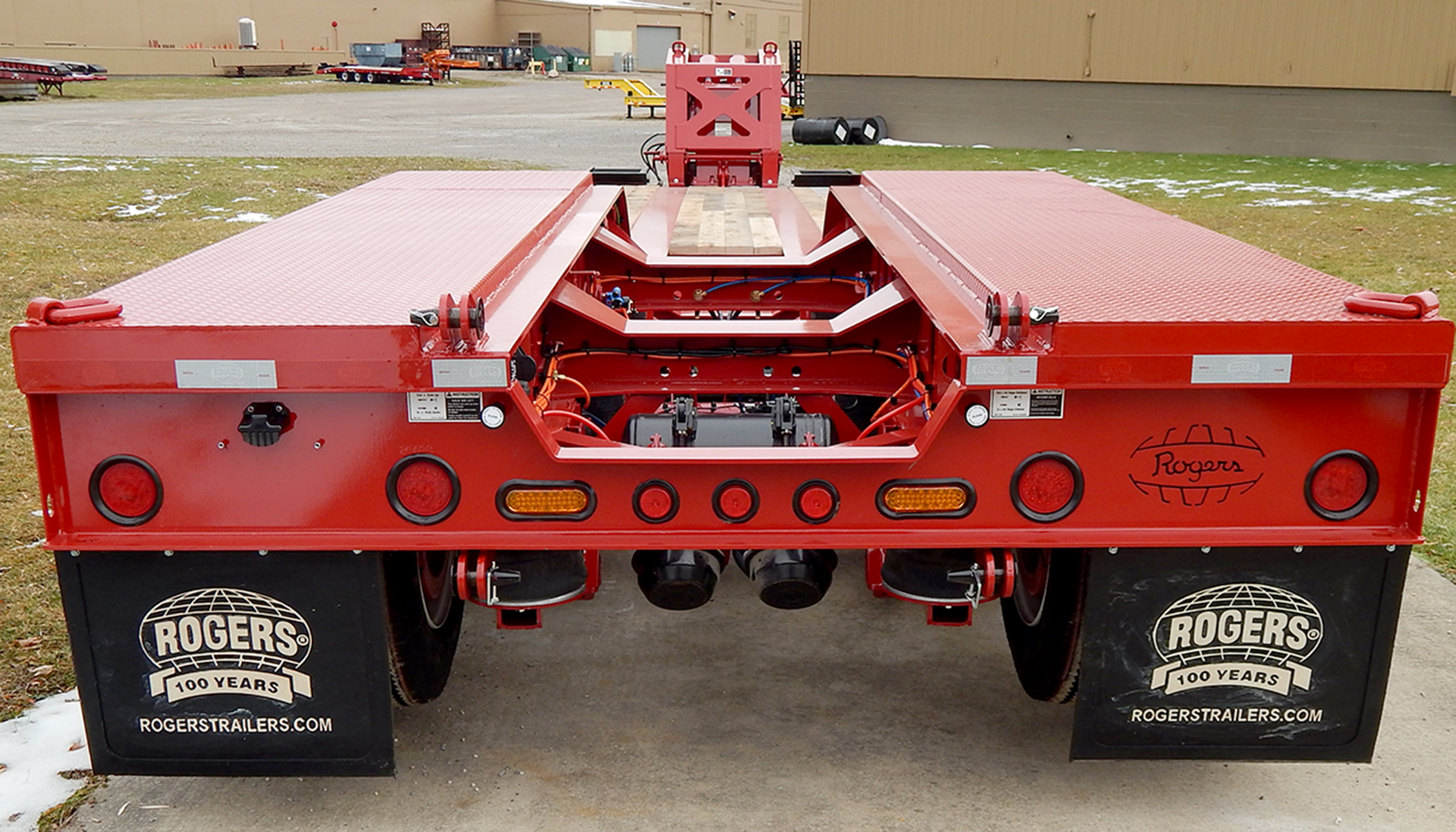

Several items are shown in this photo:
- Welded treadplate wheel covers
- Hinges and pins for connecting an optional 4th axle
- LED Amber strobe lights
- Axle air lift and air suspension dump valves

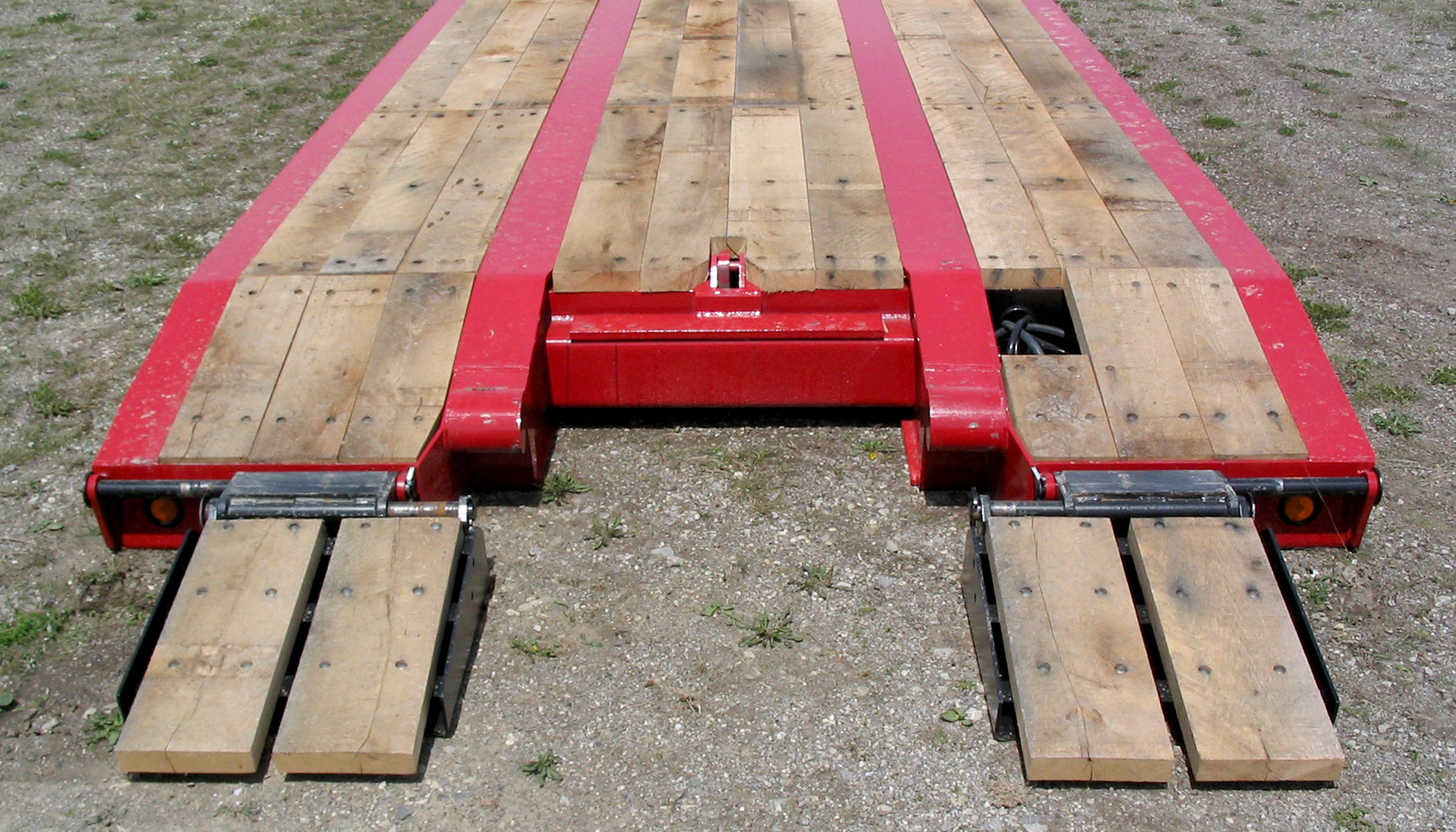

A variety of approach ramps are available - including the laterally adjustable front folding ramps shown.
