40-ton CR40PL, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
CR40PL
Feature Photo Description

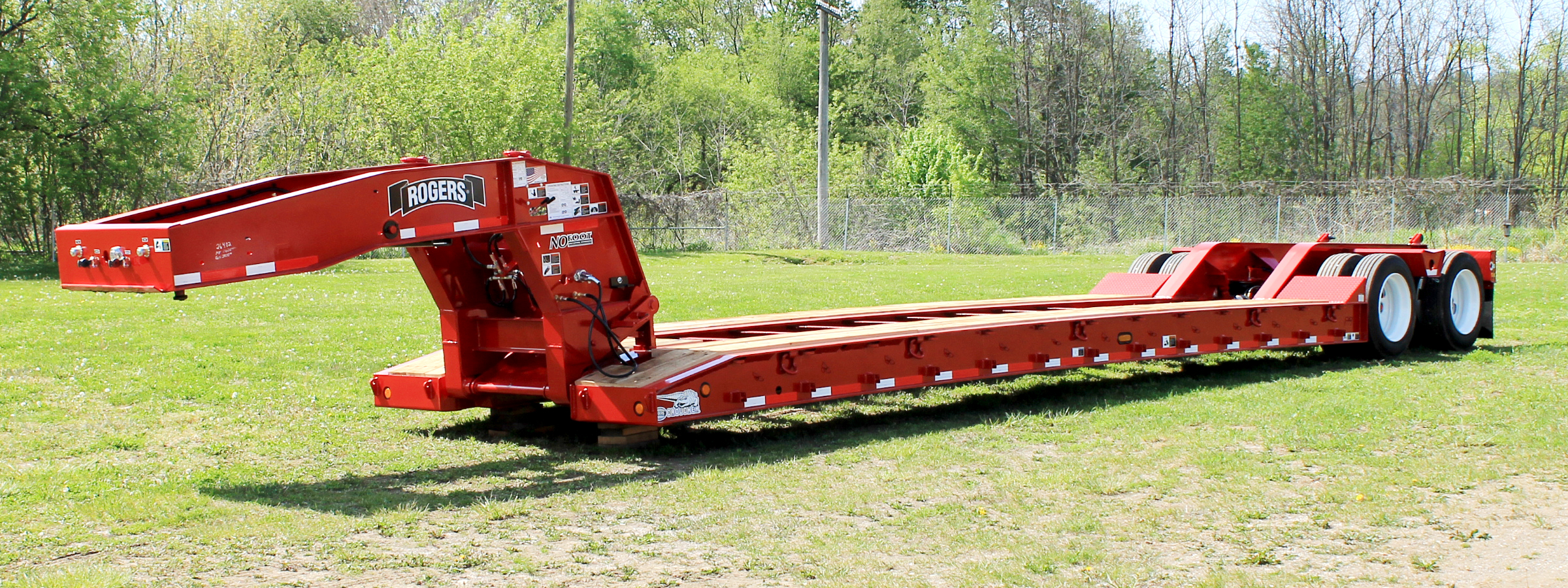

The ROGERS ULTIMA™ Series CR40 is a high performance 35-ton capacity (40-ton with optional 3rd axle) trailer. It features our "No Foot"® Direct-Push style detachable gooseneck, 24'-0" cambered platform deck with 20" deck height, and durable air ride suspension.
Internal Code
CR40PL86/51/24/102/2XAR
Code
650-005
Name
CR40PL
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
40
Capacity
40.0-ton (36.3-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
80,000-pounds (36,287 kilograms)
Load Con Length
12'-0" (3.7-meter)
Axles
2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole hub piloted steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Patented "No Foot"® direct-push style gooseneck
  • Trap door extension blocks for adjusting 5th wheel height
  • Dual arm hydraulic gooseneck jack with shoe
  • Hydraulics power source: tractor PTO
  • Main beam / side beam cambered deck design
  • Exclusive Croucher low, tapered front with concealed beam hooks
  • Side channel reinforcing of first 6'-0" of deck
  • 1 3/4" air-dried oak decking / No center boards
  • Total (26) bracket bearings for removable side brackets
  • Total (10) bent lashing D's
  • Arch-type rear frame with sloped bridge ramps
  • Wide load-bearing trunnions between wheels
  • "Bucket Pocket" in rear of deck
  • "Boom trough" in rear frame
  • Flag holders
  • US DOT-approved rubber-mounted LED lights with sealed wiring and 7-wire socket
  • Epoxy primer
  • ROGERS Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Removable/flip 3rd axle
  • Removable swinging side brackets
  • Laterally adjustable front folding ramps
  • Other styles of front folding ramps or wedges with grouser bars
  • Center decking boards, installed or loose
  • Gooseneck fenders
  • 13 HP gas engine hydraulic power unit
  • Hydraulic trap doors
  • Toolboxes - can be located in gooseneck or deck
  • Bar grating installed between main beams for storage
  • Welded, reinforced 1/4" smooth or tread plate wheel covers
  • Apitong decking
  • Wide/Oversize Load sign and mounting bracket
  • Aluminum disc wheels
  • 275/75R22.5 (H) low-profile tires
  • Auxiliary light system with 12v battery
  • Backup warning alarm, electronic or mechanical
  • Other ROGERS finish colors: (hover to see samples)
Detail Photo Detail Bullets

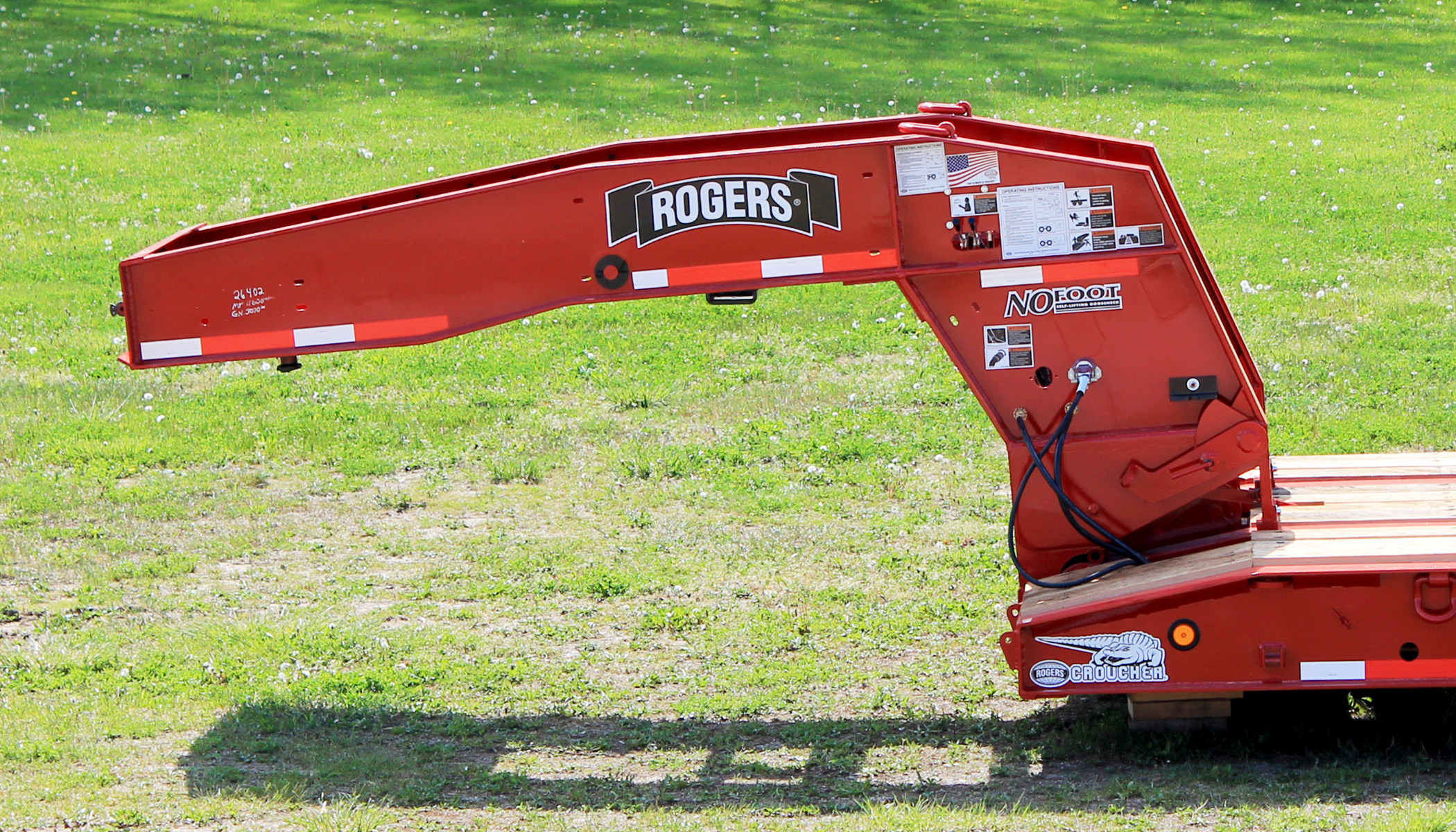

"No Foot"® detachable gooseneck uses lower operating pressures and can lift the rated load anywhere on the deck. Three inch integral hatbox provides additional clearance for truck fenders and ease of detaching gooseneck.

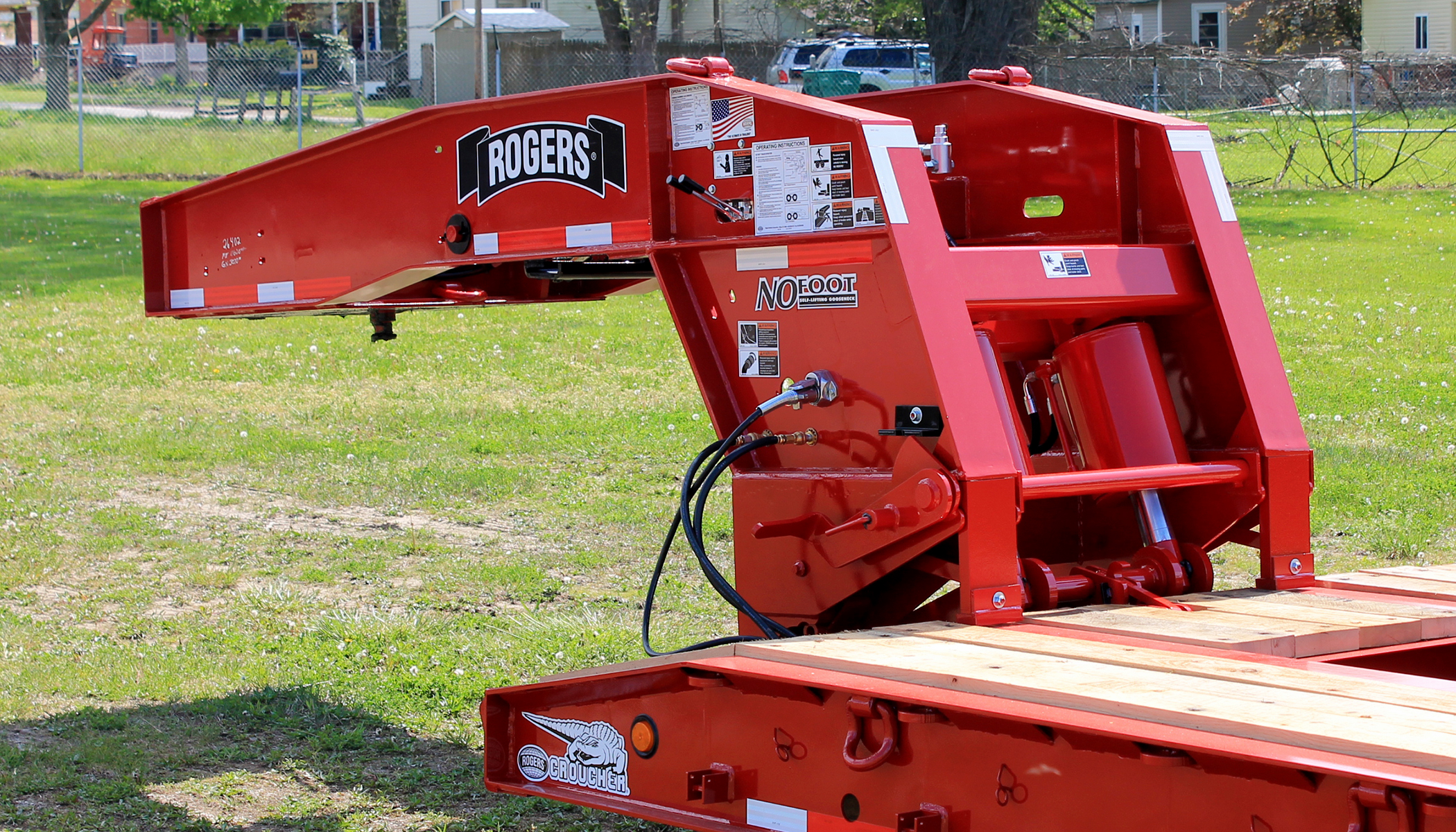

The gooseneck features extension blocks (shims) that provide 4" of adjustment to the trailer 5th wheel height.

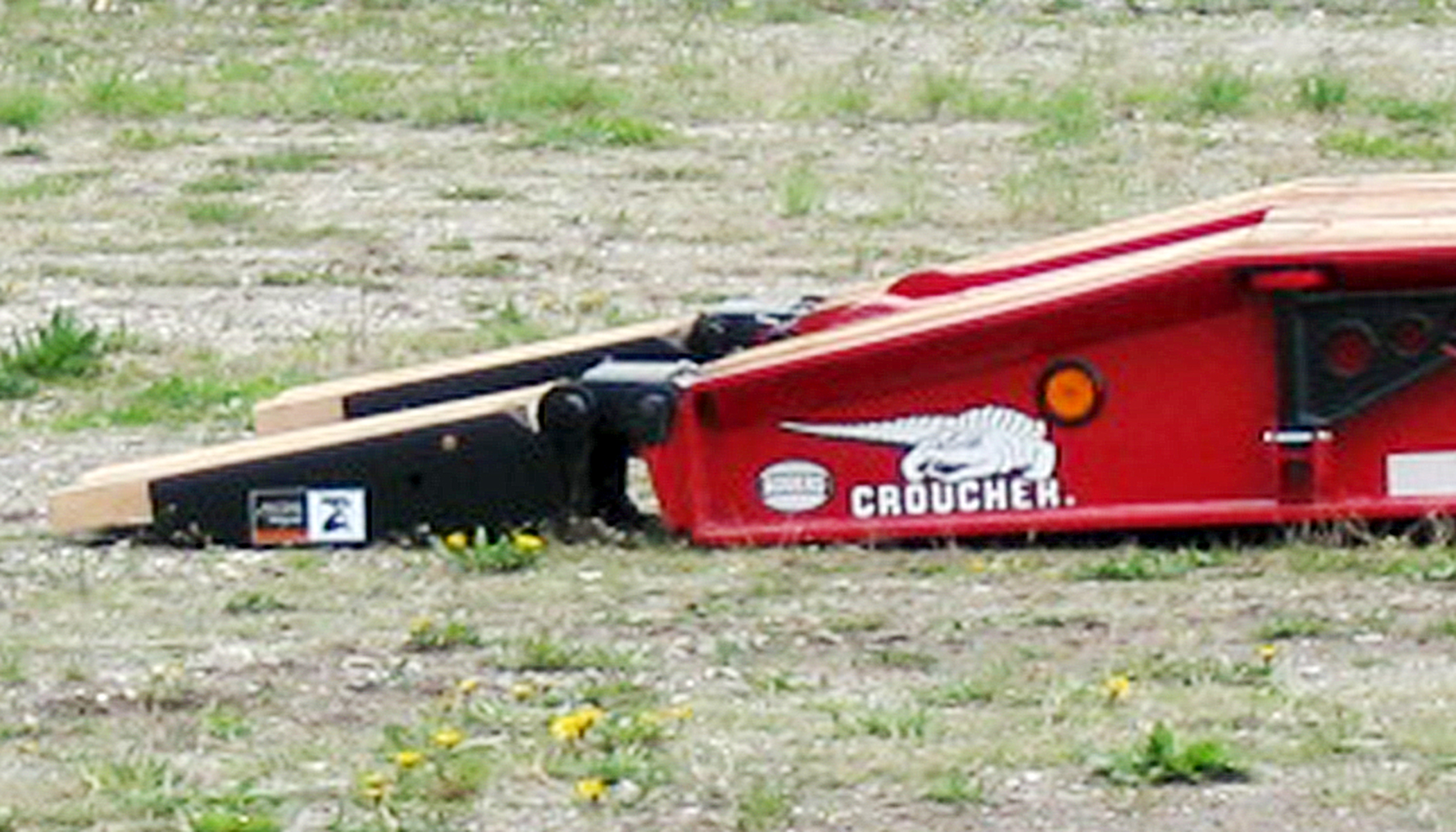

The Croucher® frame front is tapered top and bottom for an optimal load angle. A variety of ramp options are available to best suit your loading needs.

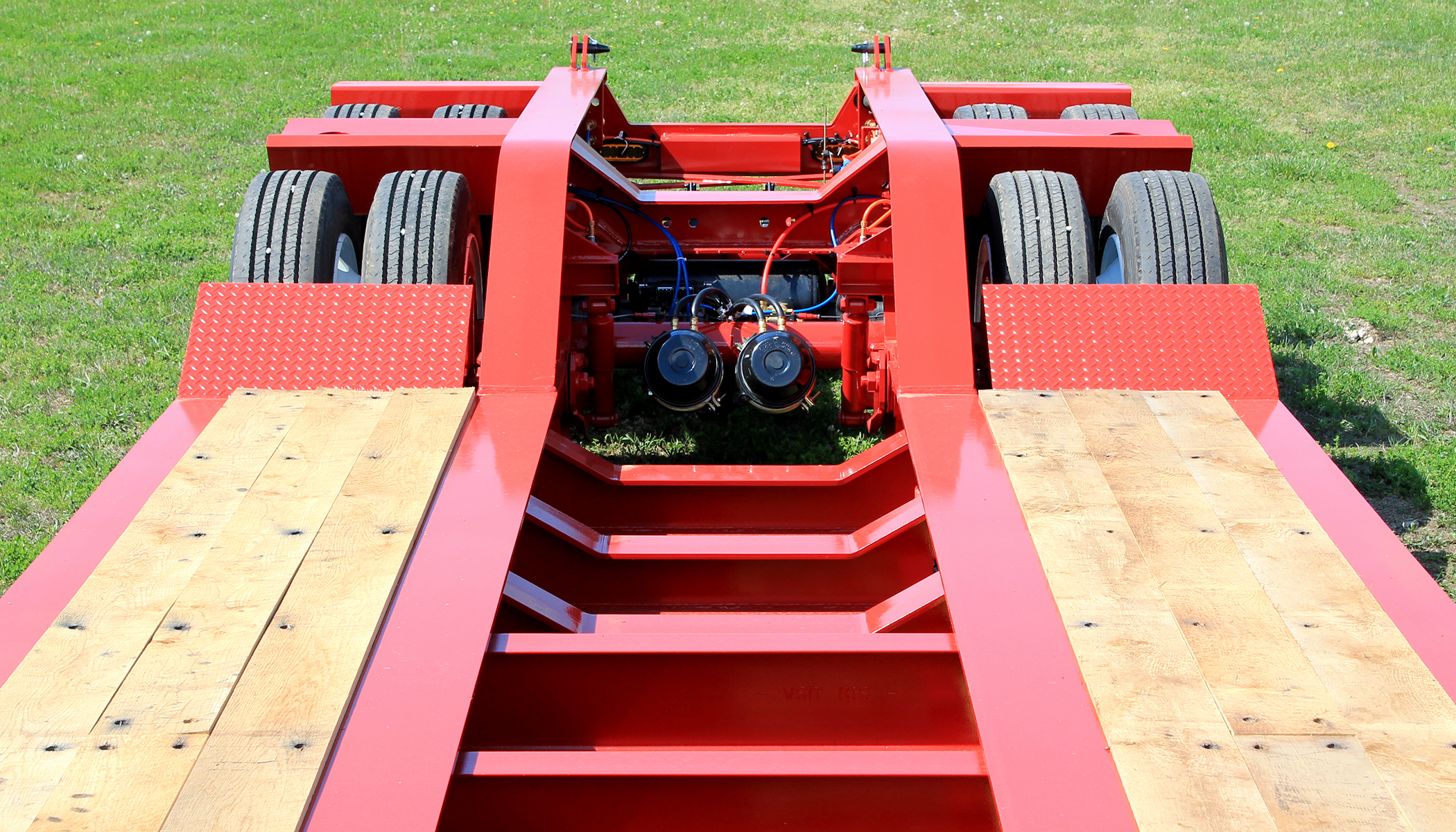

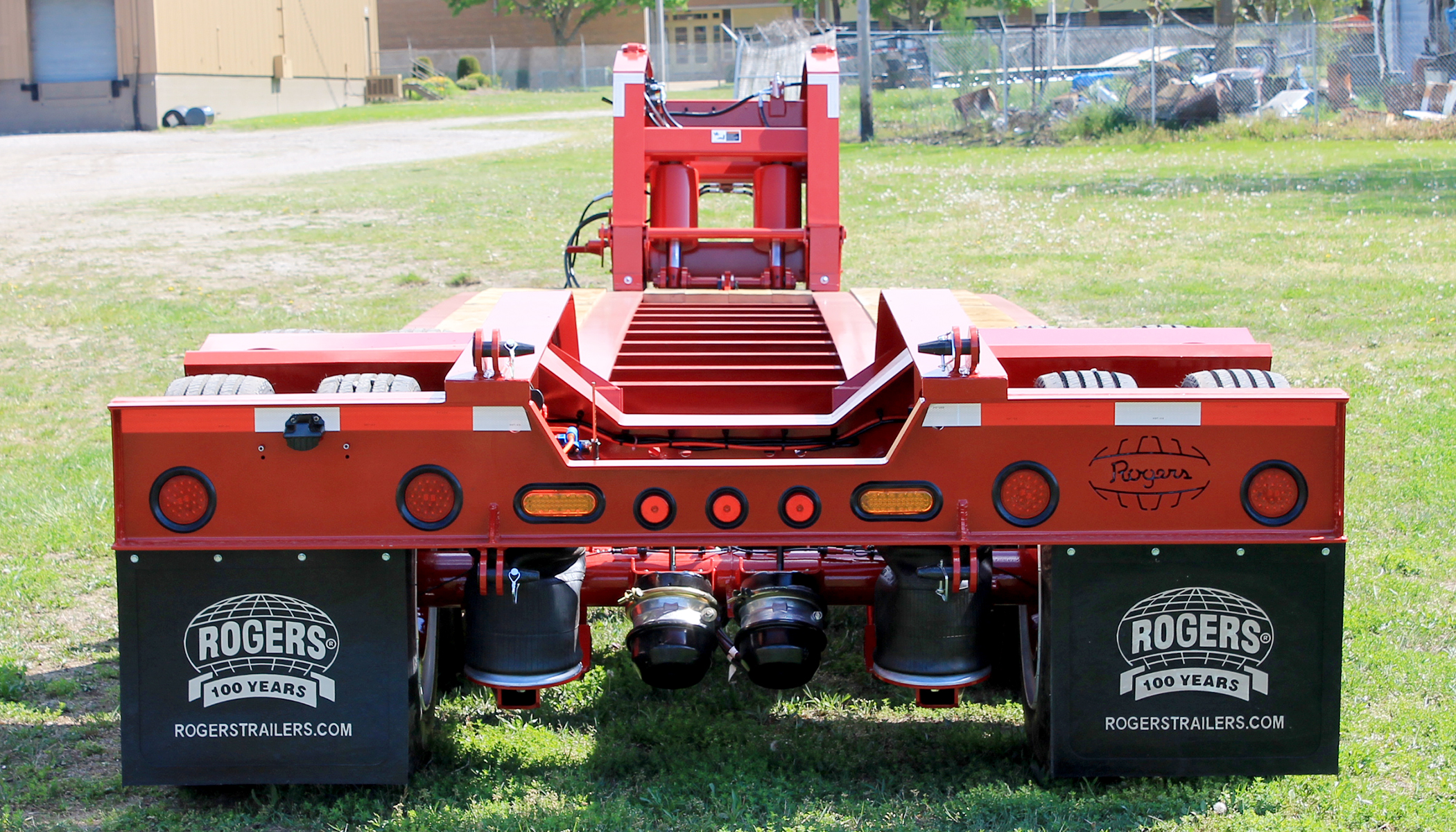

The "Bucket Pocket" in the rear of the platform deck and the "Boom Trough" in the center of the rear frame provide a superior profile for loading excavators, etc.

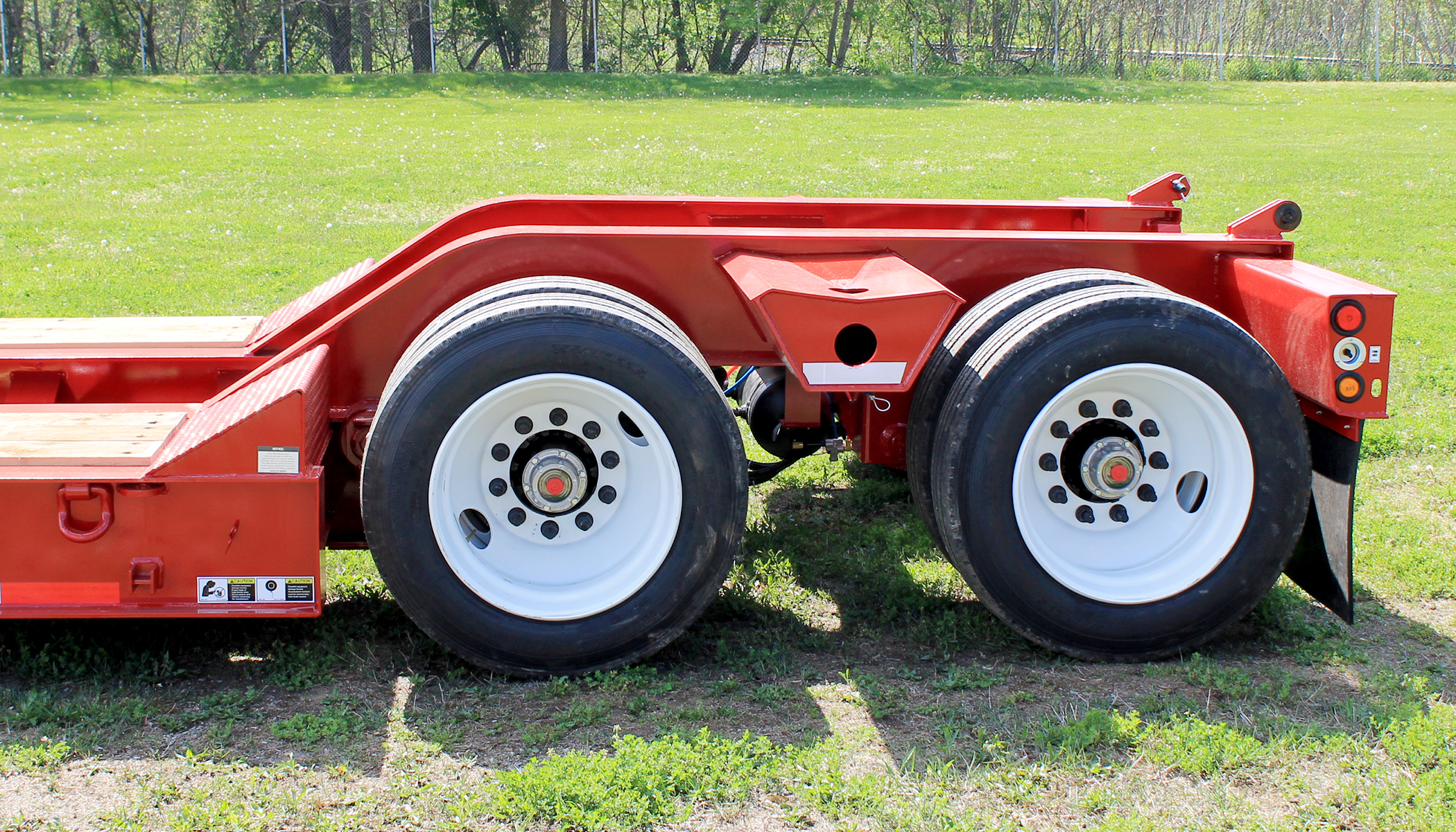

Sloped 30° bridge ramps give easy loading access to the rear frame of the trailer. Wide trunnion outriggers between the tires provide a strong, stable loading position for various machines.
High performance air ride suspension provides for a smooth ride as well as controls to raise or lower the trailer deck height. LED lighting is US-DOT approved and includes amber strobe lights with toggle on/off switch.

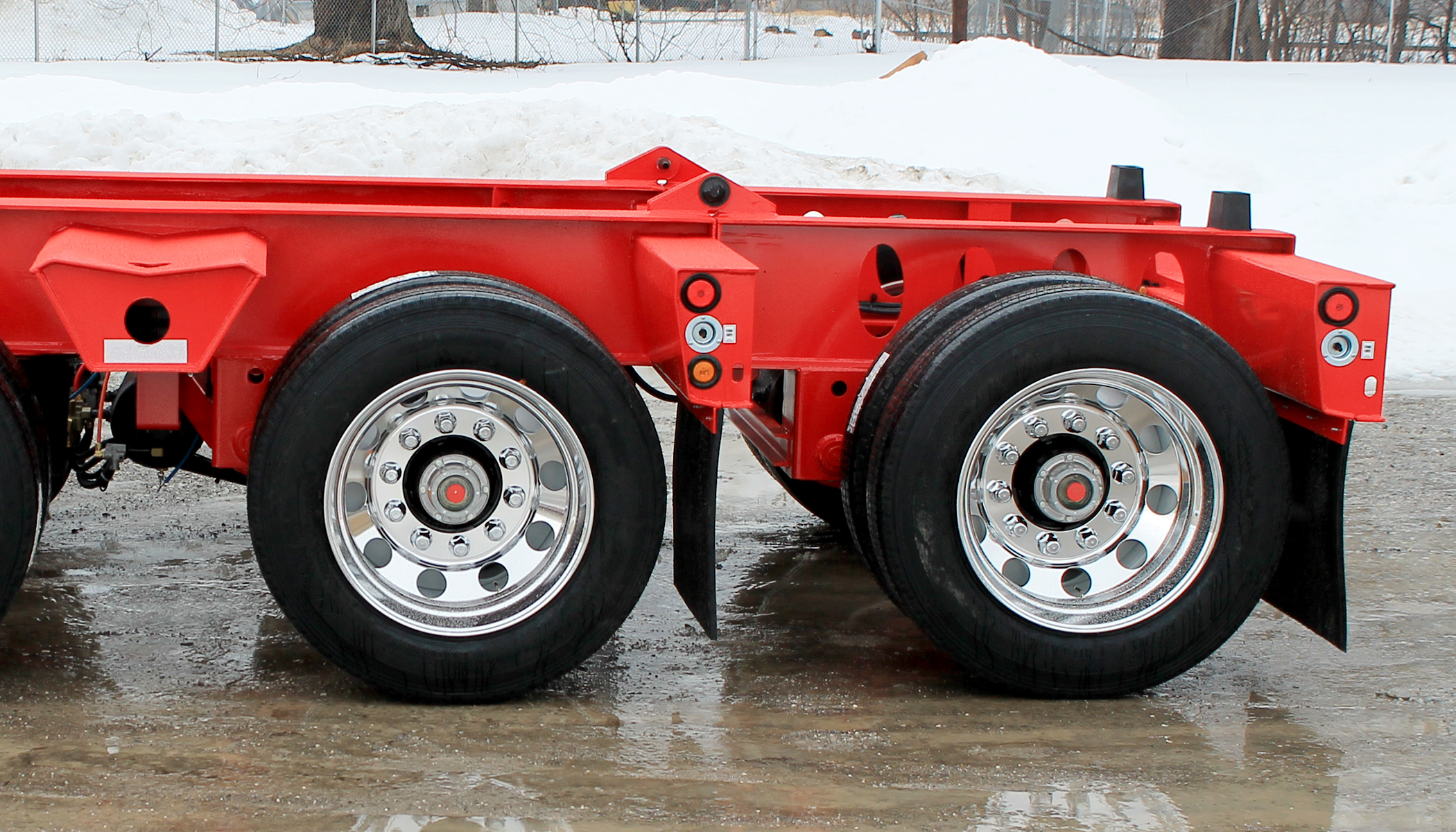

Preparation for removable/flip 3rd axle is standard. The trailer capacity is increased to 40-tons with the addition of the 3rd axle.
