65-ton CN65DS, Specialized Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
CN65DS
Feature Photo Description
This custom-designed ROGERS CobraNeck Series 65-ton capacity drop side deck trailer is packed with features to enhance its usefulness. It features the CobraNeck gooseneck with combines ease of use, durability, and versatility. The trailer is designed to carry its full 130,000 lbs. capacity payload in half the deck length. The modular drop side deck is 27'-0" long and 9'-0" wide with a deck height of approximately 15" when fully loaded. Specially designed wheel wells (3 per side) provide an even lower loaded deck height for large, rubber-tired machines. The hook-and-shaft detachable rear frame can be easily shimmed to adjust deck height or load distribution to the rear frame.
Internal Code
CN65DS110/54/27/108/3XDRARR4
Code
676-009
Name
CN65DS
Model Series
CobraNeck™ Series
Trailer Type
Specialized
Trailer Use
Front Loading: Detachable Gooseneck
Tons
65
Capacity
65.0-ton (59.0-tonnes)
Deck Style
Drop Side
Deck Length
27'-0" (8.2-meter)
Deck Height LD
15" (0.4-meter)
Deck Width
9'-0" (2.7-meter)
Load Con Weight
130,000-pounds (58,967 kilograms)
Load Con Length
14'-0" (4.3-meter)
Axles
3+1 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 aluminum outside/steel inside
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • CobraNeck gooseneck
  • Hydraulic gooseneck jack with shoe
  • Hydraulic power source: Tractor PTO
  • Four-beam cambered design with 15" loaded drop side deck height
  • Fixed tapered ramp with grouser bars on front of each drop side
  • 3/8" steel tread plate decking
  • Total (22) removable side brackets
  • Total (14) bent lashing D's (7 each side of deck)
  • Full-depth "Bucket Pocket" at rear of deck
  • Hook-and-shaft style detachable rear frame
  • "Boom Trough" with "V" style cross members between rear frame beams
  • Trunnions between wheels with a lashing D on each end
  • 275/70R22.5 (H) Yokohama low profile radial tires on 22.5 x 8.25 hub piloted wheels (aluminum outer/steel inner)
  • Air brakes, 16 1/2" x 7" shoes/drums: Premium 4S/2M Antilock braking system (ABS)
  • Air lift axle - 3rd axle
  • Removable/flip 4th axle assembly with air lift
  • Air dump valve
  • LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat
Optional Equipment Bullets
  • Steel covered lockable toolbox, front center of gooseneck
  • Toolbox in rear of gooseneck tower
  • (6) wheel wells, (3) each side of deck
  • 3/16" plate between main beams for storage - full length of deck
  • Additional bent lashing D's
  • Auxiliary lighting system with deep cycle battery
  • (2) LED oval amber strobe lights with toggle switch on rear channel
  • (2) LED oval amber strobe lights with toggle switch on removable axle
  • (4) LED amber clearance lights, (1) under each trunnion outrigger
  • (2) LED amber side marker/turn lights, (1) each side of gooseneck
  • (6) LED amber clearance lights, (3) each side of deck
Detail Photo Detail Bullets

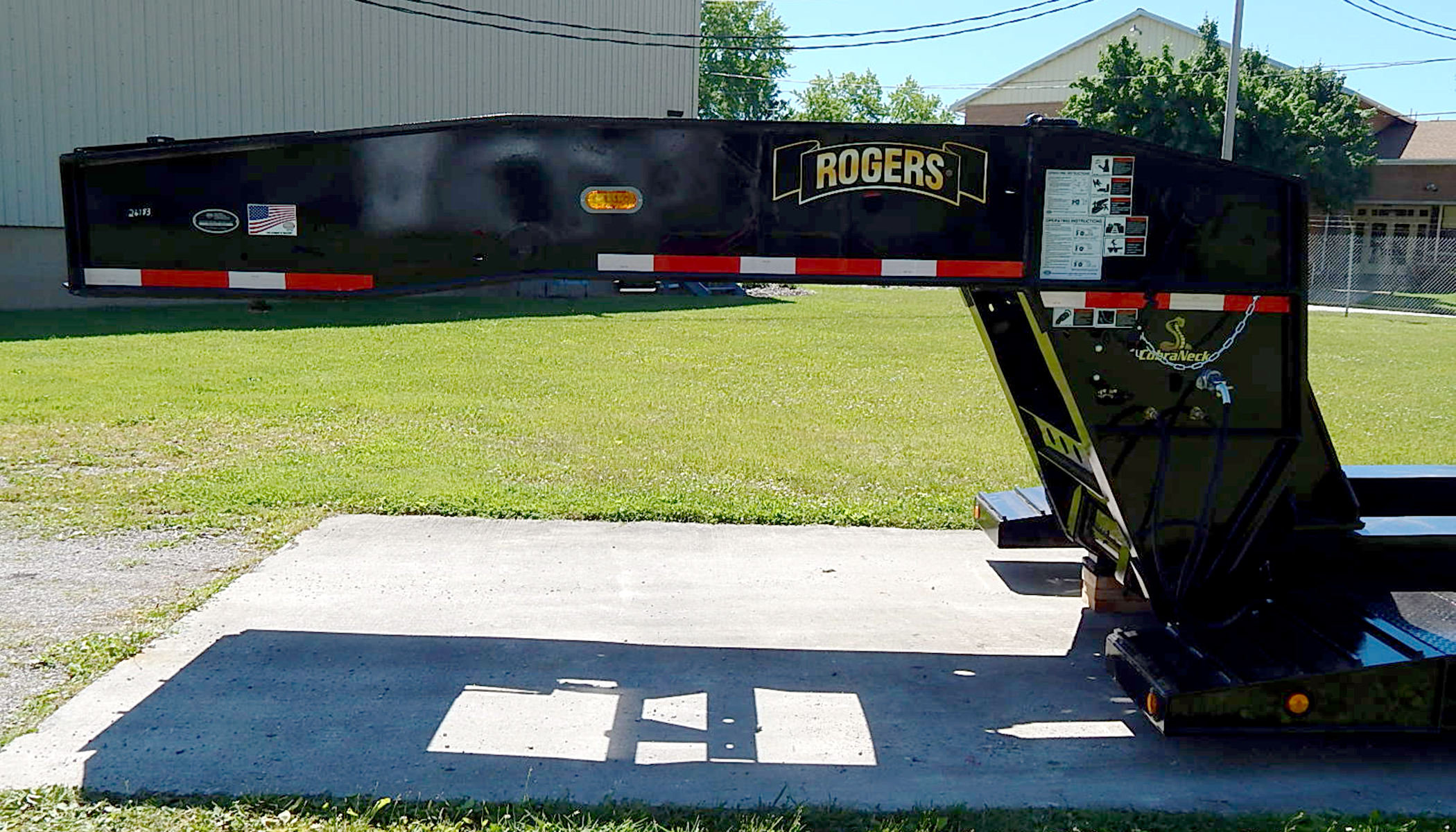

CobraNeck gooseneck design combines versatility with ease of use.

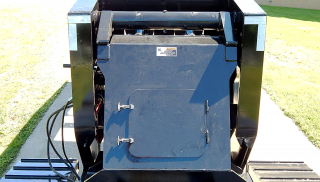

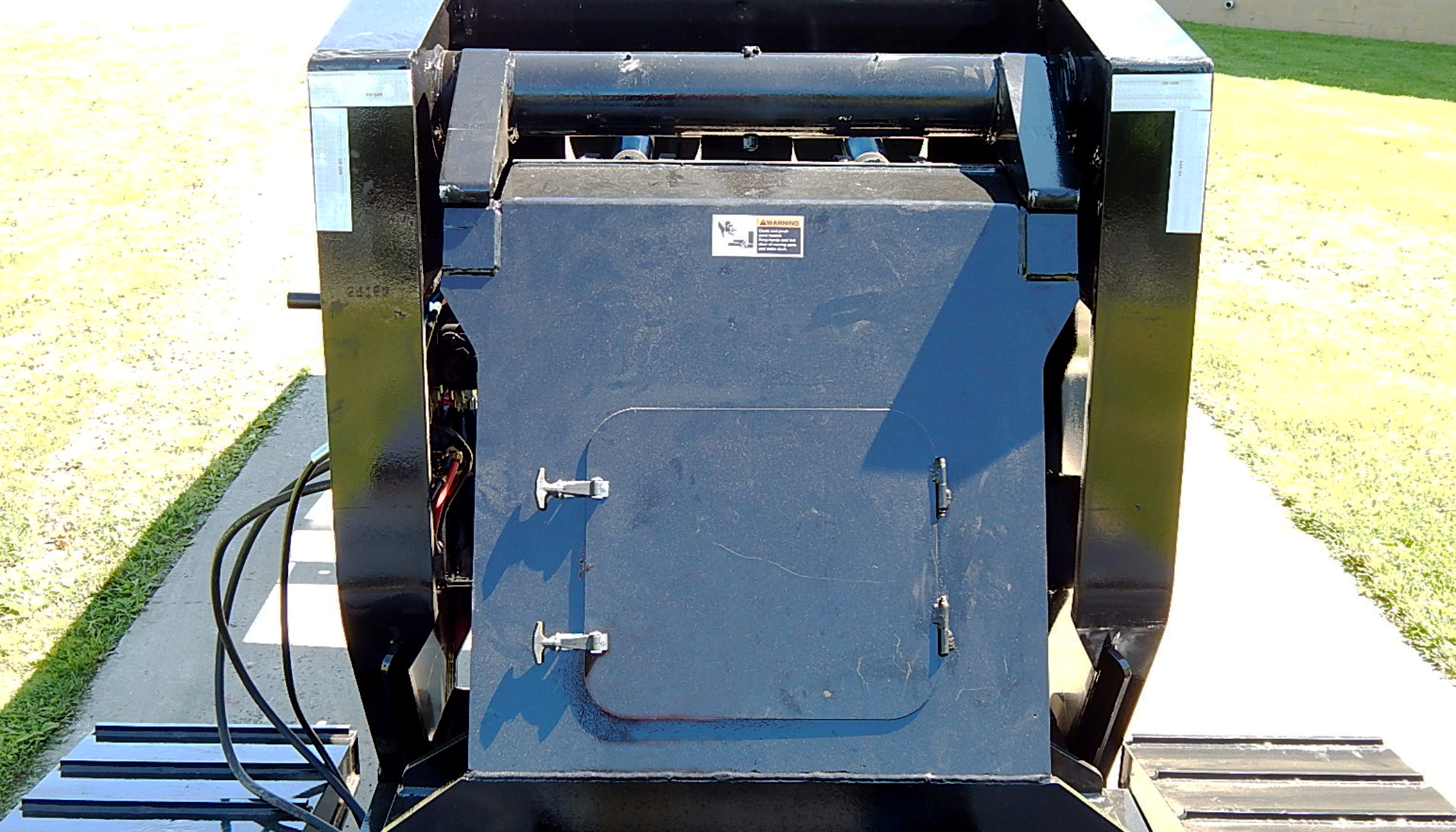

The rack & pawl adjustment on the gooseneck allows easy change of deck or 5th wheel height. The safety lock is simply operated from the side of the trailer

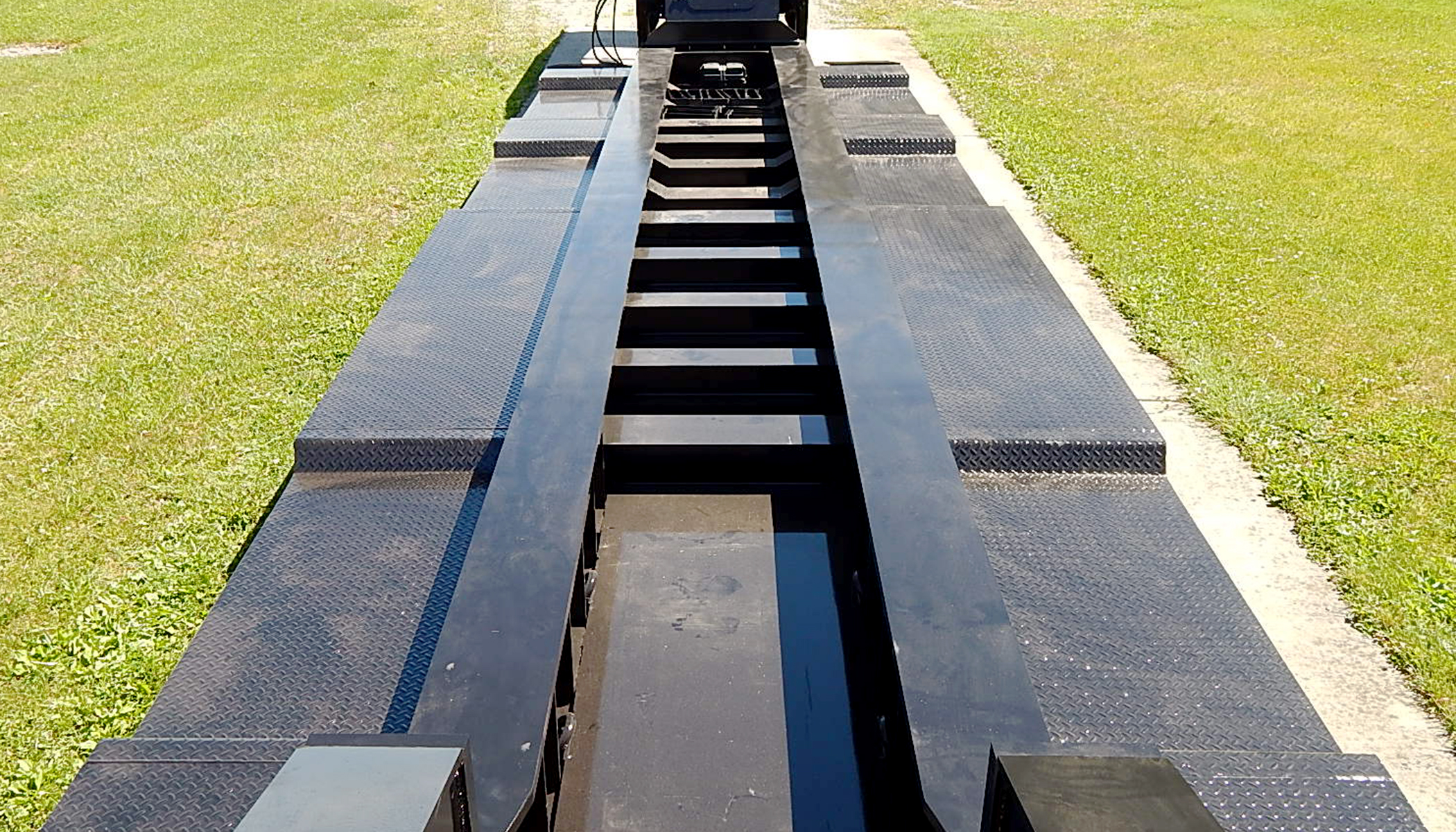

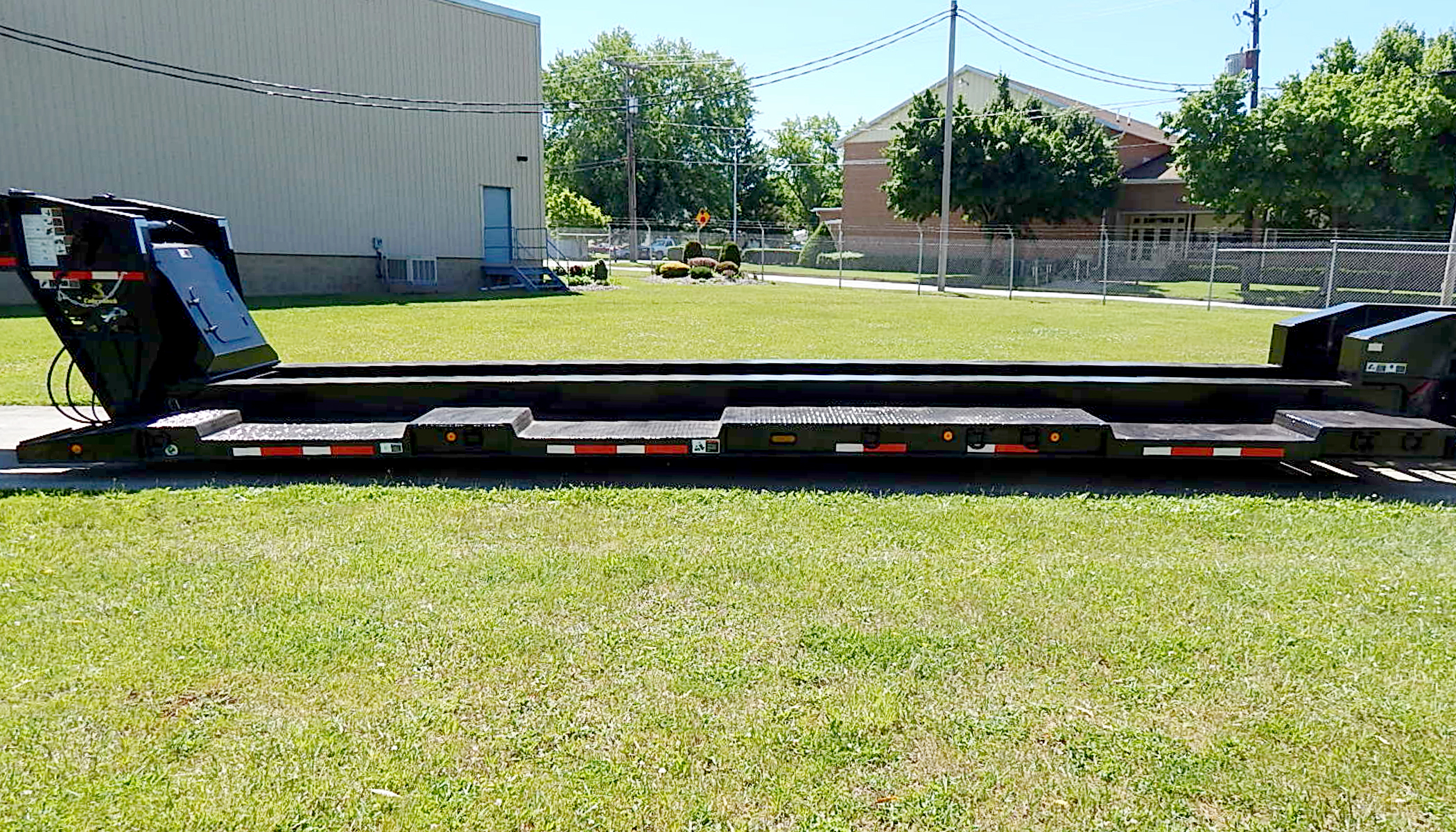

The drop side deck features a 15" loaded deck height allowing maximum overhead clearance for tall machines. Wheel wells provide an additional 4" of overhead clearance for rubber-tired machine loads.
The out-to-out dimension of the main beam flanges is 49 1/2" on the 108" wide deck. The full-depth "Bucket Pocket" is especially useful for transporting excavators.

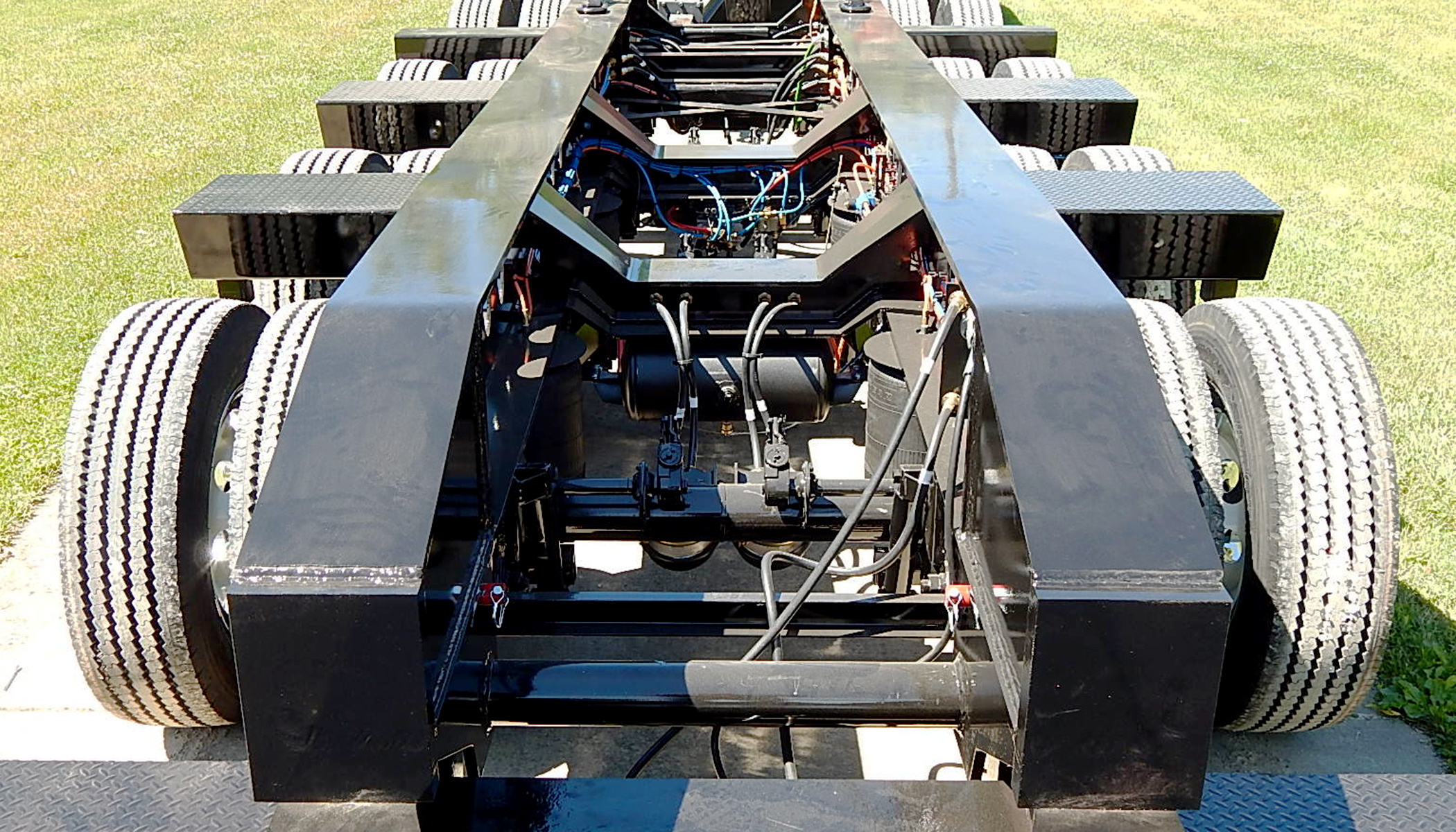

The "V" style "Boom Trough" in the rear frame further facilitates the loading of excavators and similar machines.
