21-ton TAG21XXL Air Ramps, Tag-Along Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
TAG21XXL Air Ramps
Feature Photo Description
The ROGERS TAG2XXL trailer features a longer 24'-0" x 8'-6" platform deck for increased load space and versatility. Brand new design Air-powered ramps take the heavy lifting out of loading and unloading the trailer. Exclusive 80" long drawbar provides better load distribution to your truck for a smoother, safer ride. Optional aluminum outer disc wheels shown.
Internal Code
TAG21-30/102/2XSP
Code
408-013
Name
TAG21XXL Air Ramps
Model Series
Tag-Along Trailers
Trailer Type
Tag-Along
Trailer Use
Rear Loading: Tag-Along
Tons
21
Capacity
21.0-ton (19.1-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
34" (0.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
42,000-pounds (19,051 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
2 axles
Suspension
44,800 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Axle Type
22,500 lbs. capacity with oil-bathed bearings
Tires
235/75R17.5(H) low-profile tubeless radial
Wheels
17.5 x 6.75 8-hole steel disc
Brakes
12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
Standard Feature Bullets
  • Flat platform deck
  • Full 1-3/4" air-dried oak decking
  • Drawbar with 6-position adjustable pintle eye
  • Two-speed landing gear
  • Drawbar toolbox with steel lid, behind landing gear
  • Total (14) standard lashing D's - (7) per side
  • Tread plate wheel covers
  • Oak-covered 8º sloped beavertail
  • Oak-covered "E–Z Air" loading ramps, air operated, 72" long x 38" wide
  • Steel disc wheels
  • LED Lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Two-speed double landing gear package
  • Spare tire carrier
  • Additional standard lashing D's
  • Ramp wedge extensions
  • Aluminum disc wheels
  • Mechanical backup warning alarm
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets

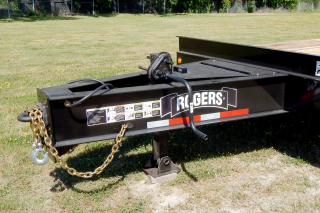

A large toolbox with lockable steel lid located in the drawbar provides ample storage for chains, binders, tools, etc. The heavy-duty two-speed landing leg has a lift capacity of 50,000 lbs. and a static capacity of 70,000 lbs.

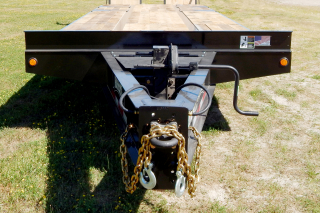

The 80 inch long drawbar provides improved weight distribution and superior handling. Safety chains are integral to the drawbar frame and are easily adjustable to properly fit the towing vehicle.
Air powered ramps are 84 inches long and are oak-covered.
They feature a 15 degree incline for save and easy loading of machinery.
Twelve inch aluminum extension is available to extend ramp length to 96 inches.
At 38 inches wide, these ramps are wide enough to load equipment of various sizes.

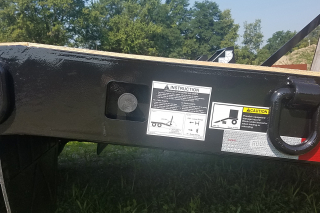

Remove the ramp lock bars and a simple pull of the valve lowers the ramps to the ground.

Request a Quote for 21-ton TAG21XXL Air Ramps, Tag-Along Trailer, Model Code 408-013
