100-ton SP100CT-3XSP, Specialized Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP100CT-3XSP
Feature Photo Description
This ROGERSĀ® 100 ton trailer is specially designed to carry steel coils safely and efficiently within a steel manufacturing facility. The four wells are each designed to carry coils of up to 60" diameter positioned "eye to the side" for easy loading and unloading.
Tri-axle combination spring & walking beam suspension provides reliable performance and durability.
A variety of configurations and capacities are available - contact us for details!
Internal Code
SP100CT86/46/35/102/3XSP
Code
105-006
Name
SP100CT-3XSP
Model Series
Custom Series
Trailer Type
Specialized
Trailer Use
Coil Trailer
Tons
100
Capacity
100.0-ton (90.7-tonnes)
Deck Style
Custom
Deck Length
29'-0" (8.8-meter)
Deck Height LD
75" (1.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
200,000-pounds (90,718 kilograms)
Load Con Length
29'-0" (8.8-meter)
Axles
3 axles
Suspension
90,000 lb. capacity tri-axle severe-duty spring walking beam
Axle Type
30,000 lbs. capacity with oil-bathed bearings
Tires
315/80R22.5(L) low-profile tubeless radial
Wheels
22.5 x 9.00 10-hole steel disc
Brakes
12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
Standard Feature Bullets
  • Full-width fixed gooseneck with 86" swing clearance and 46" light 5th wheel height
  • Single coil well mounted to top of gooseneck
  • Heavy-duty two-speed landing gear set
  • Three coil wells mounted to top to deck
  • 90,000 lbs. capacity quad axle combination spring/walking beam suspension
  • 30,000 lbs. capacity each axle
  • 315/80R22.5 (L) tires with 22.5 x 9.0 hub-piloted steel disc wheels
  • 4S/2M Anti-lock brake system with 16 1/2" x 7" rising 'S' cam drum brakes
  • Automatic slack adjusters
  • Type 30/30 spring brakes on (1) axle
  • US-DOT approved 12-volt LED light system
Optional Equipment Bullets
  • A variety of capacities and coil well configurations are available for this trailer - contact us for details!
Detail Photo Detail Bullets

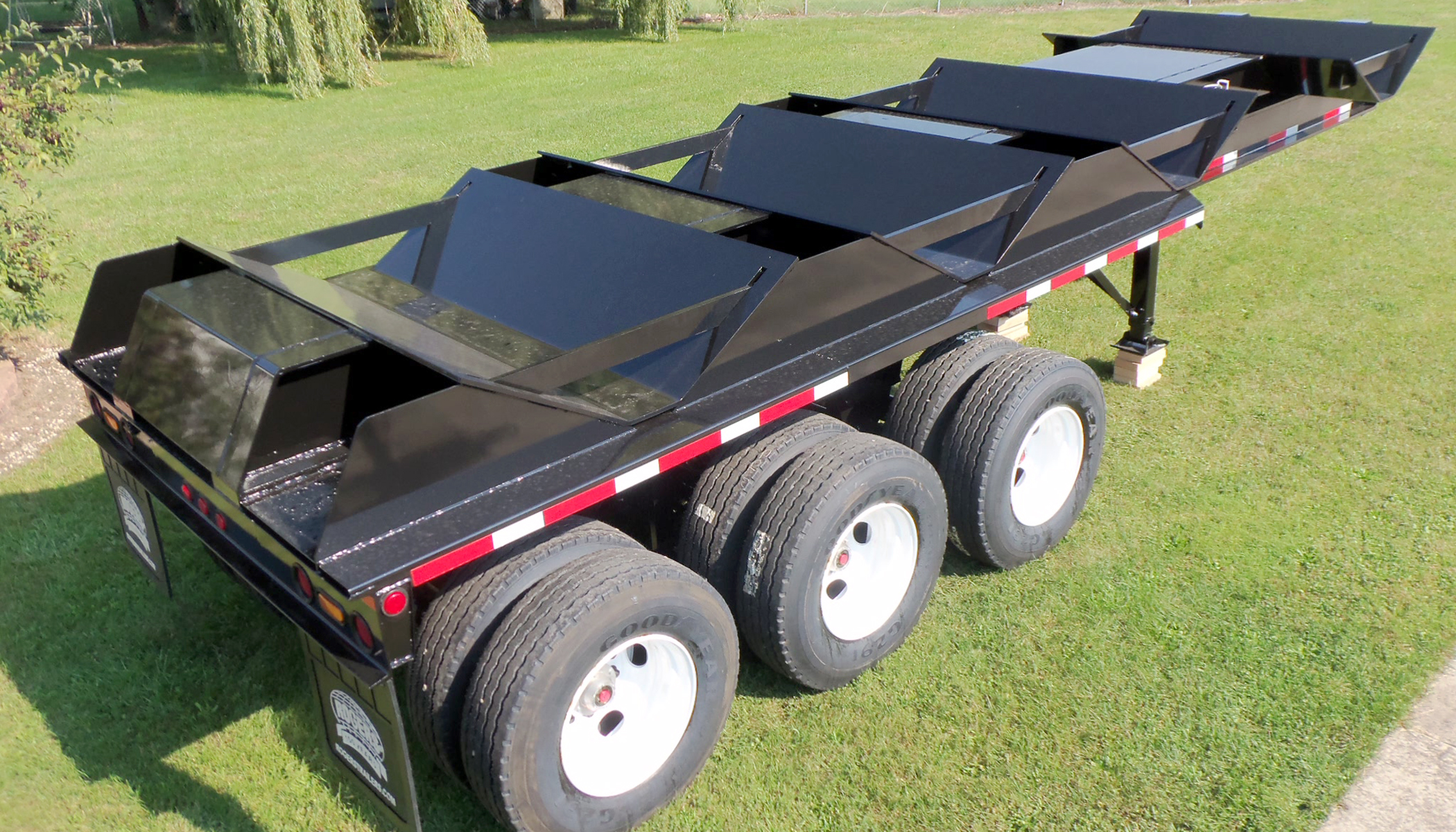

A total of four coil wells provide versatility and ease of loading and unloading of steel coils.

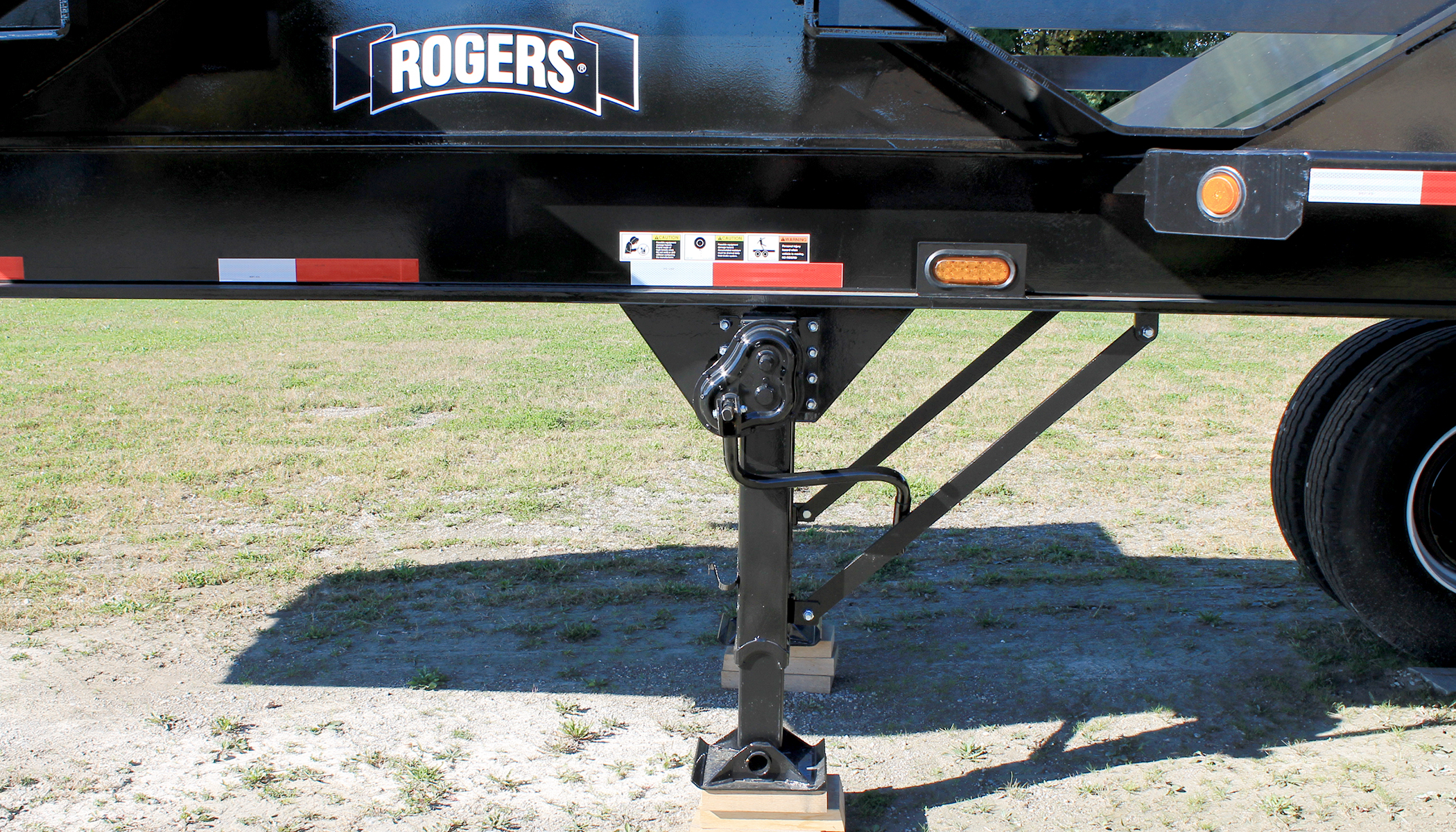

Heavy-duty two-speed landing gear set is standard equipment.

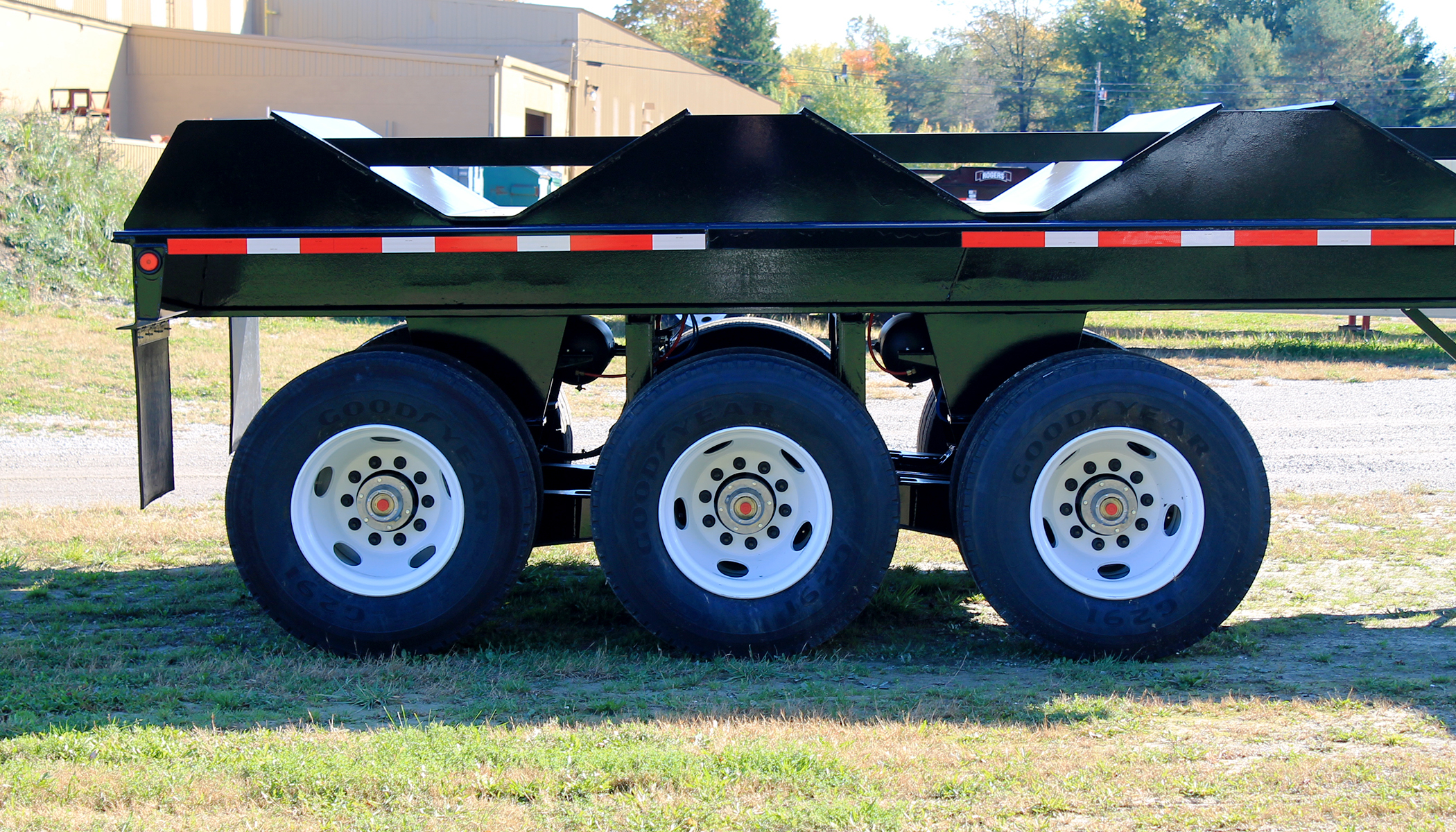

SAF-Holland TR8900 suspension has a 90,000 lbs capacity and is built for superior durability.

Request a Quote for 100-ton SP100CT-3XSP, Specialized Trailer, Model Code 105-006
