35-ton MH35, Machinery Hauler Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
MH35
Feature Photo Description
The ROGERS® MH35 is big enough to be versatile and small enough to maneuver.
Plenty of ground clearance makes this 35-ton capacity trailer a good choice for oil field work.
Internal Code
MH35L86/48/24/102/2XSP
Code
442-000
Name
MH35
Model Series
Fixed Gooseneck Trailers
Trailer Type
Machinery Hauler
Trailer Use
Rear Loading: Fixed Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
Platform
Deck Length
24'-0" (7.3-meter)
Deck Height LD
35" (0.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
2 axles
Suspension
50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Axle Type
22,500 lbs. capacity with oil-bathed bearings
Tires
255/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Fixed, full width oak-covered gooseneck
  • Deck toolbox, lockable steel or oak lid
  • Pin type landing legs
  • Oak-covered 30º slope from deck to gooseneck
  • Full 2" air-dried oak decking
  • Total (16) bent lashing D's
  • Trunnions between wheels
  • Oak-covered 14º sloped beavertail
  • Center of rear frame 1/4" smooth cover plate
  • Oak-covered, dual spring-assisted "E–Z Flip" loading ramps, laterally adjustable
  • LED lights: US-DOT 12-volt rubber-mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Flag holders
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples)
Optional Equipment Bullets
  • Two-speed landing gear package
  • Gooseneck toolbox, lockabe steel lid
  • Total (16) swinging side brackets
  • Additional bent lashing D's
  • Ladder style "E–Z Flip" rear ramps
  • Hydraulic loading rear ramps with power pack
  • Aluminum disc wheels
  • Mechanical backup warning alarm
  • Other Rogers finish colors: (hover to see samples)
Detail Photo Detail Bullets

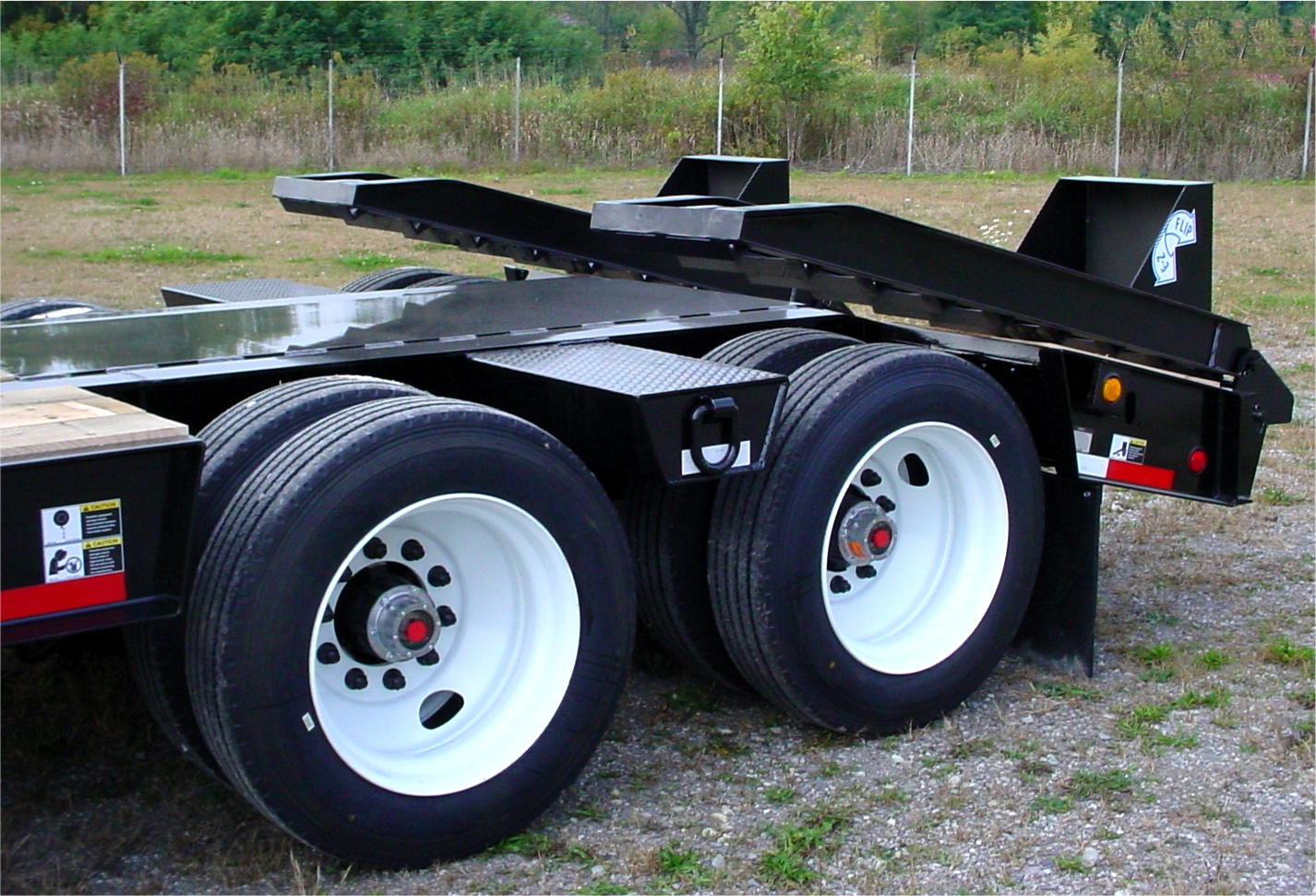

The 255/70R radial tires on 22.5 steel disc wheels help maintain a high load capacity with a low deck height.
The gooseneck beams and main beams are made of 100,000 psi minimum yield steel.

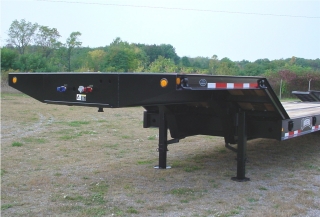

The pin type landing legs have 40,000 lb. static capacity.

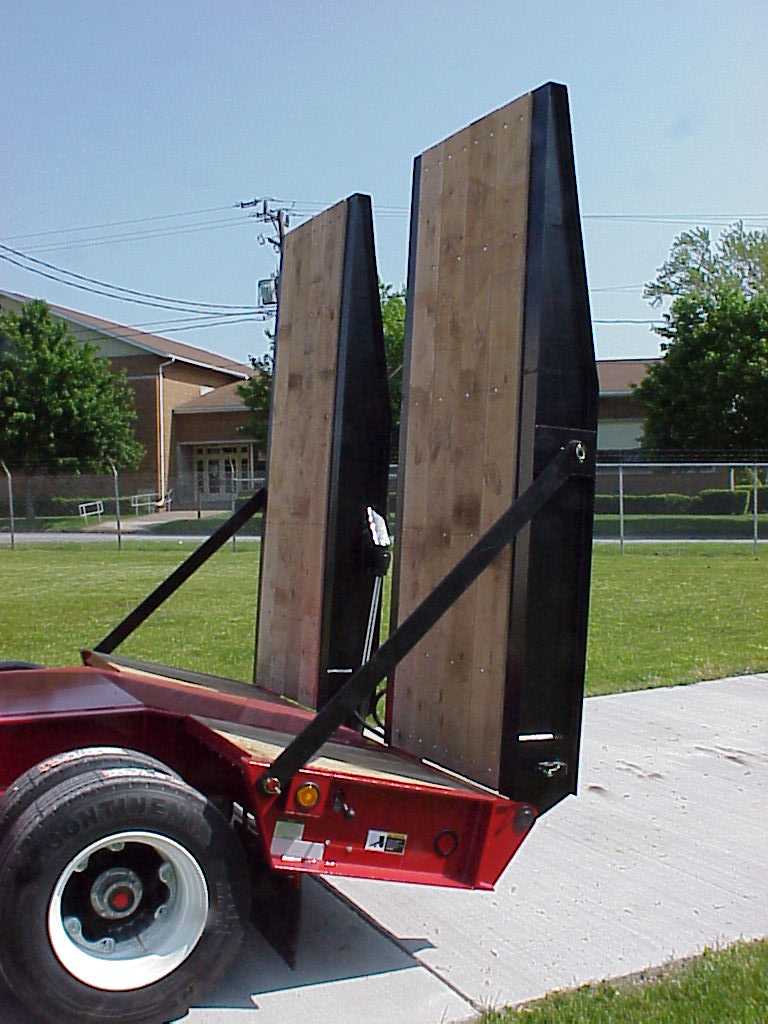

Pictured Option: Extra-large oak-covered loading ramps (96"L x 39"W) are hydraulic powered from the PTO on the tractor, or an electric/hydraulic power pack.

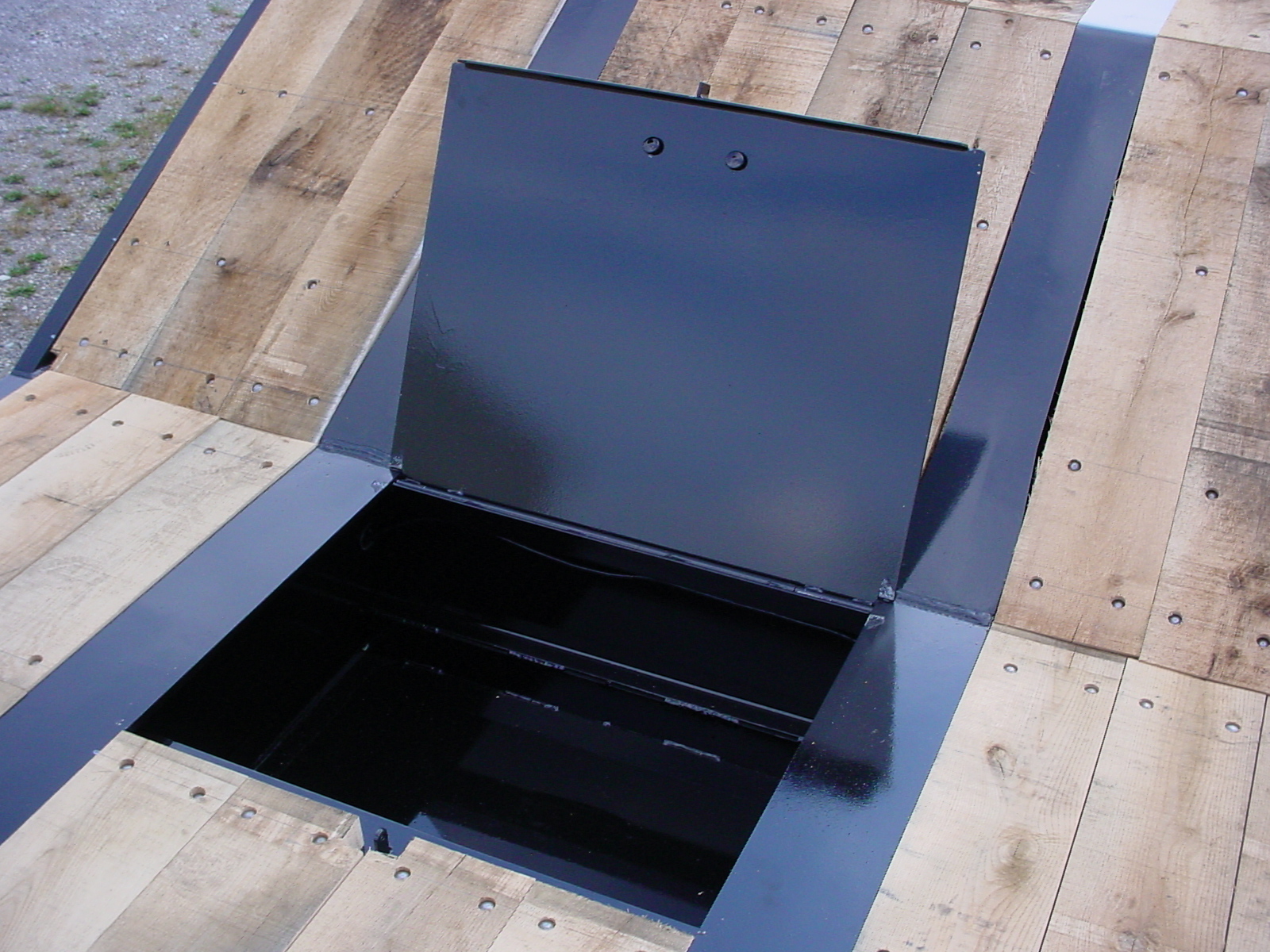

Standard deck toolbox with lockable steel lid is just behind the slope of the gooseneck; an optional oak lid is also available.
