60-ton SP60GR-3XAR, Detachable Gooseneck Trailer

Production Description
This is a custom built trailer. Please contact ROGERS for availability.
Feature Photo
SP60GR-3XAR
Feature Photo Description
This custom designed 60-ton "Gentle Riser"® detachable gooseneck lowboy is loaded with features and optional equipment! It has our exclusive tower style "No Foot"® non-ground bearing gooseneck with optional heavy lift package for extreme duty operation. The trailer deck features the easy to load "Croucher"® front slope, cambered platform deck that is 26 ft. long x 8'-6" wide, the ROGERS "Gentle Riser"® that provides a easy to load 17° load angle from the deck to the rear frame load area. Smooth ride air suspension features multiple ride heights, a dump valve, and an air lift 3rd axle.
Internal Code
SP60GR110/53/26/102/3XAR
Code
669-035
Name
SP60GR-3XAR
Model Series
Ultima Trailers
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
60
Capacity
60.0-ton (54.4-tonnes)
Deck Style
"Gentler Riser"
Deck Length
26'-0" (7.9-meter)
Deck Height LD
20" (0.5-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
120,000-pounds (54,431 kilograms)
Load Con Length
16'-0" (4.9-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 aluminum outside/steel inside
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • Platform deck 26'-0" x 8'-6" with 20" loaded deck height
  • "Croucher" front approach with tapered beams and flush beam hooks
  • 14" deep cambered main beams fabricated with high yield 100ksi steel
  • Dual-arm hydraulic gooseneck support jack with shoe
  • Axle spacing 54 ½"
  • Hydraulic power source: Truck PTO
  • Full 2" air-dried oak decking
  • Side member flange reinforcing
  • Twenty-eight (28) severe-duty swinging removable side brackets
  • Sixteen (16) bent lashing D's - eight (8) each side of deck
  • "Bucket Pocket" with last three (3) cross members lowered between main beams
  • "Gentle Riser" 17° oak-covered incline to rear frame
  • 3/8" tread plate wheel covers, reinforced
  • 3/8" smooth plate lowered center cover plate up riser to rear channel
  • Trunnion beams between wheels with lashing D each end
  • Air suspension - 25,000 lb capacity with mechanical height control
  • Suspension dump valve
  • Air lift on 3rd axle
  • Premium 4S/2M antilock braking system with spring parking brakes
  • LED LIghts: US DOT 12-volt rubber grommet mounted
  • Sealed wiring system with 7-wire socket
  • Epoxy primer: Rogers Red or Black polyurethane enamel topcoat
Optional Equipment Bullets
  • Extra-long wood covered front folding ramps, laterally adjustable with tapered front wedge
  • Six (6) vertical gussets, three (3) each side of front slope
  • Full length side member flange reinforcing, including "Gentle Riser"
  • Wood-covered toolboxes - front and rear center of deck
  • Steel-covered toolbox - front center of gooseneck
  • Custom center board decking installation
  • Inserts for "Bucket Pocket" to support center boards
  • Additional standard and/or bent lashing D's
  • Strobe light package with toggle switch
  • Additional marker/clearance and/or turn lights
  • Work lights on gooseneck with toggle switch
Detail Photo Detail Bullets

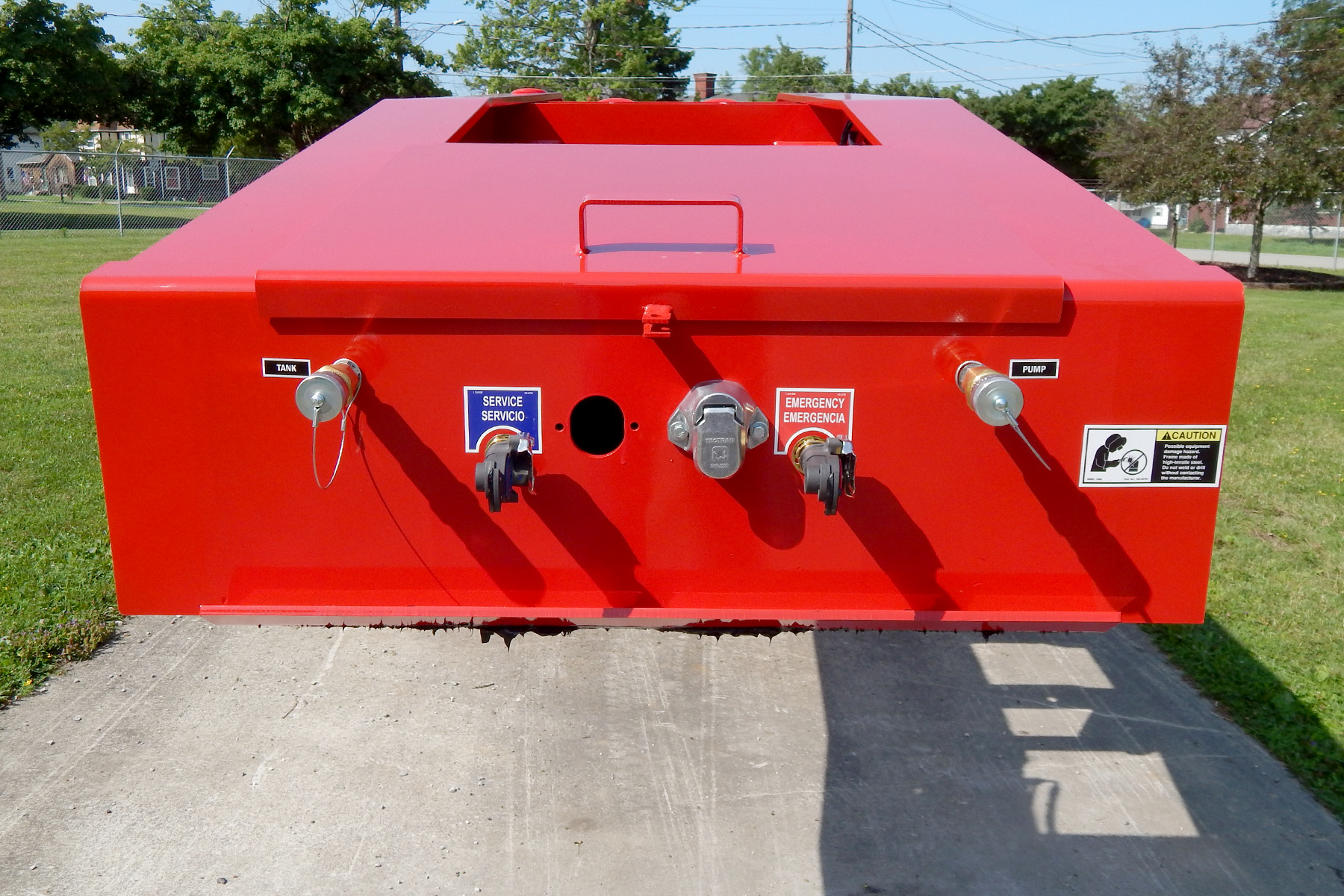

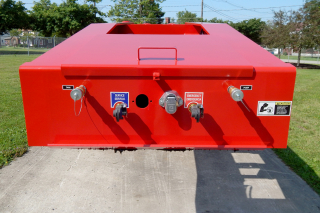

Toolbox with lockable steel cover on top of gooseneck.

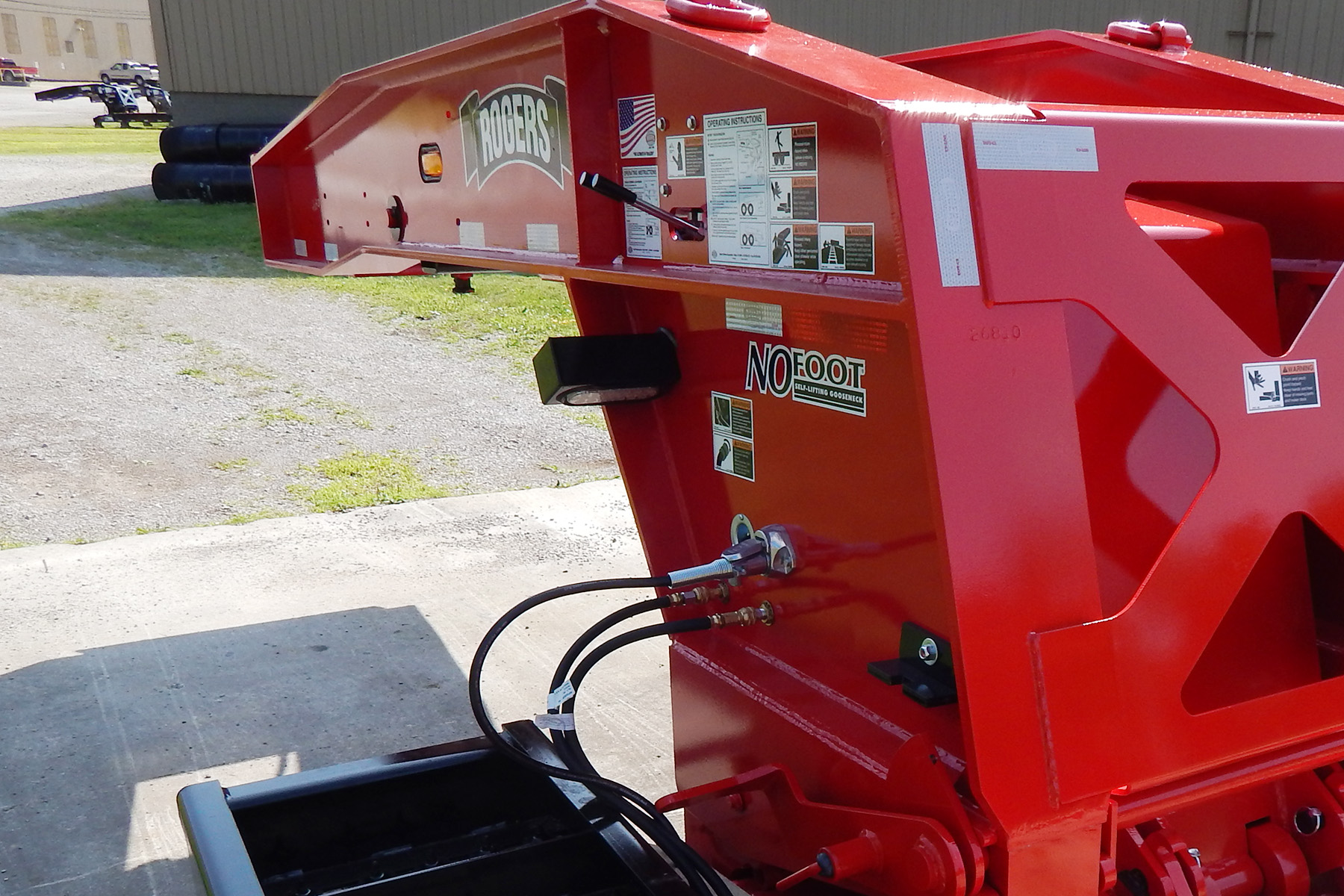

Optional LED work lights with toggle switch. Three total - one each side and one underside of gooseneck.

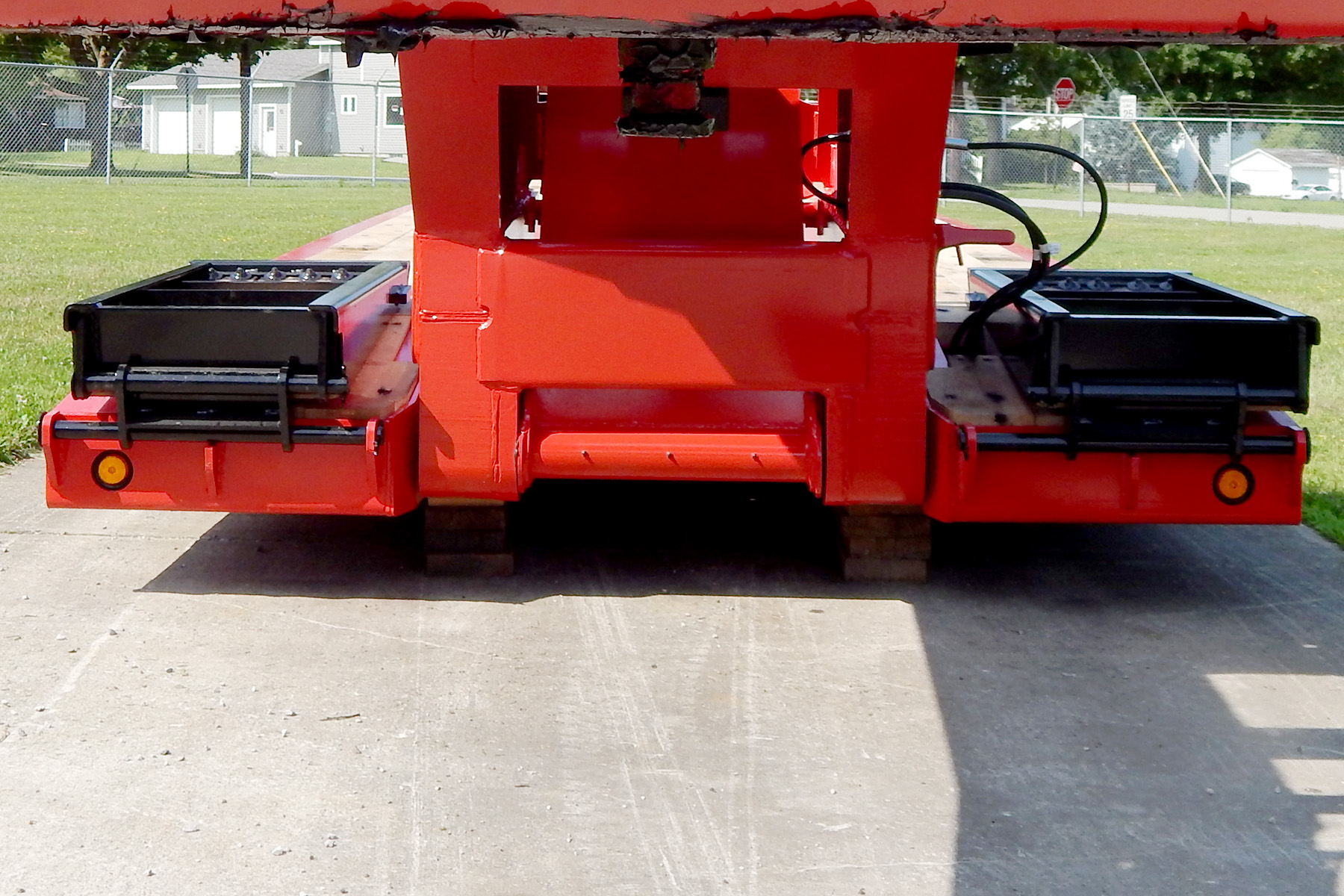

Wood-covered front folding ramps are laterally adjustable and extra long to minimize approach angle when loading or unloading machinery.

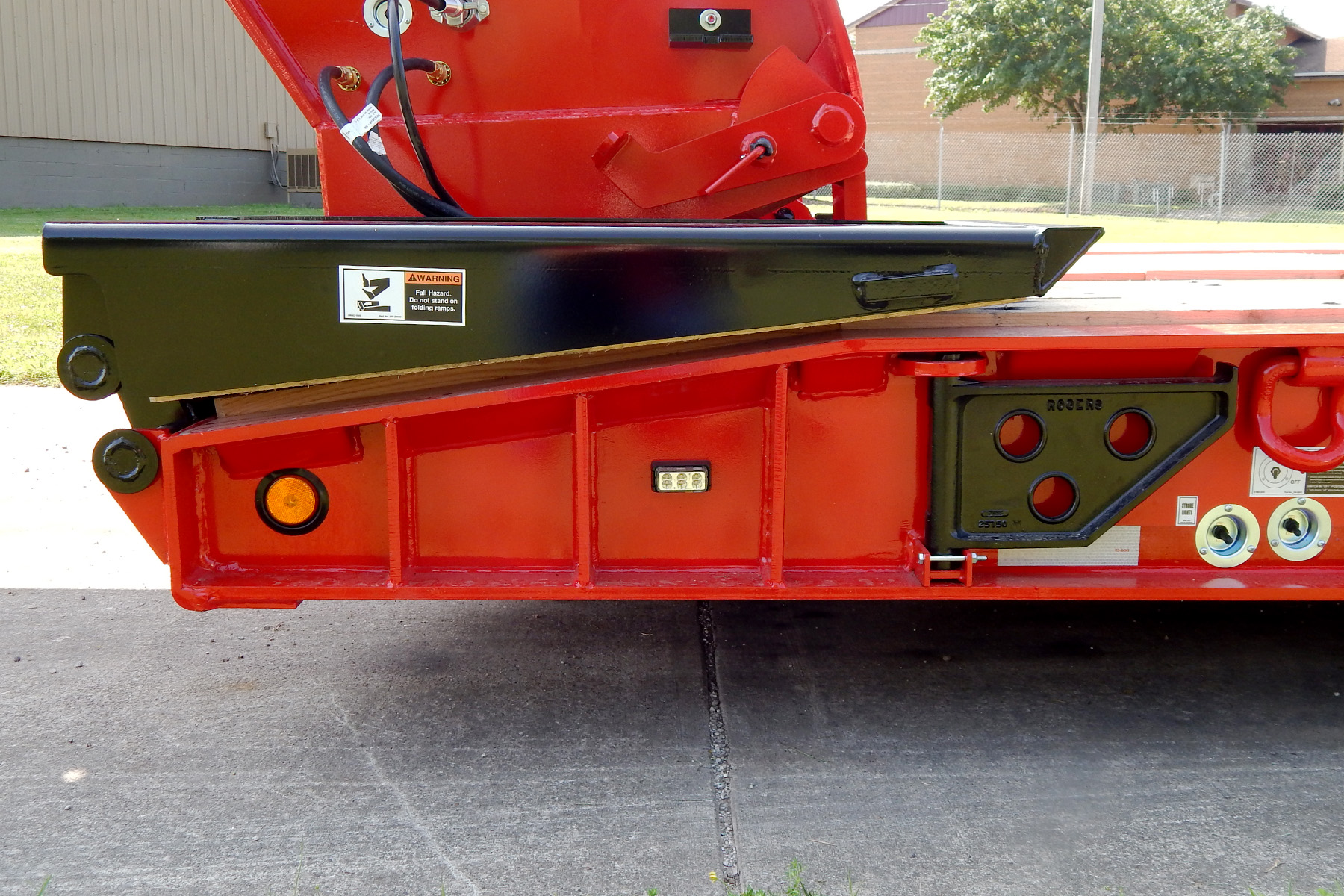

Optional vertical gussets and side member flange reinforcing on front slope.

Severe-duty swinging removable side brackets.

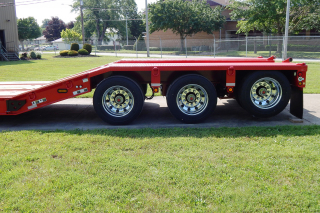

Gentle Riser features a 17 degree incline to access the loadable area on the rear frame.
