55-ton CN55GR, Detachable Gooseneck Trailer

Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
CN55GR
Feature Photo Description
The ROGERS CobraNeck Series CN55GR is a severe-duty 55-ton capacity lowbed semi-trailer that features the exclusive ROGERS "Gentle Riser" deck for superior hauling versatility and the "CobraNeck" gooseneck which adds readily adjustable deck heights along with ease of operation. The trailer is designed with a full capacity load concentration in two-thirds the deck length for many years of worry free operation. The deck features a 20" loaded height and the exclusive "Croucher"® front end for easy loading and unloading of equipment. The full-depth "Bucket Pocket" at the rear of the platform deck facilitates hauling of excavators and similar machinery. The "Gentle Riser" feature provides a machine-friendly 16-degree incline from the platform deck to the additional loading space over the rear of the trailer. This model is also structurally designed to be used with a removable/flip 4th axle when required.
Internal Code
CN55GR110/52/24/102/3XAR
Code
658-002
Name
CN55GR
Model Series
CobraNeck™ Series
Trailer Type
Detachable Gooseneck
Trailer Use
Front Loading: Detachable Gooseneck
Tons
55
Capacity
55.0-ton (49.9-tonnes)
Deck Style
"Gentler Riser"
Deck Length
24'-0" (7.3-meter)
Deck Height LD
102" (2.6-meter)
Deck Width
1'-8" (0.5-meter)
Load Con Weight
110,000-pounds (49,895 kilograms)
Load Con Length
15'-0" (4.6-meter)
Axles
3 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
275/70R22.5(H) low-profile tubeless radial
Wheels
22.5 x 8.25 10-hole steel disc
Brakes
16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
  • CobraNeck gooseneck
  • Hydraulic gooseneck jack with shoe
  • Hydraulic power source: Tractor PTO
  • Four-beam cambered design with 20" loaded deck height
  • 14" wide flange main carrying beams made with T1 (A514) flanges
  • Exclusive "Croucher"® low, tapered front with concealed beam hooks
  • "Gentle Riser" deck features 16-degree incline to rear loading area
  • 1 3/4" air-dried oak decking: No center boards
  • Total (24) removable swinging side brackets
  • Total (16) bent lashing D's (8 each side of deck)
  • Full-depth "Bucket Pocket" at rear of deck
  • Loadable rear deck area with oak decking between mainbeams and reinforced steel tread-plate wheel covers
  • Air lift axle - 3rd axle
  • LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket
  • Remote air tank drain
  • Epoxy primer; Rogers Red or Black industrial enamel finish coat
Optional Equipment Bullets
  • Removable/flip 4th axle
  • Gooseneck fenders
  • 13 HP gas engine power unit
  • Air suspension dump valve
  • Front folding ramps - wood or steel covered, laterally adjustable (shown)
  • Fixed (welded) front ramp wedges
  • Toolboxes - can be located in gooseneck of deck
  • Apitong decking
  • Wide/Oversize Load sign and mounting bracket
  • Aluminum disc wheels
  • Spare tire & disc wheel
  • Spare tire carrier mounted on gooseneck
  • Auxiliary lighting system with deep cycle battery
  • Stop/turn/tail light package mounted to rear of gooseneck
  • Backup warning alarm, electronic or mechanical
  • Other ROGERS and custom paint colors available
Detail Photo Detail Bullets

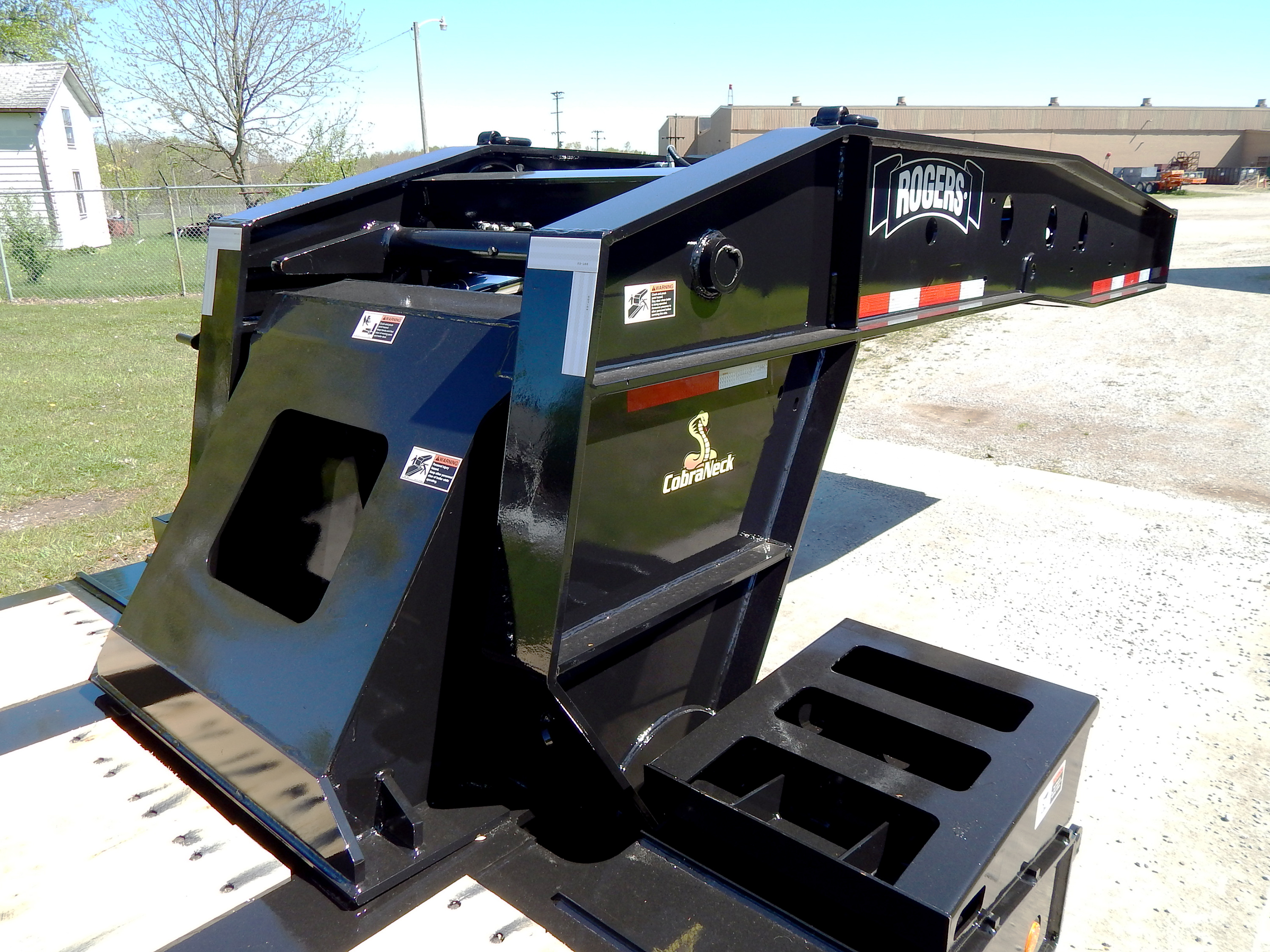

ROGERS CobraNeck gooseneck features easy to adjust deck/5th wheel heights and simple operation.

Request a Quote for 55-ton CN55GR, Detachable Gooseneck Trailer, Model Code 658-002
