35-ton PT35L Air Ramps, Fixed Gooseneck Trailer
Production Description
This is a production trailer. Please contact ROGERS for standard availability.
Feature Photo
Feature Photo Description

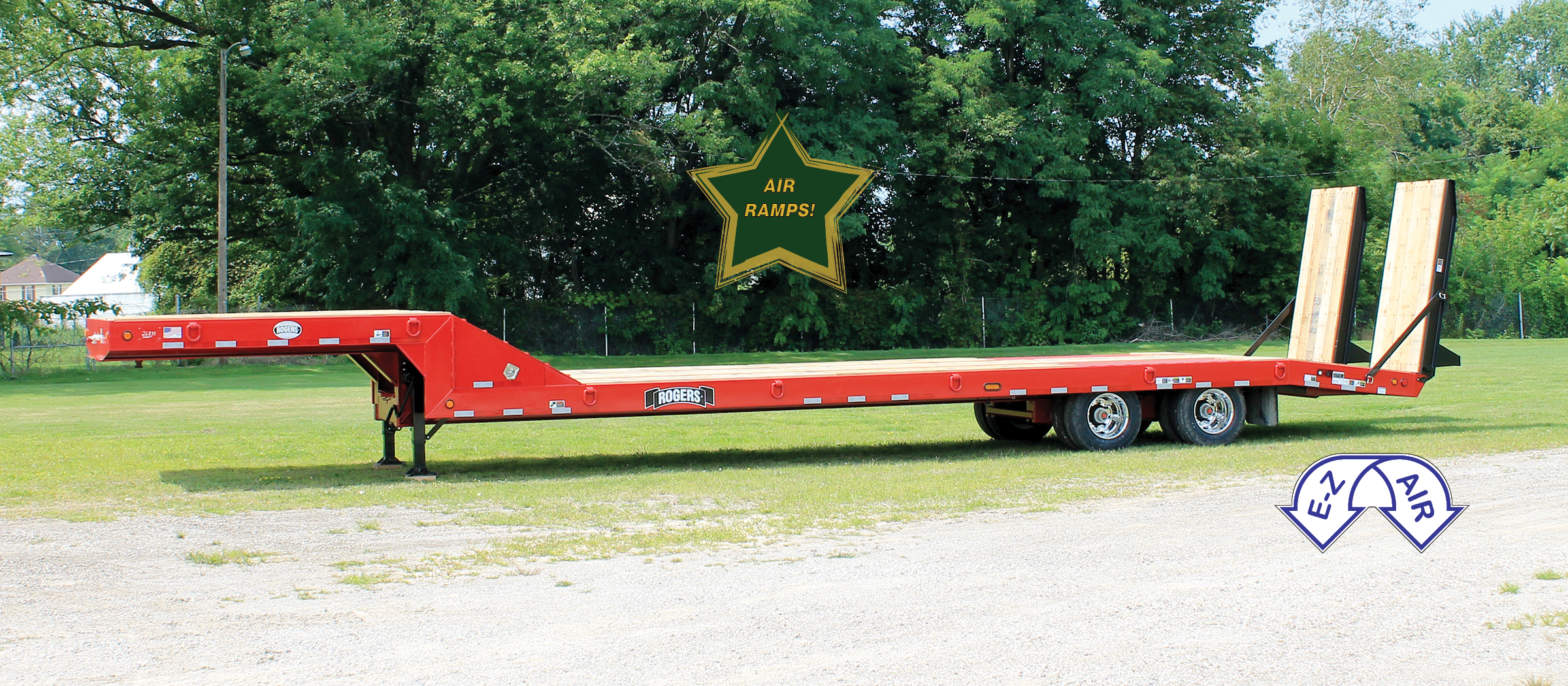

The brand new ROGERS PT35L is a trailer designed to haul multiple machines with the paving contractor in mind. It combines the conveniences of a rear loading style with "E-Z Air" air operated ramps, a spacious level deck and sloped access to the full-width gooseneck for additional loading surface.
Internal Code
PT35L91/48/25/102/2XARRS
Code
443-001
Name
PT35L Air Ramps
Model Series
Fixed Gooseneck Trailers
Trailer Type
Fixed Gooseneck
Trailer Use
Rear Loading: Fixed Gooseneck
Tons
35
Capacity
35.0-ton (31.8-tonnes)
Deck Style
Platform
Deck Length
25'-0" (7.6-meter)
Deck Height LD
36" (0.9-meter)
Deck Width
8'-6" (2.6-meter)
Load Con Weight
70,000-pounds (31,751 kilograms)
Load Con Length
25'-0" (7.6-meter)
Axles
2 axles
Suspension
Air Ride 25,000 lb. capacity per axle
Axle Type
25,000 lbs. capacity with oil-bathed bearings
Tires
235/75R17.5(H) low-profile tubeless radial
Wheels
17.5 x 6.75 8-hole steel disc
Brakes
12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
English Dimensions File
Metric Dimensions File
Standard Feature Bullets
- Flat platform deck
- Full 1-3/4" air-dried oak decking
- 10'-0" x 8'-6" oak-covered platform top of gooseneck
- Gooseneck swing radius: 91"
- Gooseneck 5th wheel height: 51" light
- Heavy-duty two-speed landing gear set
- 29° slope from deck to gooseneck - 4'-0" long steel covered w/grousers
- Full-width lockable toolbox in gooseneck slope area
- Toolbox underside of gooseneck with lockable steel lid
- Wood-covered toolbox in gooseneck over king pin
- Air suspension with dump valve for loading/unloading
- Oak-covered beavertail - 65" long with 7° slope
- Oak-covered "E-Z Air" loading ramps, air operated, 72" long x 38" wide
- Steel disc wheels
- Total (14) standard lashing D's - (7) per side
- LED Lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket
- Remote air tank drain
- Epoxy primer; Rogers Red or Black polyurethane enamel finish coat:
(hover to see samples) - Full 1-3/4" air-dried oak decking
Optional Equipment Bullets
- Aluminum disc wheels - outer only
- Additional lashing D's
- Mechanical backup warning alarm
- Apitong decking in lieu of oak
- Rumber decking in lieu of oak
- Other ROGERS paint colors available
- Additional lashing D's
Optional Equipment Link
| Detail Photo | Detail Bullets | ||
|---|---|---|---|
|
|
|
|

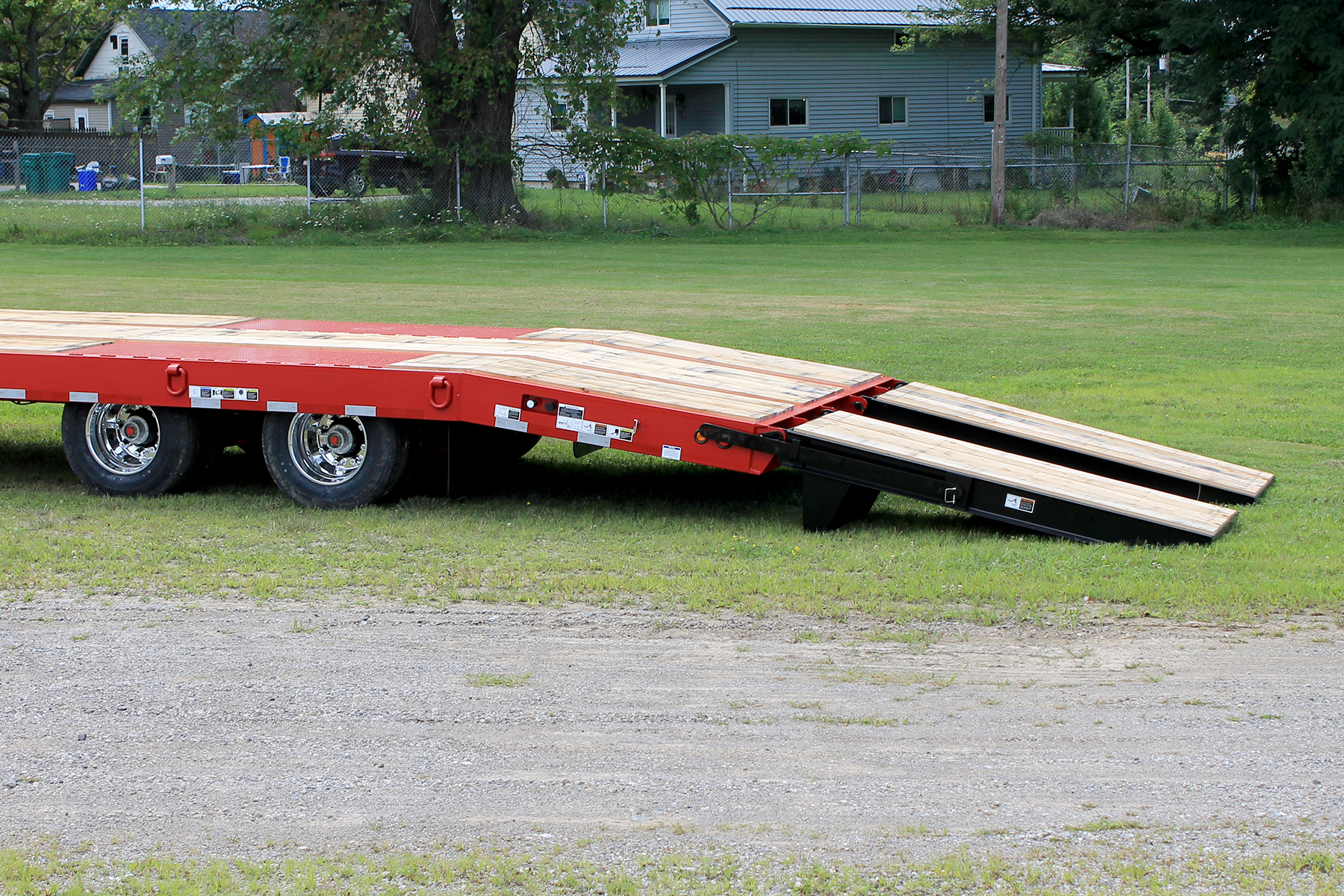

The 84-inch long oak-covered loading ramps provide an easy-to-climb 13-degree load angle. Optional 12-inch aluminum extensions lengthen the ramps to 96-inches. |
|
|
|
|

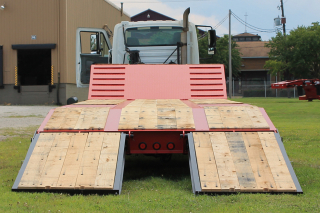

Ramps are extra-wide at 38-inches for the easy loading of various machines. The oak-covered beavertail has a 7-degree load angle to the platform deck. |
|
|
|
|

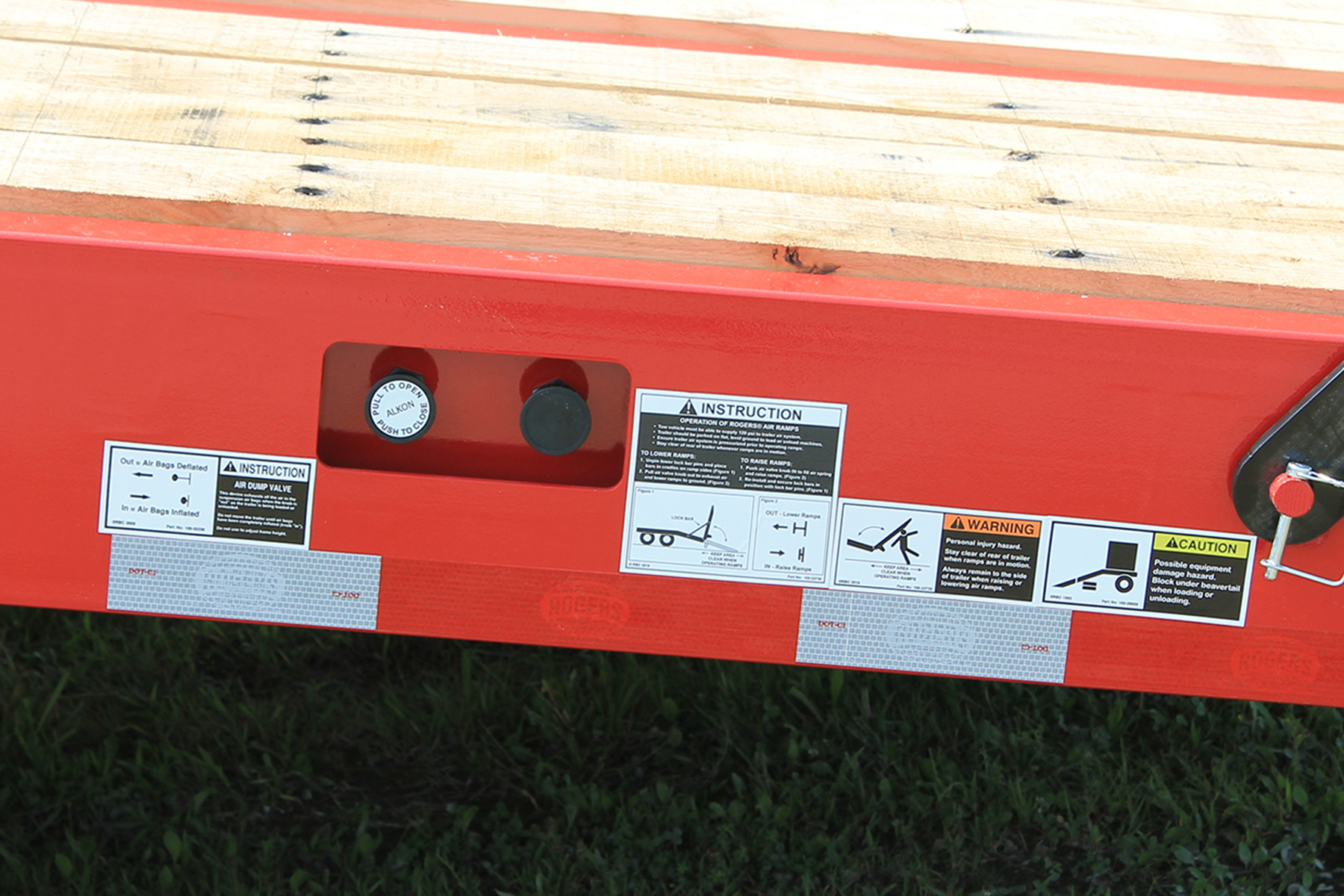

Air-suspension dump valve and E-Z Air operation valve are conveniently located on the road side of the beavertail. |
|
|
|
|

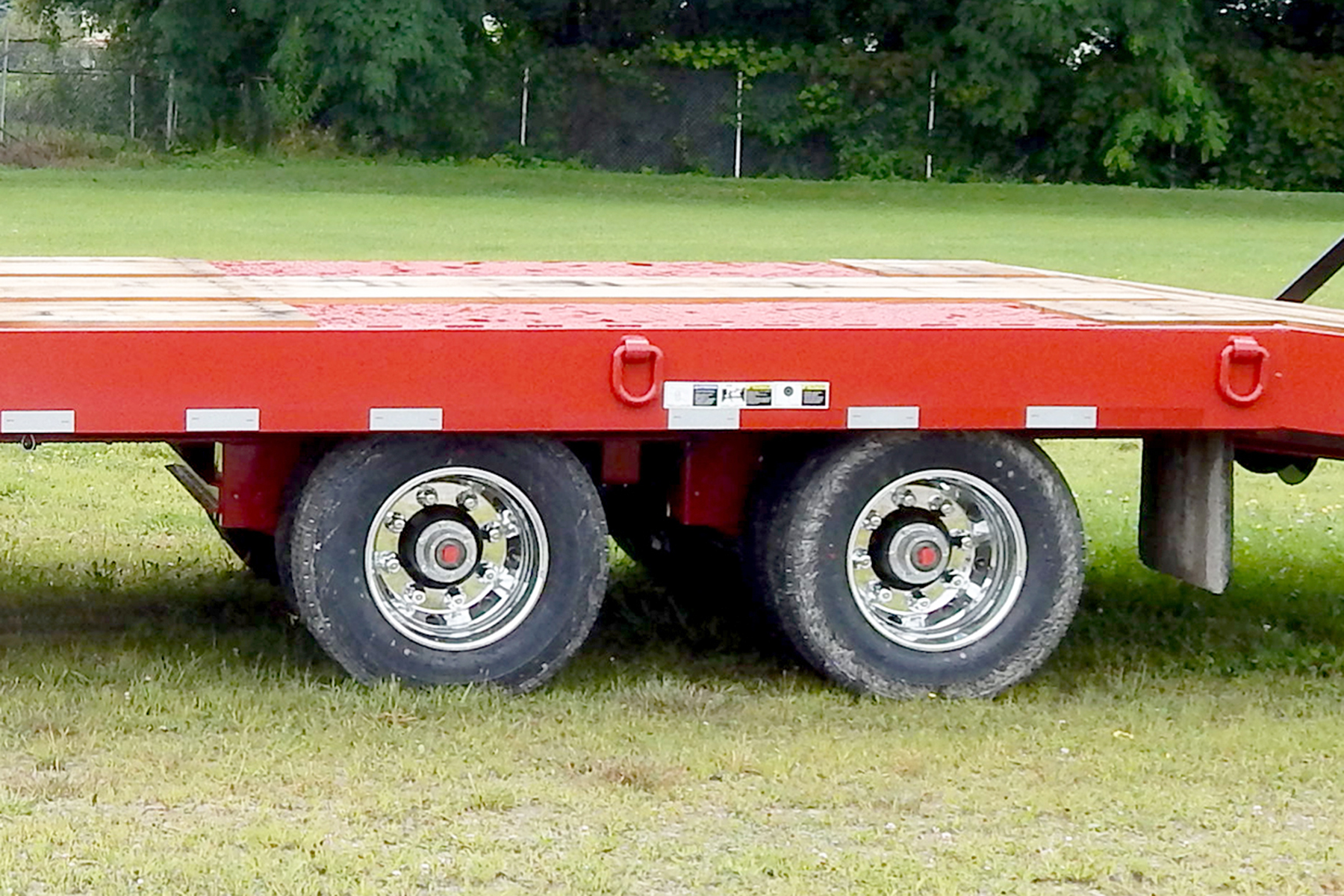

The trailer air suspension provides a smooth and stable ride. Both axles are equipped with spring parking brakes and a premium 4S/2M anti-lock braking system. Optional aluminum disc wheels (outer only) are shown. |
|
|
|
|

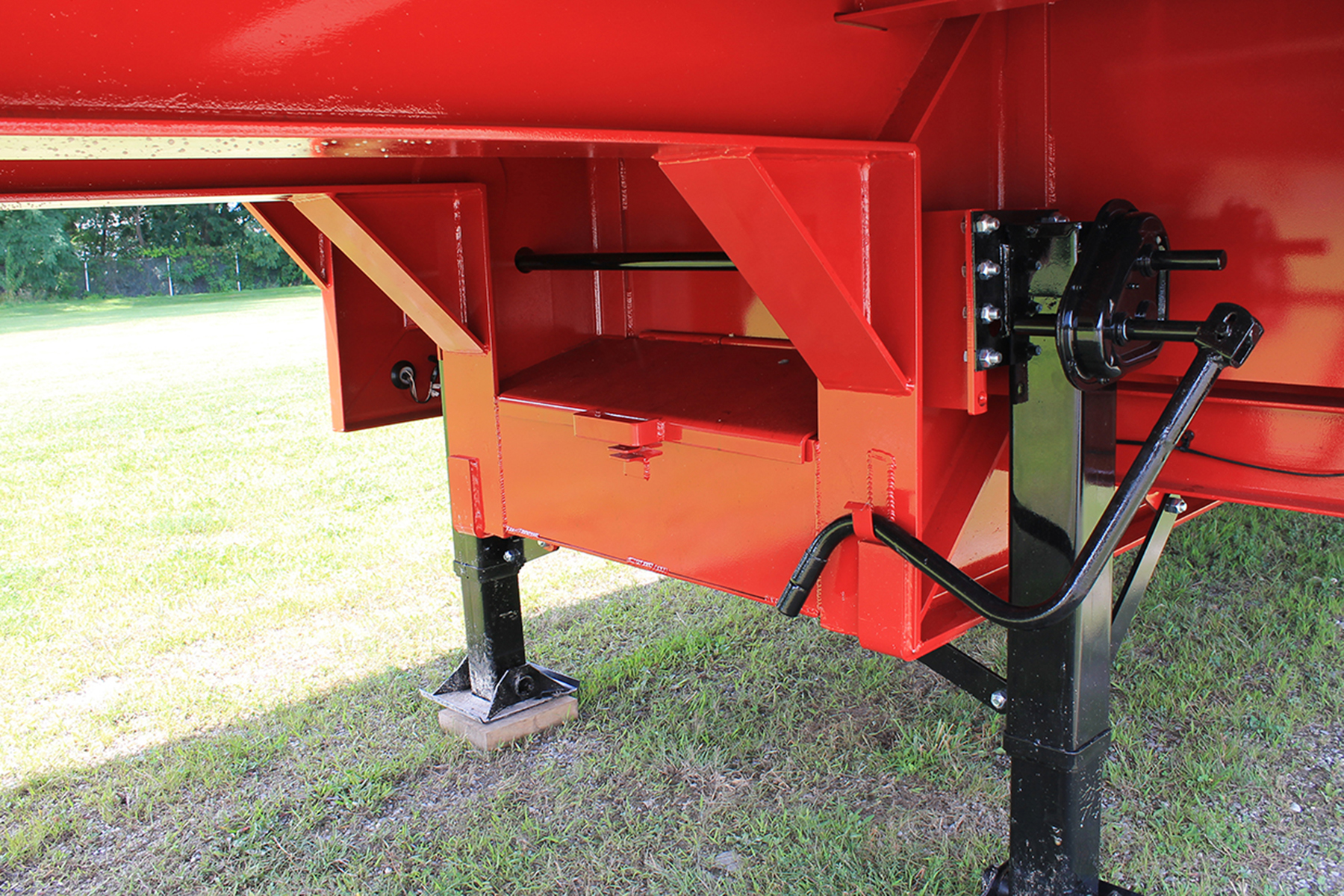

Heavy-duty two speed landing gear set and lockable steel-covered toolbox under the gooseneck are standard equipment. |
|
|
|
|

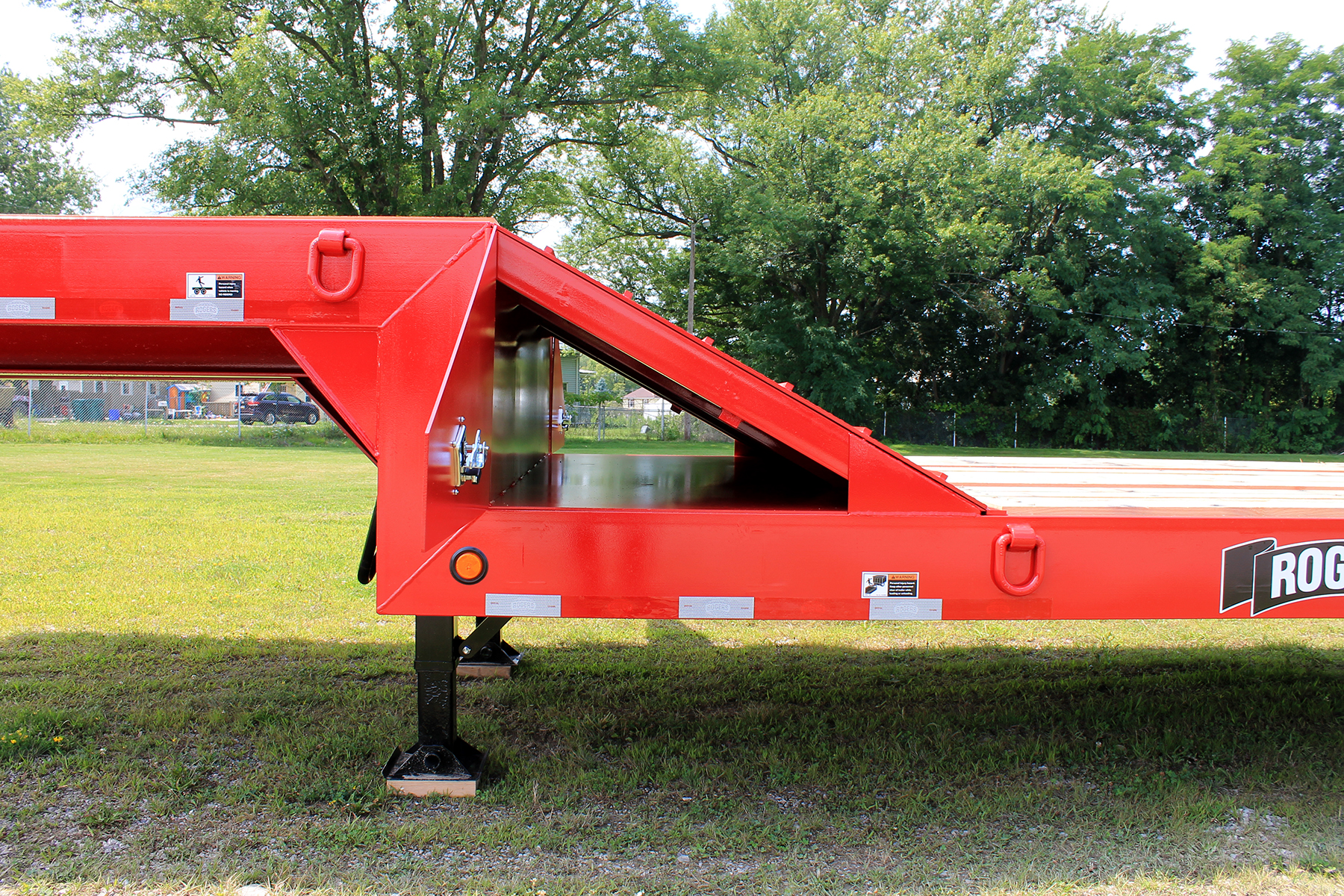

The 48-inch long x 29-degree slope deck to gooseneck ramp provides easy access to the load surface on top. Under the ramp is a full-width storage area with lockable doors on each side of the gooseneck. |
